Installation Instructions for Nissan Rogue and Nissan Rogue Select (Except Krōm)

Part Numbers:

• 75902
• 87663
• 44712

Wiring Access Location:

• SUV3, SUV4

Tools Required:

• Wrenches: 18mm, 19mm
• Drill Bits: None

Step-by-Step Instructions:

1. Remove Tow Hook:

   • Remove and return the factory tow hook and its fasteners to the vehicle owner.

2. Install Hitch:

   • On the driver’s side, raise the hitch into position and loosely install the center fastener using a hex bolt and conical washer through the elongated hole in the hitch into the vehicle frame.
   • Repeat this process on the passenger’s side.

3. Secure Remaining Hardware:

   • Center the hitch on the vehicle and install the remaining fasteners as shown in the instructions.

4. Torque Fasteners:

   • Tighten all M12 x 1.25 CL8.8 fasteners to 75 lb-ft (102 N*m) using a torque wrench.

Hardware List:

• Qty (5): Hex Bolt – M12 x 1.25 x 35mm CL8.8
• Qty (5): Conical Washer – 1/2”

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Weight Carrying (Ball Mount)
  • Max Gross Trailer Weight: 3,500 lbs (1,590 kg)
  • Max Tongue Weight: 350 lbs (159 kg)
• Weight Distributing: Not to be used with spring bars.

Manufacturer Notes:

• Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.

Installation Instructions for Vehicle (Except Krōm)

Part Numbers:

• 75902
• 87663
• 44712

Wiring Access Location:

• SUV3, SUV4

Tools Required:

• Wrenches: 18mm, 19mm
• Drill Bits: None

Step-by-Step Instructions:

1. Remove Tow Hook:

   • Remove and return the factory tow hook and its fasteners to the vehicle owner.

2. Install Hitch:

   • On the driver’s side, raise the hitch into position and loosely install the center fastener using a hex bolt and conical washer through the elongated hole in the hitch into the vehicle frame.
   • Repeat this process on the passenger’s side.

3. Secure Remaining Hardware:

   • Center the hitch on the vehicle and install the remaining fasteners as shown in the instructions.

4. Torque Fasteners:

   • Tighten all M12 x 1.25 CL8.8 fasteners to 75 lb-ft (102 N*m) using a torque wrench.

Hardware List:

• Qty (5): Hex Bolt – M12 x 1.25 x 35mm CL8.8
• Qty (5): Conical Washer – 1/2”

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Weight Carrying (Ball Mount)
  • Max Gross Trailer Weight: 3,500 lbs (1,590 kg)
  • Max Tongue Weight: 350 lbs (159 kg)
• Weight Distributing: Not to be used with spring bars.

Manufacturer Notes:

• Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Installation Instructions for T-Connector Adapter for Nissan Rogue and Infiniti G35

Part Numbers:

• 118480

Tools Required:

• Drill (3/32” Drill Bit)
• Philips Head Screwdriver
• Test Probe
• Trim Panel Puller
• Wire Crimpers
• Wire Cutters

Step-by-Step Instructions:

Nissan Rogue:

1. Prepare the Rear Cargo Area:

   • Open the rear hatch.
   • Temporarily remove the rear threshold plate, storage covers, and floor covering.
   • Partially remove the rear interior trim panels on both the driver and passenger sides of the vehicle. Carefully set aside all items removed.

2. Locate the Taillight Wiring Harness:

   • On both the driver’s and passenger’s sides of the vehicle, locate the taillight wiring harness.
   • Disconnect the connectors, ensuring no damage to the locking tabs. Clean all connector surfaces of dirt.

3. Install the Driver-Side T-Connector:

   • Plug the T-Connector end with the yellow wire between the driver’s side taillight wiring connectors.
   • Lock the connectors into place, ensuring the locking tabs are secure.

4. Route the Passenger-Side T-Connector:

   • Route the T-Connector end with the green wire to the passenger’s side behind the panels and along the threshold.
   • Repeat Step 3 using the green wire for the passenger-side taillight connectors.

Infiniti G35:

1. Access the Trunk Area:

   • Open the trunk.
   • Temporarily remove the rear threshold plate and partially remove the felt trunk liner behind the taillights.

2. Install the T-Connector:

   • Follow Steps 2-4 from the Nissan Rogue instructions for both the driver and passenger sides.

All Vehicles:

1. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as the vehicle frame or crossmember. Avoid drilling into the vehicle floor or bed.
   • Clean the grounding area and drill a 3/32” hole. Secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify what is behind the surface before drilling to avoid vehicle damage or personal injury.

2. Connect the Power Wire:

   • Inside the vehicle, connect the black 12-gauge wire to the red wire from the T-Connector black box using the provided yellow butt connector.
   • Route the black wire through a grommet or along the exterior frame to the vehicle battery.

   Warning:

   • Avoid routing near hot pipes, heat shields, fuel tanks, or other areas that could damage the wire.

3. Connect to the Battery:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Attach the yellow fuse holder to the positive (+) battery cable using the ring terminal.
   • Connect the other end of the fuse holder to the black wire using the yellow butt connector.
   • Reconnect the negative (-) battery cable and install the 10-amp fuse into the fuse holder.

4. Mount the Black Box:

   • Find a flat surface near the driver’s side taillight to mount the T-Connector black box.
   • Secure it with the provided double-sided tape and cable ties.

5. Reassemble the Vehicle:

   • Replace all trim panels, the threshold, storage covers, and floor covering removed during installation. Ensure no wires are pinched or damaged.

6. Test the Installation:

   • Test and verify the T-Connector functionality with a test light or trailer.
   • Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

   Specifications:

   • Max. stop/turn light: 1 per side (2.1 amps)
   • Max. tail lights: (5.6 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or unit specifications.
• Store the 4-flat connector in the rear cargo area when not in use.

Manufacturer Notes:

• Follow all warnings and instructions carefully.
• Refer to the vehicle owner’s manual for additional guidance.

Installation Instructions for T-Connector Adapter for Vehicle

Part Numbers:

• 118480

Tools Required:

• Drill (3/32” Drill Bit)
• Philips Head Screwdriver
• Test Probe
• Trim Panel Puller
• Wire Crimpers
• Wire Cutters

Step-by-Step Instructions:

Vehicle 1: Nissan Rogue

1. Prepare the Rear Cargo Area:

   • Open the rear hatch.
   • Temporarily remove the rear threshold plate, storage covers, and floor covering.
   • Partially remove the rear interior trim panels on both the driver and passenger sides of the vehicle. Carefully set aside all items removed.

2. Locate the Taillight Wiring Harness:

   • On both the driver’s and passenger’s sides of the vehicle, locate the taillight wiring harness.
   • Disconnect the connectors, ensuring no damage to the locking tabs. Clean all connector surfaces of dirt.

3. Install the Driver-Side T-Connector:

   • Plug the T-Connector end with the yellow wire between the driver’s side taillight wiring connectors.
   • Lock the connectors into place, ensuring the locking tabs are secure.

4. Route the Passenger-Side T-Connector:

   • Route the T-Connector end with the green wire to the passenger’s side behind the panels and along the threshold.
   • Repeat Step 3 using the green wire for the passenger-side taillight connectors.

Vehicle 2: Infiniti G35

1. Access the Trunk Area:

   • Open the trunk.
   • Temporarily remove the rear threshold plate and partially remove the felt trunk liner behind the taillights.

2. Install the T-Connector:

   • Follow Steps 2-4 from the Nissan Rogue instructions for both the driver and passenger sides.

All Vehicles:

1. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as the vehicle frame or crossmember. Avoid drilling into the vehicle floor or bed.
   • Clean the grounding area and drill a 3/32” hole. Secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify what is behind the surface before drilling to avoid vehicle damage or personal injury.

2. Connect the Power Wire:

   • Inside the vehicle, connect the black 12-gauge wire to the red wire from the T-Connector black box using the provided yellow butt connector.
   • Route the black wire through a grommet or along the exterior frame to the vehicle battery.

   Warning:

   • Avoid routing near hot pipes, heat shields, fuel tanks, or other areas that could damage the wire.

3. Connect to the Battery:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Attach the yellow fuse holder to the positive (+) battery cable using the ring terminal.
   • Connect the other end of the fuse holder to the black wire using the yellow butt connector.
   • Reconnect the negative (-) battery cable and install the 10-amp fuse into the fuse holder.

4. Mount the Black Box:

   • Find a flat surface near the driver’s side taillight to mount the T-Connector black box.
   • Secure it with the provided double-sided tape and cable ties.

5. Reassemble the Vehicle:

   • Replace all trim panels, the threshold, storage covers, and floor covering removed during installation. Ensure no wires are pinched or damaged.

6. Test the Installation:

   • Test and verify the T-Connector functionality with a test light or trailer.
   • Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

   Specifications:

   • Max. stop/turn light: 1 per side (2.1 amps)
   • Max. tail lights: (5.6 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or unit specifications.
• Store the 4-flat connector in the rear cargo area when not in use.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

• This product is covered by a [warranty period]. For complete warranty instructions, please download the full installation PDF.

Technical Support:

• For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Manufacturer Notes:

• Follow all warnings and instructions carefully.
• Refer to the vehicle owner’s manual for additional guidance.

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.

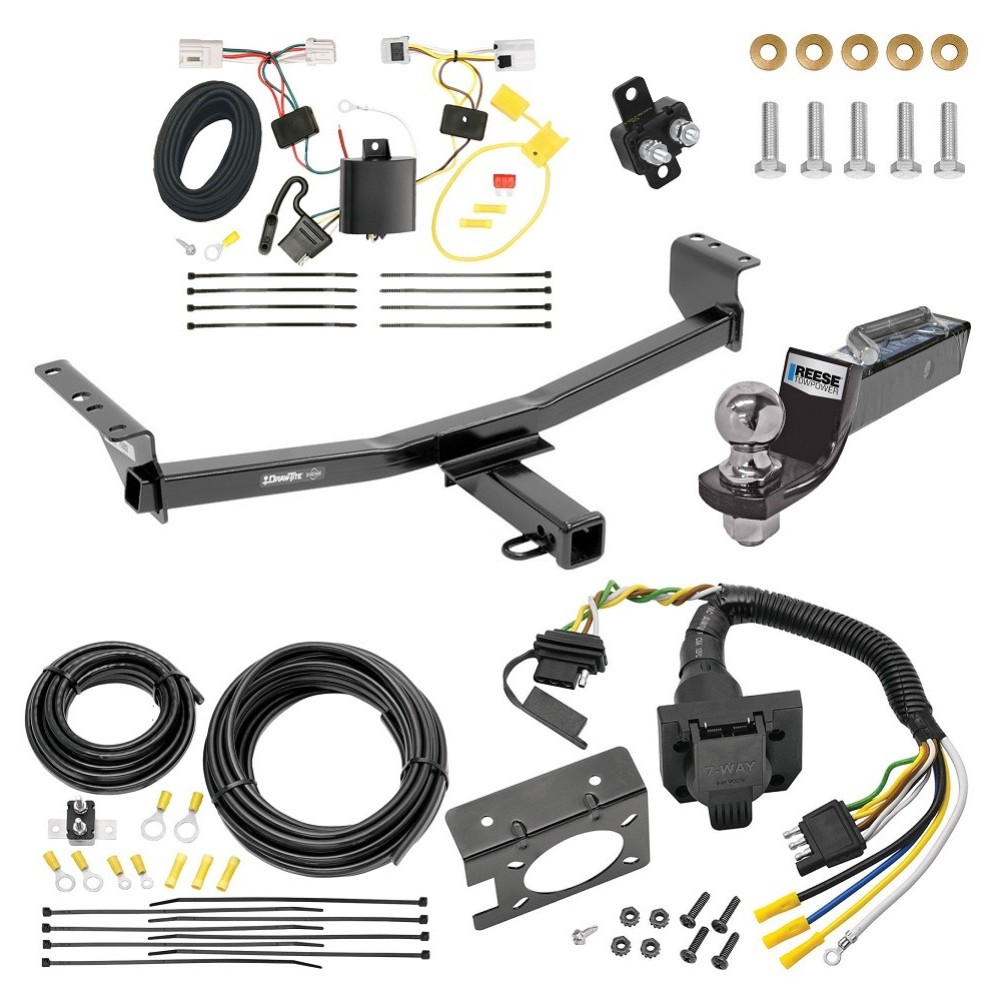

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
