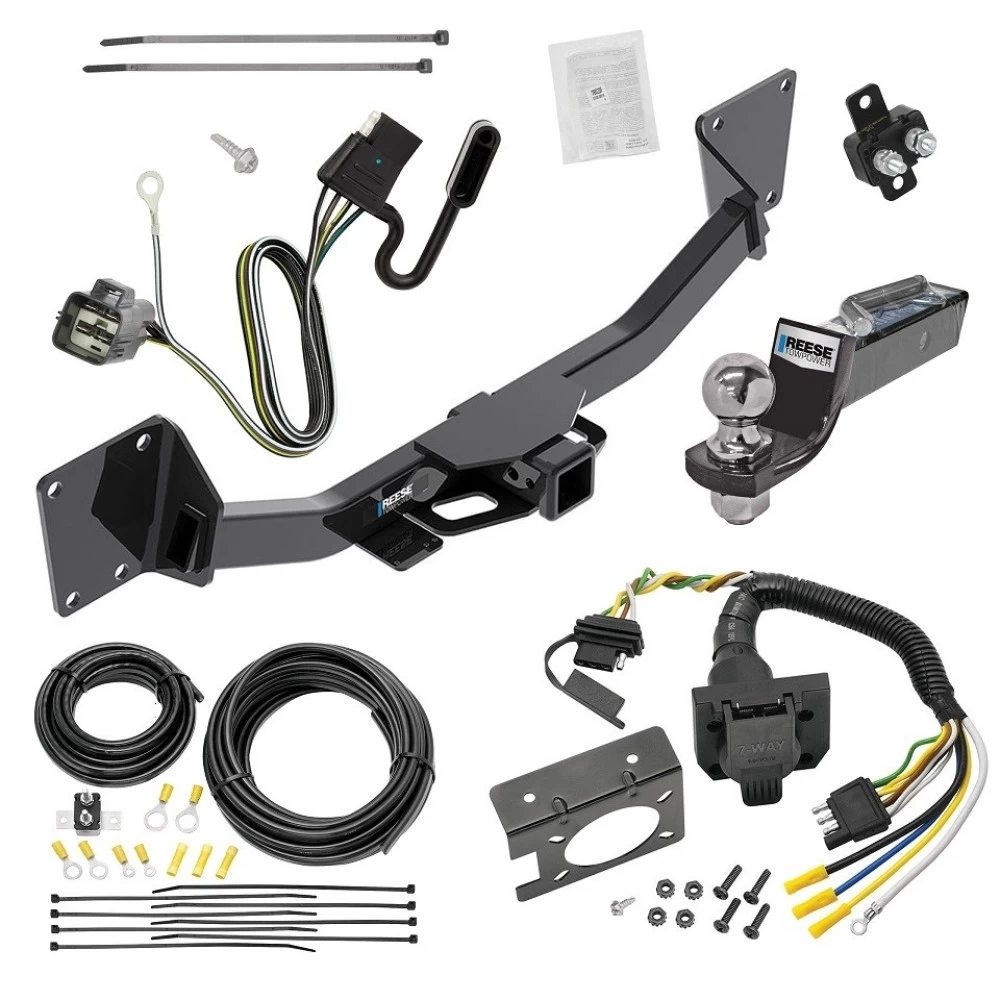

Installation Instructions for GMC Acadia (2017-Present) and Chevrolet Blazer (2019-Present)

Part Numbers:

• 76023
• 84023
• CQT76023

Tools Required:

• Safety Glasses
• Ratchet
• Torque Wrench
• Sockets: 7mm, 15mm
• T15 Torx Driver
• Plastic Trim Tools
• Utility Knife
• Marker
• Tape Measure

Weight Capacities:

• Weight Carrying:
  • Max Gross Trailer Weight: 4,500 lbs (2,043 kg)
  • Max Tongue Weight: 675 lbs (306 kg)
• Weight Distributing:
  • Max Gross Trailer Weight: 4,500 lbs (2,043 kg)
  • Max Tongue Weight: 675 lbs (306 kg)

Step-by-Step Instructions:

1. Remove Fascia Door and Bottom Fascia Support Brackets:

• Use a 7mm socket to remove (2) bolts from the bottom fascia door.
• Use a 7mm socket to remove (3) bolts from the bottom fascia support brackets on each side. If present, unclip the electrical plug.
• Return the bottom fascia support brackets to the owner.

2. Remove Fascia:

• Open the trunk and use a T15 Torx driver and 7mm socket to remove (2) bolts as shown in the manual.
• Use a Phillips screwdriver and T15 Torx driver to remove (3) bolts from the mud flaps on each side.
• Remove (1) bolt from the bottom fascia and (1) bolt from the wheel well liner on each side using the T15 Torx driver.
• Gently pull off the upper wheel well body trim piece to access (2) bolts behind it. Use a 7mm socket to remove these bolts on both sides.
• Carefully pull the fascia free, detaching attachment straps and unplugging any wiring on the driver side.
• Set the fascia and straps aside for reinstallation.

3. Remove Bumper Beam and Exhaust Hanger:

• Use a 15mm socket to remove (2) flange nuts and (2) M10 bolts from the bumper beam on each side.
• Carefully remove the bumper beam and exhaust hanger while supporting the exhaust with a stand to prevent damage.

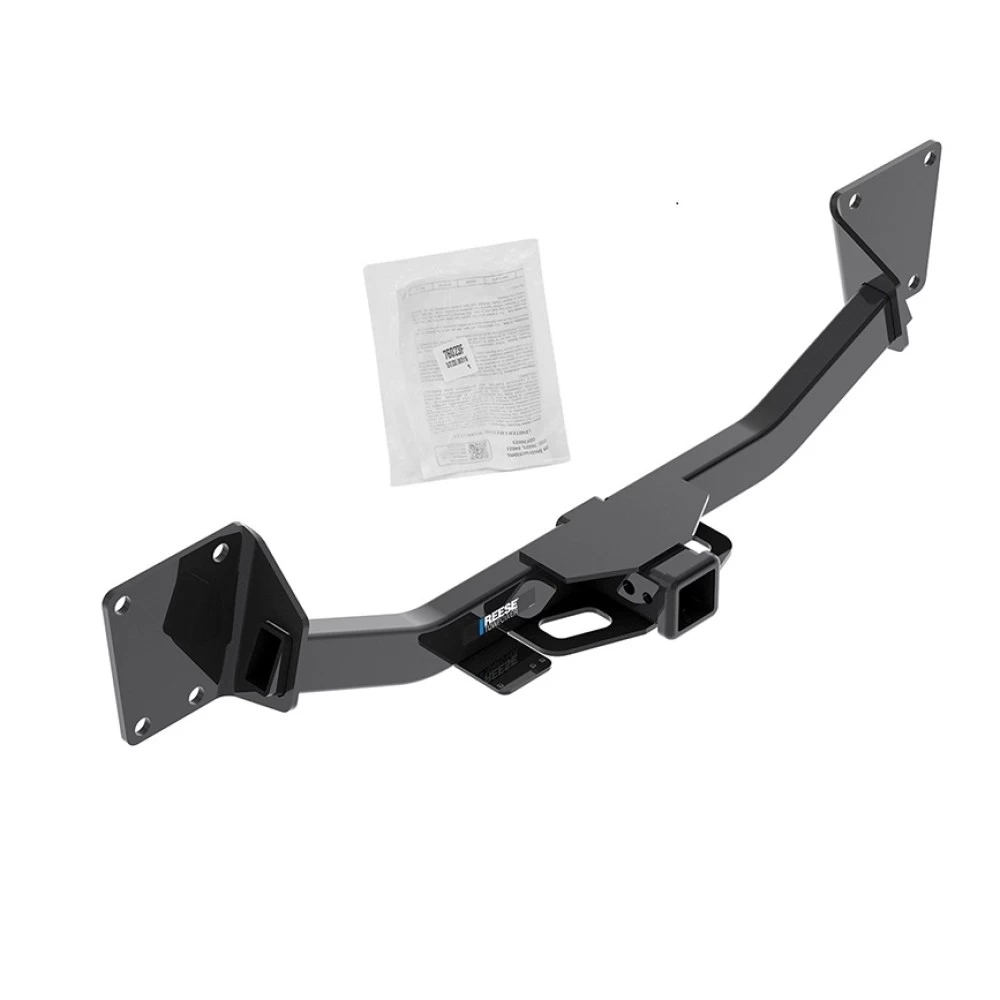

4. Install Hitch:

• Raise the hitch into position and hang it on the studs on the bumper end panel.
• Raise the bumper beam and exhaust hanger bracket to sandwich the hitch in place.
• Reuse the original fasteners to loosely attach the assembly.

5. Tighten Fasteners:

• Use a torque wrench to tighten all M10 fasteners to 53 lb-ft (72 N·m).

6. Reinstall Components:

• Reverse the steps to reinstall the fascia, mud flaps, and all other removed components.

7. Optional Fascia Door Trim:

• Mark and trim the fascia door to a size of 1.5” tall by 3.0” wide using a utility knife.
• Obtain customer approval before trimming the fascia door.
• Reinstall the trimmed fascia door.

Safety Notes:

• Regularly inspect the hitch to ensure all fasteners are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other panels to prevent water or exhaust entry.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses and follow safety precautions when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Class III
• Compliance: This product meets safety standards per V.E.S.C. Regulation V-5 and SAE J684.

Note: Always adhere to the towing vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.

Installation Instructions for Vehicle Models (2017-Present)

Part Numbers:

• 76023
• 84023
• CQT76023

Tools Required:

• Safety Glasses
• Ratchet
• Torque Wrench
• Sockets: 7mm, 15mm
• T15 Torx Driver
• Plastic Trim Tools
• Utility Knife
• Marker
• Tape Measure

Weight Capacities:

• Weight Carrying:
  • Max Gross Trailer Weight: 4,500 lbs (2,043 kg)
  • Max Tongue Weight: 675 lbs (306 kg)
• Weight Distributing:
  • Max Gross Trailer Weight: 4,500 lbs (2,043 kg)
  • Max Tongue Weight: 675 lbs (306 kg)

Step-by-Step Instructions:

1. Remove Fascia Door and Bottom Fascia Support Brackets:

• Use a 7mm socket to remove (2) bolts from the bottom fascia door.
• Use a 7mm socket to remove (3) bolts from the bottom fascia support brackets on each side. If present, unclip the electrical plug.
• Return the bottom fascia support brackets to the owner.

2. Remove Fascia:

• Open the trunk and use a T15 Torx driver and 7mm socket to remove (2) bolts as shown in the manual.
• Use a Phillips screwdriver and T15 Torx driver to remove (3) bolts from the mud flaps on each side.
• Remove (1) bolt from the bottom fascia and (1) bolt from the wheel well liner on each side using the T15 Torx driver.
• Gently pull off the upper wheel well body trim piece to access (2) bolts behind it. Use a 7mm socket to remove these bolts on both sides.
• Carefully pull the fascia free, detaching attachment straps and unplugging any wiring on the driver side.
• Set the fascia and straps aside for reinstallation.

3. Remove Bumper Beam and Exhaust Hanger:

• Use a 15mm socket to remove (2) flange nuts and (2) M10 bolts from the bumper beam on each side.
• Carefully remove the bumper beam and exhaust hanger while supporting the exhaust with a stand to prevent damage.

4. Install Hitch:

• Raise the hitch into position and hang it on the studs on the bumper end panel.
• Raise the bumper beam and exhaust hanger bracket to sandwich the hitch in place.
• Reuse the original fasteners to loosely attach the assembly.

5. Tighten Fasteners:

• Use a torque wrench to tighten all M10 fasteners to 53 lb-ft (72 N·m).

6. Reinstall Components:

• Reverse the steps to reinstall the fascia, mud flaps, and all other removed components.

7. Optional Fascia Door Trim:

• Mark and trim the fascia door to a size of 1.5” tall by 3.0” wide using a utility knife.
• Obtain customer approval before trimming the fascia door.
• Reinstall the trimmed fascia door.

Safety Notes:

• Regularly inspect the hitch to ensure all fasteners are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other panels to prevent water or exhaust entry.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses and follow safety precautions when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Class III
• Compliance: This product meets safety standards per V.E.S.C. Regulation V-5 and SAE J684.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

• Duration: 1-year limited warranty from the date of purchase.
• Coverage: Covers defects in materials and workmanship under normal use conditions.

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

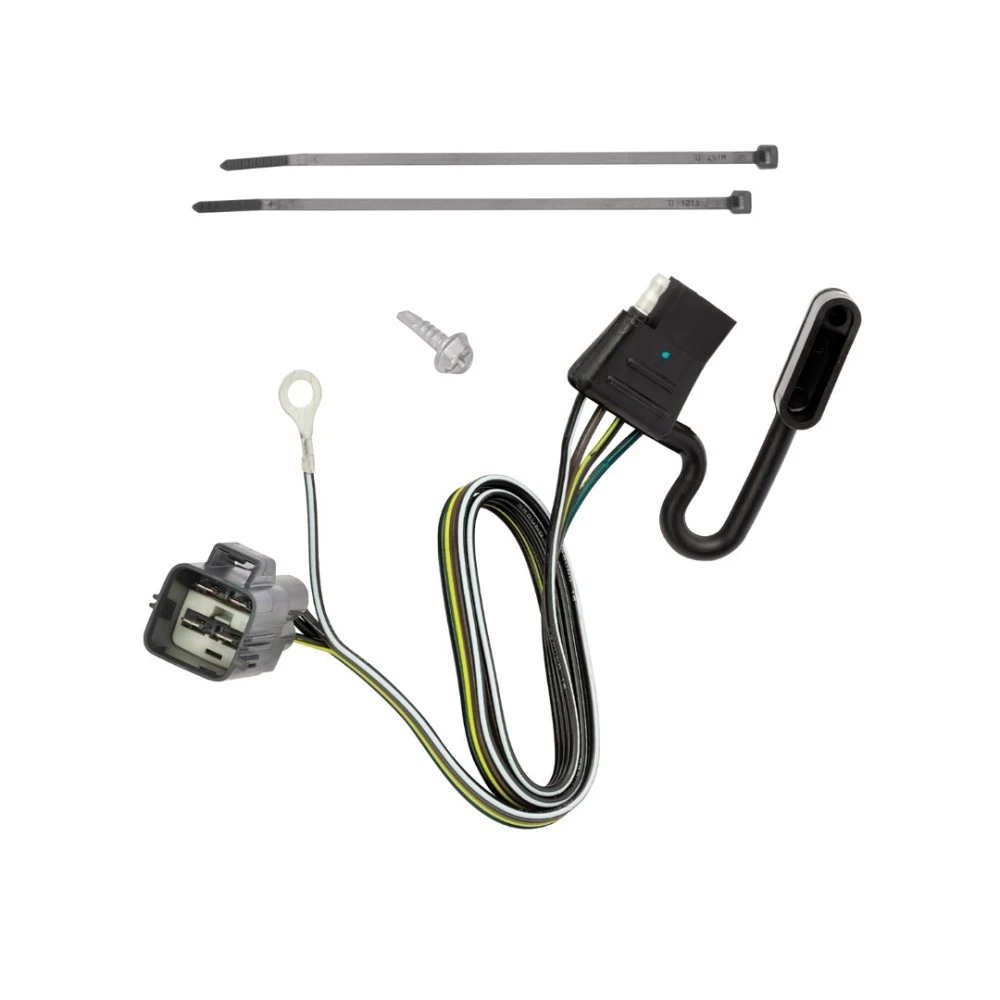

Installation Instructions for T-One® T-Connector for Cadillac XT5

Part Numbers:

• 118720

Tools Required:

• Trim Panel Puller
• Test Probe
• 7mm Socket or Wrench

Step-by-Step Instructions:

1. Remove the Access Cover:

   • Locate the access cover on the vehicle’s rear bumper area.
   • Using a 7mm socket or wrench, remove the two bolts holding the cover in place.
   • Carefully remove the cover and set it aside.

2. Locate the Tow Plug Connector:

   • Behind the access cover area, locate the gray 4-pin connector.
   • Remove the factory tow harness protective cap and clean the mating surface if dirty.
   • Insert the 4-pin tow plug adapter into the connector and lock it into place.
   • Ensure all connectors are fully inserted with locking tabs in place.

3. Secure the Wiring Harness:

   • Use the provided cable ties to secure the remainder of the T-One® T-Connector harness.
   • Avoid areas that may pinch, cut, or melt the wire.

4. Mount the 4-Flat Connector:

   • Mount the 4-flat end in an accessible location using a bracket or electrical box (not included).

5. Replace the Access Cover:

   • Reinstall the access cover removed during Step 1.

6. Test the Installation:

   • Verify all connections are complete.
   • Test the installation using a test light or trailer.
   • Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow all safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Installation Instructions for T-One® T-Connector for Cadillac XT5

Part Numbers:

• 118720

Tools Required:

• Trim Panel Puller
• Test Probe
• 7mm Socket or Wrench

Step-by-Step Instructions:

1. Remove the Access Cover:

   • Locate the access cover on the vehicle’s rear bumper area.
   • Using a 7mm socket or wrench, remove the two bolts holding the cover in place.
   • Carefully remove the cover and set it aside.

2. Locate the Tow Plug Connector:

   • Behind the access cover area, locate the gray 4-pin connector.
   • Remove the factory tow harness protective cap and clean the mating surface if dirty.
   • Insert the 4-pin tow plug adapter into the connector and lock it into place.
   • Ensure all connectors are fully inserted with locking tabs in place.

3. Secure the Wiring Harness:

   • Use the provided cable ties to secure the remainder of the T-One® T-Connector harness.
   • Avoid areas that may pinch, cut, or melt the wire.

4. Mount the 4-Flat Connector:

   • Mount the 4-flat end in an accessible location using a bracket or electrical box (not included).

5. Replace the Access Cover:

   • Reinstall the access cover removed during Step 1.

6. Test the Installation:

   • Verify all connections are complete.
   • Test the installation using a test light or trailer.
   • Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow all safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Note: Store the 4-flat connector in the rear cargo area when not in use to prevent damage.

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
