Trailer Wiring Harness Kit For 17‑23 GMC Acadia 17‑24 Cadillac XT5 20‑24 Cadillac XT6 19‑24 Chevy Blazer All Styles

Name: Trailer Wiring Kit for Cadillac XT5/XT6, GMC Acadia, Chevy Blazer
Brand: Tekonsha
Price: 25 USD
Availability: InStock
Rating: 5 (1 reviews)

Model: 118720

This Wiring Fits The Following Vehicles:

2017 - 2024 Cadillac, XT5, All Styles

2020 - 2024 Cadillac, XT6, All Styles
2017 - 2023 GMC, Acadia, All Styles
2019 - 2024 Chevrolet, Blazer, All Styles

Direct Plug & Play Wiring Kit

Part Number	118720
Brand	Tekonsha
Warranty	1 Year
Installation Instructions

Questions or Comments? Call 702-374-8999

Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.

Partial list of fitment years:
17 18 19 20 21 22 23 24 2017 2018 2019 2020 2021 2022 2023 2024

See Full Description

$25 ⁰⁰ $31.00 19% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$31.00 $25 ⁰⁰

Pay in 4 interest-free installments of $6.25 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $6.25 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Tekonsha
Model: 118720
UPC: 016118145359

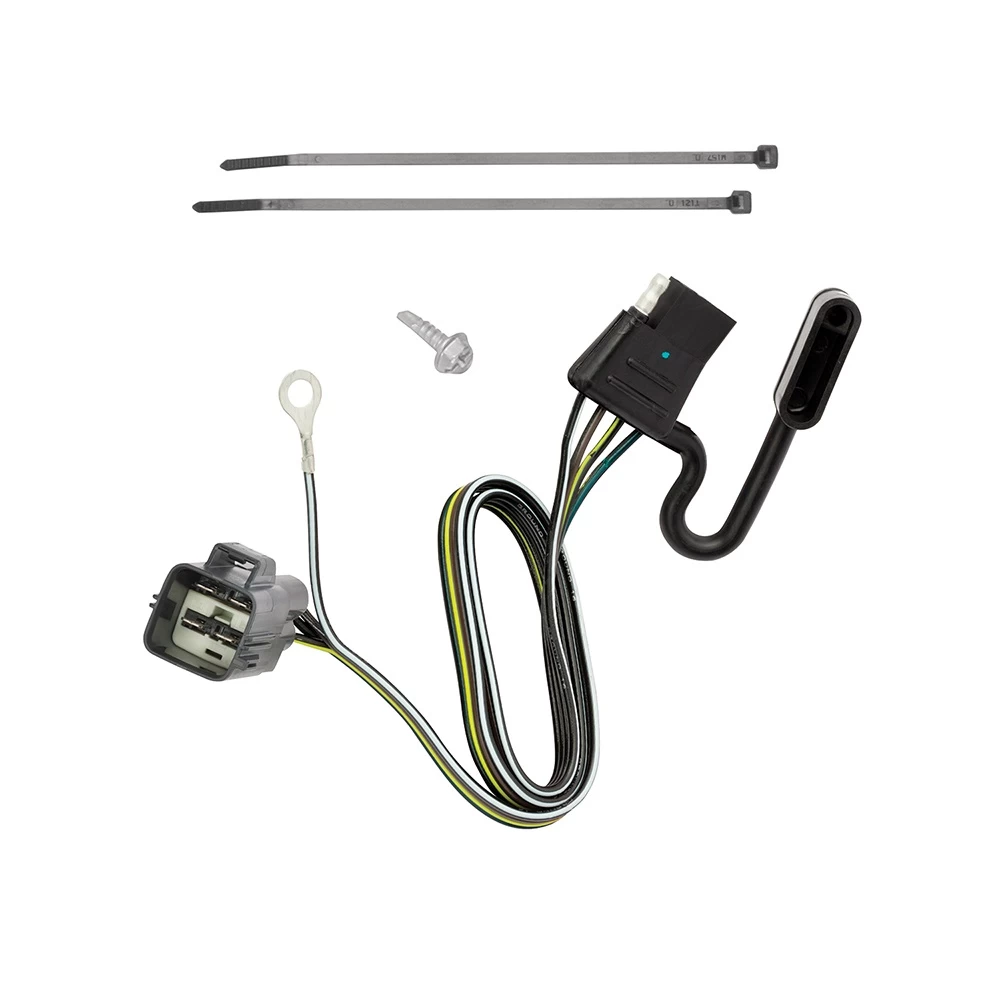

Includes: T-One T-Connector Custom Harness

Compatibility Chart

Specification
Circuit Protected	No
Hardware Included	Yes
Harness Type	4-Way Flat (Vehicle Side)
Terminal Quantity	4
Universal Or Specific Fit	Specific Fit
Wire Colors	Brown, Green, Yellow, White
Wire Quantity	4 Wires

Be the first to ask a question.

File	Size
Trailer Hitch Wiring Instructions	1.88MB	Download

Description

This Wiring Fits The Following Vehicles:

2017 - 2024 Cadillac, XT5, All Styles

2020 - 2024 Cadillac, XT6, All Styles
2017 - 2023 GMC, Acadia, All Styles
2019 - 2024 Chevrolet, Blazer, All Styles

Direct Plug & Play Wiring Kit

Part Number	118720
Brand	Tekonsha
Warranty	1 Year
Installation Instructions

Questions or Comments? Call 702-374-8999

Tags: 118720 , 2017 , 2018 , 2019 , 2020 , 2021 , 2022 , 2023 , 2024 , 17 , 18 , 19 , 20 , 21 , 22 , 23 , 24 , Cadillac , XT5 , Tekonsha , Trailer , Wiring , Harness

Get Expert Help

Trailer Wiring Harness Kit For 17-23 GMC Acadia 17-24 Cadillac XT5 20-24 Cadillac XT6 19-24 Chevy Blazer All Styles Install Notes

Installation Instructions for T-One® T-Connector for Cadillac XT5

Part Numbers:

118720

Tools Required:

Trim Panel Puller
Test Probe
7mm Socket or Wrench

Step-by-Step Instructions:

Remove the Access Cover:
- Locate the access cover on the vehicle’s rear bumper area.
- Using a 7mm socket or wrench, remove the two bolts holding the cover in place.
- Carefully remove the cover and set it aside.
Locate the Tow Plug Connector:
- Behind the access cover area, locate the gray 4-pin connector.
- Remove the factory tow harness protective cap and clean the mating surface if dirty.
- Insert the 4-pin tow plug adapter into the connector and lock it into place.
- Ensure all connectors are fully inserted with locking tabs in place.
Secure the Wiring Harness:
- Use the provided cable ties to secure the remainder of the T-One® T-Connector harness.
- Avoid areas that may pinch, cut, or melt the wire.
Mount the 4-Flat Connector:
- Mount the 4-flat end in an accessible location using a bracket or electrical box (not included).
Replace the Access Cover:
- Reinstall the access cover removed during Step 1.
Test the Installation:
- Verify all connections are complete.
- Test the installation using a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

Safety Notes:

Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
Always wear safety glasses and follow all safety precautions during installation.

Manufacturer Notes:

Refer to the vehicle owner’s manual and the instruction sheet for additional details.
Store these instructions for future reference.

Installation Instructions for T-One® T-Connector for Cadillac XT5

Part Numbers:

118720

Tools Required:

Trim Panel Puller
Test Probe
7mm Socket or Wrench

Step-by-Step Instructions:

Remove the Access Cover:
- Locate the access cover on the vehicle’s rear bumper area.
- Using a 7mm socket or wrench, remove the two bolts holding the cover in place.
- Carefully remove the cover and set it aside.
Locate the Tow Plug Connector:
- Behind the access cover area, locate the gray 4-pin connector.
- Remove the factory tow harness protective cap and clean the mating surface if dirty.
- Insert the 4-pin tow plug adapter into the connector and lock it into place.
- Ensure all connectors are fully inserted with locking tabs in place.
Secure the Wiring Harness:
- Use the provided cable ties to secure the remainder of the T-One® T-Connector harness.
- Avoid areas that may pinch, cut, or melt the wire.
Mount the 4-Flat Connector:
- Mount the 4-flat end in an accessible location using a bracket or electrical box (not included).
Replace the Access Cover:
- Reinstall the access cover removed during Step 1.
Test the Installation:
- Verify all connections are complete.
- Test the installation using a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

Safety Notes:

Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
Always wear safety glasses and follow all safety precautions during installation.

Manufacturer Notes:

Refer to the vehicle owner’s manual and the instruction sheet for additional details.
Store these instructions for future reference.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Note: Store the 4-flat connector in the rear cargo area when not in use to prevent damage.
