Reese Trailer Tow Hitch For 04-10 Toyota Sienna Complete Package w/ Wiring Draw Bar Kit and 2" Ball

Reese Trailer Tow Hitch For 04‑10 Toyota Sienna Complete Package w/ Wiring Draw Bar Kit and 2" Ball

Model: 06137 36051 118304 63820

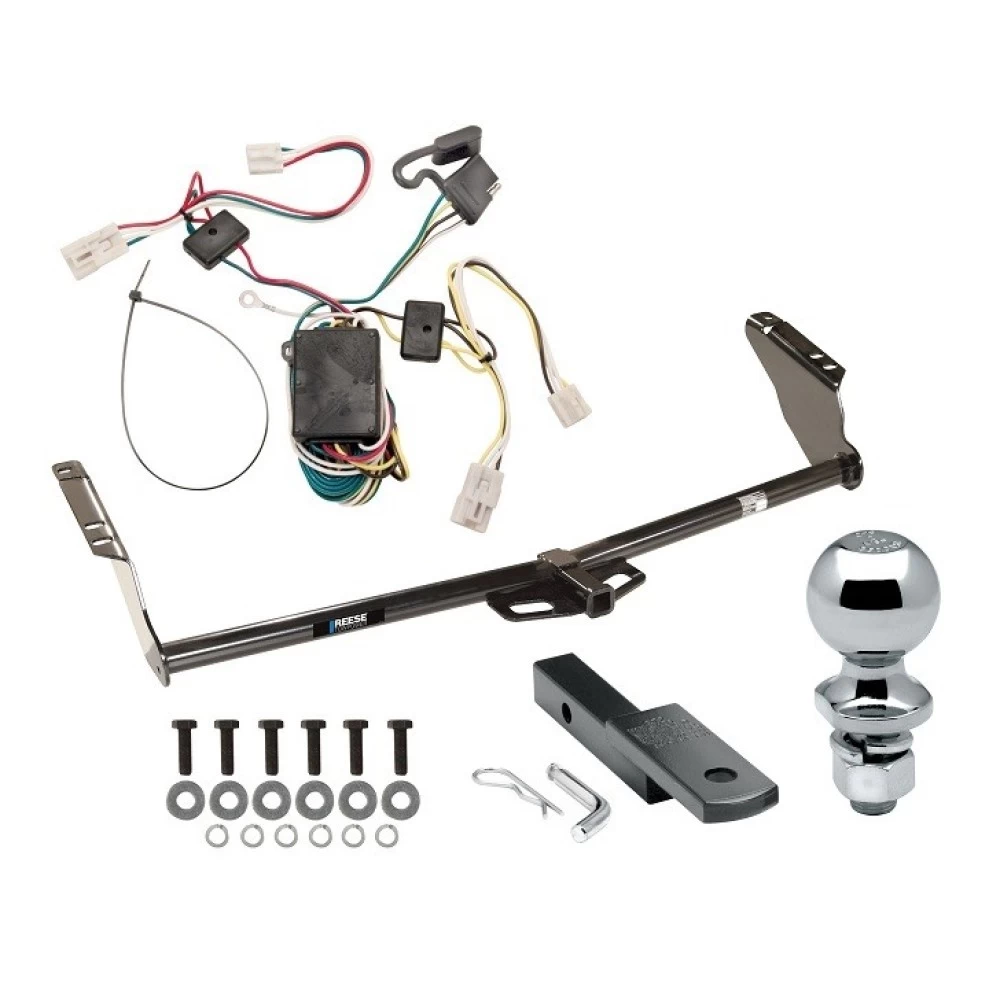

Includes Everything Pictured:

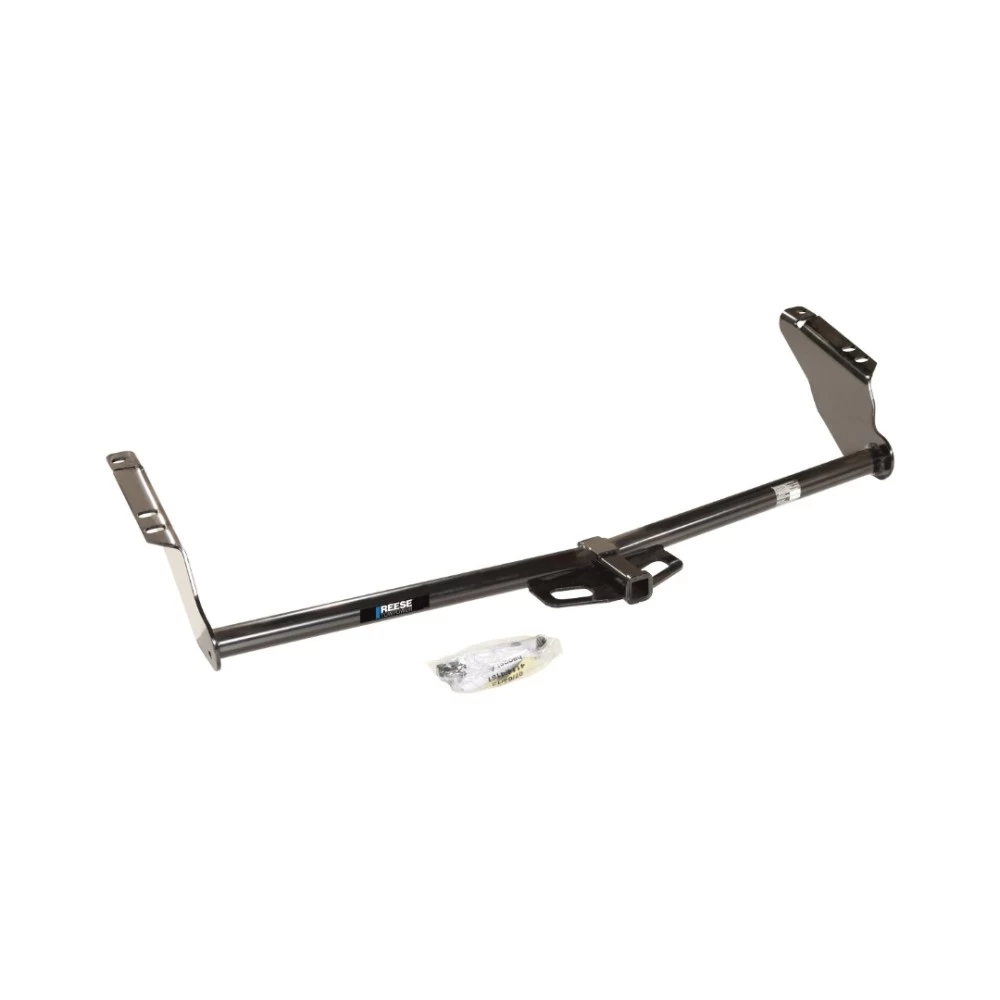

Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Plug & Play)
2" Chrome Ball
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2004 - 2010 Toyota, Sienna, All Styles

Trailer Hitch Specs:

Part Number	06137
Brand	Reese
Finish	Black Powdercoat
Class	2
Receiver size opening	1-1/4"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	300 lbs
Warranty	Lifetime

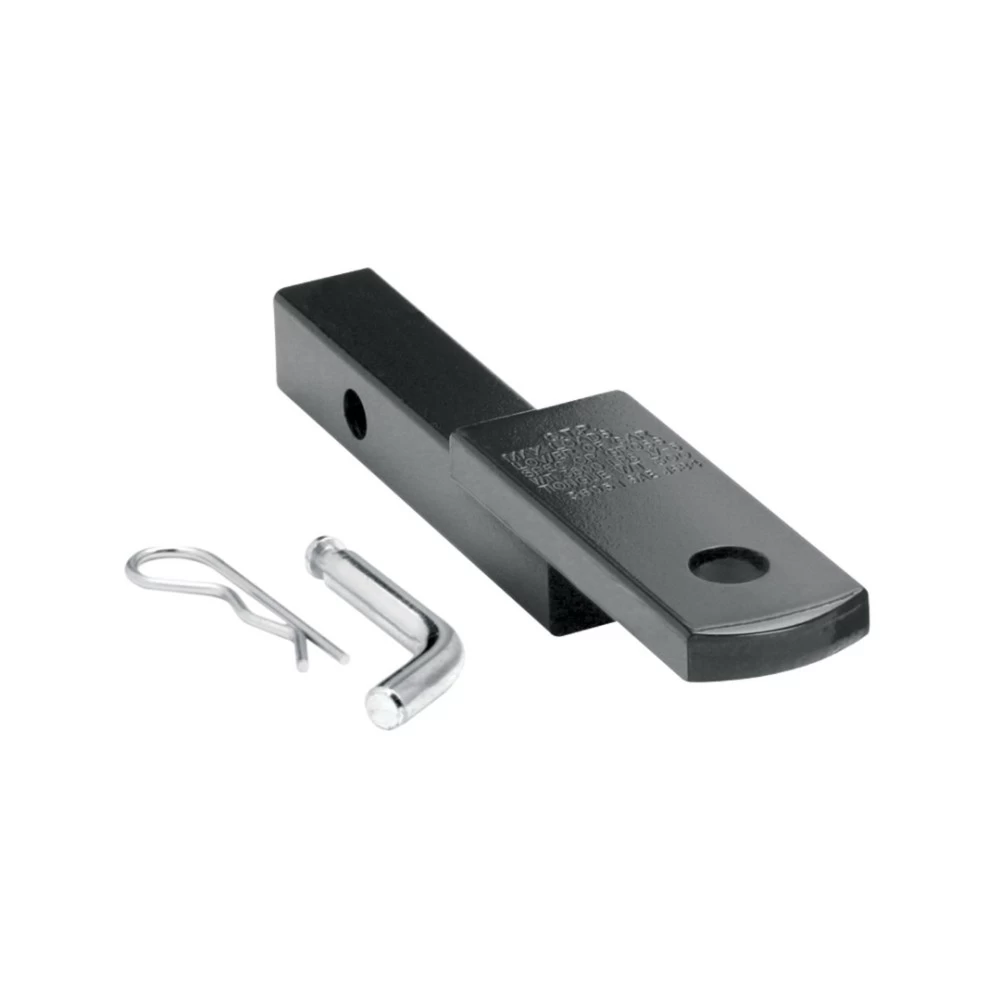

Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (pin and clip included)

Specifications:

Fits	1-1/4" x 1-1/4" Trailer Hitch Receiver
Brand	Draw-Tite
Finish	Black Powdercoat
Length	7" From Center of Pin Hole to Center of Ball Hole
Rise	5/8" From inside top of hitch opening
Towing Capacity in Rise Position	3,500 lb Gross Towing Weight 350 lb Tongue Weight
Drop	1-1/4" From inside top of hitch opening
Towing Capacity in Drop Position	3,500 lb Gross Towing Weight 350 lb Tongue Weight
Ball Hole Diameter	3/4"
Pin hole diameter	1/2"
Warranty	Limited Lifetime

Wiring Kit Specs:

Part Number	118304
Brand	Tekonsha
Warranty	1 Year

Hitch Ball Specs:

Part Number	63820
Brand	Draw-Tite
Size	2" x 3/4" x 1-1/2"
Towing Capacity	3,500 lbs. GTW
Material	Chrome
Torque	Torque to 160 ft. lbs
Shank Diameter	3/4"
Warranty	Lifetime

Questions or Comments? Call 702-374-8999

REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.

Partial list of fitment years: 04 05 06 07 08 09 10 2004 2005 2006 2007 2008 2009 2010

See Full Description

$288 ²² $447.99 36% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$447.99 $288 ²²

Pay in 4 interest-free installments of $72.00 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $72.00 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Reese
Model: 06137 36051 118304 63820
Includes: Class 2 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball

Compatibility Chart

Year Range	Make	Model	Style
2021 - 2025	Volvo	XC90	Excluding Recharge Models

Showing 1 to 1 of 1 entry

Specification
Attachment Location	Rear
Color	Black
Drawbar Included	Yes
Drilling Required	No
Gross Towing Weight	3,500 lbs.
Hitch Class	II
Material	Steel
Maximum Tongue Weight	300 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	1.25 in.
Receiver Type	Round Tube

Be the first to ask a question.

Description

Part Number	06137
Brand	Reese
Finish	Black Powdercoat
Class	2
Receiver size opening	1-1/4"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	300 lbs
Warranty	Lifetime

Specifications:

Fits	1-1/4" x 1-1/4" Trailer Hitch Receiver
Brand	Draw-Tite
Finish	Black Powdercoat
Length	7" From Center of Pin Hole to Center of Ball Hole
Rise	5/8" From inside top of hitch opening
Towing Capacity in Rise Position	3,500 lb Gross Towing Weight 350 lb Tongue Weight
Drop	1-1/4" From inside top of hitch opening
Towing Capacity in Drop Position	3,500 lb Gross Towing Weight 350 lb Tongue Weight
Ball Hole Diameter	3/4"
Pin hole diameter	1/2"
Warranty	Limited Lifetime

Wiring Kit Specs:

Part Number	118304
Brand	Tekonsha
Warranty	1 Year

Hitch Ball Specs:

Part Number	63820
Brand	Draw-Tite
Size	2" x 3/4" x 1-1/2"
Towing Capacity	3,500 lbs. GTW
Material	Chrome
Torque	Torque to 160 ft. lbs
Shank Diameter	3/4"
Warranty	Lifetime

Questions or Comments? Call 702-374-8999

Tags: 06137 , 36051 , 118304 , 63820 , Reese , Trailer , Tow , Hitch , 04-10 , Toyota , Sienna , Complete , Package , Wiring , Draw , Bar , Kit , and , 2" , Ball , 04 , 05 , 06 , 07 , 08 , 09 , 10 , 2004 , 2005 , 2006 , 2007 , 2008 , 2009 , 2010

Get Expert Help

Reese Trailer Tow Hitch For 04-10 Toyota Sienna Complete Package w/ Wiring Draw Bar Kit and 2" Ball Install Notes

Installation Instructions for Toyota Sienna

Part Numbers:

90214
36513
06137

Wiring Access Location:

SUV1, SUV2

Tools Required:

Wrenches: 10mm, 19mm
6" Ratchet Extension
Large Screwdriver
Drill Bits: None

Step-by-Step Instructions:

Remove Appearance Panel:
- For vehicles with an appearance panel covering the trunk pan:
  - Remove the panel.
  - Trim the panel or return it untrimmed to the vehicle owner based on their preference (see Figure 2).
Remove Plastic Plugs:
- Remove the plastic plugs from existing holes in the vehicle frame (if present).
Position Hitch:
- Raise the hitch into position over the exhaust pipes, aligning the slots in the hitch with the weldnuts in the frame rails.
- Lowering the exhaust may ease installation.
- Spray lubricant on the metal hanger rod and rubber isolator to help remove the exhaust.
Install Fasteners:
- Install the provided fasteners through the hitch and into the weldnuts on the frame rails as shown in Figure 1.
Tighten Fasteners:
- Use a torque wrench to tighten all M12 CL10.9 fasteners to 75 ft-lb (102 N*m).
Reinstall Components:
- Raise the exhaust back into position and reattach hangers.
- Reinstall the trimmed appearance panel or return the untrimmed panel to the vehicle owner.

Hardware List:

(6) Hex Bolt, M12 x 1.25 x 40mm CL10.9
(6) Lock Washer, 1/2"
(6) Flat Washer, 1/2"

Safety Notes:

Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Observe safety precautions when working beneath the vehicle and wear eye protection.
Do not cut access or attachment holes with a torch.

Specifications:

Max Gross Trailer Weight: 3,500 lb (1,589 kg)
Max Tongue Weight: 300 lb (136 kg)
Drawbar must be used in the RISE position only.

Additional Notes:

Drawbar Kit: 36051 (sold separately)
Fastener Kit: 36513F
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Installation Instructions for Toyota Sienna

Part Numbers:

90214
36513
06137

Wiring Access Location:

SUV1, SUV2

Tools Required:

Wrenches: 10mm, 19mm
6" Ratchet Extension
Large Screwdriver
Drill Bits: None

Step-by-Step Instructions:

Remove Appearance Panel:
- For vehicles with an appearance panel covering the trunk pan:
  - Remove the panel.
  - Trim the panel or return it untrimmed to the vehicle owner based on their preference (see Figure 2).
Remove Plastic Plugs:
- Remove the plastic plugs from existing holes in the vehicle frame (if present).
Position Hitch:
- Raise the hitch into position over the exhaust pipes, aligning the slots in the hitch with the weldnuts in the frame rails.
- Lowering the exhaust may ease installation.
- Spray lubricant on the metal hanger rod and rubber isolator to help remove the exhaust.
Install Fasteners:
- Install the provided fasteners through the hitch and into the weldnuts on the frame rails as shown in Figure 1.
Tighten Fasteners:
- Use a torque wrench to tighten all M12 CL10.9 fasteners to 75 ft-lb (102 N*m).
Reinstall Components:
- Raise the exhaust back into position and reattach hangers.
- Reinstall the trimmed appearance panel or return the untrimmed panel to the vehicle owner.

Hardware List:

(6) Hex Bolt, M12 x 1.25 x 40mm CL10.9
(6) Lock Washer, 1/2"
(6) Flat Washer, 1/2"

Safety Notes:

Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Observe safety precautions when working beneath the vehicle and wear eye protection.
Do not cut access or attachment holes with a torch.

Specifications:

Max Gross Trailer Weight: 3,500 lb (1,589 kg)
Max Tongue Weight: 300 lb (136 kg)
Drawbar must be used in the RISE position only.

Additional Notes:

Drawbar Kit: 36051 (sold separately)
Fastener Kit: 36513F
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Installation Instructions for T-Connector Adapter for Toyota Sienna

Part Numbers:

118304

Vehicle Compatibility:

Toyota Sienna

Tools Required:

10mm Socket & Ratchet or Wrench
Drill with a 3/32” Drill Bit
Test Probe

Step-by-Step Instructions:

Remove Rear Taillight Housings:
- Remove both of the vehicle’s rear taillight housings by unscrewing the two bolts holding each taillight in place.
Remove Rear Threshold:
- Unscrew the three cargo bolts and carefully pry the threshold away from the vehicle.
Access Driver’s Side Wiring:
- Carefully pull back the driver’s side trim panel, ensuring not to break any clips or tabs. If equipped with a rear speaker cover, remove screws or clips that may come off during panel removal.
Access Passenger’s Side Wiring:
- Open the vehicle’s jack storage compartment to expose the opening to the taillight assemblies.
Route Passenger Side Harness:
- From the passenger’s side, route the T-Connector’s harness ends containing the green wire out through the taillight opening.
Connect T-Connector:
- Disconnect the vehicle’s wiring harness connector from the taillight assembly. Carefully plug the T-Connector’s harness between the separated halves.
Route Driver Side Harness:
- Route the T-Connector harness containing the yellow wire across the vehicle under the threshold cover and out through the driver’s side taillight opening.
- Repeat step 6 using the harness containing the yellow wire.
Ground Connection:
- Locate a suitable grounding point near the connector, such as the vehicle’s frame or cross member. Clean dirt and rustproofing from the area.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind any surface before drilling to avoid vehicle damage or personal injury. Do not drill into exposed surfaces.
Mount the Converter Box:
- Mount the T-Connector black converter box in an out-of-the-way location on the passenger side using the provided screw or cable tie. Secure all loose wires with cable ties.
Reassembly:
- Tuck the yellow wire under the threshold panel and secure it. Reinstall the plastic trim panels, jack storage panel, and taillights.
Test the Installation:
- Test and verify the installation using a test light or trailer to ensure proper functionality.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (4.2 amps)

Hardware List:

T-Connector adapter
Eyelet and screw
Cable ties

Safety Notes:

Do not exceed the towing manufacturer’s rating or the unit specifications.
Test thoroughly after installation to ensure all connections are complete.

Manufacturer Notes:

Follow all warnings and installation instructions provided.
Store the 4-flat connector in the rear cargo area when not in use.
Refer to the vehicle owner’s manual for additional guidance.

Installation Instructions for T-Connector Adapter for Toyota Sienna

Part Numbers:

118304

Vehicle Compatibility:

Toyota Sienna

Tools Required:

10mm Socket & Ratchet or Wrench
Drill with a 3/32” Drill Bit
Test Probe

Step-by-Step Instructions:

Remove Rear Taillight Housings:
- Remove both of the vehicle’s rear taillight housings by unscrewing the two bolts holding each taillight in place.
Remove Rear Threshold:
- Unscrew the three cargo bolts and carefully pry the threshold away from the vehicle.
Access Driver’s Side Wiring:
- Carefully pull back the driver’s side trim panel, ensuring not to break any clips or tabs. If equipped with a rear speaker cover, remove screws or clips that may come off during panel removal.
Access Passenger’s Side Wiring:
- Open the vehicle’s jack storage compartment to expose the opening to the taillight assemblies.
Route Passenger Side Harness:
- From the passenger’s side, route the T-Connector’s harness ends containing the green wire out through the taillight opening.
Connect T-Connector:
- Disconnect the vehicle’s wiring harness connector from the taillight assembly. Carefully plug the T-Connector’s harness between the separated halves.
Route Driver Side Harness:
- Route the T-Connector harness containing the yellow wire across the vehicle under the threshold cover and out through the driver’s side taillight opening.
- Repeat step 6 using the harness containing the yellow wire.
Ground Connection:
- Locate a suitable grounding point near the connector, such as the vehicle’s frame or cross member. Clean dirt and rustproofing from the area.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind any surface before drilling to avoid vehicle damage or personal injury. Do not drill into exposed surfaces.
Mount the Converter Box:
- Mount the T-Connector black converter box in an out-of-the-way location on the passenger side using the provided screw or cable tie. Secure all loose wires with cable ties.
Reassembly:
- Tuck the yellow wire under the threshold panel and secure it. Reinstall the plastic trim panels, jack storage panel, and taillights.
Test the Installation:
- Test and verify the installation using a test light or trailer to ensure proper functionality.

Specifications:

Max. Stop/Turn Light: 1 per side (2.1 amps)
Max. Tail Lights: (4.2 amps)

Hardware List:

T-Connector adapter
Eyelet and screw
Cable ties

Safety Notes:

Do not exceed the towing manufacturer’s rating or the unit specifications.
Test thoroughly after installation to ensure all connections are complete.

Additional Information:

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:
For complete warranty instructions, please download the full installation PDF.

Note: Store the 4-flat connector in the rear cargo area when not in use to prevent damage.
