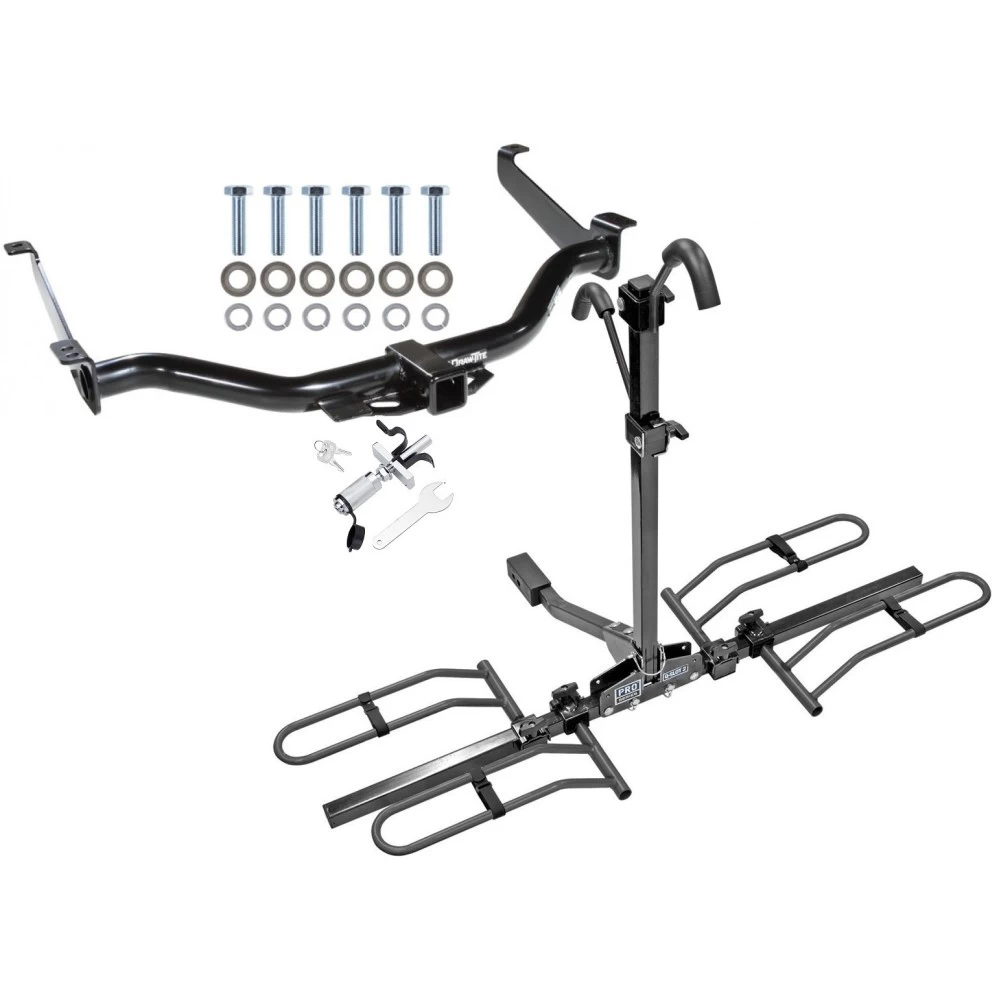

Trailer Tow Hitch For 04‑15 Nissan Titan All Styles Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock
Model: 41551 63134 63100Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Anti Rattle Device w/ 2 Keys
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2004 - 2015 Nissan, Titan, All Styles

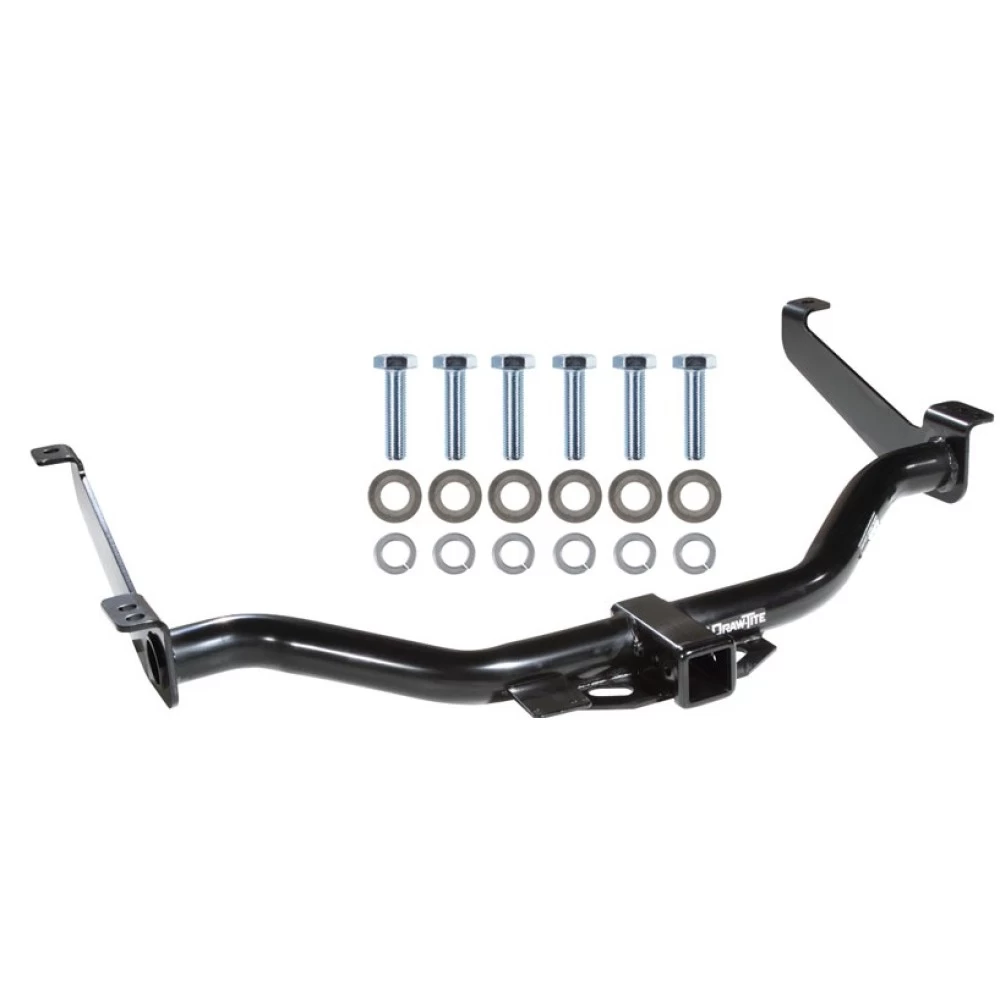

Trailer Hitch Specs:
| Part Number | 41551 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 600/1000 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Bike Rack Specs:
| Part Number | 63134 |
| Brand | Pro Series |
| Finish | Black Powdercoat |
| Number of Bikes | 2 |
| Capacity | 90 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 34.58 lbs. |
| Warranty | 1 Year Warranty |
| Installation Instructions | |
Anti-Rattle Device Specs:
| Part Number | 63100 |
| Brand | Pro Series |
| Product Description | Anti-Rattle Device for Cargo Accessories |
| Package Type | Plactic Shroud |
| Warranty | Limited 1 Year |
| Installation Instructions | |
Bike Rack Product Overview
Will not damage high-performance frames
Fully adjustable wheel slots
Center tube tilts for rear bike access
A-Coat and powder coat rust resistant finish
Rise shank for extra road clearance
Padded contact points
Tilting vertical stabilizer
Bolt-on 2" shank adapter
Compact storage
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 04 05 06 07 08 09 10 11 12 13 14 15 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015
$462 64 $741.64 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$741.64 $462 64
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $115.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 41551 63134 63100
- Includes: Class 4 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier, Lock-Tite Anti-Rattle Lock
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Anti Rattle Device w/ 2 Keys
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2004 - 2015 Nissan, Titan, All Styles
Trailer Hitch Specs:
| Part Number | 41551 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 600/1000 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Bike Rack Specs:
| Part Number | 63134 |
| Brand | Pro Series |
| Finish | Black Powdercoat |
| Number of Bikes | 2 |
| Capacity | 90 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 34.58 lbs. |
| Warranty | 1 Year Warranty |
| Installation Instructions | |
Anti-Rattle Device Specs:
| Part Number | 63100 |
| Brand | Pro Series |
| Product Description | Anti-Rattle Device for Cargo Accessories |
| Package Type | Plactic Shroud |
| Warranty | Limited 1 Year |
| Installation Instructions | |
Bike Rack Product Overview
Will not damage high-performance frames
Fully adjustable wheel slots
Center tube tilts for rear bike access
A-Coat and powder coat rust resistant finish
Rise shank for extra road clearance
Padded contact points
Tilting vertical stabilizer
Bolt-on 2" shank adapter
Compact storage
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 04 05 06 07 08 09 10 11 12 13 14 15 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015
Get Expert Help
Trailer Tow Hitch For 04-15 Nissan Titan All Styles Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock Install Notes
Installation Instructions for Nissan Titan
Part Numbers:
- 70530
- 37092
- 41551
Wiring Access Location:
- PU3
Tools Required:
- Wrenches: 19mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Tow Hook:
- If a tow hook is present, remove it and return it to the vehicle owner.
-
Position Hitch:
- Raise the hitch into position, aligning the holes in the hitch with the existing weld nuts in the vehicle’s frame rail.
-
Install Fasteners:
- Install the following hardware (hand-tighten only until all fasteners are in place):
- M12 x 1.25 x 45mm CL8.8 hex bolts
- 1/2” lock washers
- 1/2” flat washers
- Install the following hardware (hand-tighten only until all fasteners are in place):
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 CL8.8 fasteners to 68 lb-ft (92 N*m).
Torque Specifications:
- M12 CL8.8 bolts: 68 lb-ft (92 N*m)
Hardware List:
- (6) M12 x 1.25 x 45mm CL8.8 Hex Bolts
- (6) 1/2” Lock Washers
- (6) 1/2” Flat Washers
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 6,000 lb (2,724 kg)
- Max Tongue Weight: 600 lb (272 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 10,000 lb (4,540 kg)
- Max Tongue Weight: 1,000 lb (454 kg)
Additional Notes:
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Pickup Trucks
Part Numbers:
- 70530
- 37092
- 41551
Wiring Access Location:
- PU3
Tools Required:
- Wrenches: 19mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Tow Hook:
- If a tow hook is present, remove it and return it to the vehicle owner.
-
Position Hitch:
- Raise the hitch into position, aligning the holes in the hitch with the existing weld nuts in the vehicle’s frame rail.
-
Install Fasteners:
- Install the following hardware (hand-tighten only until all fasteners are in place):
- M12 x 1.25 x 45mm CL8.8 hex bolts
- 1/2” lock washers
- 1/2” flat washers
- Install the following hardware (hand-tighten only until all fasteners are in place):
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 CL8.8 fasteners to 68 lb-ft (92 N*m).
Torque Specifications:
- M12 CL8.8 bolts: 68 lb-ft (92 N*m)
Hardware List:
- (6) M12 x 1.25 x 45mm CL8.8 Hex Bolts
- (6) 1/2” Lock Washers
- (6) 1/2” Flat Washers
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 6,000 lb (2,724 kg)
- Max Tongue Weight: 600 lb (272 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 10,000 lb (4,540 kg)
- Max Tongue Weight: 1,000 lb (454 kg)
Additional Notes:
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
This product is covered by a limited warranty. For complete warranty instructions, please download the full installation PDF.
