Installation Instructions for Hyundai Veracruz

Part Numbers:

• 87439
• 75532
• 44573

Tools Required:

• Wrenches: 10mm, 14mm, 16mm
• Drill Bits: None

Wiring Access Location:

• SUV7

Step-by-Step Instructions:

1. Remove Tow Hook (if present):

   • Remove the two bolts securing the tow hook to the frame rail.
   • Lower the exhaust by detaching the rubber isolators in two locations.
   • Remove the nuts holding the heat shield in place. Keep the nut on the frame rail for reinstallation. Return the tow hook and fasteners to the vehicle owner.

2. Lower Exhaust:

   • Detach the rubber exhaust hangers to lower the rear portion of the exhaust system.

3. Remove Heat Shield Nuts:

   • Remove the outboard nuts holding the heat shield in place on both sides. Retain the nuts for reinstallation.

4. Position Hitch:

   • Rotate the hitch into position over the exhaust and align the hitch slots with the existing weld nuts on the frame.
   • Ensure the hitch is placed between the heat shield and the frame rails.

5. Install Fasteners:

   • Secure the hitch using M10 x 1.25 x 40mm bolts and conical washers into the existing weld nuts.

6. Reinstall Heat Shield Nuts:

   • Reattach the heat shield using the previously removed nuts.

7. Raise Exhaust:

   • Reinstall the exhaust hangers and ensure the exhaust system is securely back in position.

8. Torque Fasteners:

   • Using a torque wrench, tighten all M10 CL10.9 fasteners to 58 lb-ft (79 N·m).

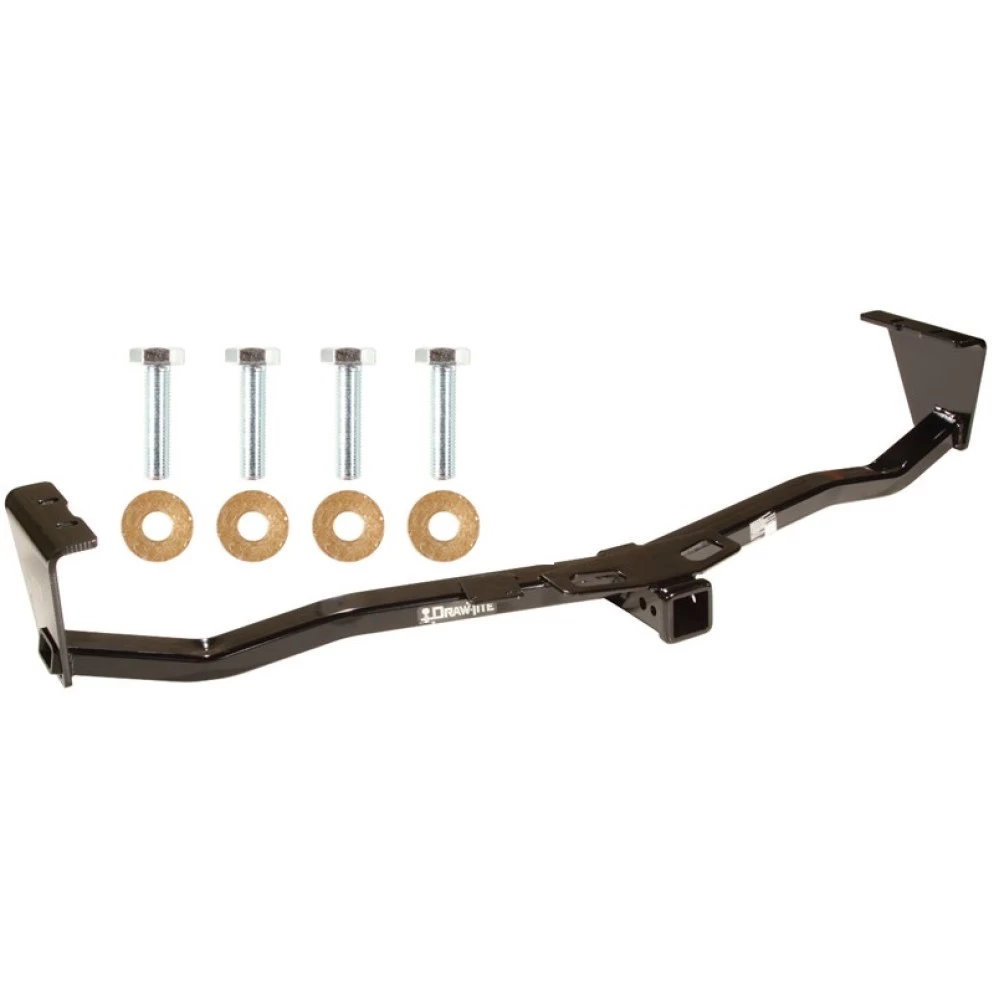

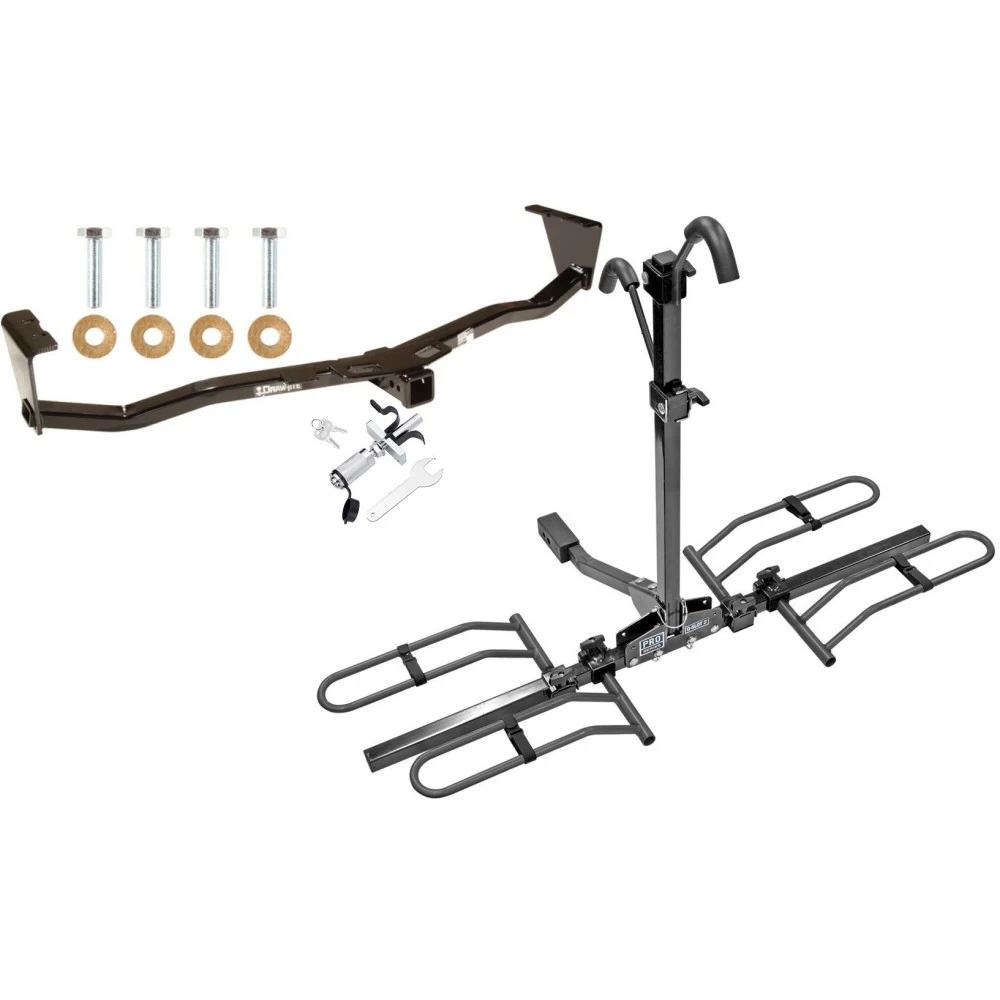

Hardware List:

• (4) M10 x 1.25 x 40mm CL10.9 Hex Bolts
• (4) Conical Washers

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Follow all safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
  • Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Installation Instructions for Vehicles (Generic)

Part Numbers:

• 87439
• 75532
• 44573

Tools Required:

• Wrenches: 10mm, 14mm, 16mm
• Drill Bits: None

Wiring Access Location:

• SUV7

Step-by-Step Instructions:

1. Remove Tow Hook (if present):

   • Remove the two bolts securing the tow hook to the frame rail.
   • Lower the exhaust by detaching the rubber isolators in two locations.
   • Remove the nuts holding the heat shield in place. Keep the nut on the frame rail for reinstallation. Return the tow hook and fasteners to the vehicle owner.

2. Lower Exhaust:

   • Detach the rubber exhaust hangers to lower the rear portion of the exhaust system.

3. Remove Heat Shield Nuts:

   • Remove the outboard nuts holding the heat shield in place on both sides. Retain the nuts for reinstallation.

4. Position Hitch:

   • Rotate the hitch into position over the exhaust and align the hitch slots with the existing weld nuts on the frame.
   • Ensure the hitch is placed between the heat shield and the frame rails.

5. Install Fasteners:

   • Secure the hitch using M10 x 1.25 x 40mm bolts and conical washers into the existing weld nuts.

6. Reinstall Heat Shield Nuts:

   • Reattach the heat shield using the previously removed nuts.

7. Raise Exhaust:

   • Reinstall the exhaust hangers and ensure the exhaust system is securely back in position.

8. Torque Fasteners:

   • Using a torque wrench, tighten all M10 CL10.9 fasteners to 58 lb-ft (79 N·m).

Hardware List:

• (4) M10 x 1.25 x 40mm CL10.9 Hex Bolts
• (4) Conical Washers

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Follow all safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Warranty Information:

• For complete warranty instructions, please download the full installation PDF.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
  • Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
• Complies with safety specifications and requirements for connecting devices and towing systems.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
