Installation Instructions for Toyota FJ Cruiser

Part Numbers:

• 44545
• 75461
• 87412

Tools Required:

• Wrenches: 19mm, 3/4"
• Torque Wrench

Wiring Access Location:

• SUV3, SUV4

Step-by-Step Instructions:

1. Remove Tie-Down Bracket:

   • If present, remove the tie-down bracket from the vehicle frame rail.
   • Discard the original bolts but retain the tie-down bracket for reinstallation with new hardware.

2. Install Carriage Bolt and Block:

   • Use the provided pull wire to feed the carriage bolt and block through the slots in the side of the frame rails.

3. Position Hitch:

   • Raise the hitch into position.
   • If necessary, lift the bumper mounting bracket over the fascia for proper alignment.
   • Secure the hitch with M12 bolts and conical washers into the existing weldnuts, ensuring that bolts are not pushed into the frame.

4. Hand-Tighten Bolts:

   • Hand-tighten all bolts to hold the hitch in place.

5. Torque Fasteners:

   • Use a torque wrench to tighten all fasteners to the following specifications:
     • 1/2-13 GR5 fasteners: 75 lb-ft
     • M12 CL10.9 fasteners: 75 lb-ft

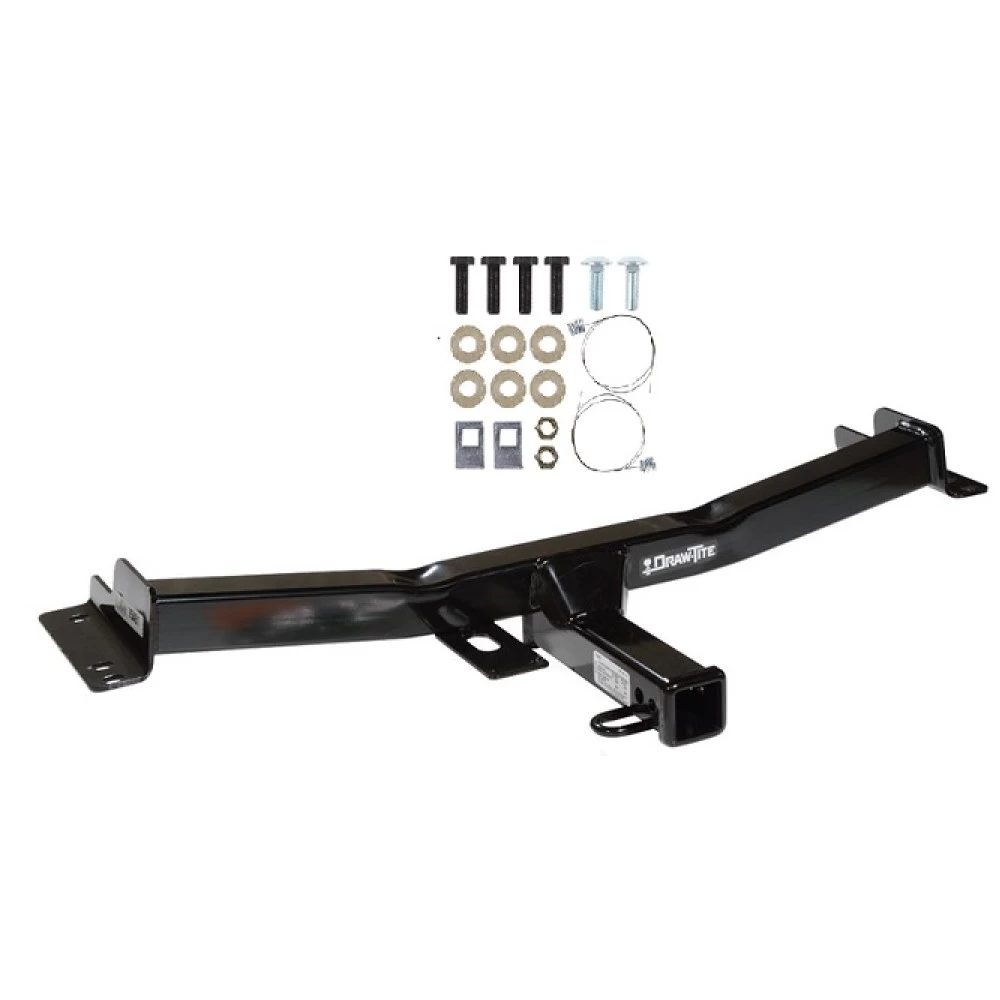

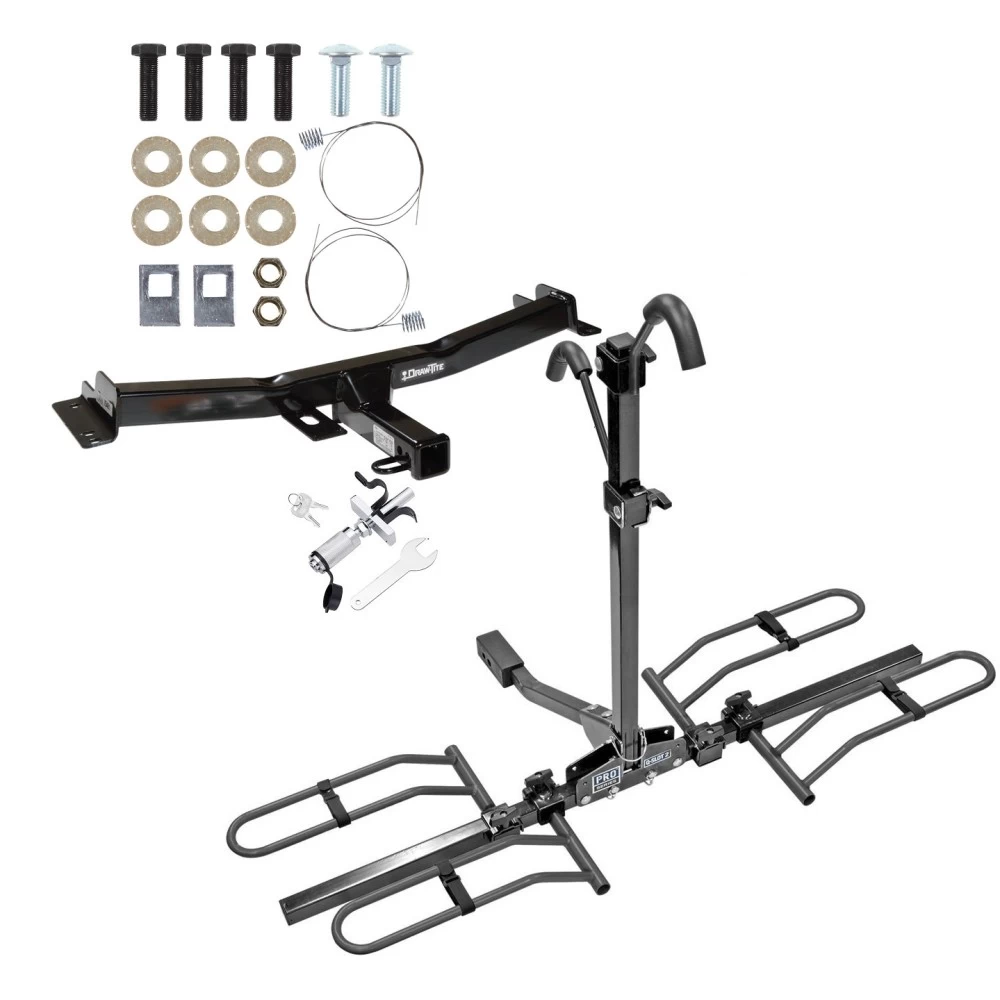

Hardware List:

• (4) M12 Hex Bolts
• (6) Conical Washers
• (2) 1/2-13 Carriage Bolts
• (2) 1/2-13 Hex Nuts
• (2) 1” x 1.5” Spacer Blocks
• (2) Pull Wires

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Follow all safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Distributing: Max Trailer Weight 6,000 lbs, Max Tongue Weight 600 lbs
  • Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs, Max Tongue Weight 500 lbs
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Installation Instructions for Vehicles (Generic)

Part Numbers:

• 44545
• 75461
• 87412

Tools Required:

• Wrenches: 19mm, 3/4"
• Torque Wrench

Wiring Access Location:

• SUV3, SUV4

Step-by-Step Instructions:

1. Remove Tie-Down Bracket:

   • If present, remove the tie-down bracket from the vehicle frame rail.
   • Discard the original bolts but retain the tie-down bracket for reinstallation with new hardware.

2. Install Carriage Bolt and Block:

   • Use the provided pull wire to feed the carriage bolt and block through the slots in the side of the frame rails.

3. Position Hitch:

   • Raise the hitch into position.
   • If necessary, lift the bumper mounting bracket over the fascia for proper alignment.
   • Secure the hitch with M12 bolts and conical washers into the existing weldnuts, ensuring that bolts are not pushed into the frame.

4. Hand-Tighten Bolts:

   • Hand-tighten all bolts to hold the hitch in place.

5. Torque Fasteners:

   • Use a torque wrench to tighten all fasteners to the following specifications:
     • 1/2-13 GR5 fasteners: 75 lb-ft
     • M12 CL10.9 fasteners: 75 lb-ft

Hardware List:

• (4) M12 Hex Bolts
• (6) Conical Washers
• (2) 1/2-13 Carriage Bolts
• (2) 1/2-13 Hex Nuts
• (2) 1” x 1.5” Spacer Blocks
• (2) Pull Wires

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Follow all safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Warranty Information:

• For complete warranty instructions, please download the full installation PDF.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Distributing: Max Trailer Weight 6,000 lbs, Max Tongue Weight 600 lbs
  • Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs, Max Tongue Weight 500 lbs
• Complies with safety specifications and requirements for connecting devices and towing systems.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
