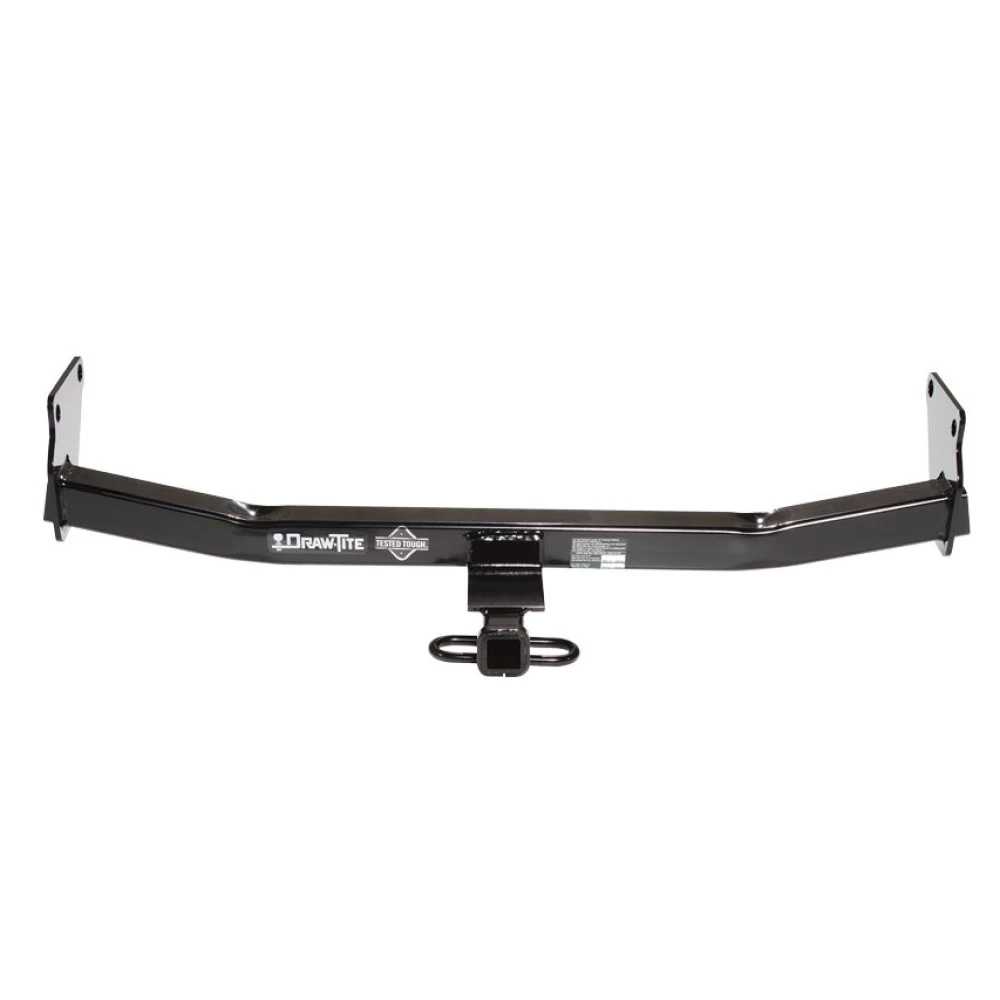

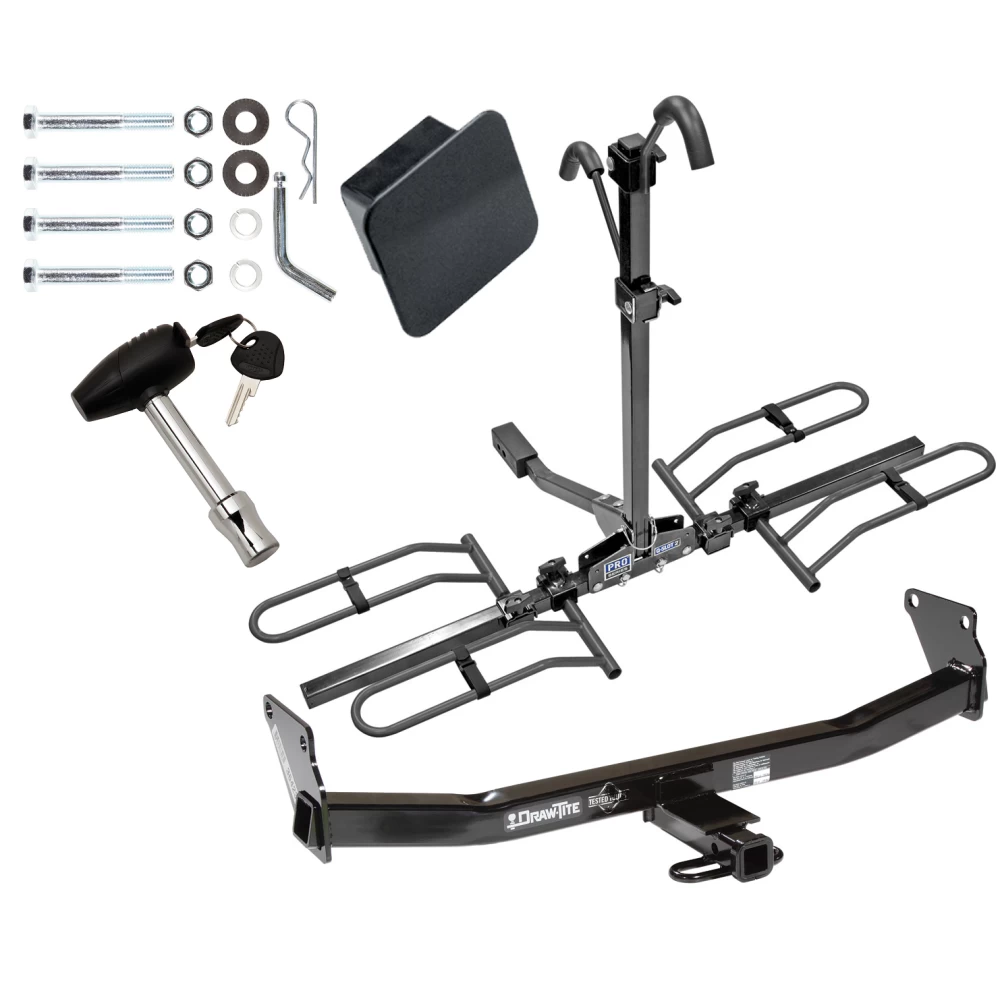

Installation Instructions for Jeep Compass (Including Rallye Package) and Jeep Patriot (Including Optional Tow Hook)

Part Numbers:

• 36423
• 90156
• 06428

Wiring Access Location:

• SUV1, SUV2

Tools Required:

• Wrenches: 22mm, 16mm (for optional tow hook)
• Drill Bits: 5/8" (only for reinstalling the tow hook on Patriot with optional tow hook)
• Cutting Tool: For fascia trimming on Compass Rallye and 2011+ Patriot and Compass models

Step-by-Step Instructions:

1. Lower Exhaust (Optional):

   • If needed, lower the exhaust by removing the rubber hanger from the hanger bracket.
   • Use lubricant or soapy water to ease removal.

2. Remove Optional Tow Hook (Patriot Only):

   • If the vehicle has an optional tow hook on the driver side, remove it.
   • To reinstall the tow hook:
     • Press/drive out existing knurled neck bolts.
     • Drill out the holes using a 5/8" drill bit.
     • Use the supplied M14 bolts to reinstall.

3. Trim Fascia:

   • For 2011+ Jeep Patriot and Compass models, fascia trimming is required:
     • Obtain vehicle owner approval before cutting.
     • Trim a 2" vertical section from the bottom lip of the fascia.
     • On Compass Rallye models, trim a 2-1/4" wide by 2" high section to allow clearance for the hitch receiver.

4. Install Hitch:

   • Place M14 hex bolts through the frame bushings from the outboard side.
   • Raise the hitch into position and push the M14 bolts through the hitch frame brackets.
   • Attach remaining hardware (washers, lock washers, and hex nuts) as shown in the instructions.

5. Reinstall Components:

   • Raise the exhaust back into position and secure with rubber hangers.

Torque Specifications:

• Tighten all M14 fasteners to 100 ft-lb (136 N*m).

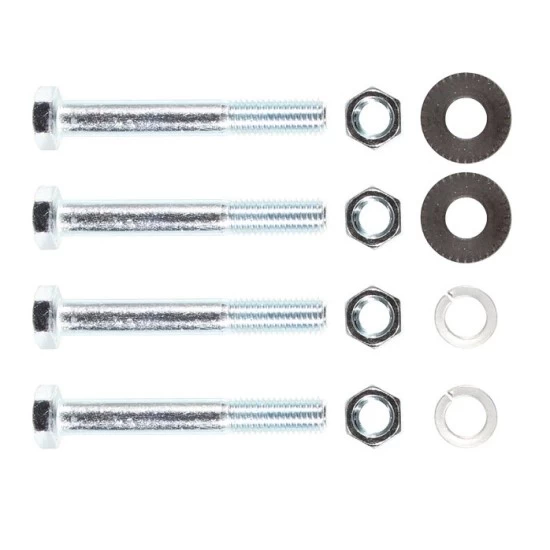

Hardware List:

• (4) M14 x 120 x 2 Hex Bolts
• (2) 5/8" Conical Washers
• (2) 5/8" Lock Washers
• (4) M14 x 2.0 Hex Nuts

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath a vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight: 3,500 lb (1,589 kg)
• Max Tongue Weight: 300 lb (136 kg)
• Drawbar must be used in the RISE position only.

Additional Notes:

• Drawbar Kit: 36061 (sold separately)
• Fastener Kit: 36423F
• This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Installation Instructions for Jeep Compass (Including Rallye Package) and Jeep Patriot (Including Optional Tow Hook)

Part Numbers:

• 36423
• 90156
• 06428

Wiring Access Location:

• SUV1, SUV2

Tools Required:

• Wrenches: 22mm, 16mm (for optional tow hook)
• Drill Bits: 5/8" (only for reinstalling the tow hook on Patriot with optional tow hook)
• Cutting Tool: For fascia trimming on Compass Rallye and 2011+ Patriot and Compass models

Step-by-Step Instructions:

1. Lower Exhaust (Optional):

   • If needed, lower the exhaust by removing the rubber hanger from the hanger bracket.
   • Use lubricant or soapy water to ease removal.

2. Remove Optional Tow Hook (Patriot Only):

   • If the vehicle has an optional tow hook on the driver side, remove it.
   • To reinstall the tow hook:
     • Press/drive out existing knurled neck bolts.
     • Drill out the holes using a 5/8" drill bit.
     • Use the supplied M14 bolts to reinstall.

3. Trim Fascia:

   • For 2011+ Jeep Patriot and Compass models, fascia trimming is required:
     • Obtain vehicle owner approval before cutting.
     • Trim a 2" vertical section from the bottom lip of the fascia.
     • On Compass Rallye models, trim a 2-1/4" wide by 2" high section to allow clearance for the hitch receiver.

4. Install Hitch:

   • Place M14 hex bolts through the frame bushings from the outboard side.
   • Raise the hitch into position and push the M14 bolts through the hitch frame brackets.
   • Attach remaining hardware (washers, lock washers, and hex nuts) as shown in the instructions.

5. Reinstall Components:

   • Raise the exhaust back into position and secure with rubber hangers.

Torque Specifications:

• Tighten all M14 fasteners to 100 ft-lb (136 N*m).

Hardware List:

• (4) M14 x 120 x 2 Hex Bolts
• (2) 5/8" Conical Washers
• (2) 5/8" Lock Washers
• (4) M14 x 2.0 Hex Nuts

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath a vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight: 3,500 lb (1,589 kg)
• Max Tongue Weight: 300 lb (136 kg)
• Drawbar must be used in the RISE position only.

Additional Notes:

• Drawbar Kit: 36061 (sold separately)
• Fastener Kit: 36423F
• This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
