Product Details
- Brand: Reese
- Model: 77168
- UPC: 016118062144

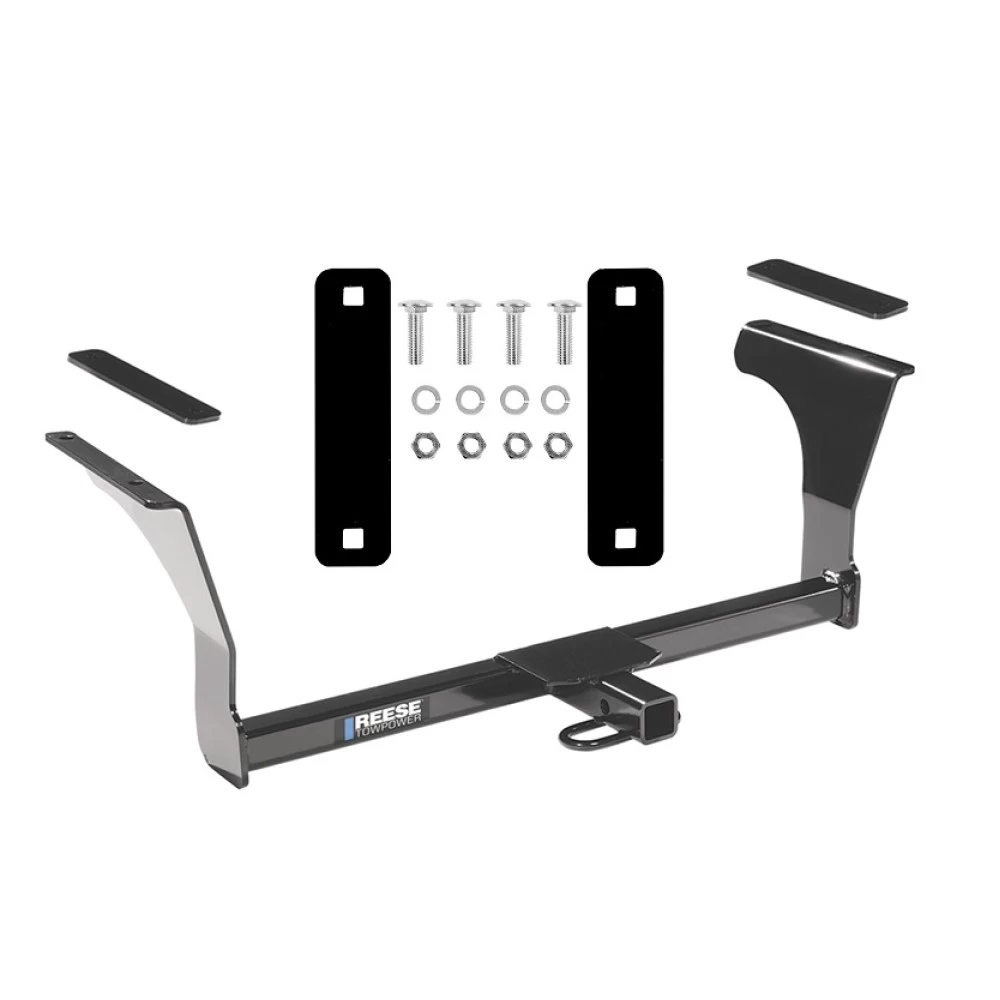

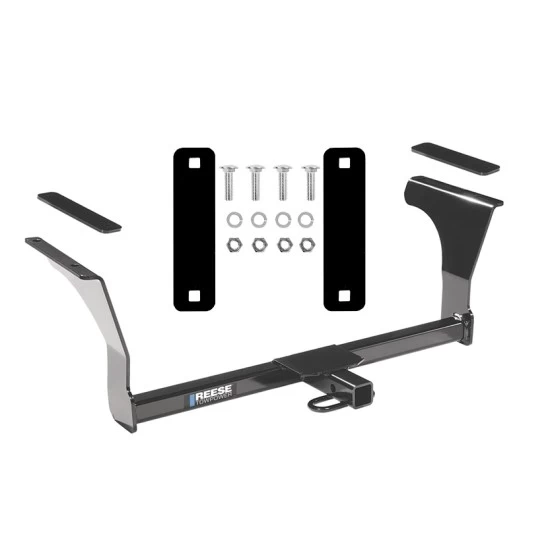

- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
Get Expert Help
Trailer Tow Hitch For 07-24 Nissan Altima 09-23 Maxima Class I 1-1/4" Receiver Reese Install Notes
Installation Instructions for Nissan Altima and Nissan Maxima
Part Numbers:
- 60873
- 24796
- 77168
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 11/16”, 5/8”, 16mm
- Drill Bits: 7/16”
- Sealant
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Prepare Trunk Area:
- Remove carpeting, fiberboard, and storage bin tray (if present) from the trunk.
-
Remove Ground Wire:
- Detach the ground wire from the driver’s side muffler.
-
Disconnect Exhaust:
- For 2007-2011 Models:
- Disconnect the exhaust at the flange on both sides and retain the fasteners.
- For 2012 and Later Models:
- Disconnect the exhaust at the lap joint on both sides and retain the fasteners.
- For 2007-2011 Models:
-
Expose Frame Area:
- Push the exhaust toward the rear of the vehicle and off the rubber isolator.
- Gently move the heat shield toward the frame rail to expose the area between the frame rail and wheel well.
-
Position Hitch:
- Raise the hitch into position between the frame rails and spare tire wheel well.
- Align the rear edge of the hitch side brackets flush with the bulkhead.
- Verify the hitch is properly positioned.
-
Mark and Drill Holes:
- Using the hitch as a template, mark and center punch two (2) holes on both sides.
- Lower the hitch and drill 7/16” holes through the trunk pan at the marked locations. Adjust alignment if needed, and remove burrs.
-
Install Plates and Bolts:
- Position the provided plate over the drilled holes inside the trunk.
- Insert carriage bolts through the plate and trunk pan. Ensure the installation is above the carpet.
-
Attach Hitch:
- Raise the hitch into position, align it over the carriage bolts, and secure with lock washers and hex nuts.
-
Reattach Components:
- Gently bend the heat shield back into place.
- Reattach the exhaust to the rubber isolator and the flange/lap joint.
- Reinstall the ground wire to the muffler.
-
Seal Bolts:
- Apply sealant to the bolt attachments inside the spare tire well to prevent water and exhaust fumes from entering the vehicle.
-
Reinstall Trunk Components:
- Replace the carpeting, fiberboard, and storage bin tray (if present).
Hardware List:
- (4) Carriage Bolts: 7/16”-14 x 1.50” GR5
- (4) Nuts: 7/16”-14
- (4) Lock Washers
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
- If the hitch is removed, plug any holes in the trunk pan to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working under the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3594
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Tighten all 7/16”-14 GR5 fasteners to 50 Lb.-Ft. (68 N*M) using a torque wrench.
- Check the hitch frequently to ensure all fasteners remain tight.
Installation Instructions
Part Numbers:
- 60873
- 24796
- 77168
Wiring Access Location:
- Hyundai Elantra and Kia Rio 5: PC3, PC4
- Hyundai Accent: PC1, PC2
Tools Required:
- Wrenches: 11/16”, 5/8”, 16mm
- Drill Bits: 7/16”
- Sealant
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Prepare Trunk Area:
- Remove carpeting, fiberboard, and storage bin tray (if present) from the trunk.
-
Remove Ground Wire:
- Detach the ground wire from the driver’s side muffler.
-
Disconnect Exhaust:
- For 2007-2011 Models:
- Disconnect the exhaust at the flange on both sides and retain the fasteners.
- For 2012 and Later Models:
- Disconnect the exhaust at the lap joint on both sides and retain the fasteners.
- For 2007-2011 Models:
-
Expose Frame Area:
- Push the exhaust toward the rear of the vehicle and off the rubber isolator.
- Gently move the heat shield toward the frame rail to expose the area between the frame rail and wheel well.
-
Position Hitch:
- Raise the hitch into position between the frame rails and spare tire wheel well.
- Align the rear edge of the hitch side brackets flush with the bulkhead.
- Verify the hitch is properly positioned.
-
Mark and Drill Holes:
- Using the hitch as a template, mark and center punch two (2) holes on both sides.
- Lower the hitch and drill 7/16” holes through the trunk pan at the marked locations. Adjust alignment if needed, and remove burrs.
-
Install Plates and Bolts:
- Position the provided plate over the drilled holes inside the trunk.
- Insert carriage bolts through the plate and trunk pan. Ensure the installation is above the carpet.
-
Attach Hitch:
- Raise the hitch into position, align it over the carriage bolts, and secure with lock washers and hex nuts.
-
Reattach Components:
- Gently bend the heat shield back into place.
- Reattach the exhaust to the rubber isolator and the flange/lap joint.
- Reinstall the ground wire to the muffler.
-
Seal Bolts:
- Apply sealant to the bolt attachments inside the spare tire well to prevent water and exhaust fumes from entering the vehicle.
-
Reinstall Trunk Components:
- Replace the carpeting, fiberboard, and storage bin tray (if present).
Hardware List:
- (4) Carriage Bolts: 7/16”-14 x 1.50” GR5
- (4) Nuts: 7/16”-14
- (4) Lock Washers
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
- If the hitch is removed, plug any holes in the trunk pan to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working under the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3594
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Tighten all 7/16”-14 GR5 fasteners to 50 Lb.-Ft. (68 N*M) using a torque wrench.
- Check the hitch frequently to ensure all fasteners remain tight.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
