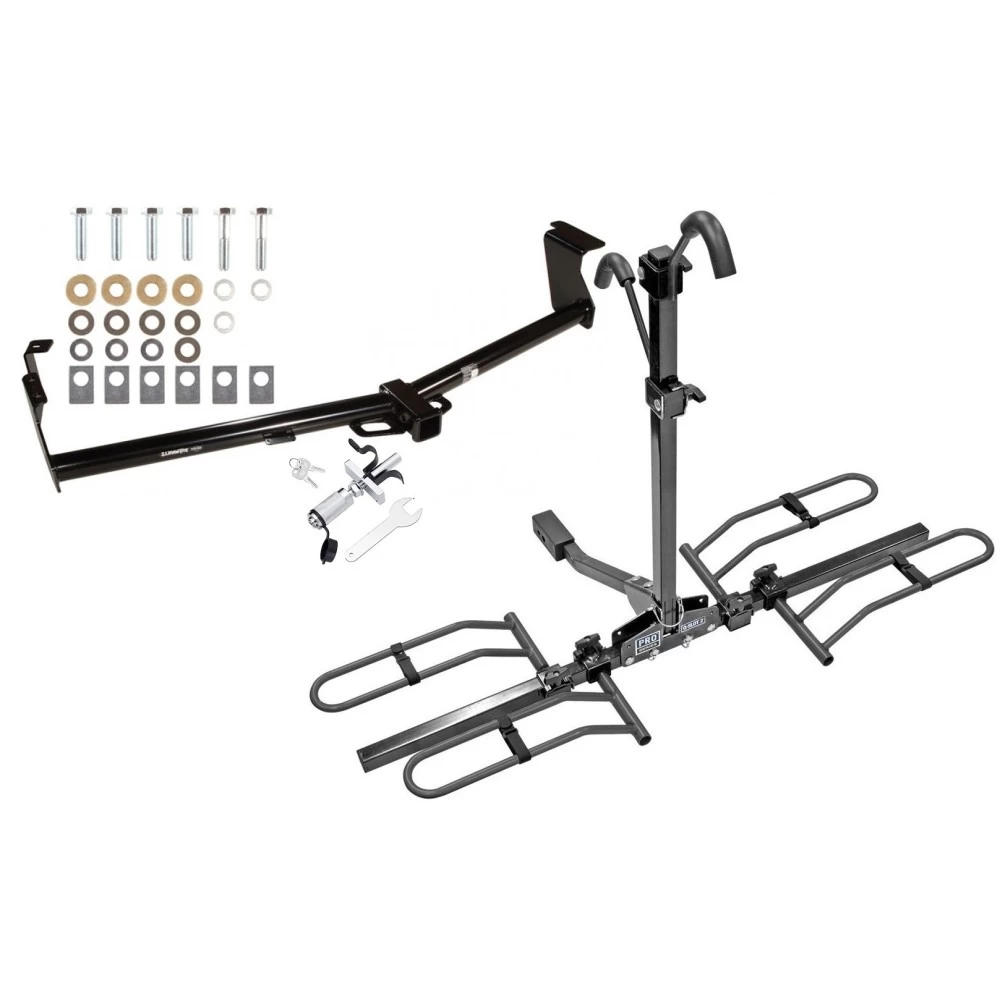

Installation Instructions for Nissan Quest

Part Numbers:

• 75714
• 87609
• 44663
• 75228 U-Haul

Wiring Access Location:

• SUV1
• SUV2

Tools Required:

• Lubricant or soapy water
• Tape
• Wrenches: 18mm, 19mm, 6” ratchet extension

Step-by-Step Instructions:

1. Lower the exhaust system at the rubber isolator. Spray lubricant or soapy water on the metal hanger rod and rubber isolator to ease removal.
2. Remove the two bolts on the tie-down on the driver’s side frame rail. Return fasteners to the vehicle owner.
3. Tape three spacers (item 2) and five flat washers (item 6) together for easier installation.
4. Clean threads to ensure bolts start easily. Spray lubricant into each weldnut. Work the bolt in and out until cleaned, then remove the lubricant using household detergent and flush clean.
5. Raise the hitch over the exhaust and install bolt (item 7) and conical washer (item 8) to hold the hitch in position.
6. On the driver’s side, install the forward bolt, lock washer, flat washer, and spacer to secure the hitch in position.
7. Slide taped spacers (item 2) into position between the tie-down and hitch bracket. Install the spacer, flat washer, lock washer, and hex bolt (item 1). Do not tighten.
8. Slide taped washers (item 6) into position between the tie-down and hitch bracket. Install the spacer, flat washer, lock washer, and hex bolt (item 1). Hand-tighten the fastener and orient spacers as shown in the figure.
9. Install the remaining fasteners on the passenger’s side frame rail.
10. Tighten all fasteners to the specified torque.
11. Reattach the exhaust system.

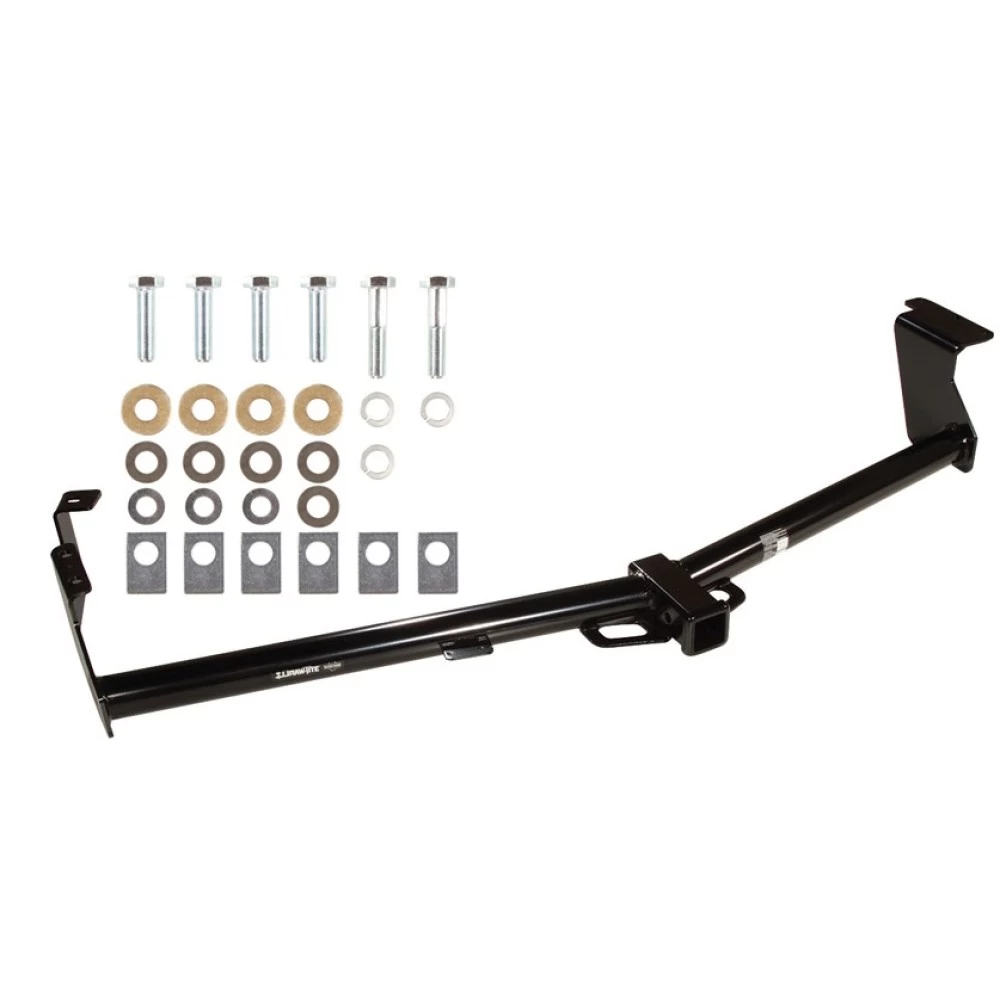

Hardware List:

• Qty (2): Hex Bolt M12 x 1.25 x 55 CL8.8
• Qty (5): Flat Washer 1/2” (Black)
• Qty (6): Spacer 3/16” x 1.00 x 1.50
• Qty (4): Hex Bolt M12 x 1.25 x 45 CL8.8
• Qty (3): Flat Washer 7/16” (Silver)
• Qty (4): Conical Washer 1/2” (Yellow)
• Qty (3): Lock Washer 1/2”

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Weight Carrying (Ball Mount)
  • Max Gross Trailer Weight: 3,500 lbs (1,589 kg)
  • Max Tongue Weight: 525 lbs (239 kg)

Manufacturer Notes:

• Tighten all M12 CL8.8 fasteners to 42 lb-ft (57 N*m) using a torque wrench.
• Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.

Installation Instructions

Part Numbers:

• 75714
• 87609
• 44663
• 75228 U-Haul

Wiring Access Location:

• SUV1
• SUV2

Tools Required:

• Lubricant or soapy water
• Tape
• Wrenches: 18mm, 19mm, 6” ratchet extension

Step-by-Step Instructions:

1. Lower the exhaust system at the rubber isolator. Spray lubricant or soapy water on the metal hanger rod and rubber isolator to ease removal.
2. Remove the two bolts on the tie-down on the driver’s side frame rail. Return fasteners to the vehicle owner.
3. Tape three spacers (item 2) and five flat washers (item 6) together for easier installation.
4. Clean threads to ensure bolts start easily. Spray lubricant into each weldnut. Work the bolt in and out until cleaned, then remove the lubricant using household detergent and flush clean.
5. Raise the hitch over the exhaust and install bolt (item 7) and conical washer (item 8) to hold the hitch in position.
6. On the driver’s side, install the forward bolt, lock washer, flat washer, and spacer to secure the hitch in position.
7. Slide taped spacers (item 2) into position between the tie-down and hitch bracket. Install the spacer, flat washer, lock washer, and hex bolt (item 1). Do not tighten.
8. Slide taped washers (item 6) into position between the tie-down and hitch bracket. Install the spacer, flat washer, lock washer, and hex bolt (item 1). Hand-tighten the fastener and orient spacers as shown in the figure.
9. Install the remaining fasteners on the passenger’s side frame rail.
10. Tighten all fasteners to the specified torque.
11. Reattach the exhaust system.

Hardware List:

• Qty (2): Hex Bolt M12 x 1.25 x 55 CL8.8
• Qty (5): Flat Washer 1/2” (Black)
• Qty (6): Spacer 3/16” x 1.00 x 1.50
• Qty (4): Hex Bolt M12 x 1.25 x 45 CL8.8
• Qty (3): Flat Washer 7/16” (Silver)
• Qty (4): Conical Washer 1/2” (Yellow)
• Qty (3): Lock Washer 1/2”

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Weight Carrying (Ball Mount)
  • Max Gross Trailer Weight: 3,500 lbs (1,589 kg)
  • Max Tongue Weight: 525 lbs (239 kg)

Manufacturer Notes:

• Tighten all M12 CL8.8 fasteners to 42 lb-ft (57 N·m) using a torque wrench.
• Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty:

For complete warranty instructions, please download the full installation PDF.
