Product Details
- Brand: Draw-Tite
- Model: 75232 63134 63100

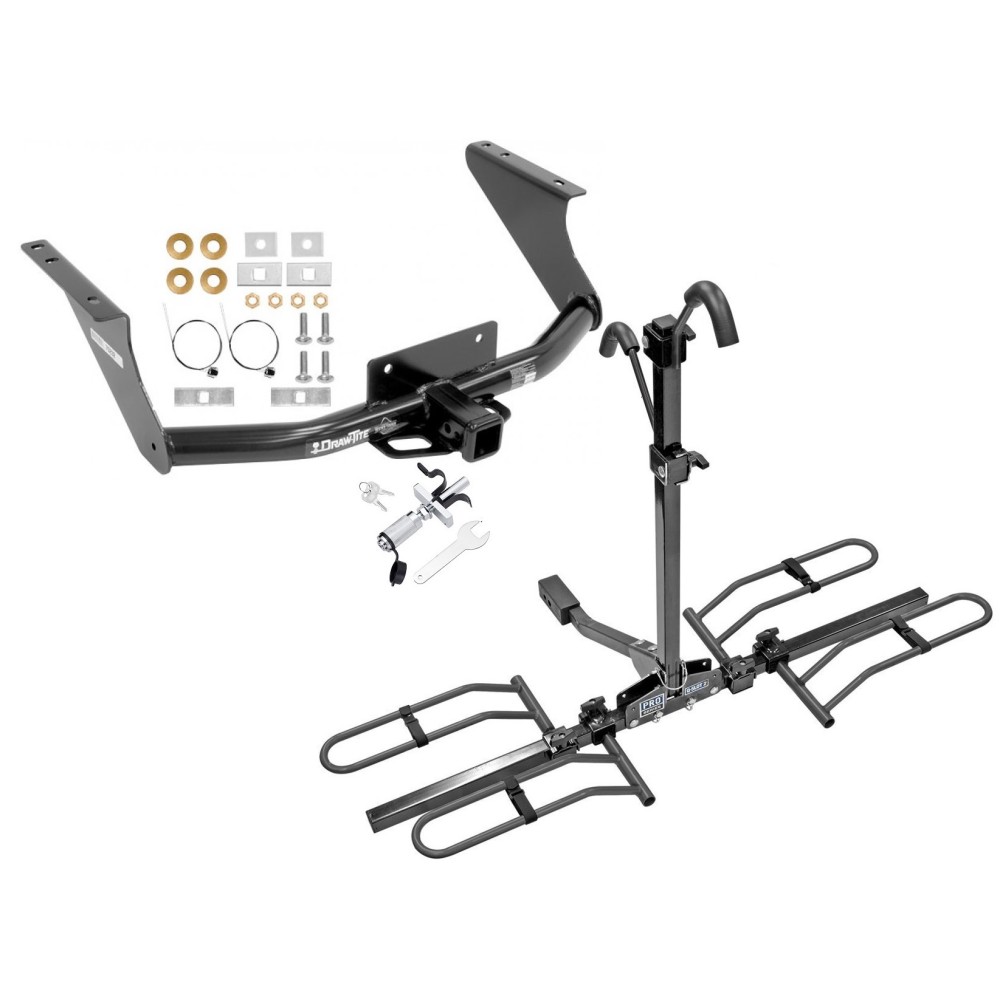

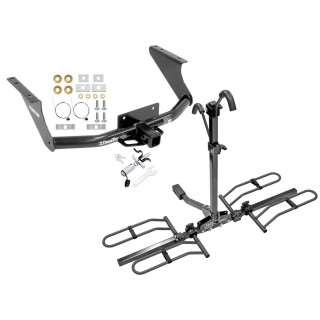

- Includes: Class 4 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier, Lock-Tite Anti-Rattle Lock
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 11-18 RAM 1500 19-23 Classic 11-14 Dodge Ram Pickup Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock Install Notes
Installation Instructions for Ram 1500
Part Numbers:
- 75232
- 87694
- 44782
Applications:
- 2011-Current Ram 1500 (Visit the manufacturer's website for the most up-to-date application years and trim levels.)
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 22mm, 3/4"
Installation Time:
- Approximately 40 minutes (for professional installers)
Step-by-Step Instructions:
-
Lower Spare Tire:
- Lower the spare tire for easier installation.
-
Remove Existing Fasteners:
- Remove the M14 bolt connecting the bumper beam to the frame rail on both the driver and passenger sides of the vehicle.
- Retain the bolts for reinstallation later.
-
Fishwire Carriage Bolts and Spacers:
- Use the reverse fishwire technique to insert carriage bolts and spacers (items 1 and 4) through the large round holes in the driver and passenger frame rails.
-
Install Additional Fasteners:
- Fishwire additional carriage bolts and spacers (items 1 and 3) through the ends of the bumper beam and out of the slot on the forward side of the beam.
-
Raise Hitch into Position:
- Lift the hitch into place and loosely install the conical washers, spacers (items 2, 5, and 6), and hex nuts onto the previously installed carriage bolts.
- Ensure spacers are positioned between the frame and hitch.
-
Reinstall Fasteners:
- Reinstall the M14 fasteners removed in step 2.
-
Tighten Fasteners:
- Use a torque wrench to tighten all fasteners to the following specifications:
- 1/2" bolts: 75 lb-ft (102 N·m)
- M14 fasteners: 122 lb-ft (165 N·m)
- Use a torque wrench to tighten all fasteners to the following specifications:
-
Reposition Spare Tire:
- Raise the spare tire back into its original position.
Hardware List:
- (4) 1/2-13 x 1.75 GR5 Carriage Bolts
- (4) 1/2" Conical Washers
- (2) 0.25 x 1.50 x 3.00 Spacers
- (2) 0.25 x 1.00 x 3.00 Spacers
- (2) 0.188 x 1.50 x 2.00 Spacers
- (4) 1/2-13 Hex Nuts
- (4) 1/2" Fishwires
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying: Max Trailer Weight 10,000 lbs (4,536 kg), Max Tongue Weight 1,000 lbs (454 kg).
- Weight Distributing: Max Trailer Weight 12,000 lbs (5,443 kg), Max Tongue Weight 1,200 lbs (544 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Ram 1500
Part Numbers:
- 75232
- 87694
- 44782
Applications:
- 2011-Current Ram 1500
(Visit the manufacturer's website for the most up-to-date application years and trim levels.)
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 22mm, 3/4"
Installation Time:
- Approximately 40 minutes (for professional installers)
Step-by-Step Instructions:
-
Lower Spare Tire:
- Lower the spare tire for easier installation.
-
Remove Existing Fasteners:
- Remove the M14 bolt connecting the bumper beam to the frame rail on both the driver and passenger sides of the vehicle.
- Retain the bolts for reinstallation later.
-
Fishwire Carriage Bolts and Spacers:
- Use the reverse fishwire technique to insert carriage bolts and spacers (items 1 and 4) through the large round holes in the driver and passenger frame rails.
-
Install Additional Fasteners:
- Fishwire additional carriage bolts and spacers (items 1 and 3) through the ends of the bumper beam and out of the slot on the forward side of the beam.
-
Raise Hitch into Position:
- Lift the hitch into place and loosely install the conical washers, spacers (items 2, 5, and 6), and hex nuts onto the previously installed carriage bolts.
- Ensure spacers are positioned between the frame and hitch.
-
Reinstall Fasteners:
- Reinstall the M14 fasteners removed in step 2.
-
Tighten Fasteners:
- Use a torque wrench to tighten all fasteners to the following specifications:
- 1/2" bolts: 75 lb-ft (102 N·m)
- M14 fasteners: 122 lb-ft (165 N·m)
- Use a torque wrench to tighten all fasteners to the following specifications:
-
Reposition Spare Tire:
- Raise the spare tire back into its original position.
Hardware List:
- (4) 1/2-13 x 1.75 GR5 Carriage Bolts
- (4) 1/2" Conical Washers
- (2) 0.25 x 1.50 x 3.00 Spacers
- (2) 0.25 x 1.00 x 3.00 Spacers
- (2) 0.188 x 1.50 x 2.00 Spacers
- (4) 1/2-13 Hex Nuts
- (4) 1/2" Fishwires
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying: Max Trailer Weight 10,000 lbs (4,536 kg), Max Tongue Weight 1,000 lbs (454 kg).
- Weight Distributing: Max Trailer Weight 12,000 lbs (5,443 kg), Max Tongue Weight 1,200 lbs (544 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
