Trailer Tow Hitch For 11‑21 Mitsubishi Outlander Sport 11‑14 RVR Platform Style 2 Bike Rack Hitch Lock and Cover
Model: 36509 63134 580407 2211Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2011 - 2021 Mitsubishi, Outlander Sport, All Styles
2011 - 2014 Mitsubishi, RVR, (Canada Only)
Trailer Hitch Specs:
Security Lock Pin Specs:
Part Number | 580407 |
Fits | 2" and 1-7/8" Tow Receivers |
Brand | Draw-Tite |
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
Warranty | Lifetime |
Rubber Hitch Plug Specs:
Part Number | 2211 |
Fits | 1-1/4" Receiver |
Brand | Draw-Tite |
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
Warranty | 1 Year |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 11 12 13 14 15 16 17 18 19 20 21 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021
$401 26 $643.54 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$643.54 $401 26
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $100.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 36509 63134 580407 2211

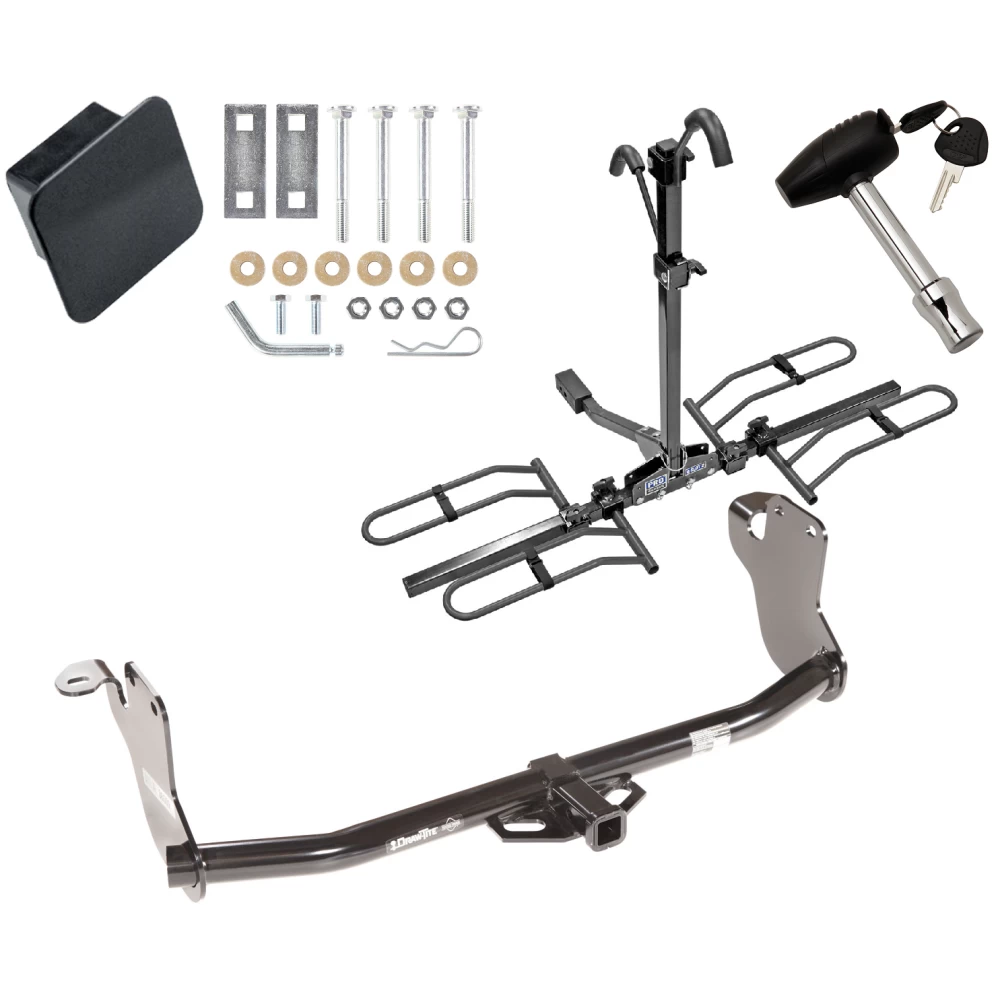

- Includes: Class 2 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Attachment Location | Rear |
Color | Black |
Drawbar Included | No |
Drilling Required | No |
Gross Towing Weight | 3,500 lbs. |
Hitch Class | II |
Material | Steel |
Maximum Tongue Weight | 300 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 1.25 in. |
Receiver Type | Round Tube |
Be the first to ask a question.
Description

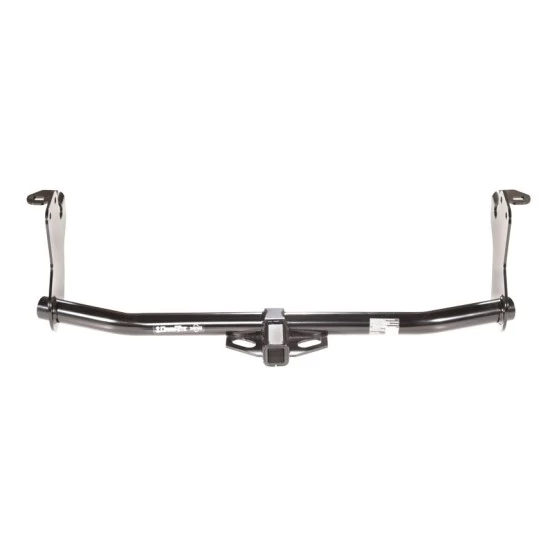

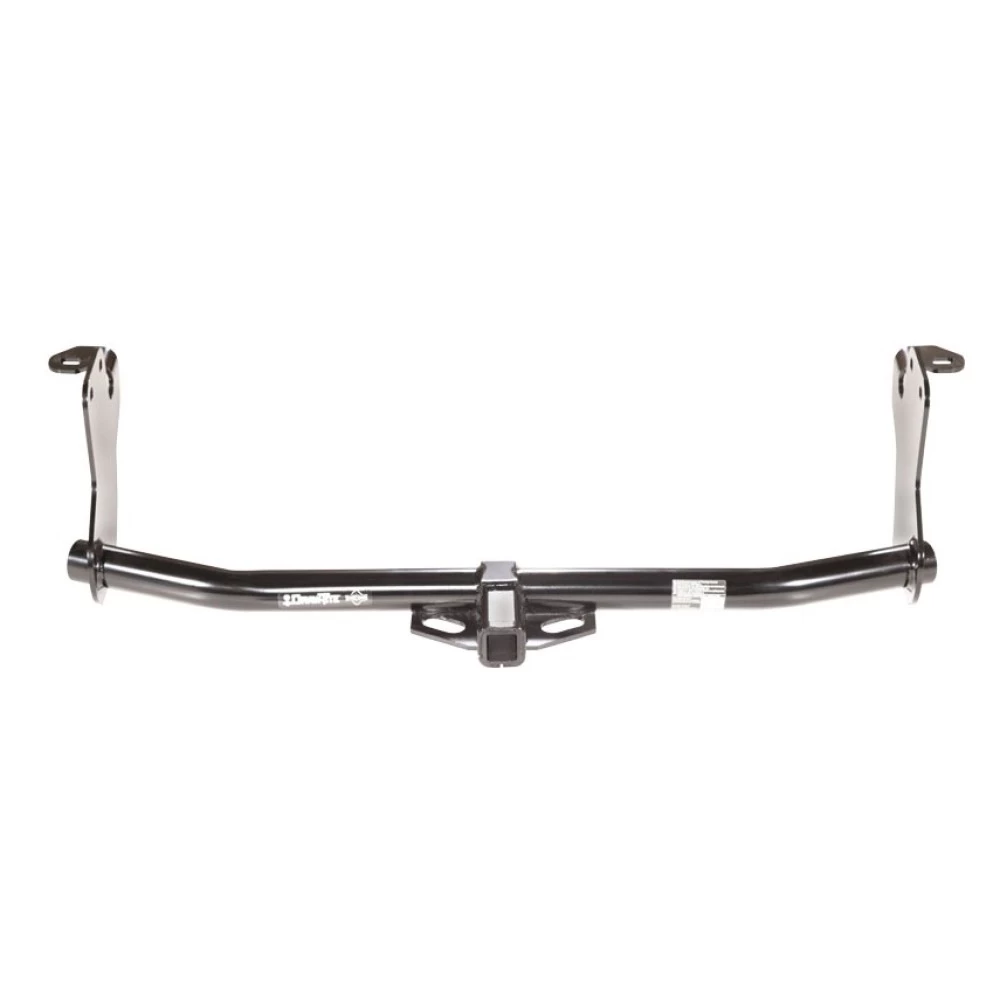

Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2011 - 2021 Mitsubishi, Outlander Sport, All Styles
2011 - 2014 Mitsubishi, RVR, (Canada Only)
Trailer Hitch Specs:
Security Lock Pin Specs:
Part Number | 580407 |
Fits | 2" and 1-7/8" Tow Receivers |
Brand | Draw-Tite |
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
Warranty | Lifetime |
Rubber Hitch Plug Specs:
Part Number | 2211 |
Fits | 1-1/4" Receiver |
Brand | Draw-Tite |
Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
Warranty | 1 Year |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 11 12 13 14 15 16 17 18 19 20 21 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021
Get Expert Help
Trailer Tow Hitch For 11-21 Mitsubishi Outlander Sport 11-14 RVR Platform Style 2 Bike Rack Hitch Lock and Cover Install Notes
Installation Instructions for Mitsubishi Outlander Sport / RVR
Part Numbers:
- 36509
- 90210
- 06131
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 14mm, 17mm, 3/4" or 7/8"
Step-by-Step Instructions:
-
Remove Factory Tow Loop:
- Remove three (3) bolts and the factory tow loop from the passenger-side frame rail.
- Return bolts and tow loop to the vehicle owner.
-
Insert Fasteners into Frame Rails:
- Insert carriage bolts and blocks into existing holes in the frame rails.
- Adjust carriage bolts to be flush with the inside of the frame rails.
- For the driver side, install carriage bolts by reaching between the bumper fascia and over the carbon canister.
-
Position Hitch:
- Raise the hitch into position and push the carriage bolts through the holes in the hitch.
- Loosely install the 1/2" conical washers and hex nuts onto the carriage bolts.
- Tip: Begin by raising the driver side of the hitch, guiding the side bracket around the carbon canister, then raise the passenger side.
-
Install Frame Rail Bolts:
- Loosely install the M10 hex bolts with 7/16" conical washers into the existing weld nuts in the bottom of the frame rails.
-
Tighten Fasteners:
- First, tighten the 1/2"-13 GR5 carriage bolts to 75 lb-ft (102 N*m).
- Then, tighten the M10-1.25 CL8.8 bolts to 42 lb-ft (57 N*m).
Torque Specifications:
- 1/2"-13 GR5 bolts: 75 lb-ft (102 N*m)
- M10-1.25 CL8.8 bolts: 42 lb-ft (57 N*m)

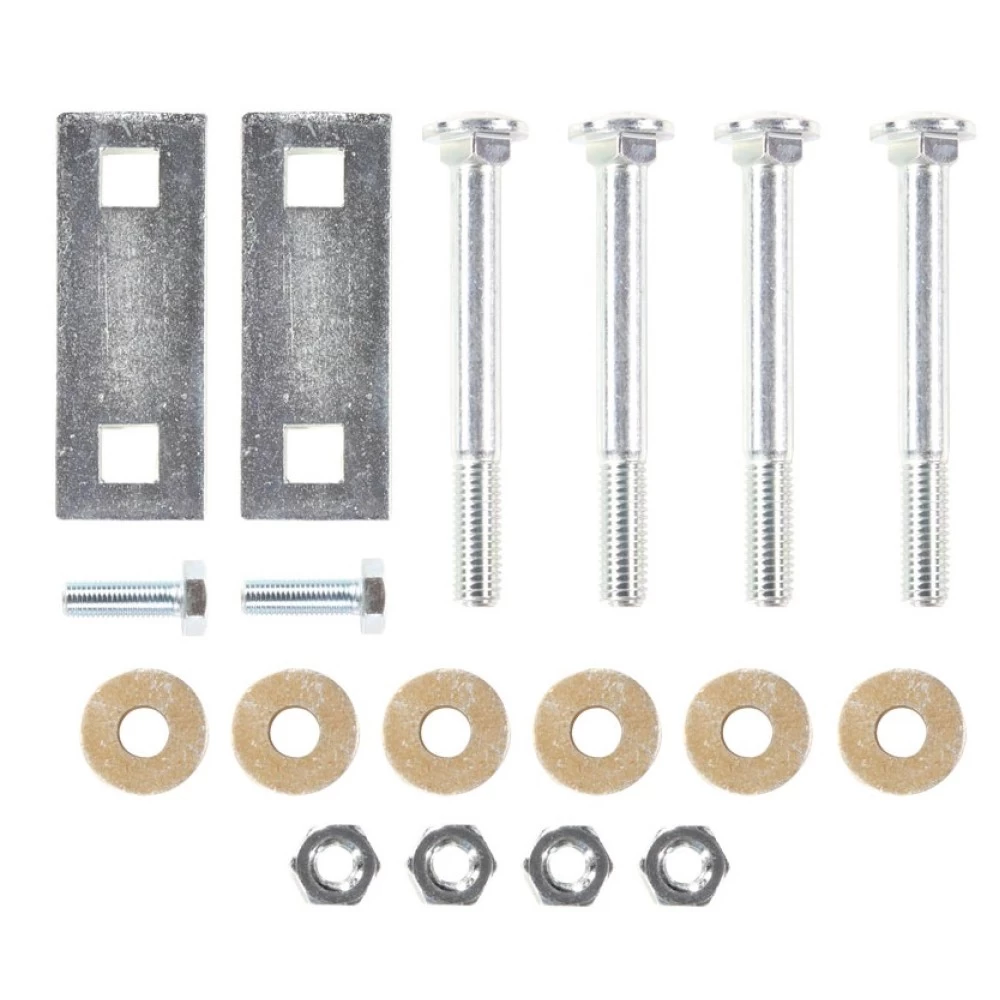

Hardware List:
- (2) Blocks, 0.250" x 1.50" x 4.00" (2 square holes)
- (2) Bolts, M10 x 1.25 x 30mm CL8.8
- (4) Carriage bolts, 1/2"-13 x 4.50" GR5
- (2) Conical washers, 7/16"
- (4) Conical washers, 1/2"
- (4) Hex nuts, 1/2"-13
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
- Drawbar must be used in the RISE position only.
Additional Notes:
- Drawbar Kit: 36051 (sold separately)
- Fastener Kit: 36509F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Mitsubishi Outlander Sport / RVR
Part Numbers:
- 36509
- 90210
- 06131
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 14mm, 17mm, 3/4" or 7/8"
Step-by-Step Instructions:
-
Remove Factory Tow Loop:
- Remove three (3) bolts and the factory tow loop from the passenger-side frame rail.
- Return bolts and tow loop to the vehicle owner.
-
Insert Fasteners into Frame Rails:
- Insert carriage bolts and blocks into existing holes in the frame rails.
- Adjust carriage bolts to be flush with the inside of the frame rails.
- For the driver side, install carriage bolts by reaching between the bumper fascia and over the carbon canister.
-
Position Hitch:
- Raise the hitch into position and push the carriage bolts through the holes in the hitch.
- Loosely install the 1/2" conical washers and hex nuts onto the carriage bolts.
- Tip: Begin by raising the driver side of the hitch, guiding the side bracket around the carbon canister, then raise the passenger side.
-
Install Frame Rail Bolts:
- Loosely install the M10 hex bolts with 7/16" conical washers into the existing weld nuts in the bottom of the frame rails.
-
Tighten Fasteners:
- First, tighten the 1/2"-13 GR5 carriage bolts to 75 lb-ft (102 N*m).
- Then, tighten the M10-1.25 CL8.8 bolts to 42 lb-ft (57 N*m).
Torque Specifications:
- 1/2"-13 GR5 bolts: 75 lb-ft (102 N*m)
- M10-1.25 CL8.8 bolts: 42 lb-ft (57 N*m)
Hardware List:
- (2) Blocks, 0.250" x 1.50" x 4.00" (2 square holes)
- (2) Bolts, M10 x 1.25 x 30mm CL8.8
- (4) Carriage bolts, 1/2"-13 x 4.50" GR5
- (2) Conical washers, 7/16"
- (4) Conical washers, 1/2"
- (4) Hex nuts, 1/2"-13
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
- Drawbar must be used in the RISE position only.
Additional Notes:
- Drawbar Kit: 36051 (sold separately)
- Fastener Kit: 36509F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
