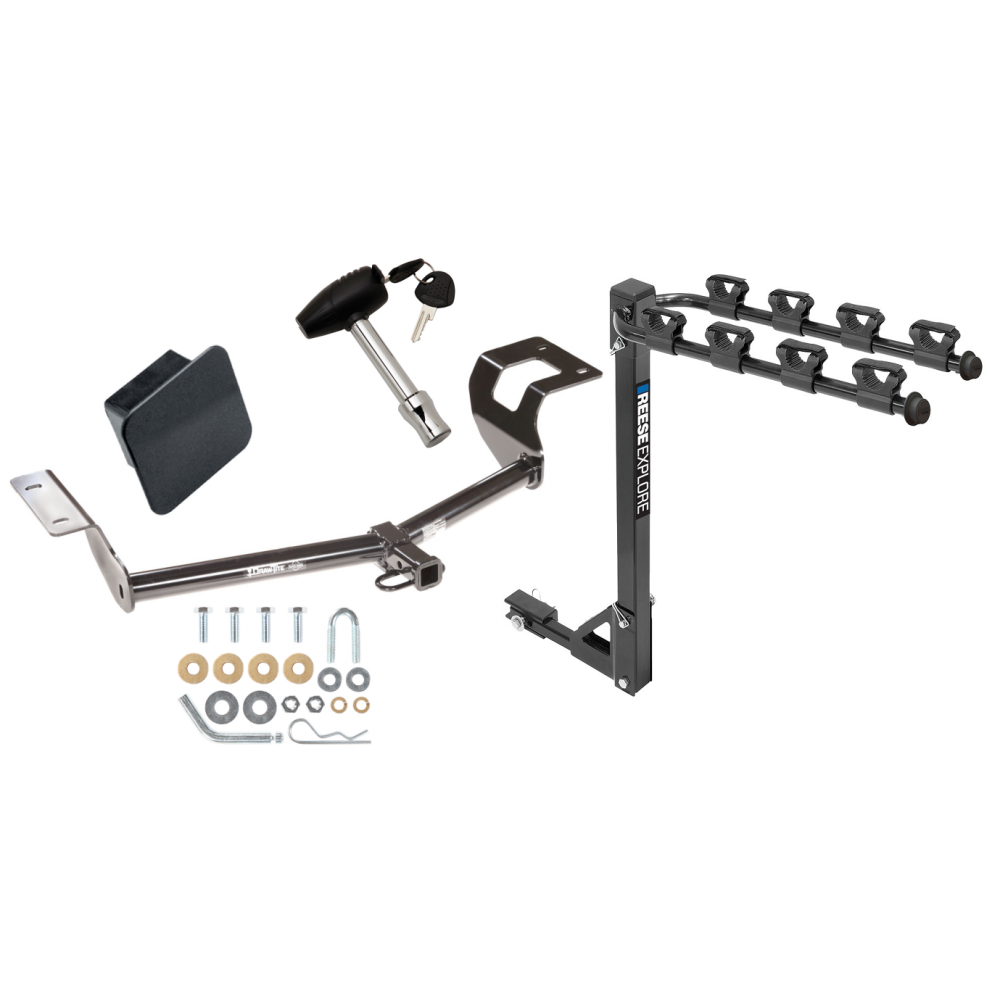

Trailer Tow Hitch w/ 4 Bike Rack For 12‑16 Honda CR‑V Class 2 tilt away adult or child arms fold down carrier w/ Lock and Cover
Model: 36520 1393100G 580407 2211Custom Fit Trailer Hitch
4 Bike Carrier
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2012 - 2016 Honda, CR-V, All Styles
Trailer Hitch Specs:
| Part Number | 36520 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Bike Rack Specs:
| Part Number | 1393100G |
| Brand | Reese |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 120 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 28 lbs. |
| Warranty | 90 Day |
| Installation Instructions | |
Security Lock Pin Specs:
| Part Number | 580407 |
| Fits | 2" and 1-7/8" Tow Receivers |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |
Rubber Hitch Plug Specs:
| Part Number | 2211 |
| Fits | 1-1/4" Receiver |
| Brand | Draw-Tite |
| Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Founded in 1952, the Reese brand has become a household name in the heavy-duty towing industry. With proven designs that exceed the industry standards, Reese has become the brand of choice when performance is the expectation.
Reese has been the leader in towing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry.
Partial list of fitment years: 12 13 14 15 16 2012 2013 2014 2015 2016
$323 74 $496.75 35% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$496.75 $323 74
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $80.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 36520 1393100G 580407 2211
- Includes: Class 2 Trailer Tow Hitch, Trailer Tow Hitch Bike Carrier, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Custom Fit Trailer Hitch
4 Bike Carrier
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2012 - 2016 Honda, CR-V, All Styles
Trailer Hitch Specs:
| Part Number | 36520 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Bike Rack Specs:
| Part Number | 1393100G |
| Brand | Reese |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 120 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 28 lbs. |
| Warranty | 90 Day |
| Installation Instructions | |
Security Lock Pin Specs:
| Part Number | 580407 |
| Fits | 2" and 1-7/8" Tow Receivers |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |
Rubber Hitch Plug Specs:
| Part Number | 2211 |
| Fits | 1-1/4" Receiver |
| Brand | Draw-Tite |
| Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Founded in 1952, the Reese brand has become a household name in the heavy-duty towing industry. With proven designs that exceed the industry standards, Reese has become the brand of choice when performance is the expectation.
Reese has been the leader in towing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry.
Partial list of fitment years: 12 13 14 15 16 2012 2013 2014 2015 2016
Get Expert Help
Trailer Tow Hitch w/ 4 Bike Rack For 12-16 Honda CR-V Class 2 tilt away adult or child arms fold down carrier w/ Lock and Cover Install Notes
Installation Instructions for Honda CR-V
Part Numbers:
- 36520
- 90089
- 06144
Wiring Access Location:
- SUV3
Tools Required:
- Wrenches: 10mm, 17mm, 11/16"
- Small Phillips Head Screwdriver
- Tape, Utility Knife, Tape Measure, Marking Pencil
- Lubricant or Soapy Water
Step-by-Step Instructions:
-
Remove Appearance Panel:
- Remove the driver-side appearance panel by removing:
- (5) Plastic rivets
- (3) Hex nuts
- (2) Phillips head screws located in the wheel well behind the driver’s side rear tire.
- Trim the panel and reinstall it after hitch installation.
- Remove the driver-side appearance panel by removing:
-
Clear Threads in Weld Nuts:
- Run the M10 hex bolts into the existing weld nuts to clear any debris or obstructions.
-
Lower Exhaust:
- Remove the rubber isolators from the muffler hangers:
- Remove the outside isolator first, then the inside isolator.
- Apply lubricant or soapy water to ease removal.
- Remove the rubber isolators from the muffler hangers:
-
Prepare Weld Nut Locations:
- Tape the flat washers to the rearward weld nut location on both frame rails.
-
Raise Hitch into Position:
- Lift the hitch into position, ensuring alignment with the frame rails.
-
Install Fasteners:
- Install the M10 hex bolts and conical washers into the weld nuts as shown.
- Install the 3/8" U-bolt through the vehicle tie-down hook and the tie-down hook attachment on the hitch receiver.
- Secure with flat washers, lock washers, and hex nuts.
-
Tighten Fasteners:
- Tighten all fasteners to the specified torque:
- M10 CL8.8 bolts: 38 ft-lb (52 N*m)
- 3/8"-16 GR5 U-bolt nuts: 30 ft-lb (41 N*m)
- Tighten all fasteners to the specified torque:
-
Reinstall Exhaust:
- Raise the exhaust back into position and reattach the rubber isolators.
-
Reinstall Appearance Panel:
- Reinstall the trimmed driver-side appearance panel.
Torque Specifications:
- Tighten all 3/8"-16 GR5 fasteners to 30 ft-lb (41 N*m).
- Tighten all M10 CL8.8 fasteners to 38 ft-lb (52 N*m).

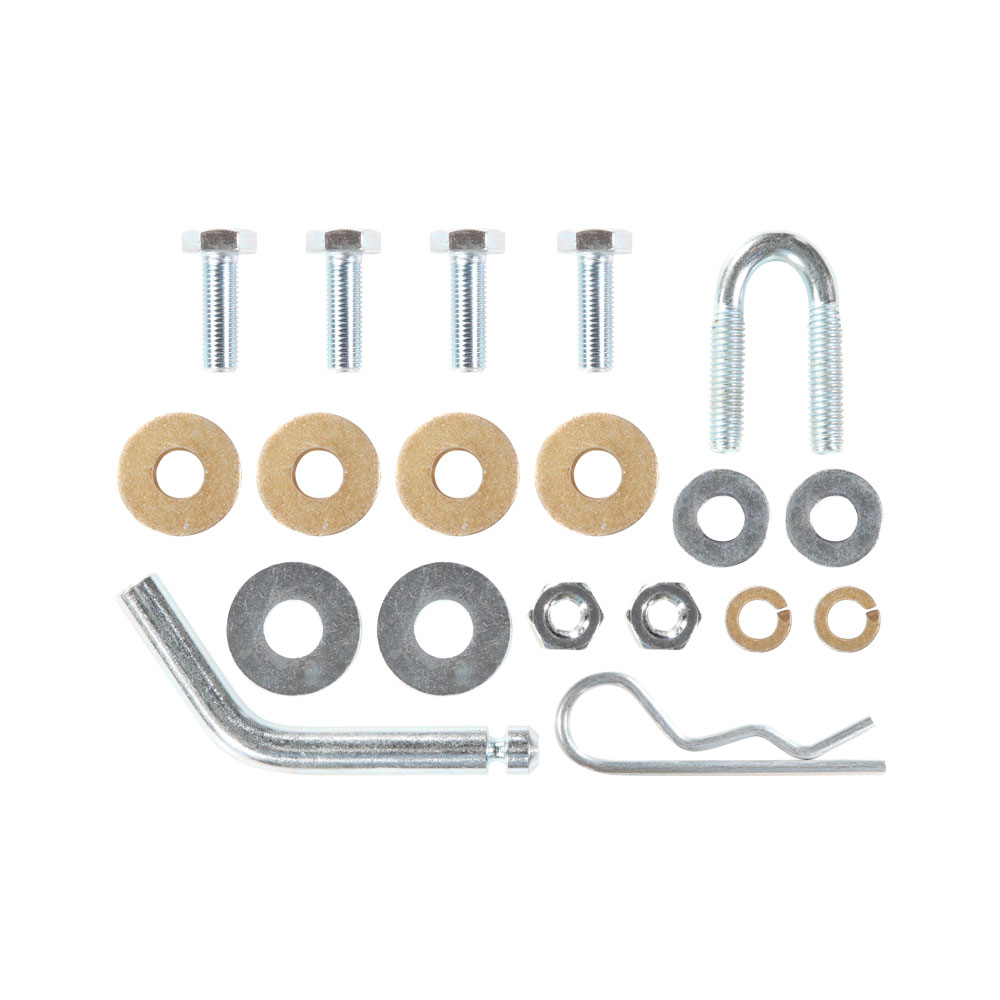

Hardware List:
- (4) M10 x 1.25 x 30mm CL8.8 Hex Bolts
- (4) 7/16" Conical Washers
- (1) 3/8"-16 U-Bolt
- (2) 3/8" Lock Washers
- (2) 3/8" Flat Washers
- (2) 1/2" Flat Washers
- (2) 3/8" Hex Nuts
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
- Drawbar must be used in the RISE position only.
Additional Notes:
- Drawbar Kit: 36051 (sold separately)
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Honda CR-V
Part Numbers:
- 36520
- 90089
- 06144
Wiring Access Location:
- SUV3
Tools Required:
- Wrenches: 10mm, 17mm, 11/16"
- Small Phillips Head Screwdriver
- Tape, Utility Knife, Tape Measure, Marking Pencil
- Lubricant or Soapy Water
Step-by-Step Instructions:
-
Remove Appearance Panel:
- Remove the driver-side appearance panel by removing:
- (5) Plastic rivets
- (3) Hex nuts
- (2) Phillips head screws located in the wheel well behind the driver’s side rear tire.
- Trim the panel and reinstall it after hitch installation.
- Remove the driver-side appearance panel by removing:
-
Clear Threads in Weld Nuts:
- Run the M10 hex bolts into the existing weld nuts to clear any debris or obstructions.
-
Lower Exhaust:
- Remove the rubber isolators from the muffler hangers:
- Remove the outside isolator first, then the inside isolator.
- Apply lubricant or soapy water to ease removal.
- Remove the rubber isolators from the muffler hangers:
-
Prepare Weld Nut Locations:
- Tape the flat washers to the rearward weld nut location on both frame rails.
-
Raise Hitch into Position:
- Lift the hitch into position, ensuring alignment with the frame rails.
-
Install Fasteners:
- Install the M10 hex bolts and conical washers into the weld nuts as shown.
- Install the 3/8" U-bolt through the vehicle tie-down hook and the tie-down hook attachment on the hitch receiver.
- Secure with flat washers, lock washers, and hex nuts.
-
Tighten Fasteners:
- Tighten all fasteners to the specified torque:
- M10 CL8.8 bolts: 38 ft-lb (52 N*m)
- 3/8"-16 GR5 U-bolt nuts: 30 ft-lb (41 N*m)
- Tighten all fasteners to the specified torque:
-
Reinstall Exhaust:
- Raise the exhaust back into position and reattach the rubber isolators.
-
Reinstall Appearance Panel:
- Reinstall the trimmed driver-side appearance panel.
Torque Specifications:
- Tighten all 3/8"-16 GR5 fasteners to 30 ft-lb (41 N*m).
- Tighten all M10 CL8.8 fasteners to 38 ft-lb (52 N*m).
Hardware List:
- (4) M10 x 1.25 x 30mm CL8.8 Hex Bolts
- (4) 7/16" Conical Washers
- (1) 3/8"-16 U-Bolt
- (2) 3/8" Lock Washers
- (2) 3/8" Flat Washers
- (2) 1/2" Flat Washers
- (2) 3/8" Hex Nuts
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
- Drawbar must be used in the RISE position only.
Additional Notes:
- Drawbar Kit: 36051 (sold separately)
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
