Product Details
- Brand: Draw-Tite
- Model: 75898 1393100G

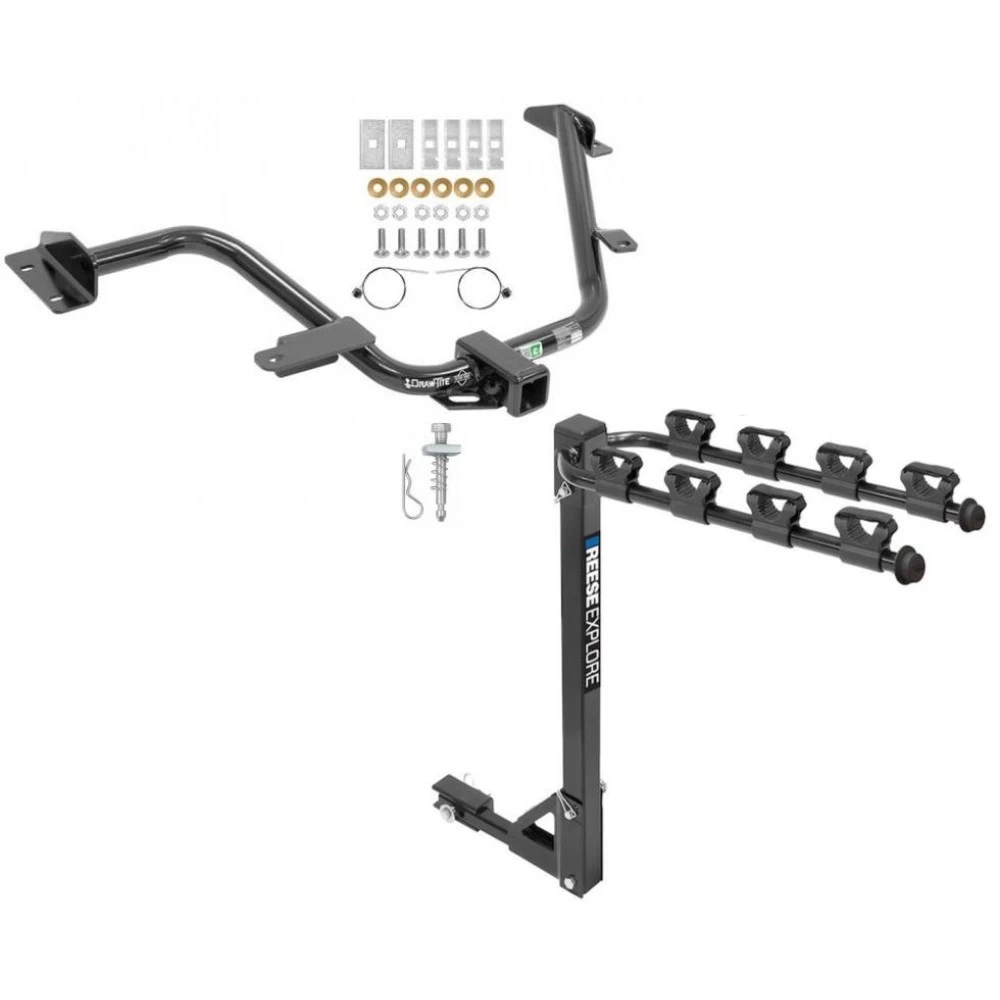

- Includes: Class 3 Trailer Tow Hitch, Trailer Tow Hitch Bike Carrier
Compatibility Chart
Get Expert Help
Trailer Tow Hitch w/ 4 Bike Rack For 15-18 Chevy City Express 13-22 Nissan NV200 tilt away adult or child arms fold down carrier Install Notes
Installation Instructions for Nissan NV200 and Chevrolet City Express
Part Numbers:
- 75898
- 87662
- 44711
- 78599 U-Haul
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Small Screwdriver
- Lubricant or Soapy Water
- Utility Knife or Shears
- Drill or Rotary Tool (optional)
- Wrenches: 11/16", 7/8"
Step-by-Step Instructions:
-
Lower and Remove Spare Tire:
- The tire release is located inside the rear cargo area in the middle of the floor.
-
Lower Exhaust System:
- Remove the rubber isolators from the exhaust hangers. Use lubricant or soapy water to ease removal.
-
Remove Fascia Tabs:
- Remove the plastic rivets that secure the fascia tabs to the vehicle using a flat screwdriver. Keep the rivets for reinstallation.
-
Insert Fasteners into Frame Rails:
- Option A: Feed fasteners into the frame rails through the access hole over the spring shackle into the forward hole. Repeat for the rearward holes.
- Option B: Enlarge the forward hole with a drill or rotary tool to fit the carriage bolt and spacer.
-
Insert Remaining Fasteners:
- Feed additional fasteners into the holes in the rear crossmember of the vehicle. Leave pull wires attached.
-
Position and Secure Hitch:
- Raise the hitch into position, feeding pull wires through the hitch slots. Use conical washers to hold the bolts in place and attach hex nuts. Repeat for all fasteners.
-
Reinstall Spare Tire:
- Confirm that the spare tire does not interfere with the hitch after reinstallation.
-
Torque Fasteners:
- Tighten all fasteners to the specified torque values:
- 7/16-14 GR5 fasteners: 50 lb-ft (68 N*m)
- Tighten all fasteners to the specified torque values:
-
Trim Fascia Tabs:
- Trim the fascia tabs as necessary. Reinstall the fascia attachments on both sides.
-
Reattach Exhaust System:
- Raise the exhaust system back into position and secure it to the rubber isolators.
Hardware List:
- Qty (6): Carriage Bolt – 7/16"-14 x 1.50" GR5
- Qty (6): Conical Washer – 7/16"
- Qty (6): Hex Nut – 7/16"-14
- Qty (4): Spacer – .250 x 1.00 x 3.00
- Qty (2): Spacer – .250 x 1.50 x 3.00
- Qty (6): Pull Wire – 7/16"
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 3,500 lbs (1,589 kg)
- Max Tongue Weight: 525 lbs (238 kg)
- Weight Distributing: Not compatible with spring bars.
Manufacturer Notes:
- Tighten all 7/16-14 GR5 fasteners to 50 lb-ft (68 N*m).
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Vehicle
Part Numbers:
- 75898
- 87662
- 44711
- 78599 U-Haul
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Small Screwdriver
- Lubricant or Soapy Water
- Utility Knife or Shears
- Drill or Rotary Tool (optional)
- Wrenches: 11/16", 7/8"
Step-by-Step Instructions:
-
Lower and Remove Spare Tire:
- The tire release is located inside the rear cargo area in the middle of the floor.
-
Lower Exhaust System:
- Remove the rubber isolators from the exhaust hangers. Use lubricant or soapy water to ease removal.
-
Remove Fascia Tabs:
- Remove the plastic rivets that secure the fascia tabs to the vehicle using a flat screwdriver. Keep the rivets for reinstallation.
-
Insert Fasteners into Frame Rails:
- Option A: Feed fasteners into the frame rails through the access hole over the spring shackle into the forward hole. Repeat for the rearward holes.
- Option B: Enlarge the forward hole with a drill or rotary tool to fit the carriage bolt and spacer.
-
Insert Remaining Fasteners:
- Feed additional fasteners into the holes in the rear crossmember of the vehicle. Leave pull wires attached.
-
Position and Secure Hitch:
- Raise the hitch into position, feeding pull wires through the hitch slots. Use conical washers to hold the bolts in place and attach hex nuts. Repeat for all fasteners.
-
Reinstall Spare Tire:
- Confirm that the spare tire does not interfere with the hitch after reinstallation.
-
Torque Fasteners:
- Tighten all fasteners to the specified torque values:
- 7/16-14 GR5 fasteners: 50 lb-ft (68 N*m)
- Tighten all fasteners to the specified torque values:
-
Trim Fascia Tabs:
- Trim the fascia tabs as necessary. Reinstall the fascia attachments on both sides.
-
Reattach Exhaust System:
- Raise the exhaust system back into position and secure it to the rubber isolators.
Hardware List:
- Qty (6): Carriage Bolt – 7/16"-14 x 1.50" GR5
- Qty (6): Conical Washer – 7/16"
- Qty (6): Hex Nut – 7/16"-14
- Qty (4): Spacer – .250 x 1.00 x 3.00
- Qty (2): Spacer – .250 x 1.50 x 3.00
- Qty (6): Pull Wire – 7/16"
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 3,500 lbs (1,589 kg)
- Max Tongue Weight: 525 lbs (238 kg)
- Weight Distributing: Not compatible with spring bars.
Manufacturer Notes:
- Tighten all 7/16-14 GR5 fasteners to 50 lb-ft (68 N*m).
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
