Trailer Tow Hitch For 15-23 Ford F-150 Raptor Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock

Trailer Tow Hitch For 15‑24 Ford F‑150 Raptor Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock

Model: 76136 63134 63100

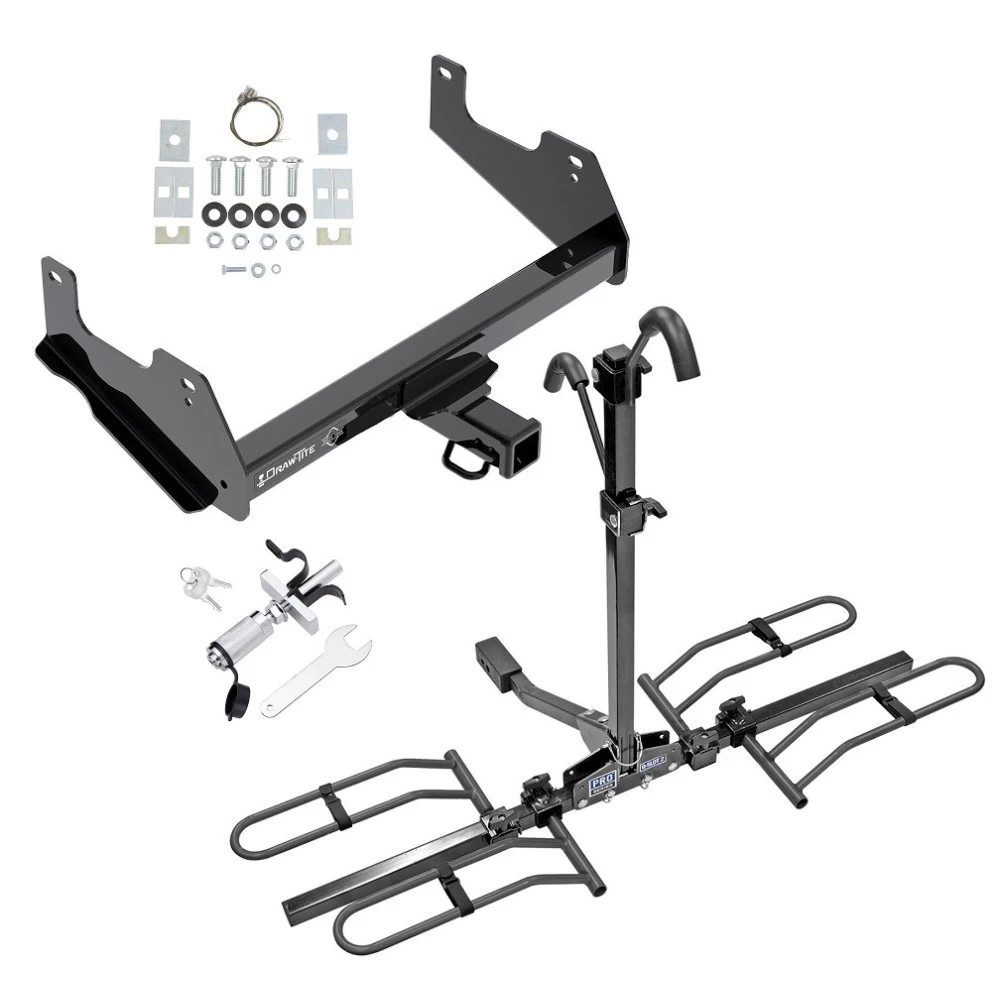

Includes Everything Pictured:
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Anti Rattle Device w/ 2 Keys
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2015 - 2024 Ford, F-150, All Styles
2017 - 2024 Ford F-150 Raptor, All Styles

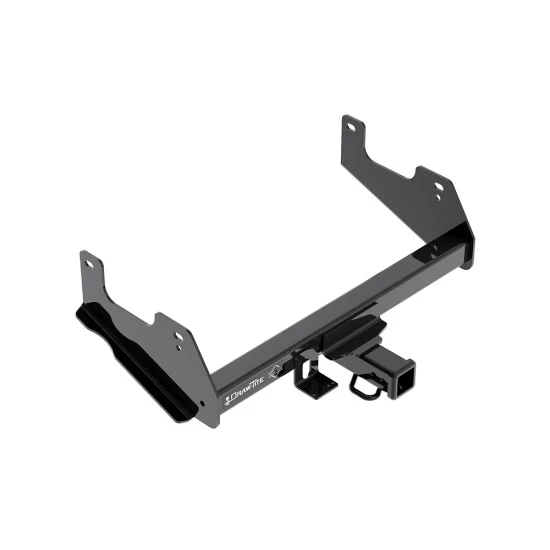

Trailer Hitch Specs:

Part Number	76136
Brand	Draw-Tite
Finish	Black Powdercoat
Class	IV
Receiver size opening	2"
Max gross trailer weight	6,000 lbs
Max GTW w/ weight distribution	10,000 lbs
Max Tongue Weight	900/1,000 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	34.58 lbs.
Warranty	1 Year Warranty
Installation Instructions

Anti-Rattle Device Specs:

Part Number	63100
Brand	Pro Series
Product Description	Anti-Rattle Device for Cargo Accessories
Package Type	Plactic Shroud
Warranty	Limited 1 Year
Installation Instructions

Bike Rack Product Overview
Will not damage high-performance frames
Fully adjustable wheel slots
Center tube tilts for rear bike access
A-Coat and powder coat rust resistant finish
Rise shank for extra road clearance
Padded contact points
Tilting vertical stabilizer
Bolt-on 2" shank adapter
Compact storage

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 15 16 17 18 19 20 21 22 23 24 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024

See Full Description

$425 ⁹⁷ $684.39 38% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$684.39 $425 ⁹⁷

Pay in 4 interest-free installments of $106.25 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $106.25 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 76136 63134 63100
Includes: Class 4 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier, Lock-Tite Anti-Rattle Lock

Compatibility Chart

Specification
Attachment Location	Rear
Ball Mount Included	No
Color	Black
Drilling Required	No
Gross Towing Weight	6,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit	10,000 lbs.
Hitch Class	IV
Material	Steel
Maximum Tongue Weight	900 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	1,000 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Square Tube

Be the first to ask a question.

Description

Part Number	76136
Brand	Draw-Tite
Finish	Black Powdercoat
Class	IV
Receiver size opening	2"
Max gross trailer weight	6,000 lbs
Max GTW w/ weight distribution	10,000 lbs
Max Tongue Weight	900/1,000 lbs
Warranty	Lifetime
Installation Instructions

Bike Rack Specs:

Part Number	63134
Brand	Pro Series
Finish	Black Powdercoat
Number of Bikes	2
Capacity	90 lbs
Application	Fits 1-1/4" and 2" receivers
Weight	34.58 lbs.
Warranty	1 Year Warranty
Installation Instructions

Anti-Rattle Device Specs:

Part Number	63100
Brand	Pro Series
Product Description	Anti-Rattle Device for Cargo Accessories
Package Type	Plactic Shroud
Warranty	Limited 1 Year
Installation Instructions

Questions or Comments? Call 702-374-8999

Tags: 76136 , 63134 , 63100 , Draw-Tite , Trailer , Tow , Hitch , 15-24 , F-150 , Raptor , Platform , Style , 2 , Bike , Rack , Anti , Rattle , Hitch , Lock , 15 , 16 , 17 , 18 , 19 , 20 , 21 , 22 , 23 , 24 , 2015 , 2016 , 2017 , 2018 , 2019 , 2020 , 2021 , 2022 , 2023 , 2024

Get Expert Help

Trailer Tow Hitch For 15-24 Ford F-150 Raptor Platform Style 2 Bike Rack w/ Anti Rattle Hitch Lock Install Notes

Installation Instructions for Trailer Hitch

Part Numbers:

76136
84136
CQT76136

Applications:

Years: 2015-Current
- Make and Models: Ford F-150

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Tools Required:

Ratchet
Torque Wrench
Safety Glasses
Sockets: 10 mm, 13 mm, 15/16"
6" Socket Extension
Tape
Flat Head Screwdriver
Utility Knife

Step-by-Step Instructions:

1. Remove Ground Wire:

Using a 10 mm socket, remove the ground wire from the passenger-side frame rail. Return the fastener to the vehicle owner.

2. Lower Spare Tire:

Lower the spare tire to allow room for hitch installation.

3. Install Spacer Blocks:

Secure U-shaped spacer blocks to the inside of the frame rail using masking tape. Ensure they are centered around the holes in the frame on both sides.
Attach .250 x 1.75 x 2.50 spacer blocks to the forward mounting hole of the hitch bracket using masking tape. Center the hole in the block with the slot in the bracket on both sides.

4. Install Fasteners:

Feed the coiled end of the fish wire through the attachment hole and out the access hole in the frame.
Attach the spacer block and carriage bolt to the fish wire and pull the hardware inside the frame. Repeat this process for all four attachment points.
Leave the fish wires attached temporarily.

5. Mount the Hitch:

Raise the hitch into position, guiding the fish wires through the corresponding holes in the hitch.
Pull the fasteners into position and carefully remove the fish wires.
Loosely install the conical washers and hex nuts onto the carriage bolts. Avoid letting the bolts fall into the frame.

6. Reattach Ground Wire:

Using a 13 mm socket, reattach the ground wire with the M8 bolt, lock washer, and flat washer provided.

7. Torque Fasteners:

Torque all 5/8"-11 GR5 fasteners to 150 lb-ft (203 N·m).
Torque all M8 CL8.8 fasteners to 20 lb-ft (27 N·m).

8. Raise Spare Tire:

Reinstall the spare tire in its original stowed position.

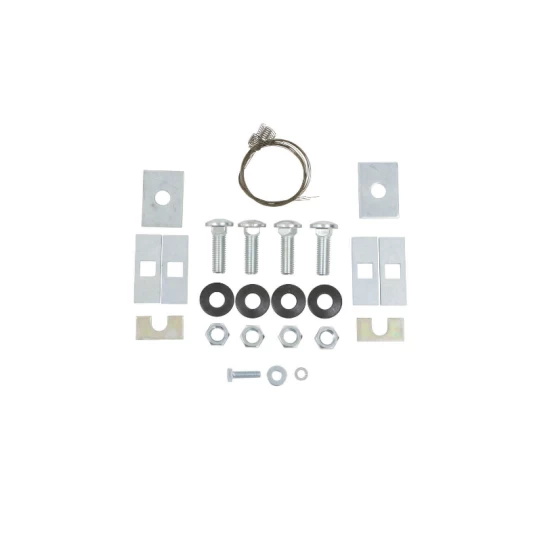

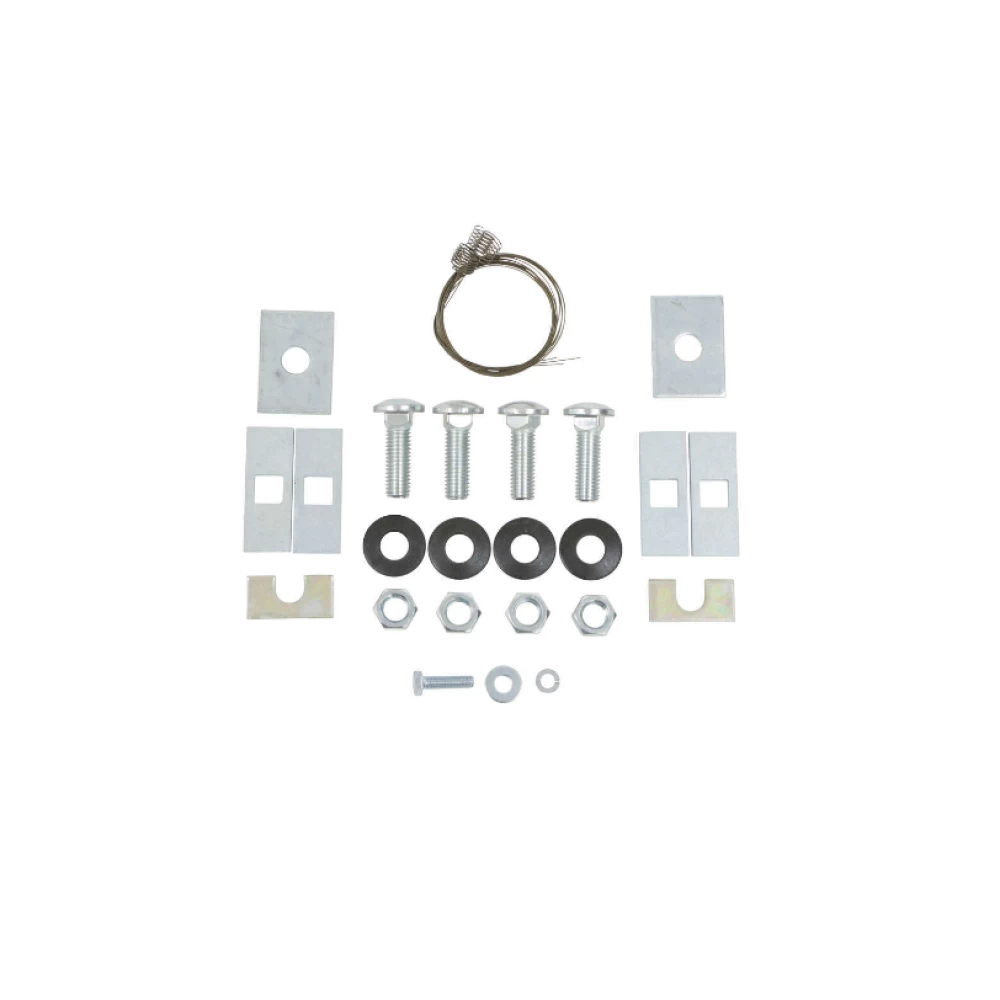

Hardware List:

4 × Carriage Bolts (5/8"-11 × 2.00" GR5)
4 × Spacer Blocks (.250" × 1.12" × 3.00")
2 × U-Shaped Spacer Blocks (.188" × 1.00" × 2.00")
4 × Conical Washers (5/8")
4 × Hex Nuts (5/8"-11 GR2)
2 × Spacer Blocks (.250" × 1.75" × 2.50")
1 × Bolt (M8 × 1.25 × 30 CL8.8)
1 × Lock Washer (5/16")
1 × Flat Washer (5/16")
4 × Fish Wires (5/8")

Safety Notes:

Always wear safety glasses during installation.
Proper torque is essential to secure the hitch to the vehicle.
Check the hitch periodically to ensure all fasteners and the hitch ball are secure.
Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball before use.
Do not cut access or attachment holes with a torch.

Specifications:

Max Gross Trailer Weight (Weight Carrying): 6,000 lbs (2,724 kg)
Max Tongue Weight (Weight Carrying): 900 lbs (408 kg)
Max Gross Trailer Weight (Weight Distributing): 10,000 lbs (4,540 kg)
Max Tongue Weight (Weight Distributing): 1,000 lbs (454 kg)
Installation Time: Approximately 30 minutes

This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.
