Installation Instructions for Hyundai Tucson

Part Numbers:

• 36572
• 06949
• CQT36572

Wiring Access Location:

• SUV1, SUV2

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Flat Head Screwdriver
• 16mm Socket

Installation Time:

• Estimated: 30 minutes (for professional installers)

Step-by-Step Instructions:

Underbody Panel Removal:

1. If equipped, remove two (2) plastic underbody panels (one on each side) located under the rear bumper and behind the rear wheels.
   • Use a flat head screwdriver to remove three (3) plastic expansion fasteners from each panel.
   • Pull down to remove the panels and set them aside for reinstallation later.

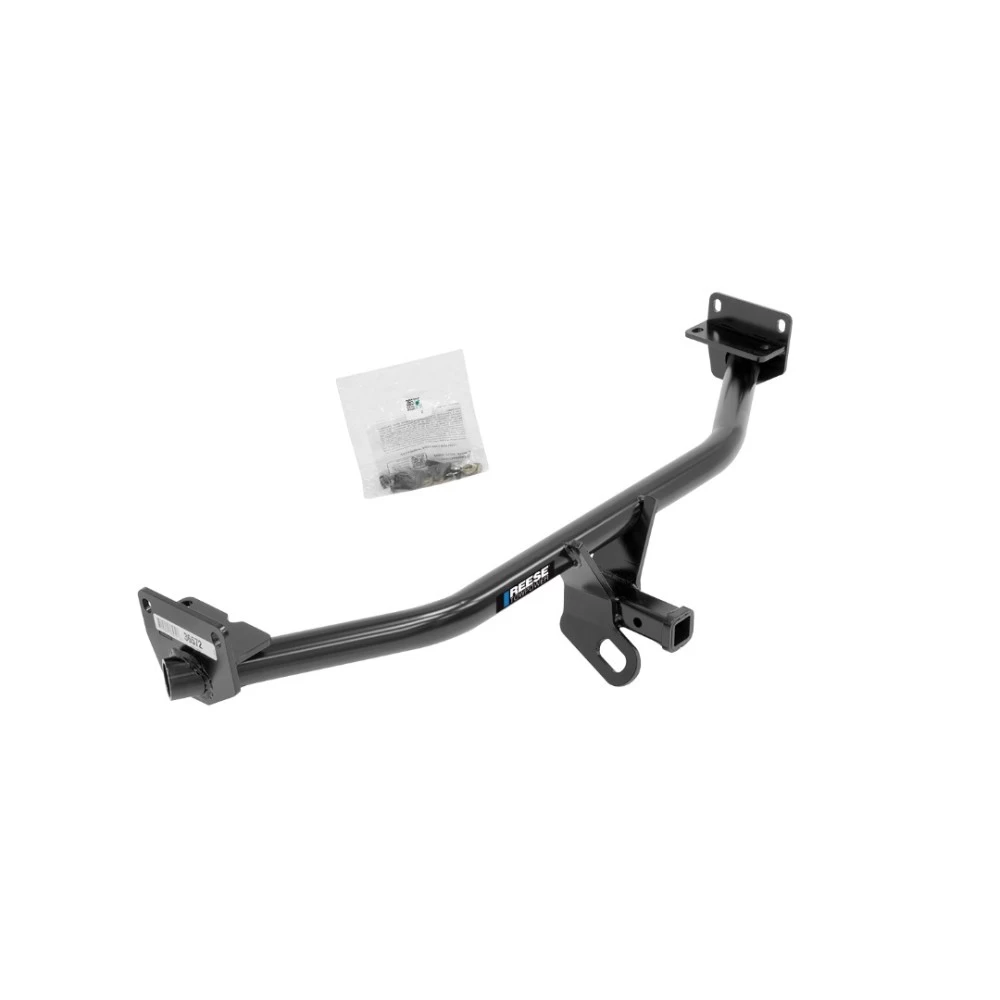

Hitch Installation:

2. Position the Hitch:

   • Insert the hitch over the tailpipe on the passenger side. Removing the rubber isolators and lowering the exhaust may make this step easier.
   • Rotate the hitch and raise it into position.
   • Install four (4) M10 x 1.25 x 30mm CL10.9 bolts and conical toothed washers (teeth side against hitch) on the passenger side.
   • Install three (3) M10 x 1.25 x 30mm CL10.9 bolts and conical toothed washers (teeth side against hitch) on the driver side.

3. Tighten the Fasteners:

   • Use a torque wrench to tighten all M10 fasteners to 42 ft-lb (57 N*m).

4. Reinstall Underbody Panels:

   • Reinstall the two (2) plastic panels if they were removed earlier.

Torque Specifications:

• M10-1.25 CL10.9 bolts: 42 ft-lb (57 N*m)

Hardware List:

• (7) M10 x 1.25 x 30mm CL10.9 Bolts
• (7) 3/8" Conical Toothed Washers

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight: 3,500 lb (1,589 kg)
• Max Tongue Weight: 300 lb (136 kg)

Additional Notes:

• Authorized Drawbar Kit: 36051 (sold separately; must be used in the RISE position only)
• Fastener Kit: 36572F
• This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Installation Instructions for Vehicles (Excluding Quad Exhaust Models)

Part Numbers:

• 36572
• 06949
• CQT36572

Wiring Access Location:

• SUV1, SUV2

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Flat Head Screwdriver
• 16mm Socket

Installation Time:

• Estimated: 30 minutes (for professional installers)

Step-by-Step Instructions:

Underbody Panel Removal:

1. If equipped, remove two (2) plastic underbody panels (one on each side) located under the rear bumper and behind the rear wheels.
   • Use a flat head screwdriver to remove three (3) plastic expansion fasteners from each panel.
   • Pull down to remove the panels and set them aside for reinstallation later.

Hitch Installation:

2. Position the Hitch:

   • Insert the hitch over the tailpipe on the passenger side. Removing the rubber isolators and lowering the exhaust may make this step easier.
   • Rotate the hitch and raise it into position.
   • Install four (4) M10 x 1.25 x 30mm CL10.9 bolts and conical toothed washers (teeth side against hitch) on the passenger side.
   • Install three (3) M10 x 1.25 x 30mm CL10.9 bolts and conical toothed washers (teeth side against hitch) on the driver side.

3. Tighten the Fasteners:

   • Use a torque wrench to tighten all M10 fasteners to 42 ft-lb (57 N*m).

4. Reinstall Underbody Panels:

   • Reinstall the two (2) plastic panels if they were removed earlier.

Torque Specifications:

• M10-1.25 CL10.9 bolts: 42 ft-lb (57 N*m)

Hardware List:

• (7) M10 x 1.25 x 30mm CL10.9 Bolts
• (7) 3/8" Conical Toothed Washers

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight: 3,500 lb (1,589 kg)
• Max Tongue Weight: 300 lb (136 kg)

Additional Notes:

• Authorized Drawbar Kit: 36051 (sold separately; must be used in the RISE position only)
• Fastener Kit: 36572F
• This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty: This product is backed by a limited warranty. For complete warranty instructions, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Installation Instructions for T-One® T-Connector for Hyundai Tucson

Part Numbers:

• 118812

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• Fish Tape
• Test Probe
• Utility Knife

Step-by-Step Instructions:

1. Remove the Taillight Assemblies:

   • Open the tailgate and carefully pull the taillights away from the vehicle to expose the wiring harness connectors behind each taillight.
   • Disconnect the connectors, ensuring not to break the locking tabs. Clean all connector surfaces to remove dirt.

2. Remove Interior Panels:

   • Inside the rear cargo area, temporarily remove all floor coverings, cargo trays, and the plastic threshold cover.
   • Warning: Do not remove the vehicle's side trim panels, as this may damage the clips holding the panels in place.

3. Locate the Grommet and Route Wires:

   • Locate the grommet under the vehicle on the driver’s side.
   • Remove the grommet and use fish tape to route the T-Connector ends and the power wire through the grommet hole from inside the vehicle. Seat the grommet securely.

   Note: If an existing vehicle wire passes through the grommet, carefully slit the provided T-Connector’s grommet to allow both wires to pass through. Add silicone rubber (not provided) to seal the grommet.

4. Connect the Driver-Side T-Connector:

   • Route the T-Connector end with the yellow and brown wires up to the driver-side taillight pocket.
   • Insert the yellow wire connector between the taillight socket and the vehicle wiring harness. Ensure all connections are fully seated with locking tabs secure.

5. Route and Connect the Passenger-Side T-Connector:

   • Route the T-Connector end with the green and red wires across the bumper bracket and into the passenger-side taillight pocket.
   • Secure the harness to the bumper using cable ties, avoiding hot pipes, heat shields, or sharp edges.
   • Repeat Step 4 for the passenger-side taillight.

6. Connect the Power Wire:

   • Remove the fuse from the yellow fuse holder. Attach the provided ring terminal to the Positive (+) battery cable and secure it.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.
   • Route the black power wire along the vehicle’s frame to the rear, avoiding hot pipes, heat shields, fuel tanks, or other hazards.
   • Under the vehicle, connect the black power wire to the red 12-gauge power wire exiting the grommet using the provided butt connector. Apply heat to the splice until the tubing recovers and adhesive flows.

7. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as an existing ground stud.
   • Clean dirt and rustproofing from the area, drill a 3/32” hole, and secure the white wire using the provided eyelet and screw.
   • Caution: Verify what is behind any surface before drilling to prevent damage or injury.

8. Test the Installation:

   • Ensure all connections are complete. Test the installation with a test light or trailer to verify functionality.

9. Mount the Black Box:

   • Mount the T-One® T-Connector black box on the driver’s side using the provided double-sided tape.
   • Secure the remaining harness with cable ties to prevent damage or rattling.

10. Reassemble the Vehicle:

    • Reinstall the plastic trim panels, threshold cover, storage covers, and floor coverings.
    • Ensure no wires are pinched or damaged.

11. Store the 4-Flat Connector:

    • Store the 4-flat connector in the spare tire compartment when not in use.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow all safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Installation Instructions for T-One® T-Connector for Various Vehicles

Part Numbers:

• 118812

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• Fish Tape
• Test Probe
• Utility Knife

Step-by-Step Instructions:

1. Remove the Taillight Assemblies:

   • Open the tailgate and carefully pull the taillights away from the vehicle to expose the wiring harness connectors behind each taillight.
   • Disconnect the connectors, ensuring not to break the locking tabs. Clean all connector surfaces to remove dirt.

2. Remove Interior Panels:

   • Inside the rear cargo area, temporarily remove all floor coverings, cargo trays, and the plastic threshold cover.
   • Warning: Do not remove the vehicle's side trim panels, as this may damage the clips holding the panels in place.

3. Locate the Grommet and Route Wires:

   • Locate the grommet under the vehicle on the driver’s side.
   • Remove the grommet and use fish tape to route the T-Connector ends and the power wire through the grommet hole from inside the vehicle. Seat the grommet securely.

   Note: If an existing vehicle wire passes through the grommet, carefully slit the provided T-Connector’s grommet to allow both wires to pass through. Add silicone rubber (not provided) to seal the grommet.

4. Connect the Driver-Side T-Connector:

   • Route the T-Connector end with the yellow and brown wires up to the driver-side taillight pocket.
   • Insert the yellow wire connector between the taillight socket and the vehicle wiring harness. Ensure all connections are fully seated with locking tabs secure.

5. Route and Connect the Passenger-Side T-Connector:

   • Route the T-Connector end with the green and red wires across the bumper bracket and into the passenger-side taillight pocket.
   • Secure the harness to the bumper using cable ties, avoiding hot pipes, heat shields, or sharp edges.
   • Repeat Step 4 for the passenger-side taillight.

6. Connect the Power Wire:

   • Remove the fuse from the yellow fuse holder. Attach the provided ring terminal to the Positive (+) battery cable and secure it.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.
   • Route the black power wire along the vehicle’s frame to the rear, avoiding hot pipes, heat shields, fuel tanks, or other hazards.
   • Under the vehicle, connect the black power wire to the red 12-gauge power wire exiting the grommet using the provided butt connector. Apply heat to the splice until the tubing recovers and adhesive flows.

7. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as an existing ground stud.
   • Clean dirt and rustproofing from the area, drill a 3/32” hole, and secure the white wire using the provided eyelet and screw.
   • Caution: Verify what is behind any surface before drilling to prevent damage or injury.

8. Test the Installation:

   • Ensure all connections are complete. Test the installation with a test light or trailer to verify functionality.

9. Mount the Black Box:

   • Mount the T-One® T-Connector black box on the driver’s side using the provided double-sided tape.
   • Secure the remaining harness with cable ties to prevent damage or rattling.

10. Reassemble the Vehicle:

    • Reinstall the plastic trim panels, threshold cover, storage covers, and floor coverings.
    • Ensure no wires are pinched or damaged.

11. Store the 4-Flat Connector:

    • Store the 4-flat connector in the spare tire compartment when not in use.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow all safety precautions during installation.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Warranty Information:

• For complete warranty instructions, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
