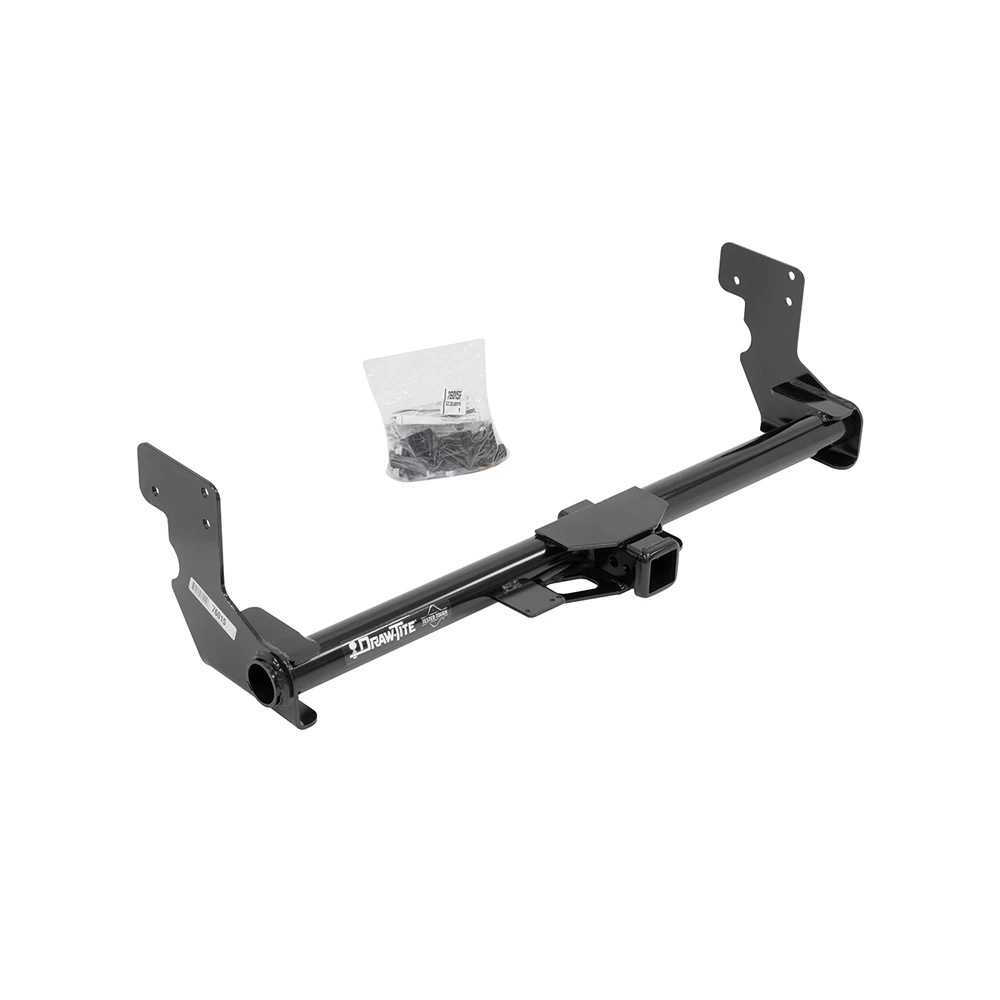

Installation Instructions for Mercedes Metris (2016-Current)
(Cargo/Passenger Models)

Part Numbers:

• 76015
• 84015
• CQT76015

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 16mm, 18mm
• 6" Socket Extension

Wiring Access Location:

• N/A

Step-by-Step Instructions:

1. Remove Tow Hook:

   • Use a 16mm and 18mm socket to remove:
     • (2) Short bolts
     • (2) Long bolts
     • (2) Flange nuts
   • Remove the tow hook from the passenger side. Return all fasteners and the tow hook to the vehicle owner.

2. Position the Hitch:

   • Raise the hitch into position.
   • Align the bracket holes with the outside frame rail holes.
   • Insert the bolt (M12 x 1.75 x 110mm) and block (.375 x 1.50 x 2.00) through the frame rail holes.
   • Secure loosely using the conical washers (1/2") and hex nuts (M12 x 1.75).

3. Tighten Fasteners:

   • Use a torque wrench to tighten all M12 fasteners to 68 lb-ft (92 Nm).

4. Verify Installation:

   • Ensure all fasteners are tightened to the correct torque specifications.
   • Periodically check the hitch and ball mount for secure attachment.

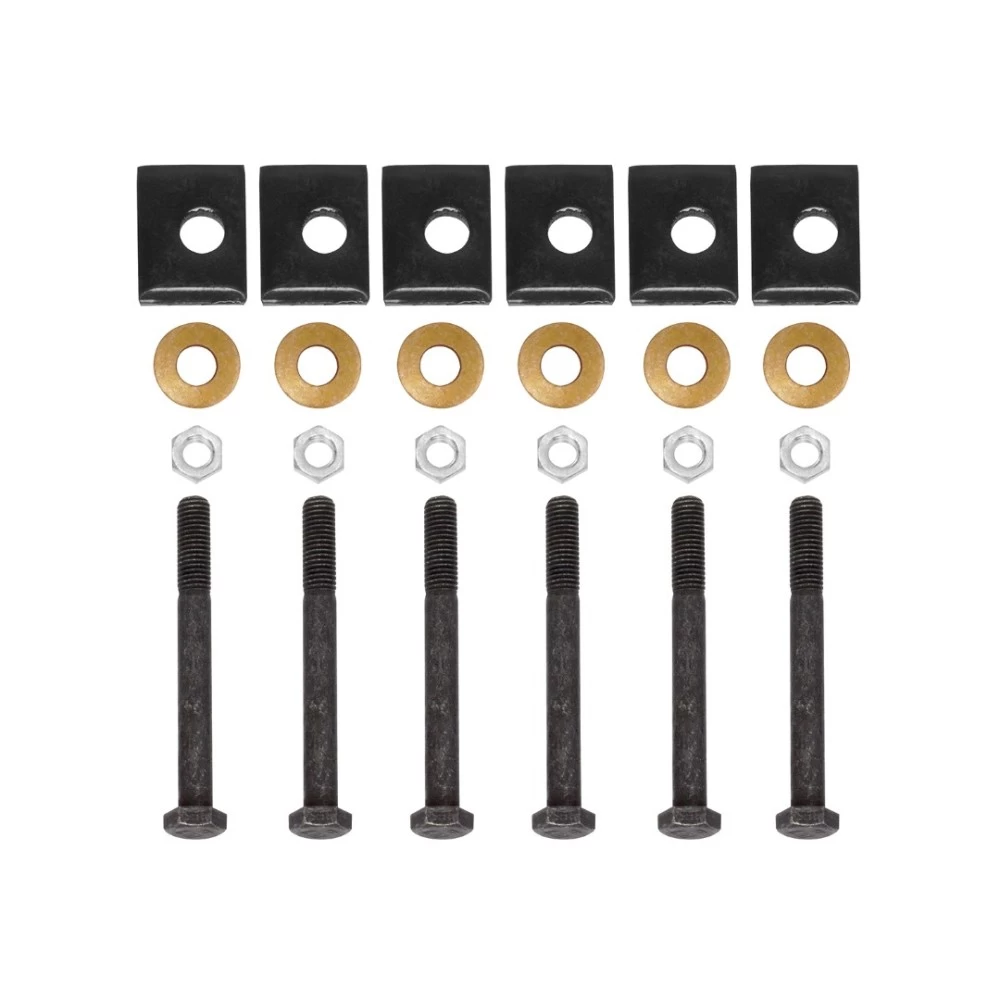

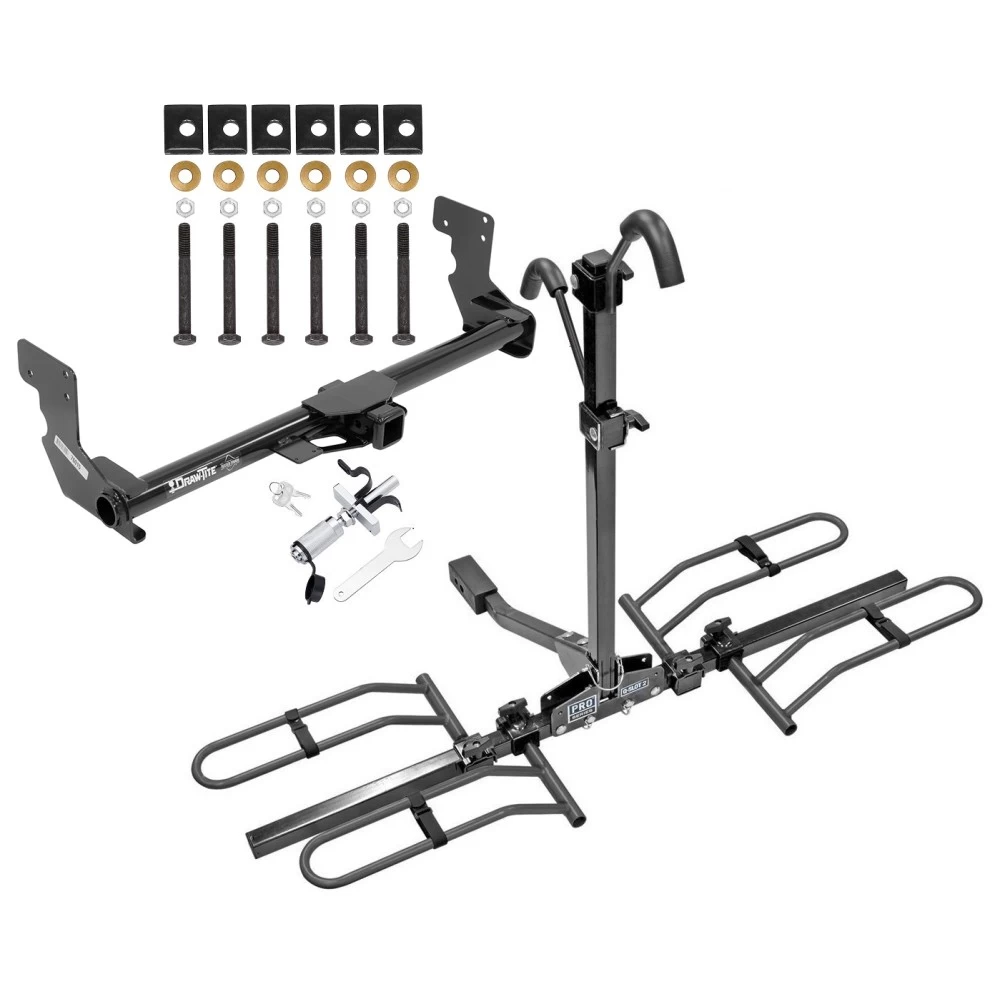

Hardware List:

• (6) M12 x 1.75 x 110mm CL10.9 Bolts
• (6) .375 x 1.50 x 2.00 Spacer Blocks
• (6) 1/2" Conical Toothed Washers
• (6) M12 x 1.75 Hex Nuts

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses during installation.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 750 lbs (340 kg).
  • Weight Distributing: Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 750 lbs (340 kg).
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Additional Notes:

• Installation time is approximately 20 minutes for a professional installer.
• If you are uncomfortable performing this installation, consult a professional installer.

Installation Instructions for Vehicle (2016-Current)
(Cargo/Passenger Models)

Part Numbers:

• 76015
• 84015
• CQT76015

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 16mm, 18mm
• 6" Socket Extension

Wiring Access Location:

• N/A

Step-by-Step Instructions:

1. Remove Tow Hook:

   • Use a 16mm and 18mm socket to remove:
     • (2) Short bolts
     • (2) Long bolts
     • (2) Flange nuts
   • Remove the tow hook from the passenger side. Return all fasteners and the tow hook to the vehicle owner.

2. Position the Hitch:

   • Raise the hitch into position.
   • Align the bracket holes with the outside frame rail holes.
   • Insert the bolt (M12 x 1.75 x 110mm) and block (.375 x 1.50 x 2.00) through the frame rail holes.
   • Secure loosely using the conical washers (1/2") and hex nuts (M12 x 1.75).

3. Tighten Fasteners:

   • Use a torque wrench to tighten all M12 fasteners to 68 lb-ft (92 Nm).

4. Verify Installation:

   • Ensure all fasteners are tightened to the correct torque specifications.
   • Periodically check the hitch and ball mount for secure attachment.

Hardware List:

• (6) M12 x 1.75 x 110mm CL10.9 Bolts
• (6) .375 x 1.50 x 2.00 Spacer Blocks
• (6) 1/2" Conical Toothed Washers
• (6) M12 x 1.75 Hex Nuts

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses during installation.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 750 lbs (340 kg).
  • Weight Distributing: Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 750 lbs (340 kg).
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Additional Notes:

• Installation time is approximately 20 minutes for a professional installer.
• If you are uncomfortable performing this installation, consult a professional installer.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.
