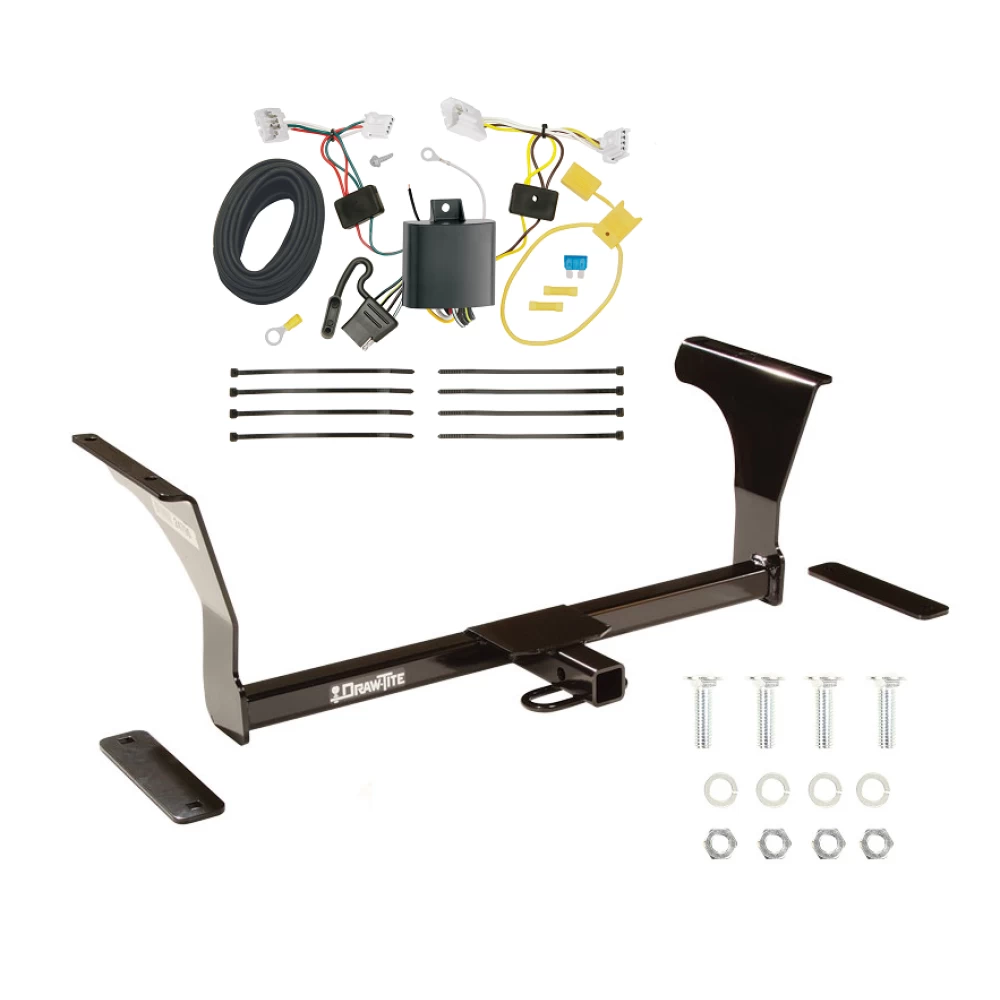

Installation Instructions for Nissan Altima and Nissan Maxima

Part Numbers:

• 60873
• 24796
• 77168

Wiring Access Location:

• PC3, PC4

Tools Required:

• Wrenches: 11/16”, 5/8”, 16mm
• Drill Bits: 7/16”
• Sealant

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

1. Prepare Trunk Area:

   • Remove carpeting, fiberboard, and storage bin tray (if present) from the trunk.

2. Remove Ground Wire:

   • Detach the ground wire from the driver’s side muffler.

3. Disconnect Exhaust:

   • For 2007-2011 Models:
     • Disconnect the exhaust at the flange on both sides and retain the fasteners.
   • For 2012 and Later Models:
     • Disconnect the exhaust at the lap joint on both sides and retain the fasteners.

4. Expose Frame Area:

   • Push the exhaust toward the rear of the vehicle and off the rubber isolator.
   • Gently move the heat shield toward the frame rail to expose the area between the frame rail and wheel well.

5. Position Hitch:

   • Raise the hitch into position between the frame rails and spare tire wheel well.
   • Align the rear edge of the hitch side brackets flush with the bulkhead.
   • Verify the hitch is properly positioned.

6. Mark and Drill Holes:

   • Using the hitch as a template, mark and center punch two (2) holes on both sides.
   • Lower the hitch and drill 7/16” holes through the trunk pan at the marked locations. Adjust alignment if needed, and remove burrs.

7. Install Plates and Bolts:

   • Position the provided plate over the drilled holes inside the trunk.
   • Insert carriage bolts through the plate and trunk pan. Ensure the installation is above the carpet.

8. Attach Hitch:

   • Raise the hitch into position, align it over the carriage bolts, and secure with lock washers and hex nuts.

9. Reattach Components:

   • Gently bend the heat shield back into place.
   • Reattach the exhaust to the rubber isolator and the flange/lap joint.
   • Reinstall the ground wire to the muffler.

10. Seal Bolts:

    • Apply sealant to the bolt attachments inside the spare tire well to prevent water and exhaust fumes from entering the vehicle.

11. Reinstall Trunk Components:

    • Replace the carpeting, fiberboard, and storage bin tray (if present).

Hardware List:

• (4) Carriage Bolts: 7/16”-14 x 1.50” GR5
• (4) Nuts: 7/16”-14
• (4) Lock Washers

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
• If the hitch is removed, plug any holes in the trunk pan to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always observe safety precautions and wear eye protection when working under the vehicle.
• Do not use a torch to cut access or attachment holes.

Drawbar:

• Drawbar Kit: 3594
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Tighten all 7/16”-14 GR5 fasteners to 50 Lb.-Ft. (68 N*M) using a torque wrench.
• Check the hitch frequently to ensure all fasteners remain tight.

Installation Instructions

Part Numbers:

• 60873
• 24796
• 77168

Wiring Access Location:

• Hyundai Elantra and Kia Rio 5: PC3, PC4
• Hyundai Accent: PC1, PC2

Tools Required:

• Wrenches: 11/16”, 5/8”, 16mm
• Drill Bits: 7/16”
• Sealant

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed the towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

1. Prepare Trunk Area:

   • Remove carpeting, fiberboard, and storage bin tray (if present) from the trunk.

2. Remove Ground Wire:

   • Detach the ground wire from the driver’s side muffler.

3. Disconnect Exhaust:

   • For 2007-2011 Models:
     • Disconnect the exhaust at the flange on both sides and retain the fasteners.
   • For 2012 and Later Models:
     • Disconnect the exhaust at the lap joint on both sides and retain the fasteners.

4. Expose Frame Area:

   • Push the exhaust toward the rear of the vehicle and off the rubber isolator.
   • Gently move the heat shield toward the frame rail to expose the area between the frame rail and wheel well.

5. Position Hitch:

   • Raise the hitch into position between the frame rails and spare tire wheel well.
   • Align the rear edge of the hitch side brackets flush with the bulkhead.
   • Verify the hitch is properly positioned.

6. Mark and Drill Holes:

   • Using the hitch as a template, mark and center punch two (2) holes on both sides.
   • Lower the hitch and drill 7/16” holes through the trunk pan at the marked locations. Adjust alignment if needed, and remove burrs.

7. Install Plates and Bolts:

   • Position the provided plate over the drilled holes inside the trunk.
   • Insert carriage bolts through the plate and trunk pan. Ensure the installation is above the carpet.

8. Attach Hitch:

   • Raise the hitch into position, align it over the carriage bolts, and secure with lock washers and hex nuts.

9. Reattach Components:

   • Gently bend the heat shield back into place.
   • Reattach the exhaust to the rubber isolator and the flange/lap joint.
   • Reinstall the ground wire to the muffler.

10. Seal Bolts:

    • Apply sealant to the bolt attachments inside the spare tire well to prevent water and exhaust fumes from entering the vehicle.

11. Reinstall Trunk Components:

    • Replace the carpeting, fiberboard, and storage bin tray (if present).

Hardware List:

• (4) Carriage Bolts: 7/16”-14 x 1.50” GR5
• (4) Nuts: 7/16”-14
• (4) Lock Washers

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
• If the hitch is removed, plug any holes in the trunk pan to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always observe safety precautions and wear eye protection when working under the vehicle.
• Do not use a torch to cut access or attachment holes.

Drawbar:

• Drawbar Kit: 3594
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Tighten all 7/16”-14 GR5 fasteners to 50 Lb.-Ft. (68 N*M) using a torque wrench.
• Check the hitch frequently to ensure all fasteners remain tight.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

For Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

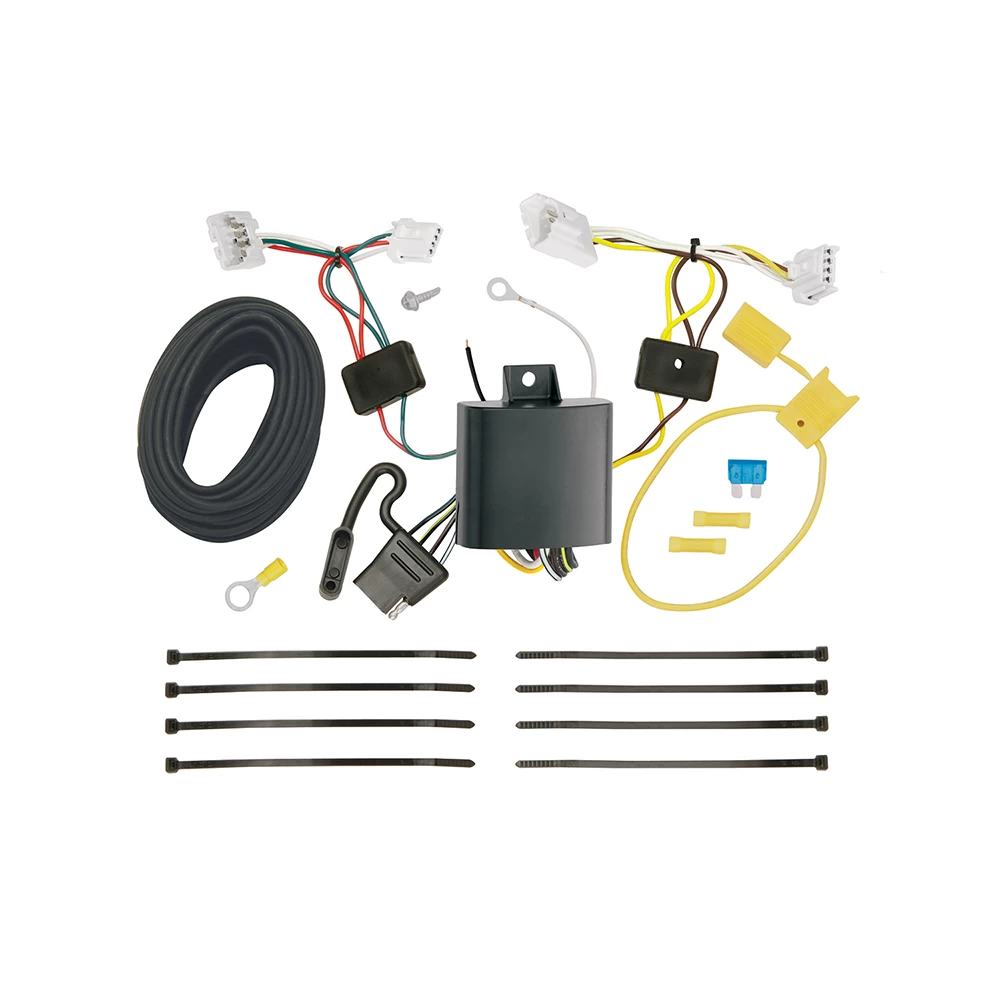

Installation Instructions for T-One® T-Connector for Nissan Altima

Part Numbers:

• 118731

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Prepare the Vehicle:

   • Open the trunk and temporarily remove the rear threshold plate.
   • Partially remove the felt trunk liner behind the taillights.

2. Locate the Taillight Wiring Harness:

   • On both the driver and passenger sides, locate the taillight wiring harness with connection points matching the ends of the T-One® Connector.
   • Separate the connectors carefully, ensuring not to break the locking tabs. Ensure all connector surfaces are clean and free of dirt.

3. Connect the Driver-Side T-Connector:

   • Insert the T-One® Connector end with the yellow wire between the vehicle wiring connectors.
   • Lock into place and ensure all connectors are fully inserted and secure.

4. Route the Passenger-Side T-Connector:

   • Route the T-One® Connector end with the green wire to the passenger side behind the panels and along the threshold.
   • Repeat Step 3 using the T-Connector ends containing the green wire.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as the vehicle frame.
   • Clean dirt and rustproofing from the area.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution: Verify what is behind any surface before drilling to avoid damage or injury.

6. Connect the Power Wire:

   • Inside the vehicle, connect the black 12-gauge wire from the T-One® Connector’s black box to the supplied black wire using the yellow butt connector.
   • Route the black wire through a grommet and along the exterior frame or follow the existing wiring to the engine compartment.
   • Avoid routing near hot pipes, heat shields, or the fuel tank.

7. Connect to the Vehicle Battery:

   • Disconnect the vehicle’s Negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder. Attach the ring terminal to the Positive (+) battery cable.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.

8. Reconnect the Battery and Test:

   • Reconnect the vehicle’s Negative (-) battery cable.
   • Insert the 15-amp fuse into the fuse holder.
   • Test the installation with a test light or trailer.

9. Mount the Black Box Module:

   • Locate a flat, out-of-the-way surface and mount the black box module to prevent damage or rattling.

10. Secure the Wiring Harness:

    • Use the provided cable ties to secure the harness, avoiding areas that may pinch, cut, or melt the wire.

11. Reassemble the Vehicle:

    • Replace the carpet, clips, and panels removed during installation, ensuring no wires are pinched or damaged.

12. Store the 4-Flat Connector:

    • Store the 4-flat connector in the trunk area when not in use.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Installation Instructions for T-One® T-Connector for Nissan Altima

Part Numbers:

• 118731

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Prepare the Vehicle:

   • Open the trunk and temporarily remove the rear threshold plate.
   • Partially remove the felt trunk liner behind the taillights.

2. Locate the Taillight Wiring Harness:

   • On both the driver and passenger sides, locate the taillight wiring harness with connection points matching the ends of the T-One® Connector.
   • Separate the connectors carefully, ensuring not to break the locking tabs. Ensure all connector surfaces are clean and free of dirt.

3. Connect the Driver-Side T-Connector:

   • Insert the T-One® Connector end with the yellow wire between the vehicle wiring connectors.
   • Lock into place and ensure all connectors are fully inserted and secure.

4. Route the Passenger-Side T-Connector:

   • Route the T-One® Connector end with the green wire to the passenger side behind the panels and along the threshold.
   • Repeat Step 3 using the T-Connector ends containing the green wire.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as the vehicle frame.
   • Clean dirt and rustproofing from the area.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution: Verify what is behind any surface before drilling to avoid damage or injury.

6. Connect the Power Wire:

   • Inside the vehicle, connect the black 12-gauge wire from the T-One® Connector’s black box to the supplied black wire using the yellow butt connector.
   • Route the black wire through a grommet and along the exterior frame or follow the existing wiring to the engine compartment.
   • Avoid routing near hot pipes, heat shields, or the fuel tank.

7. Connect to the Vehicle Battery:

   • Disconnect the vehicle’s Negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder. Attach the ring terminal to the Positive (+) battery cable.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.

8. Reconnect the Battery and Test:

   • Reconnect the vehicle’s Negative (-) battery cable.
   • Insert the 15-amp fuse into the fuse holder.
   • Test the installation with a test light or trailer.

9. Mount the Black Box Module:

   • Locate a flat, out-of-the-way surface and mount the black box module to prevent damage or rattling.

10. Secure the Wiring Harness:

    • Use the provided cable ties to secure the harness, avoiding areas that may pinch, cut, or melt the wire.

11. Reassemble the Vehicle:

    • Replace the carpet, clips, and panels removed during installation, ensuring no wires are pinched or damaged.

12. Store the 4-Flat Connector:

    • Store the 4-flat connector in the trunk area when not in use.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Note: Store the 4-flat connector in the rear cargo area when not in use to prevent damage.
