Trailer Tow Hitch For 17‑24 Cadillac XT5 Deluxe Package Wiring 2" Ball and Lock

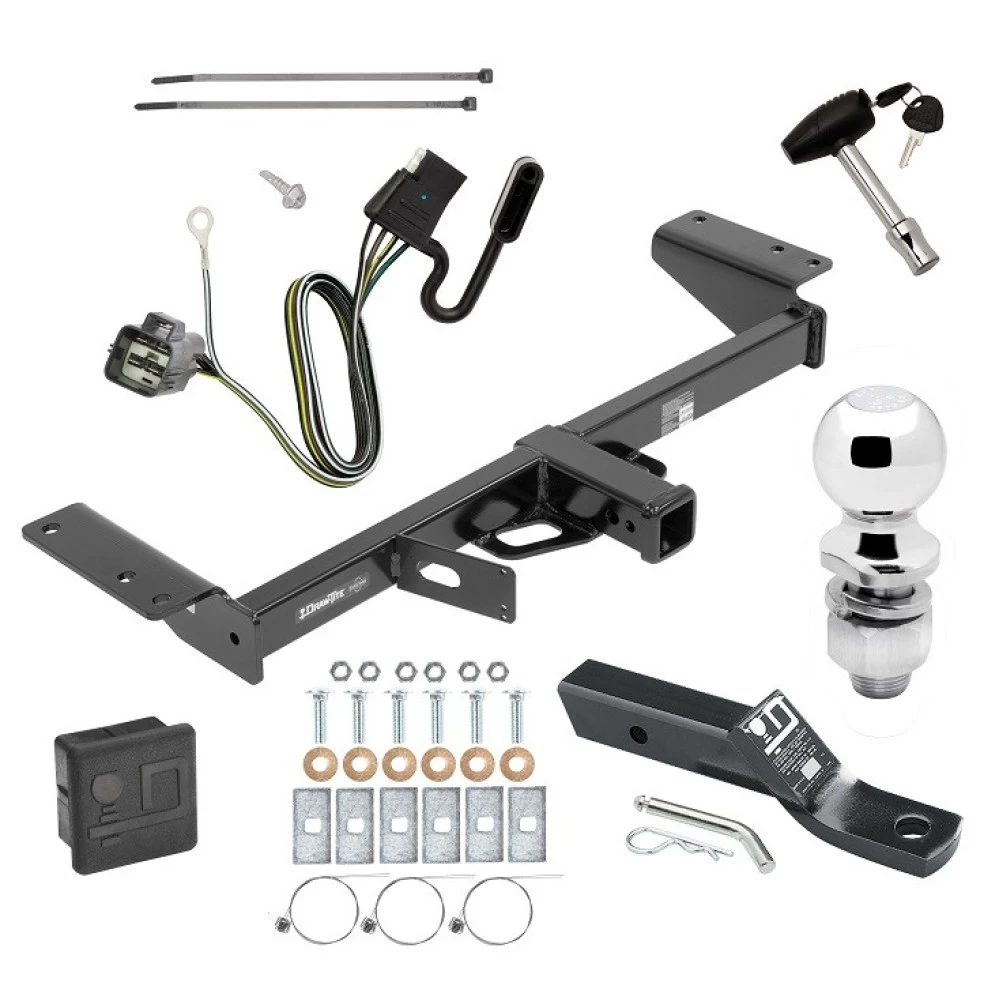

Model: 76022 118720 23 63845 580407 7010Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2017 - 2024 Cadillac, XT5, Except Platinum
Trailer Hitch Specs:
| Part Number | 76022 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | 4,500 lbs |
| Max Tongue Weight | 675/675 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118720 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Security Lock Pin Specs:
| Part Number | 580407 |
| Fits | 2" and 1-7/8" Tow Receivers |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |
Rubber Hitch Plug Specs:
| Part Number | 7010 |
| Fits | 2" Receiver |
| Brand | Draw-Tite |
| Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
$322 42 $446.29 28% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$446.29 $322 42
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $80.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76022 118720 23 63845 580407 7010
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2017 - 2024 Cadillac, XT5, Except Platinum
Trailer Hitch Specs:
| Part Number | 76022 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | 4,500 lbs |
| Max Tongue Weight | 675/675 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118720 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Security Lock Pin Specs:
| Part Number | 580407 |
| Fits | 2" and 1-7/8" Tow Receivers |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |
Rubber Hitch Plug Specs:
| Part Number | 7010 |
| Fits | 2" Receiver |
| Brand | Draw-Tite |
| Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Get Expert Help
Trailer Tow Hitch For 17-24 Cadillac XT5 Deluxe Package Wiring 2" Ball and Lock Install Notes
Installation Instructions for Cadillac XT5 (2017-Current)
Part Numbers:
- 76022
- 84022
- CQT76022
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 7mm, 11/16"
- Die Grinder (if needed)
- 6” Socket Extension
Wiring Access Location:
- [Information not provided]
Step-by-Step Instructions:
-
Remove Fascia Door:
- Use a 7mm socket to remove two (2) bolts from the fascia door.
- Keep the fasteners and door for reinstallation.
-
Install Hitch:
- Insert pull wires into the largest round hole of the frame rails and use them to feed carriage bolts and spacers into the frame rails.
- If necessary, use a die grinder to enlarge the feeding hole for easier insertion.
- Raise the hitch into position and feed the carriage bolts through the bracket holes.
- Remove the pull wires and loosely install hex nuts and conical washers to secure the hitch.
-
Tighten Fasteners:
- Torque all 1/2" fasteners to 75 lb-ft (102 N·m).
-
Reinstall Fascia Door:
- Reattach the fascia door when not towing.
Hardware List:
- (6) 1/2"-13 x 1.75" GR5 Carriage Bolts
- (6) 0.250" x 1.00" x 2.00" Spacer Blocks
- (6) 1/2" Conical Washers
- (6) 1/2"-13 GR5 Hex Nuts
- (6) 1/2" Pull Wires
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses during installation.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
- Weight Distributing: Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation time is approximately 20 minutes for a professional installer.
- Contact a professional installer if you are uncomfortable performing the installation on your own.
Installation Instructions for Vehicle (2017-Current)
Part Numbers:
- 76022
- 84022
- CQT76022
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 7mm, 11/16"
- Die Grinder (if needed)
- 6” Socket Extension
Wiring Access Location:
- [Information not provided]
Step-by-Step Instructions:
-
Remove Fascia Door:
- Use a 7mm socket to remove two (2) bolts from the fascia door.
- Keep the fasteners and door for reinstallation.
-
Install Hitch:
- Insert pull wires into the largest round hole of the frame rails and use them to feed carriage bolts and spacers into the frame rails.
- If necessary, use a die grinder to enlarge the feeding hole for easier insertion.
- Raise the hitch into position and feed the carriage bolts through the bracket holes.
- Remove the pull wires and loosely install hex nuts and conical washers to secure the hitch.
-
Tighten Fasteners:
- Torque all 1/2" fasteners to 75 lb-ft (102 N·m).
-
Reinstall Fascia Door:
- Reattach the fascia door when not towing.
Hardware List:
- (6) 1/2"-13 x 1.75" GR5 Carriage Bolts
- (6) 0.250" x 1.00" x 2.00" Spacer Blocks
- (6) 1/2" Conical Washers
- (6) 1/2"-13 GR5 Hex Nuts
- (6) 1/2" Pull Wires
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses during installation.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
- Weight Distributing: Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation time is approximately 20 minutes for a professional installer.
- Contact a professional installer if you are uncomfortable performing the installation on your own.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-One® T-Connector for Cadillac XT5
Part Numbers:
- 118720
Tools Required:
- Trim Panel Puller
- Test Probe
- 7mm Socket or Wrench
Step-by-Step Instructions:
-
Remove the Access Cover:
- Locate the access cover on the vehicle’s rear bumper area.
- Using a 7mm socket or wrench, remove the two bolts holding the cover in place.
- Carefully remove the cover and set it aside.
-
Locate the Tow Plug Connector:
- Behind the access cover area, locate the gray 4-pin connector.
- Remove the factory tow harness protective cap and clean the mating surface if dirty.
- Insert the 4-pin tow plug adapter into the connector and lock it into place.
- Ensure all connectors are fully inserted with locking tabs in place.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure the remainder of the T-One® T-Connector harness.
- Avoid areas that may pinch, cut, or melt the wire.
-
Mount the 4-Flat Connector:
- Mount the 4-flat end in an accessible location using a bracket or electrical box (not included).
-
Replace the Access Cover:
- Reinstall the access cover removed during Step 1.
-
Test the Installation:
- Verify all connections are complete.
- Test the installation using a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow all safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Installation Instructions for T-One® T-Connector for Cadillac XT5
Part Numbers:
- 118720
Tools Required:
- Trim Panel Puller
- Test Probe
- 7mm Socket or Wrench
Step-by-Step Instructions:
-
Remove the Access Cover:
- Locate the access cover on the vehicle’s rear bumper area.
- Using a 7mm socket or wrench, remove the two bolts holding the cover in place.
- Carefully remove the cover and set it aside.
-
Locate the Tow Plug Connector:
- Behind the access cover area, locate the gray 4-pin connector.
- Remove the factory tow harness protective cap and clean the mating surface if dirty.
- Insert the 4-pin tow plug adapter into the connector and lock it into place.
- Ensure all connectors are fully inserted with locking tabs in place.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure the remainder of the T-One® T-Connector harness.
- Avoid areas that may pinch, cut, or melt the wire.
-
Mount the 4-Flat Connector:
- Mount the 4-flat end in an accessible location using a bracket or electrical box (not included).
-
Replace the Access Cover:
- Reinstall the access cover removed during Step 1.
-
Test the Installation:
- Verify all connections are complete.
- Test the installation using a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow all safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Note: Store the 4-flat connector in the rear cargo area when not in use to prevent damage.
Related Products
