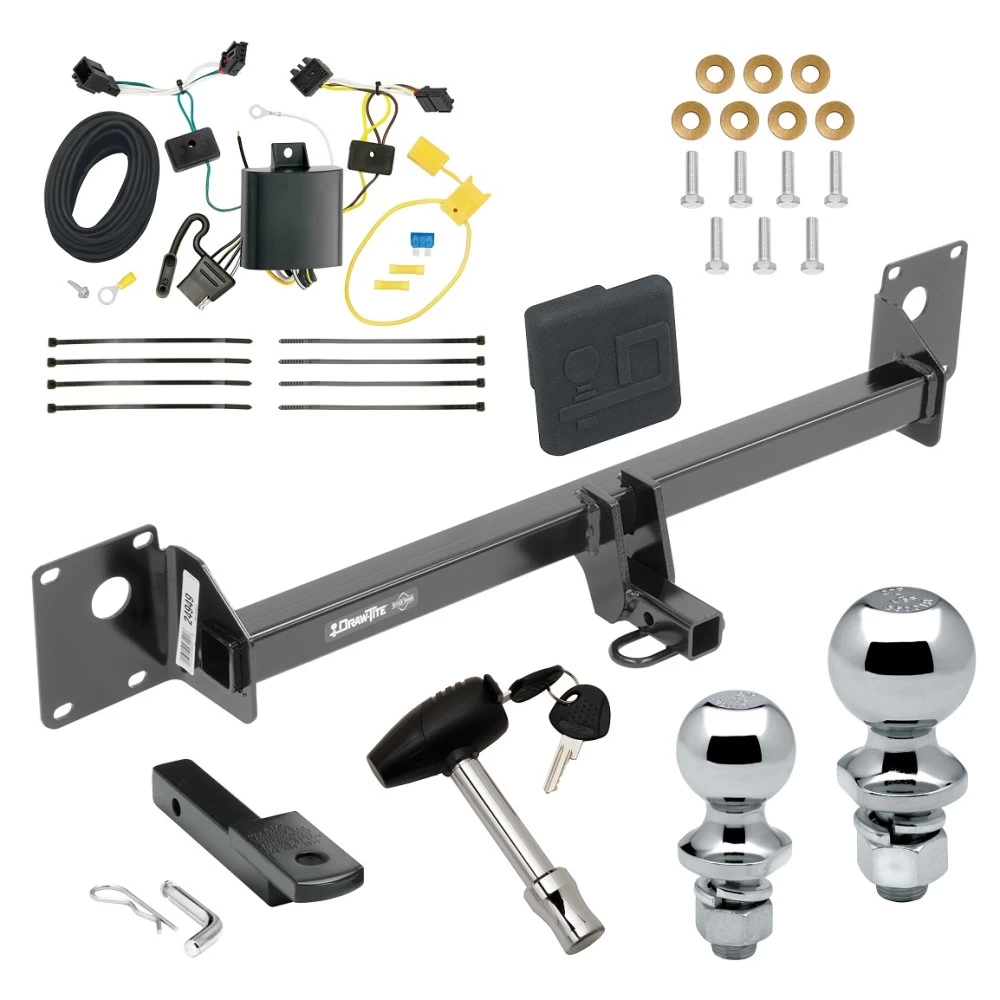

- Includes: Class 1 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 17 Volkswagen Golf Alltrack SportWagen 16 Turbo Deluxe Package Wiring 2" and 1-7/8" Ball and Lock Install Notes
Installation Instructions for Volkswagen Golf Sportwagen (2015-Current)
Part Numbers:
- 24949
- 77949
- CQT24949
Wiring Access Location:
- PC3, PC4
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10mm, 13mm
- T15, T20 Torx Sockets
- 6" Socket Extension
- Flat-Head Screwdriver
- Plastic Trim Tools
- Utility Knife
- Hammer
- Tape Measure
- Marker or Tape
- Die Grinder (optional)
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Installation Time:
- Approx. 60 minutes (Professional Installer)
Step-by-Step Instructions:
-
Remove Tail Lights:
- Open the tailgate and remove the side panels to access the tail light wiring.
- Disconnect the wiring by pressing the red connector to release.
- Remove the plastic retaining screw from each side using pliers if necessary.
- Gently push rearward on the tail lights to remove them, and store them in a safe place.
-
Remove Appearance Panel:
- Loosen the two plastic bolts attached to the spare tire well using a 10mm socket.
- Remove four T20 screws securing the appearance panel and set it aside for reinstallation.
-
Remove Bolts from Wheel Well and Fascia:
- Remove four T15 plastic screws from the underside of the rear fascia and pop out the plastic retaining blocks using a flat-head screwdriver.
- Remove four T20 screws from each wheel well: three facing the rear and one at the top between the rear and side panels.
-
Remove Rear Fascia:
- Gently pull upward from the rear wheel well panels on each side to unclip the tabs inside.
- Continue removing along the tail light supports using a trim tool or small screwdriver to push down on cleats as needed.
- Carefully work the fascia off the fixed pins at the lower wheel well and detach any wiring harness or sensors connected to the fascia.
-
Remove Bumper:
- Remove the seven M13 bolts securing the bumper, lifting as needed for removal. Set aside for reinstallation.
-
Optional - Bolt for Support:
- Thread one M8 bolt through the existing weld nut on the end panel from the forward side to ease installation.
-
Install Hitch and Bumper:
- Raise the hitch into position, resting it on the bolt installed in Step 6. Align the hitch with the bumper and install bolts with conical washers.
- Remove the temporary bolt from Step 6 and install the remaining fasteners.
- If a tab on the bumper interferes with installation, use a hammer to bend it flush.
-
Tighten Fasteners:
- Torque all M8 CL8.8 fasteners to 20 Lb.-Ft. (27 N*M).
-
Trim Fascia:
- Measure and mark 3/4” from the edge of the fascia opening, 2-1/2” across, and 1-1/4” down. Carefully trim as shown.
-
Reinstall Fascia:
- Reattach the fascia by aligning and pressing it into place in reverse order of removal. Reattach any wiring harness if removed.
Hardware List:
- (7) Bolts: M8 x 1.25 x 30 CL8.8
- (7) Conical Washers: 3/8”
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they remain securely tightened.
- Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection while working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3590
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
Installation Instructions for Volkswagen Golf Sportwagen (2015-Current)
Part Numbers:
- 24949
- 77949
- CQT24949
Wiring Access Location:
- PC3, PC4
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10mm, 13mm
- T15, T20 Torx Sockets
- 6" Socket Extension
- Flat-Head Screwdriver
- Plastic Trim Tools
- Utility Knife
- Hammer
- Tape Measure
- Marker or Tape
- Die Grinder (optional)
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Installation Time:
- Approx. 60 minutes (Professional Installer)
Step-by-Step Instructions:
-
Remove Tail Lights:
- Open the tailgate and remove the side panels to access the tail light wiring.
- Disconnect the wiring by pressing the red connector to release.
- Remove the plastic retaining screw from each side using pliers if necessary.
- Gently push rearward on the tail lights to remove them, and store them in a safe place.
-
Remove Appearance Panel:
- Loosen the two plastic bolts attached to the spare tire well using a 10mm socket.
- Remove four T20 screws securing the appearance panel and set it aside for reinstallation.
-
Remove Bolts from Wheel Well and Fascia:
- Remove four T15 plastic screws from the underside of the rear fascia and pop out the plastic retaining blocks using a flat-head screwdriver.
- Remove four T20 screws from each wheel well: three facing the rear and one at the top between the rear and side panels.
-
Remove Rear Fascia:
- Gently pull upward from the rear wheel well panels on each side to unclip the tabs inside.
- Continue removing along the tail light supports using a trim tool or small screwdriver to push down on cleats as needed.
- Carefully work the fascia off the fixed pins at the lower wheel well and detach any wiring harness or sensors connected to the fascia.
-
Remove Bumper:
- Remove the seven M13 bolts securing the bumper, lifting as needed for removal. Set aside for reinstallation.
-
Optional - Bolt for Support:
- Thread one M8 bolt through the existing weld nut on the end panel from the forward side to ease installation.
-
Install Hitch and Bumper:
- Raise the hitch into position, resting it on the bolt installed in Step 6. Align the hitch with the bumper and install bolts with conical washers.
- Remove the temporary bolt from Step 6 and install the remaining fasteners.
- If a tab on the bumper interferes with installation, use a hammer to bend it flush.
-
Tighten Fasteners:
- Torque all M8 CL8.8 fasteners to 20 Lb.-Ft. (27 N*M).
-
Trim Fascia:
- Measure and mark 3/4” from the edge of the fascia opening, 2-1/2” across, and 1-1/4” down. Carefully trim as shown.
-
Reinstall Fascia:
- Reattach the fascia by aligning and pressing it into place in reverse order of removal. Reattach any wiring harness if removed.
Hardware List:
- (7) Bolts: M8 x 1.25 x 30 CL8.8
- (7) Conical Washers: 3/8”
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they remain securely tightened.
- Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection while working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3590
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Installation Instructions for T-One® T-Connector for Volkswagen Golf Sportwagen
Part Numbers:
- 118730
Tools Required:
- Trim Panel Remover
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Open the rear tailgate and remove the threshold, trunk floor panels, and trays.
- Set aside all items removed, ensuring they are not damaged.
-
Remove Interior Trim Panels:
- Partially remove the rear interior trim panels on both the driver and passenger sides.
- Remove the required trim panel fasteners to detach the panels.
-
Connect the Driver-Side T-Connector:
- Separate the vehicle’s wiring connectors on the driver’s side, ensuring the locking tabs are not damaged.
- Insert the T-One® T-Connector end with the yellow wire between the vehicle wiring connectors.
- Lock the connectors into place and ensure all surfaces are clean and secure.
-
Route the Passenger-Side T-Connector:
- Route the T-One® T-Connector containing the green wire below the threshold cover to the passenger-side taillight housing.
- Repeat Step 3 for the passenger side using the T-One® T-Connector containing the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point on the driver’s side near the connectors.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution: Verify what is behind any surface before drilling to avoid damage or injury.
-
Mount the Black Box Module:
- Locate a flat surface in an out-of-the-way place and mount the T-One® T-Connector’s black box module to prevent damage or rattling.
-
Connect the Power Wire:
- Inside the vehicle, connect the black 12-gauge wire to the black wire from the T-One® T-Connector black box using the supplied yellow butt connector.
- Route the black wire through a grommet and along the exterior frame or follow existing wiring to the engine compartment, avoiding areas that may pinch or damage the wire.
Warning: Avoid routing the wire near hot pipes, heat shields, the fuel tank, or other hazardous areas.
-
Connect to the Battery:
- Disconnect the vehicle’s Negative (-) battery cable.
- Attach the ring terminal from the fuse holder to the Positive (+) battery cable.
- Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.
-
Reconnect the Battery and Test:
- Reconnect the vehicle’s Negative (-) battery cable.
- Insert the 15-amp fuse into the fuse holder.
- Test the installation with a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure the T-Connector harness, avoiding areas that may pinch, cut, or melt the wire.
-
Reassemble the Vehicle:
- Reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation, ensuring no wires are pinched or damaged.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the rear cargo area when not in use.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Installation Instructions for T-One® T-Connector for Volkswagen Golf Sportwagen
Part Numbers:
- 118730
Tools Required:
- Trim Panel Remover
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Open the rear tailgate and remove the threshold, trunk floor panels, and trays.
- Set aside all items removed, ensuring they are not damaged.
-
Remove Interior Trim Panels:
- Partially remove the rear interior trim panels on both the driver and passenger sides.
- Remove the required trim panel fasteners to detach the panels.
-
Connect the Driver-Side T-Connector:
- Separate the vehicle’s wiring connectors on the driver’s side, ensuring the locking tabs are not damaged.
- Insert the T-One® T-Connector end with the yellow wire between the vehicle wiring connectors.
- Lock the connectors into place and ensure all surfaces are clean and secure.
-
Route the Passenger-Side T-Connector:
- Route the T-One® T-Connector containing the green wire below the threshold cover to the passenger-side taillight housing.
- Repeat Step 3 for the passenger side using the T-One® T-Connector containing the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point on the driver’s side near the connectors.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution: Verify what is behind any surface before drilling to avoid damage or injury.
-
Mount the Black Box Module:
- Locate a flat surface in an out-of-the-way place and mount the T-One® T-Connector’s black box module to prevent damage or rattling.
-
Connect the Power Wire:
- Inside the vehicle, connect the black 12-gauge wire to the black wire from the T-One® T-Connector black box using the supplied yellow butt connector.
- Route the black wire through a grommet and along the exterior frame or follow existing wiring to the engine compartment, avoiding areas that may pinch or damage the wire.
Warning: Avoid routing the wire near hot pipes, heat shields, the fuel tank, or other hazardous areas.
-
Connect to the Battery:
- Disconnect the vehicle’s Negative (-) battery cable.
- Attach the ring terminal from the fuse holder to the Positive (+) battery cable.
- Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.
-
Reconnect the Battery and Test:
- Reconnect the vehicle’s Negative (-) battery cable.
- Insert the 15-amp fuse into the fuse holder.
- Test the installation with a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure the T-Connector harness, avoiding areas that may pinch, cut, or melt the wire.
-
Reassemble the Vehicle:
- Reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation, ensuring no wires are pinched or damaged.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the rear cargo area when not in use.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Note: Store the 4-flat connector in the rear cargo area when not in use to prevent damage.
