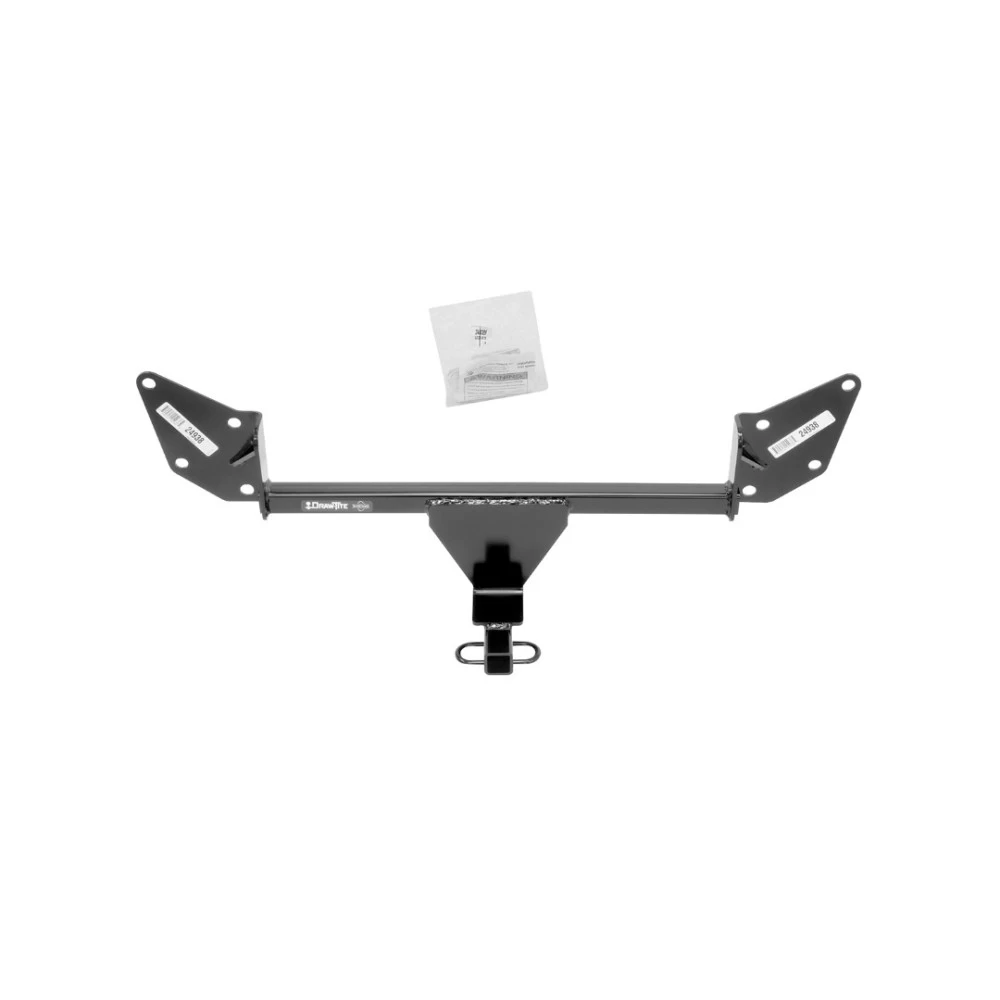

Installation Instructions for Chevrolet Camaro (2016-Present)

Part Numbers:

• 24938
• 77326
• CQT24938

Tools Required:

• Safety Glasses
• Ratchet
• Torque Wrench
• Plastic Trim Tools
• Sockets: 7mm, 15mm
• T15 Torx Driver
• 6” Socket Extension

Weight Capacities:

• Weight Carrying:
  • Max Gross Trailer Weight: 2,000 lbs (908 kg)
  • Max Tongue Weight: 200 lbs (91 kg)
• Weight Distributing:
  • Not Applicable

Installation Time:

• Estimated: 50 minutes

Step-by-Step Instructions:

1. Remove Fascia:

• Use a 7mm socket and T15 Torx driver to remove 10 bolts and 4 screws. One bolt on each side is hidden behind the wheel well liner.
• Carefully remove the fascia and unplug the wiring. Set the bumper fascia aside.

2. Remove Bumper Beam:

• Use a 15mm socket to remove 8 flange nuts securing the bumper to the end panel.
• Slide the exhaust bracket off the two lower studs and then remove the bumper beam.

3. Install Hitch:

• Raise the hitch and align its attachment holes with the studs on the end panel.
• Reinstall the bumper beam, sandwiching the hitch between the beam and the end panel.
• Re-align the exhaust bracket with the two lower studs and reuse the flange nuts to loosely fasten them.

4. Tighten Fasteners:

• Use a torque wrench to tighten all fasteners to 53 lb-ft (72 N·m).

5. Reinstall Components:

• Reconnect wiring, fasteners, and fascia following the reverse order of Steps 1 and 2.
• If necessary, trim the center inside lower edge of the fascia to fit around the hitch. The hitch is intentionally designed to sit close to the fascia.

Safety Notes:

• Regularly check all fasteners and ensure the hitch is securely mounted.
• If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water or exhaust entry.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Class I
• Compliance: This product meets safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.

Note: Always adhere to the towing vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.

Installation Instructions for Chevrolet Camaro (2016-Present)

Part Numbers:

• 24938
• 77326
• CQT24938

Tools Required:

• Safety Glasses
• Ratchet
• Torque Wrench
• Plastic Trim Tools
• Sockets: 7mm, 15mm
• T15 Torx Driver
• 6” Socket Extension

Weight Capacities:

• Weight Carrying:
  • Max Gross Trailer Weight: 2,000 lbs (908 kg)
  • Max Tongue Weight: 200 lbs (91 kg)
• Weight Distributing:
  • Not Applicable

Installation Time:

• Estimated: 50 minutes

Step-by-Step Instructions:

1. Remove Fascia:

• Use a 7mm socket and T15 Torx driver to remove 10 bolts and 4 screws. One bolt on each side is hidden behind the wheel well liner.
• Carefully remove the fascia and unplug the wiring. Set the bumper fascia aside.

2. Remove Bumper Beam:

• Use a 15mm socket to remove 8 flange nuts securing the bumper to the end panel.
• Slide the exhaust bracket off the two lower studs and then remove the bumper beam.

3. Install Hitch:

• Raise the hitch and align its attachment holes with the studs on the end panel.
• Reinstall the bumper beam, sandwiching the hitch between the beam and the end panel.
• Re-align the exhaust bracket with the two lower studs and reuse the flange nuts to loosely fasten them.

4. Tighten Fasteners:

• Use a torque wrench to tighten all fasteners to 53 lb-ft (72 N·m).

5. Reinstall Components:

• Reconnect wiring, fasteners, and fascia following the reverse order of Steps 1 and 2.
• If necessary, trim the center inside lower edge of the fascia to fit around the hitch. The hitch is intentionally designed to sit close to the fascia.

Safety Notes:

• Regularly check all fasteners and ensure the hitch is securely mounted.
• If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water or exhaust entry.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Class I
• Compliance: This product meets safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.

Note: Always adhere to the towing vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

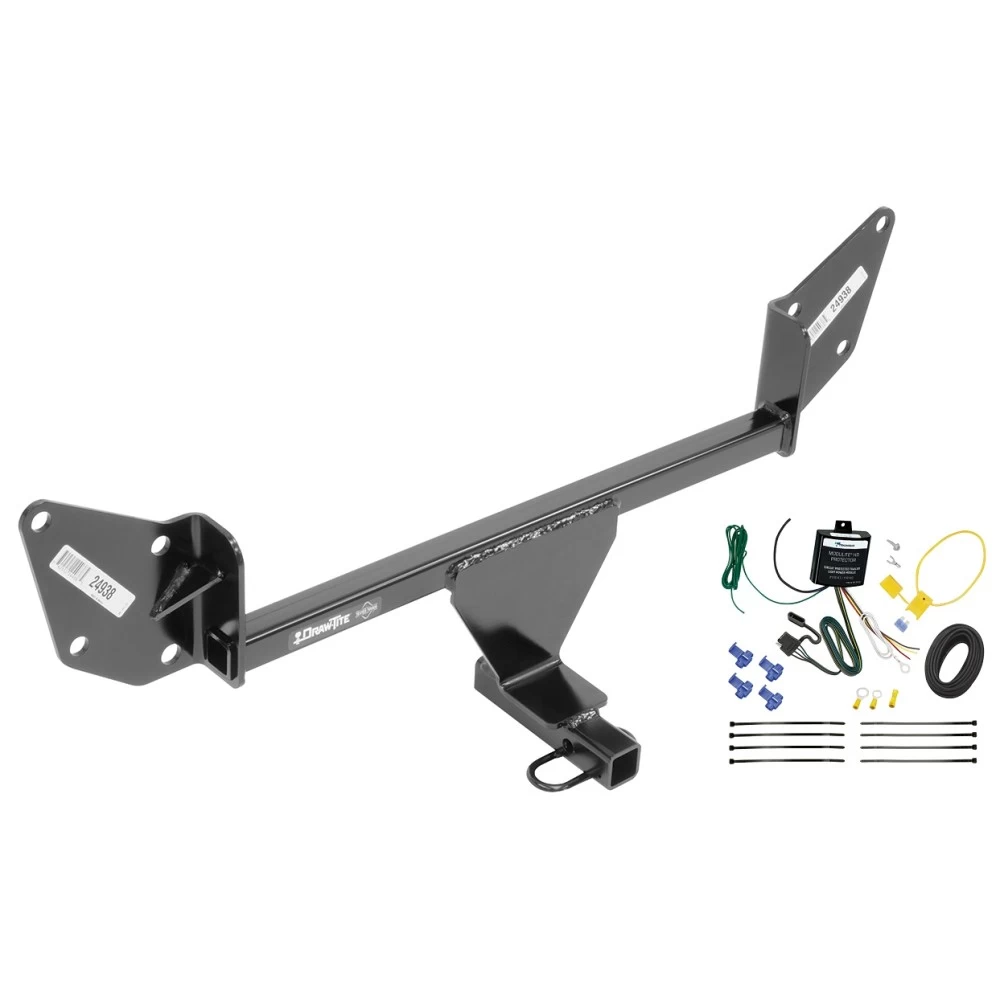

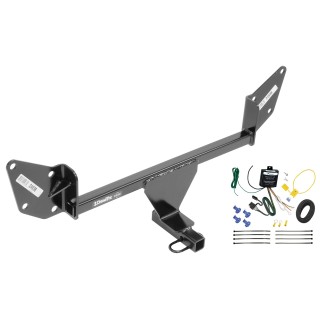

Installation Instructions for Modulite® HD Protector Vehicle Wiring

Part Number:

• 119148

Tools Required:

• Phillips Head #2 Screwdriver
• Wire Cutters
• Wire Strippers/Wire Crimpers
• Tester or Volt Meter
• Socket & Ratchet Set
• Drill with 3/32” Drill Bit
• Double-Sided Tape

Step-by-Step Instructions:

Tow Vehicle Inputs - Determination:

1. Disconnect and isolate the vehicle's negative battery terminal.
   • Warning: Read and follow all warnings and instructions on the tow vehicle's battery.
2. Splice the tow harness input wires to the vehicle as determined.
   • Caution: Use appropriate gauge wire splices. Blue taps are for 16-18 gauge wires only.

Harness Installation:

1. Determine the mounting location of the module and secure it using the double-sided tape provided.
   • Warning: Mount the module with the epoxy side pointed towards the ground to prevent water buildup.
2. Locate a suitable grounding point near the module, such as an existing ground stud, or drill a 3/32” hole to secure the white wire using the provided eyelet and screw.
   • Caution: Verify what is behind any surface before drilling to avoid damage or personal injury.
3. Route the power wire to the vehicle’s positive battery terminal. Use the provided fuse holder, butt connector, and ring terminal to connect to the battery.
   • Do not insert the 15 amp fuse yet.
   • Caution: Ensure the module is connected to a constant power source and avoid routing the wire near hot pipes, heat shields, fuel tanks, or pinch points.

Completion:

1. Secure the harness with cable ties provided to prevent damage or rattling.
2. Reconnect the vehicle's negative battery cable.
3. Insert the 15 amp fuse into the fuse holder and close the cap.
4. Test the installation using a test light or trailer. Check each function independently and in combination.

Hardware List:

• 8 × Cable Ties, 8.5”
• 1 × 15 AMP Fuse
• 2 × Ring Terminals
• 1 × Fuse Holder
• 2 × Yellow Butt Connectors
• 1 × Self-Tapping Screw
• 4 × Blue Taps
• 1 × Spade Terminal

Wiring Outputs:

• White Wire: Ground
• Brown Wire: Tail
• Yellow Wire: Left Turn/Brake
• Green Wire: Right Turn/Brake
• Red Wire: Stop (for 3-wire systems only)

Safety Notes:

• Always read and follow all warnings and instructions included with the product and the vehicle's manual.
• Do not exceed the manufacturer’s towing capacity or the product’s amperage ratings.
• Wear safety glasses and use all necessary safety precautions during installation.

Troubleshooting Guide:

• 4-Flat Not Functioning: Ensure input wires are correctly installed and repeat testing after removing the 15 amp fuse for 10 seconds.
• No Power to 4-Flat: Check the chassis ground and ensure the module is properly connected to a constant power source.

Specifications:

• Installation Time: Approximately 45 minutes
• Compatibility: Does not work with multiplex vehicles (BM, BT, or BTT). Use part numbers 119190 or 119250 for these systems.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

For warranty information, please download the full installation PDF.
