Trailer Tow Hitch w/ 4 Bike Rack For 03‑14 Volvo XC90 tilt away adult or child arms fold down carrier

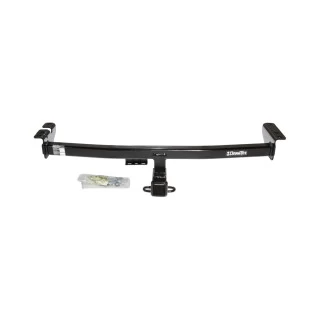

Model: 75152 1393100GCustom Fit Trailer Hitch

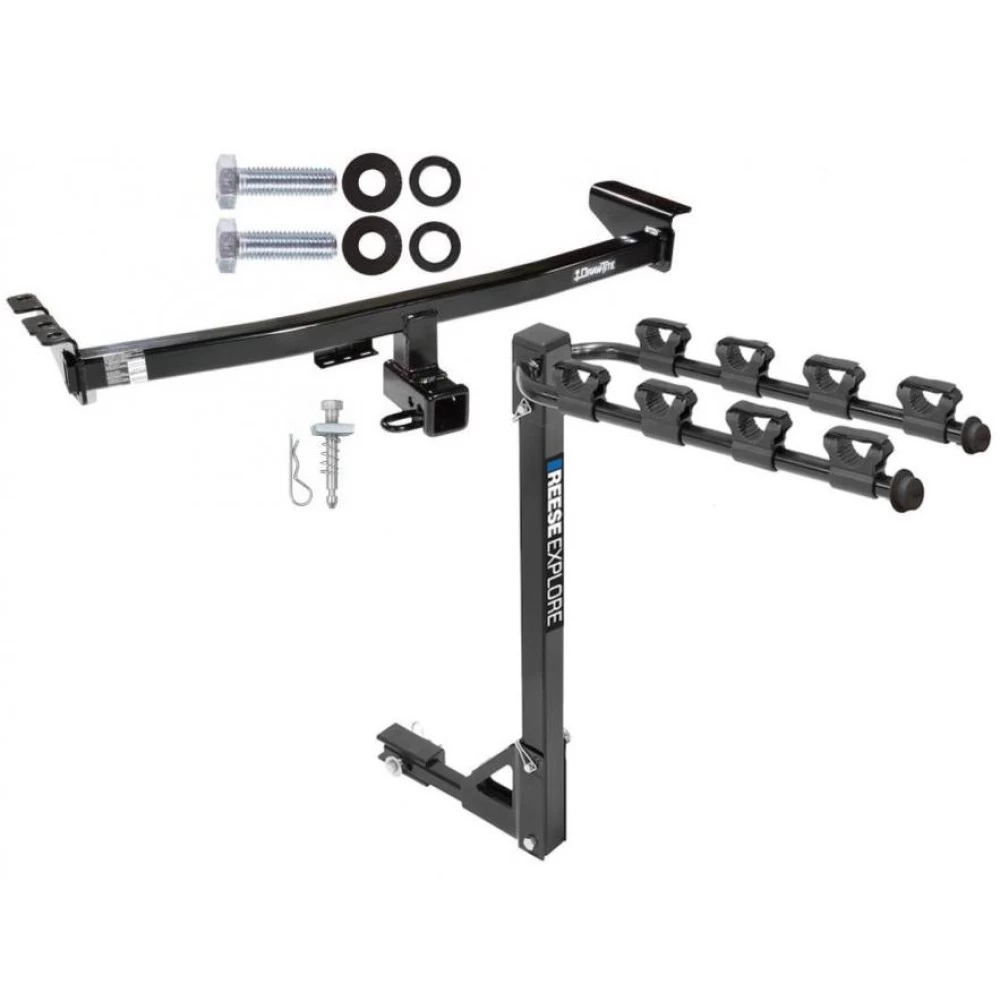

4 Bike Carrier

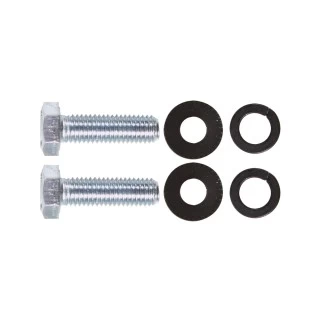

Installation Hardware
Installation Instructions
Fits The Following Vehicles
2003 - 2014 Volvo, XC90, All Styles
Trailer Hitch Specs:
| Part Number | 75152 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 500/500 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Bike Rack Specs:
| Part Number | 1393100G |
| Brand | Reese |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 120 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 28 lbs. |
| Warranty | 90 Day |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 03 04 05 06 07 08 09 10 11 12 13 14 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014
$371 17 $588.84 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$588.84 $371 17
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $92.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75152 1393100G
- Includes: Class 3 Trailer Tow Hitch, Trailer Tow Hitch Bike Carrier
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2003 - 2014 Volvo, XC90, All Styles
Trailer Hitch Specs:
| Part Number | 75152 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 500/500 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Bike Rack Specs:
| Part Number | 1393100G |
| Brand | Reese |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 120 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 28 lbs. |
| Warranty | 90 Day |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 03 04 05 06 07 08 09 10 11 12 13 14 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014
Get Expert Help
Trailer Tow Hitch w/ 4 Bike Rack For 03-14 Volvo XC90 tilt away adult or child arms fold down carrier Install Notes
Installation Instructions for Volvo XC90
Part Numbers:
- 44739N
- N87810
- N75152
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Hitch Requires: 5/8" Pin and Clip
- Wrenches: 17mm, 18mm (tighten all fasteners with torque wrench)
Drill Bits:
- None
Step-by-Step Instructions:
- Lower the spare tire.
- Remove the existing tow bracket on the passenger side and return it to the vehicle owner.
- Lower the exhaust by removing 2 bolts which secure the exhaust hanger bracket to the driver's side frame.
- Raise the hitch into position, sandwiching the exhaust hanger bracket between the hitch side bracket and the driver's side frame rail.
- Install fasteners as shown in the diagram.
- Tighten all M12 CL8.8 fasteners to 64 lb-ft.
- Raise the spare tire back into position.
Hardware List:
- M12 x 1.75 x 40mm CL8.8 Bolts
- Flat Washer
- Lock Washer
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 5,000 lbs, Max Tongue Weight 500 lbs.
- Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs, Max Tongue Weight 500 lbs.
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York and V.E.S.C. Regulation V-5.
Installation Instructions for Volvo XC90
Part Numbers:
- 44739N
- N87810
- N75152
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Hitch Requires: 5/8" Pin and Clip
- Wrenches: 17mm, 18mm (tighten all fasteners with torque wrench)
Drill Bits:
- None
Step-by-Step Instructions:
- Lower the spare tire.
- Remove the existing tow bracket on the passenger side and return it to the vehicle owner.
- Lower the exhaust by removing 2 bolts which secure the exhaust hanger bracket to the driver's side frame.
- Raise the hitch into position, sandwiching the exhaust hanger bracket between the hitch side bracket and the driver's side frame rail.
- Install fasteners as shown in the diagram.
- Tighten all M12 CL8.8 fasteners to 64 lb-ft.
- Raise the spare tire back into position.
Hardware List:
- M12 x 1.75 x 40mm CL8.8 Bolts
- Flat Washer
- Lock Washer
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 5,000 lbs, Max Tongue Weight 500 lbs.
- Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs, Max Tongue Weight 500 lbs.
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York and V.E.S.C. Regulation V-5.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
