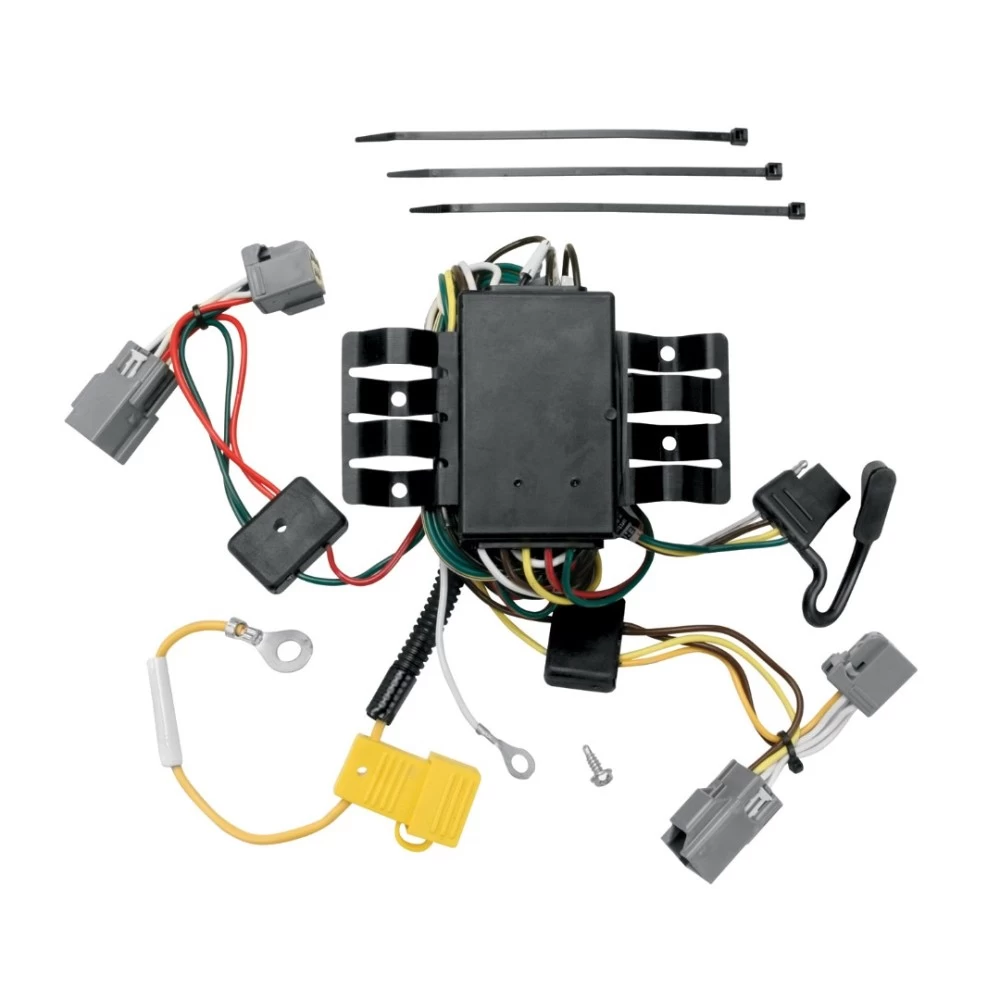

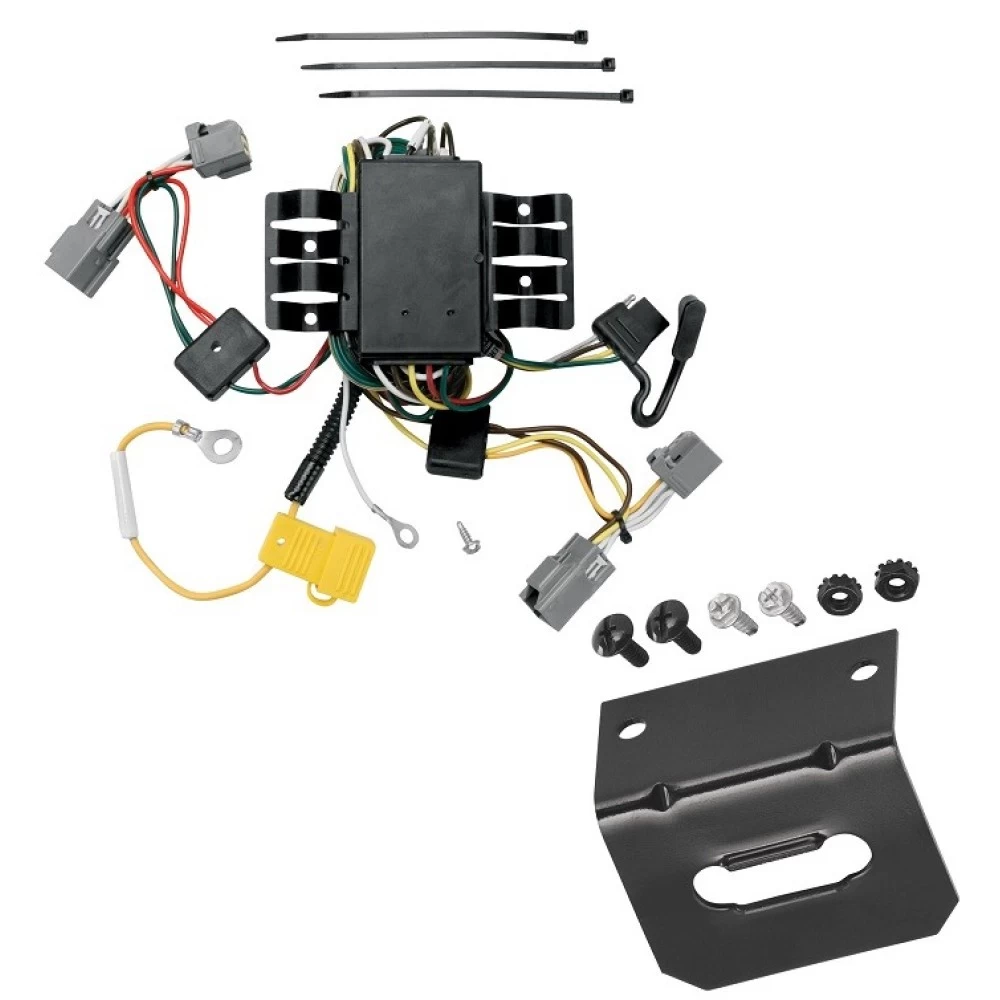

Installation Instructions for T-Connector Adapter

Part Numbers:

• 118411

Tools Required:

• 10mm Socket & Ratchet or 10mm Wrench
• Trim Panel Remover
• Drill with a 3/32” Drill Bit
• Philips Head Screwdriver

Step-by-Step Instructions:

1. Prepare the Vehicle:

   • Open the tailgate and remove the cargo door on the floor.
   • Carefully remove the floor trim panels and access panels on each side of the vehicle.
   • Set aside all items removed to avoid damage.

2. Locate the Taillight Wiring Harness:

   • On both the driver’s and passenger’s sides, locate the vehicle's taillight wiring harness inside the access panel area.
   • The harness will have a connection point matching the T-Connector ends.
   • Separate the connectors carefully, ensuring not to break the locking tabs.
   • Clean all connector surfaces of dirt.

3. Install the Driver-Side T-Connector:

   • Insert the T-Connector end with the yellow wire between the vehicle wiring connectors on the driver’s side.
   • Lock into place, ensuring the connectors are fully inserted and the locking tabs are secure.

4. Route the Passenger-Side T-Connector:

   • Route the T-Connector end with the green wire through the trim panel access hole, across the threshold, and through the passenger trim panel access hole.
   • Repeat Step 3 on the passenger’s side using the T-Connector harness with the green wire.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as the vehicle's frame or crossmember.
   • Clean the grounding area to remove dirt and rustproofing.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify what is behind the surface before drilling to avoid damage or injury.
   • Do not drill into exposed surfaces.

6. Connect the Power Cable:

   • Locate the power cable stud on the driver’s side.
   • Using a wrench or socket, remove the nut and place the ring terminal with the yellow wire on the stud.
   • Replace the nut and tighten.
   • Install the 10-amp fuse into the fuse holder.

7. Mount the T-Connector Black Box:

   • Clean a flat area in the driver’s side storage area with rubbing alcohol and water.
   • Mount the T-Connector black box using the provided double-sided tape.

8. Secure the Harness:

   • Use the provided cable ties to secure the remaining T-Connector harness to prevent damage or rattling.
   • Avoid areas that could pinch, cut, or melt the wire.

9. Reassembly:

   • Replace both access panels, floor trim panels, and the cargo door removed during installation.

10. Test the Installation:

    • Verify the T-Connector functionality with a test light or trailer.
    • Ensure all connections are complete for the T-Connector to function properly.

    Specifications:

    • Max. stop/turn light: 1 per side (2.1 amps)
    • Max. tail lights: (5.6 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
• Follow all warnings and installation instructions provided.

Manufacturer Notes:

• Store the 4-flat connector in the rear cargo area when not in use.
• Refer to the vehicle owner’s manual for additional details.

Installation Instructions for T-Connector Adapter

Part Numbers:

• 118411

Tools Required:

• 10mm Socket & Ratchet or 10mm Wrench
• Trim Panel Remover
• Drill with a 3/32” Drill Bit
• Philips Head Screwdriver

Step-by-Step Instructions:

1. Prepare the Vehicle:

   • Open the tailgate and remove the cargo door on the floor.
   • Carefully remove the floor trim panels and access panels on each side of the vehicle.
   • Set aside all items removed to avoid damage.

2. Locate the Taillight Wiring Harness:

   • On both the driver’s and passenger’s sides, locate the vehicle's taillight wiring harness inside the access panel area.
   • The harness will have a connection point matching the T-Connector ends.
   • Separate the connectors carefully, ensuring not to break the locking tabs.
   • Clean all connector surfaces of dirt.

3. Install the Driver-Side T-Connector:

   • Insert the T-Connector end with the yellow wire between the vehicle wiring connectors on the driver’s side.
   • Lock into place, ensuring the connectors are fully inserted and the locking tabs are secure.

4. Route the Passenger-Side T-Connector:

   • Route the T-Connector end with the green wire through the trim panel access hole, across the threshold, and through the passenger trim panel access hole.
   • Repeat Step 3 on the passenger’s side using the T-Connector harness with the green wire.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as the vehicle's frame or crossmember.
   • Clean the grounding area to remove dirt and rustproofing.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify what is behind the surface before drilling to avoid damage or injury.
   • Do not drill into exposed surfaces.

6. Connect the Power Cable:

   • Locate the power cable stud on the driver’s side.
   • Using a wrench or socket, remove the nut and place the ring terminal with the yellow wire on the stud.
   • Replace the nut and tighten.
   • Install the 10-amp fuse into the fuse holder.

7. Mount the T-Connector Black Box:

   • Clean a flat area in the driver’s side storage area with rubbing alcohol and water.
   • Mount the T-Connector black box using the provided double-sided tape.

8. Secure the Harness:

   • Use the provided cable ties to secure the remaining T-Connector harness to prevent damage or rattling.
   • Avoid areas that could pinch, cut, or melt the wire.

9. Reassembly:

   • Replace both access panels, floor trim panels, and the cargo door removed during installation.

10. Test the Installation:

    • Verify the T-Connector functionality with a test light or trailer.
    • Ensure all connections are complete for the T-Connector to function properly.

Specifications:

• Max. Stop/Turn Light: 1 per side (2.1 amps)
• Max. Tail Lights: (5.6 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
• Follow all warnings and installation instructions provided.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
