Trailer Tow Hitch For 67‑04 Dodge D/W Series Dakota Ford F‑100 150 250 350 Bronco Basket Cargo Carrier Platform Hitch Lock and Cover

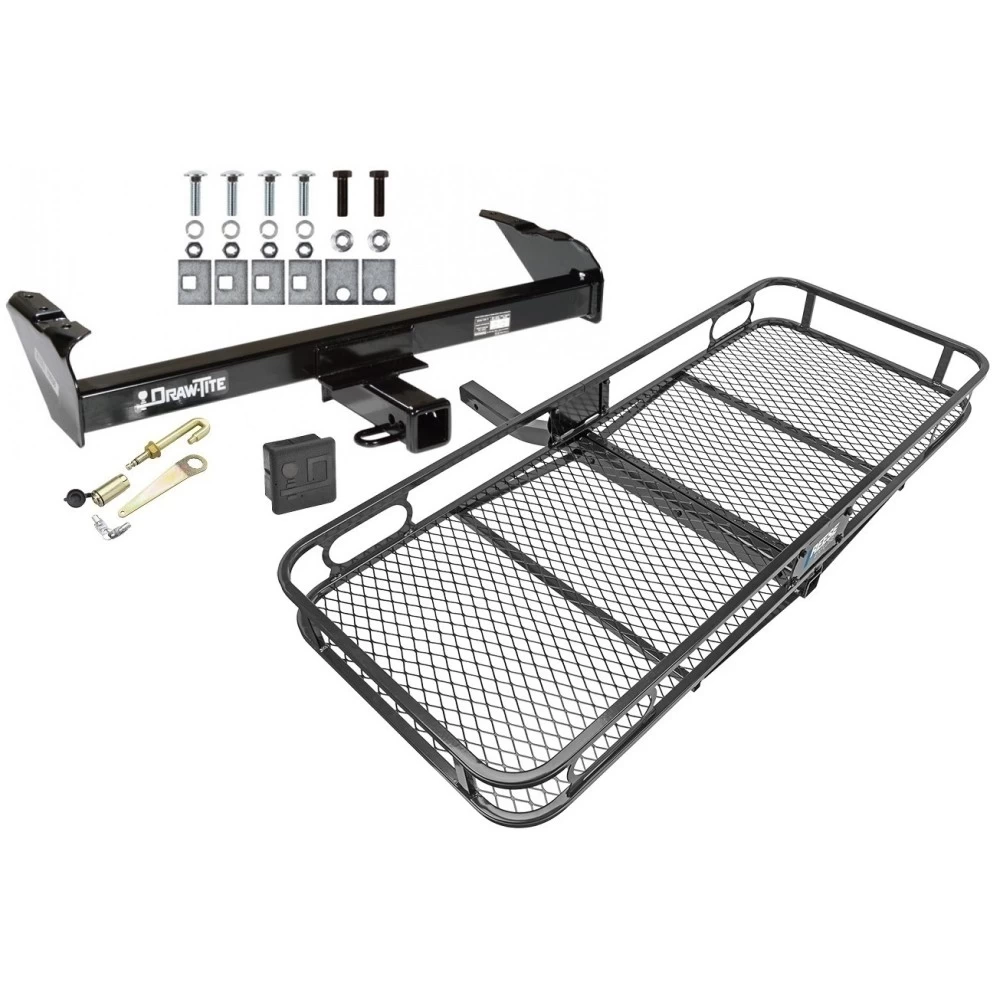

Model: 75038 63153 63201 7010Custom Fit Trailer Hitch
Cargo Hitch Basket
Security J-Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1968 - 1979 Dodge, D100, All Styles
1977 - 1993 Dodge, D150, All Styles
1968 - 1980 Dodge, D200, All Styles
1981 - 1993 Dodge, D250, All Styles
1968 - 1980 Dodge, D300, All Styles
1981 - 1993 Dodge, D350, All Styles
1997 - 2004 Dodge, Dakota, All Styles
1967 - 1989 Dodge, W100, All Styles
1977 - 1993 Dodge, W150, All Styles
1967 - 1980 Dodge, W200, All Styles
1981 - 1993 Dodge, W250, All Styles
1967 - 1980 Dodge, W300, All Styles
1981 - 1993 Dodge, W350, All Styles
1978 - 1996 Ford, Bronco, All Styles
1975 - 1979 Ford, F-100, All Styles
1980 - 1983 Ford, F-100, Except w/Custom Fascia
1980 - 1986 Ford, F-150, Except w/Custom Fascia
1987 - 1996 Ford, F-150, All Styles
1975 - 1979 Ford, F-250, All Styles
1980 - 1986 Ford, F-250, Except w/Custom Fascia
1987 - 1996 Ford, F-250, All Styles
1997 Ford, F-250, Heavy Duty
1975 - 1979 Ford, F-350, All Styles
1980 - 1986 Ford, F-350, Except w/Custom Fascia
1987 - 1996 Ford, F-350, All Styles
1994 - 1996 Ford, F-350, All Styles
1997 Ford, F-350, Heavy Duty
Trailer Hitch Specs:

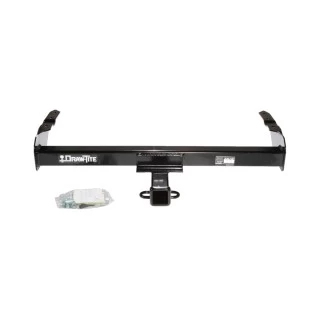

| Part Number | 75038 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 8,000 lbs |
| Max Tongue Weight | 500/800 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Rubber Hitch Plug Specs:
| Part Number | 7010 |
| Fits | 2" Receiver |
| Brand | Draw-Tite |
| Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand |
|
| Warranty | 1 Year |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 00 01 02 03 04 1967 1968 1969 1970 1971 1972 1973 1974 1975 1976 1977 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004
$541 57 $876.44 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$876.44 $541 57
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $135.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75038 63153 63201 7010
- Includes: Class 3 Trailer Tow Hitch, Rambler Hitch Mount Cargo Carrier, J-Pin Anti-Rattle Device, Trailer Tow Hitch Tube Cover
Compatibility Chart
Custom Fit Trailer Hitch
Cargo Hitch Basket
Security J-Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1968 - 1979 Dodge, D100, All Styles
1977 - 1993 Dodge, D150, All Styles
1968 - 1980 Dodge, D200, All Styles
1981 - 1993 Dodge, D250, All Styles
1968 - 1980 Dodge, D300, All Styles
1981 - 1993 Dodge, D350, All Styles
1997 - 2004 Dodge, Dakota, All Styles
1967 - 1989 Dodge, W100, All Styles
1977 - 1993 Dodge, W150, All Styles
1967 - 1980 Dodge, W200, All Styles
1981 - 1993 Dodge, W250, All Styles
1967 - 1980 Dodge, W300, All Styles
1981 - 1993 Dodge, W350, All Styles
1978 - 1996 Ford, Bronco, All Styles
1975 - 1979 Ford, F-100, All Styles
1980 - 1983 Ford, F-100, Except w/Custom Fascia
1980 - 1986 Ford, F-150, Except w/Custom Fascia
1987 - 1996 Ford, F-150, All Styles
1975 - 1979 Ford, F-250, All Styles
1980 - 1986 Ford, F-250, Except w/Custom Fascia
1987 - 1996 Ford, F-250, All Styles
1997 Ford, F-250, Heavy Duty
1975 - 1979 Ford, F-350, All Styles
1980 - 1986 Ford, F-350, Except w/Custom Fascia
1987 - 1996 Ford, F-350, All Styles
1994 - 1996 Ford, F-350, All Styles
1997 Ford, F-350, Heavy Duty
Trailer Hitch Specs:
| Part Number | 75038 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 8,000 lbs |
| Max Tongue Weight | 500/800 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Rubber Hitch Plug Specs:
| Part Number | 7010 |
| Fits | 2" Receiver |
| Brand | Draw-Tite |
| Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand |
|
| Warranty | 1 Year |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 00 01 02 03 04 1967 1968 1969 1970 1971 1972 1973 1974 1975 1976 1977 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004
Get Expert Help
Trailer Tow Hitch For 67-04 Dodge D/W Series Dakota Ford F-100 150 250 350 Bronco Basket Cargo Carrier Platform Hitch Lock and Cover Install Notes
Installation Instructions for Dodge, Ford, and Plymouth Vehicles
Part Numbers:
- 75038
Applicable Vehicles:
- Dodge D&W Series Pickup
- Dodge Ramcharger
- Ford Bronco (Full Size)
- Ford F-Series Pickup (with 37.5" frame)
- Plymouth Trailduster
Wiring Access Location:
- PU1, PU2
Tools Required:
- Drill Bits: 1/2"
- Wrenches: 3/4", 7/8" (Torque Wrench Required)
Specifications:
- Weight Carrying Capacity:
- Trailer Weight: 5,000 lbs
- Tongue Weight: 500 lbs
- Weight Distributing Capacity:
- Trailer Weight: 8,000 lbs
- Tongue Weight: 800 lbs
Step-by-Step Instructions:
-
Remove Spare Tire:
- Where applicable, remove the spare tire and carrier from the vehicle.
-
Prepare Frame Rail:
- Remove undercoating from the attachment surfaces.
- Position the receiver on the vehicle, ensuring it is centered and that the formed depression in the side bracket aligns over the rivet, if present.
-
Drill Holes:
- Using the receiver as a template, drill 1/2" holes into the frame.
-
Install Fasteners:
- Install all fasteners as shown in the diagram, placing the blocks inside the vehicle frame.
- Tighten the nuts on 1/2"-13 GR5 carriage bolts to 75 lb-ft.
- Tighten the locknuts on 1/2"-20 GR5 hex bolts to 95 lb-ft.
-
Adjust Spare Tire Carrier (If Applicable):
- For vehicles retaining under-vehicle spare tire stowage, modify or relocate the spare tire carrier. Ensure the relocated carrier and tire do not contact brake lines, rear axle, or other safety-related components.
-
Ford F-Series Pickup Applications:
- Adjust the bumper brackets if necessary to provide clearance for the hitch side brackets.
-
Special Note for Dodge Ramcharger and Trailduster:
- Drill out the rear frame rivet for receiver attachment. If the receiver is removed, reinstall the 1/2"-20 x 1-3/4" GR5 hex bolts (tightened to 95 lb-ft) to maintain the connection between the frame and crossmember.

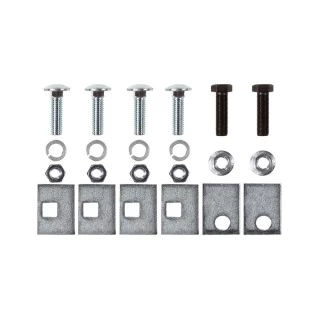

Hardware List:
- (4) Carriage Bolt 1/2"-13 x 1-3/4" GR5
- (4) 1/4" x 1-1/2" x 2" Blocks
- (4) Lock Washer
- (4) Hex Nut
Safety Notes:
- Regularly inspect the hitch and fasteners to ensure secure attachment.
- Replace damaged hitches or balls immediately.
- Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Always wear safety glasses when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Compliance:
This product complies with V.E.S.C. Regulation V-5 and safety requirements for connecting devices and towing systems in New York State.
Additional Notes:
- Installation time for professional installers is approximately 1 hour.
- Follow all torque specifications and ensure proper alignment during installation.
Installation Instructions for Dodge, Ford, and Plymouth Vehicles
Part Numbers:
- 75038
Applicable Vehicles:
- Dodge D&W Series Pickup
- Dodge Ramcharger
- Ford Bronco (Full Size)
- Ford F-Series Pickup (with 37.5" frame)
- Plymouth Trailduster
Wiring Access Location:
- PU1, PU2
Tools Required:
- Drill Bits: 1/2"
- Wrenches: 3/4", 7/8" (Torque Wrench Required)
Specifications:
- Weight Carrying Capacity:
- Trailer Weight: 5,000 lbs
- Tongue Weight: 500 lbs
- Weight Distributing Capacity:
- Trailer Weight: 8,000 lbs
- Tongue Weight: 800 lbs
Step-by-Step Instructions:
-
Remove Spare Tire
- Where applicable, remove the spare tire and carrier from the vehicle.
-
Prepare Frame Rail
- Remove undercoating from the attachment surfaces.
- Position the receiver on the vehicle, ensuring it is centered and that the formed depression in the side bracket aligns over the rivet, if present.
-
Drill Holes
- Using the receiver as a template, drill 1/2" holes into the frame.
-
Install Fasteners
- Install all fasteners as shown in the diagram, placing the blocks inside the vehicle frame.
- Tighten the nuts on 1/2"-13 GR5 carriage bolts to 75 lb-ft.
- Tighten the locknuts on 1/2"-20 GR5 hex bolts to 95 lb-ft.
-
Adjust Spare Tire Carrier (If Applicable)
- For vehicles retaining under-vehicle spare tire stowage, modify or relocate the spare tire carrier.
- Ensure the relocated carrier and tire do not contact brake lines, rear axle, or other safety-related components.
-
Ford F-Series Pickup Applications
- Adjust the bumper brackets if necessary to provide clearance for the hitch side brackets.
-
Special Note for Dodge Ramcharger and Trailduster
- Drill out the rear frame rivet for receiver attachment.
- If the receiver is removed, reinstall the 1/2"-20 x 1-3/4" GR5 hex bolts (tightened to 95 lb-ft) to maintain the connection between the frame and crossmember.
Hardware List:
- (4) 1/2"-13 x 1-3/4" GR5 Carriage Bolts
- (4) 1/4" x 1-1/2" x 2" Blocks
- (4) Lock Washers
- (4) Hex Nuts
Safety Notes:
- Regularly inspect the hitch and fasteners to ensure secure attachment.
- Replace damaged hitches or balls immediately.
- Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Always wear safety glasses when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Compliance:
This product complies with V.E.S.C. Regulation V-5 and safety requirements for connecting devices and towing systems in New York State.
General Notes:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information, please download the full installation PDF.
Warranty Information:
For warranty coverage details, including duration and terms, please download the full installation PDF. For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
End of Instructions
Related Products
