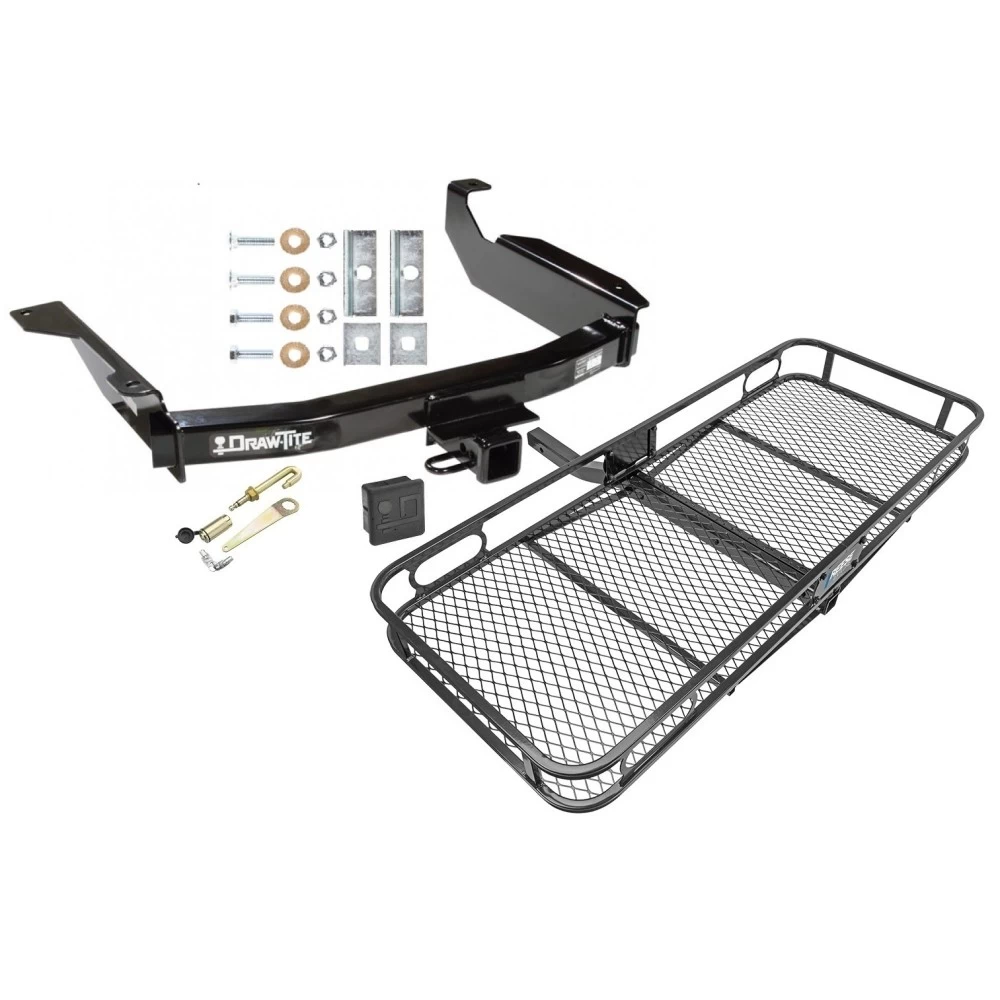

Trailer Tow Hitch For 98‑03 Dodge Durango Basket Cargo Carrier Platform Hitch Lock and Cover
Model: 75081 63153 63201 7010Custom Fit Trailer Hitch
Cargo Hitch Basket
Security J-Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1998 - 2003 Dodge, Durango, All Styles
Trailer Hitch Specs:
| Part Number | 75081 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 7,500 lbs |
| Max Tongue Weight | 500/750 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Rubber Hitch Plug Specs:
| Part Number | 7010 |
| Fits | 2" Receiver |
| Brand | Draw-Tite |
| Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand |
|
| Warranty | 1 Year |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 98 99 00 01 02 1998 1999 2000 2001 2002 2003
$557 75 $901.64 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$901.64 $557 75
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $139.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75081 63153 63201 7010
- Includes: Class 3 Trailer Tow Hitch, Rambler Hitch Mount Cargo Carrier, J-Pin Anti-Rattle Device, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Custom Fit Trailer Hitch
Cargo Hitch Basket
Security J-Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1998 - 2003 Dodge, Durango, All Styles
Trailer Hitch Specs:
| Part Number | 75081 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 7,500 lbs |
| Max Tongue Weight | 500/750 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Rubber Hitch Plug Specs:
| Part Number | 7010 |
| Fits | 2" Receiver |
| Brand | Draw-Tite |
| Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand |
|
| Warranty | 1 Year |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 98 99 00 01 02 1998 1999 2000 2001 2002 2003
Get Expert Help
Trailer Tow Hitch For 98-03 Dodge Durango Basket Cargo Carrier Platform Hitch Lock and Cover Install Notes
Installation Instructions for Dodge Durango
Part Numbers:
- 75081
- 87572
- 44533
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 3/4", 7/8"
Step-by-Step Instructions:
-
Raise Hitch:
- Lift the hitch into position, aligning it with the mounting holes on the crossmembers.
-
Install Fasteners:
- Secure the hitch to the forward and rear crossmembers using the provided fasteners:
- 1/2"-13 x 1.75 GR5 carriage bolts
- 1/4" x 1-1/2" x 2" blocks
- Conical toothed washers
- Nuts
- Secure the hitch to the forward and rear crossmembers using the provided fasteners:
-
Reinforcement Bracket Installation:
- Ensure the flange of the reinforcement bracket is positioned toward the rear crossmember as shown in the diagram.
-
Adjust Spare Tire (If Needed):
- Some spare tires may need to be slightly loosened to accommodate the hitch installation. After installation, re-tighten the spare tire.
-
Tighten Fasteners:
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- 1/2"-13 GR5: 75 lb-ft (102 N*m)
Hardware List:
- (4) Carriage Bolts, 1/2"-13 x 1.75" GR5
- (4) Blocks, 1/4" x 1-1/2" x 2"
- (4) Conical Toothed Washers
- (4) Nuts, 1/2"-13 GR5
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug any holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb (2,268 kg)
- Max Tongue Weight: 500 lb (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 7,500 lb (3,402 kg)
- Max Tongue Weight: 750 lb (340 kg)
Additional Notes:
- Accessory Rating: Class D
- This product complies with SAE J684 safety standards.
- Ensure all fasteners are properly torqued before towing.
Installation Instructions for Dodge Durango
Part Numbers:
- 75081
- 87572
- 44533
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 3/4", 7/8"
Step-by-Step Instructions:
-
Raise Hitch:
- Lift the hitch into position, aligning it with the mounting holes on the crossmembers.
-
Install Fasteners:
- Secure the hitch to the forward and rear crossmembers using the provided fasteners:
- 1/2"-13 x 1.75 GR5 carriage bolts
- 1/4" x 1-1/2" x 2" blocks
- Conical toothed washers
- Nuts
- Secure the hitch to the forward and rear crossmembers using the provided fasteners:
-
Reinforcement Bracket Installation:
- Ensure the flange of the reinforcement bracket is positioned toward the rear crossmember as shown in the diagram.
-
Adjust Spare Tire (If Needed):
- Some spare tires may need to be slightly loosened to accommodate the hitch installation. After installation, re-tighten the spare tire.
-
Tighten Fasteners:
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- 1/2"-13 GR5: 75 lb-ft (102 N*m)
Hardware List:
- (4) 1/2"-13 x 1.75" GR5 Carriage Bolts
- (4) 1/4" x 1-1/2" x 2" Blocks
- (4) Conical Toothed Washers
- (4) 1/2"-13 GR5 Nuts
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug any holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb (2,268 kg)
- Max Tongue Weight: 500 lb (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 7,500 lb (3,402 kg)
- Max Tongue Weight: 750 lb (340 kg)
Additional Notes:
- Accessory Rating: Class D
- This product complies with SAE J684 safety standards.
- Ensure all fasteners are properly torqued before towing.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty:
The product comes with a standard warranty. For complete warranty instructions, please download the full installation PDF.
