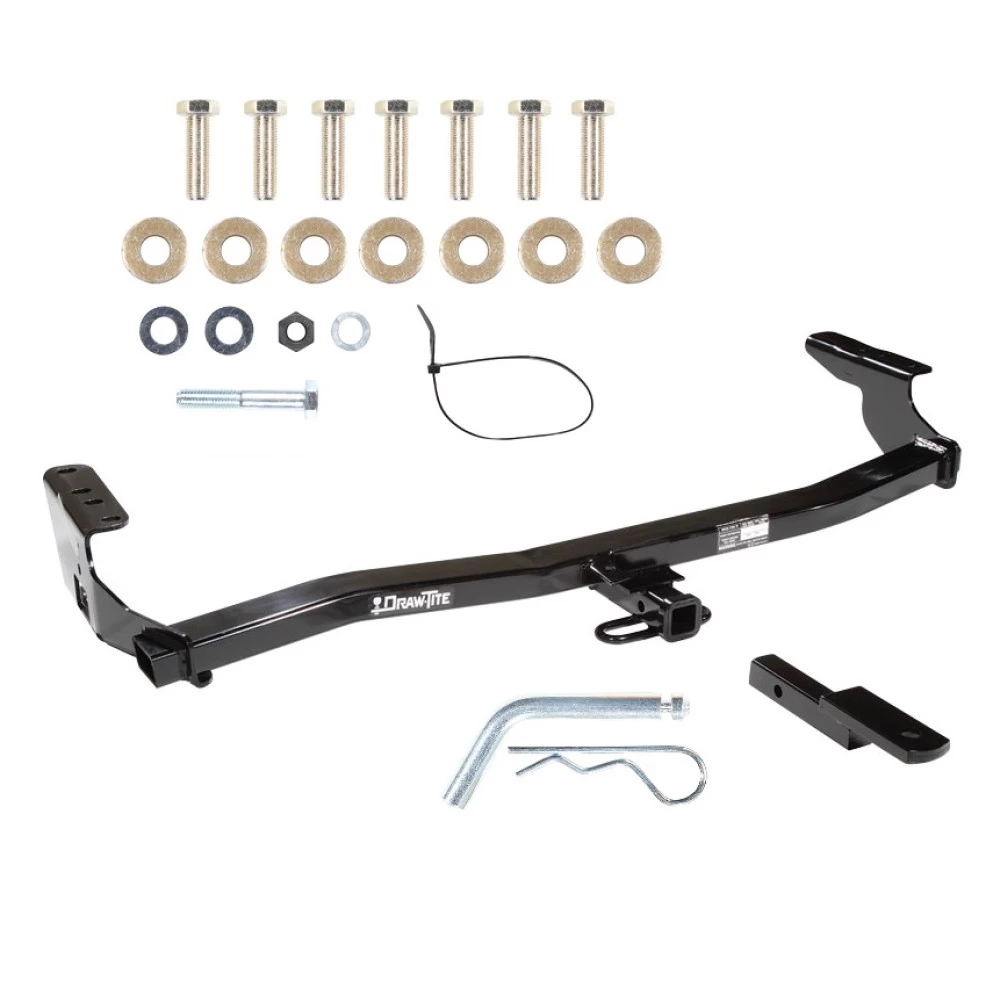

Trailer Tow Hitch For 98‑08 Subaru Forester 1‑1/4" Receiver w/ Draw Bar Kit

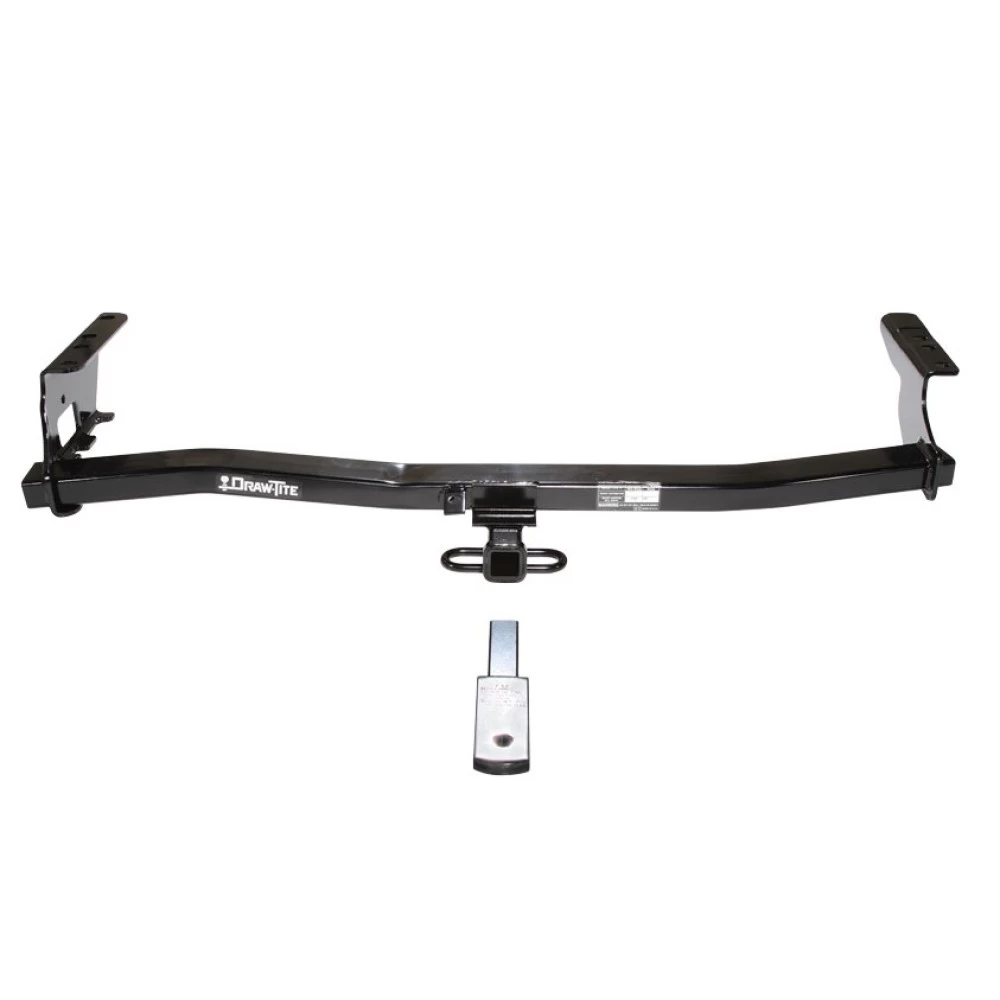

Model: 363110Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions
This Hitch Fits The Following Vehicles:
1998 - 2008 Subaru, Forester, All Styles
Trailer Hitch Specs:
| Part Number | 363110 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 04 05 06 07 08 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008
$228 38 $399.74 43% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$399.74 $228 38
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $57.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 363110
- UPC: 016118139099
- Includes: Class 2 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount
Compatibility Chart
Description
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions
This Hitch Fits The Following Vehicles:
1998 - 2008 Subaru, Forester, All Styles
Trailer Hitch Specs:
| Part Number | 363110 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 04 05 06 07 08 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008
Get Expert Help
Trailer Tow Hitch For 98-08 Subaru Forester 1-1/4" Receiver w/ Draw Bar Kit Install Notes
Installation Instructions for Subaru Forester
Part Numbers:
- 51174
Wiring Access Location:
- SUV4
Tools Required:
- Wrenches: 12mm, 14mm, 17mm
- Drill Bits: None
Step-by-Step Instructions:
-
Lower Carbon Canister:
- Lower the carbon canister and its bracket from the passenger side of the vehicle's frame.
-
Remove Tie-Down Bracket:
- Detach the tie-down bracket from the vehicle frame and set aside.
-
Remove Center Fascia Mounting Bracket (if present):
- If a center fascia mounting bracket is installed, remove it and set it aside.
-
Remove Exhaust Mounting Bracket:
- Detach the exhaust mounting bracket from the vehicle frame.
- Return all removed brackets and fasteners (tie-down, exhaust, and center fascia) to the vehicle owner in case the hitch is removed.
-
Install Hitch:
- Position the hitch on the vehicle, sandwiching the carbon canister bracket between the hitch and frame.
- Secure the hitch using the provided fasteners as shown in the instructions.
-
Attach Exhaust Hanger:
- Bolt the rubber exhaust hanger to the hitch side bracket using the provided fasteners.
-
Reattach Carbon Canister:
- Secure the carbon canister back to its bracket.
-
Reattach Center Fascia Tab (if present):
- Use the existing fastener or the provided cable tie to attach the fascia tab to the hitch.

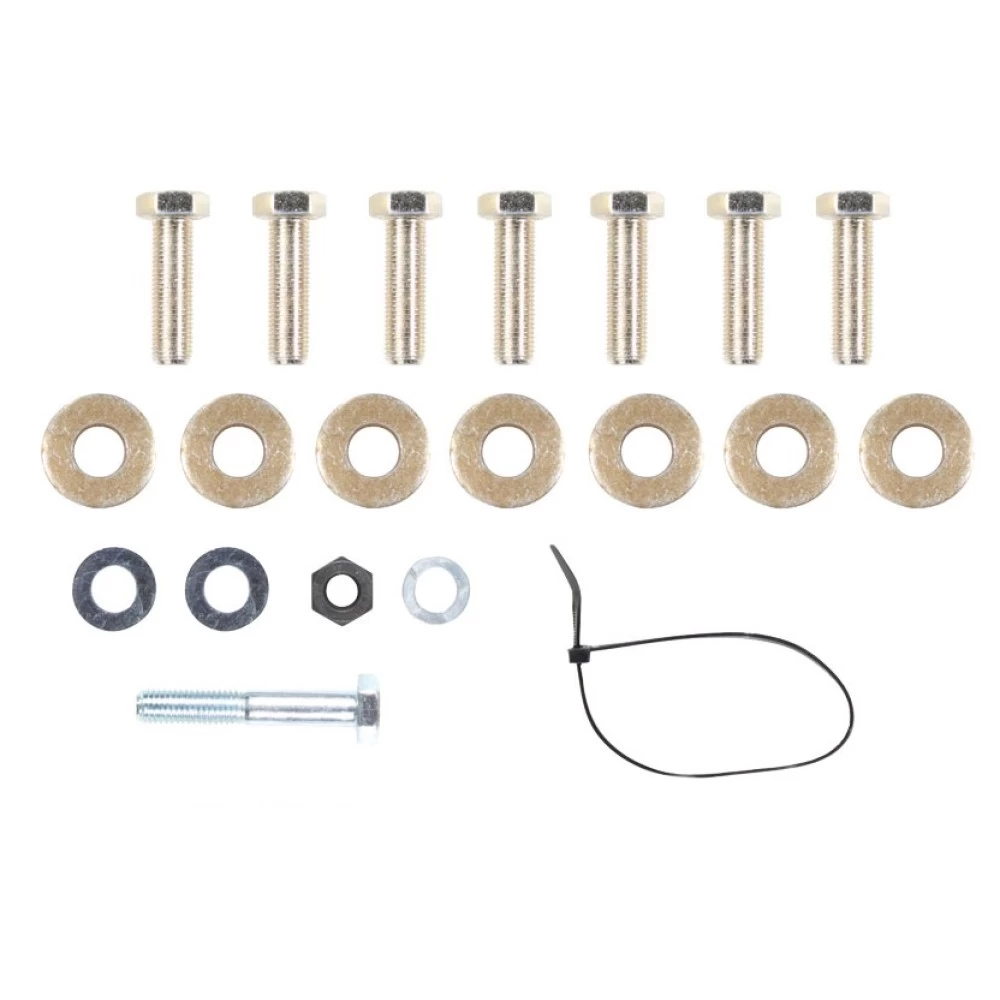

Hardware List:
- (7) M12 x 1.25 x 40mm Hex Bolts
- (2) 7/16” Flat Washers
- (1) 7/16” Lock Washer
- (7) 1/2” Conical Washers
- (1) M10 x 1.50 Hex Bolt
- (1) M10 x 1.25 Hex Nut
- (1) Cable Tie
Torque Specifications:
- Tighten all M12 CL10.9 fasteners to 92 Lb.-Ft. (125 N*M).
- Tighten all M10 fasteners to 20-30 Lb.-Ft. (27-41 N*M).
Safety Notes:
- Regularly check all fasteners and the hitch ball to ensure they are securely tightened.
- Plug all holes in the trunk pan or other body panels if the hitch is removed to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not use a torch to cut access or attachment holes.
Specifications:
- Weight Carrying:
- Max Gross Trailer Weight: 3,500 lb. (1,589 kg)
- Max Tongue Weight: 300 lb. (136 kg)
- Drawbar:
- Drawbar Kit: 36051
- Must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the state of New York.
Installation Instructions for Full-Size SUV (All Models)
Part Numbers:
- 51174
Wiring Access Location:
- SUV4
Tools Required:
- Wrenches: 12mm, 14mm, 17mm
- Drill Bits: None
Step-by-Step Instructions:
-
Lower Carbon Canister:
- Lower the carbon canister and its bracket from the passenger side of the vehicle's frame.
-
Remove Tie-Down Bracket:
- Detach the tie-down bracket from the vehicle frame and set aside.
-
Remove Center Fascia Mounting Bracket (if present):
- If a center fascia mounting bracket is installed, remove it and set it aside.
-
Remove Exhaust Mounting Bracket:
- Detach the exhaust mounting bracket from the vehicle frame.
- Return all removed brackets and fasteners (tie-down, exhaust, and center fascia) to the vehicle owner in case the hitch is removed.
-
Install Hitch:
- Position the hitch on the vehicle, sandwiching the carbon canister bracket between the hitch and frame.
- Secure the hitch using the provided fasteners as shown in the instructions.
-
Attach Exhaust Hanger:
- Bolt the rubber exhaust hanger to the hitch side bracket using the provided fasteners.
-
Reattach Carbon Canister:
- Secure the carbon canister back to its bracket.
-
Reattach Center Fascia Tab (if present):
- Use the existing fastener or the provided cable tie to attach the fascia tab to the hitch.
Hardware List:
- (7) M12 x 1.25 x 40mm Hex Bolts
- (2) 7/16” Flat Washers
- (1) 7/16” Lock Washer
- (7) 1/2” Conical Washers
- (1) M10 x 1.50 Hex Bolt
- (1) M10 x 1.25 Hex Nut
- (1) Cable Tie
Torque Specifications:
- Tighten all M12 CL10.9 fasteners to 92 Lb.-Ft. (125 N*M).
- Tighten all M10 fasteners to 20-30 Lb.-Ft. (27-41 N*M).
Safety Notes:
- Regularly check all fasteners and the hitch ball to ensure they are securely tightened.
- Plug all holes in the trunk pan or other body panels if the hitch is removed to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not use a torch to cut access or attachment holes.
Specifications:
- Weight Carrying:
- Max Gross Trailer Weight: 3,500 lb. (1,589 kg)
- Max Tongue Weight: 300 lb. (136 kg)
- Drawbar:
- Drawbar Kit: 36051
- Must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the state of New York.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
