Trailer Tow Hitch Hardware Bolt Fastener Kit For 07‑11 Honda CRV CR‑V Class 3 2" Towing Receiver
Model: HWKIT3(75547F)2007 - 2011 Honda, CR-V, All Styles
(Hardware kits ship from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Pro Series Reese and Hidden Hitch: 87440 75547 44575 51205
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 09 10 11 2007 2008 2009 2010 2011
$56 48 $89.21 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$89.21 $56 48
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $14.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT3(75547F)
- Includes: Hardware Kit for Class 3-5 Trailer Tow Hitch
Compatibility Chart
Description
2007 - 2011 Honda, CR-V, All Styles
(Hardware kits ship from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Pro Series Reese and Hidden Hitch: 87440 75547 44575 51205
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 09 10 11 2007 2008 2009 2010 2011
Get Expert Help
Trailer Tow Hitch Hardware Bolt Fastener Kit For 07-11 Honda CRV CR-V Class 3 2" Towing Receiver Install Notes
Installation Instructions for Honda CR-V
Part Numbers:
- 75547
- 87440
- 44575
Tools Required:
- Wrenches: 17mm, 11/16"
- Drill Bits: None
Wiring Access Location:
- Not specified in this document.
Step-by-Step Instructions:
-
Lower Exhaust:
- Remove the rubber isolators from the muffler hangers to lower the exhaust.
- Start with the outside isolator, then proceed to the inside isolator.
- Tip: Spray lubricant or soapy water on the metal hanger rod and rubber isolator to facilitate removal.
-
Position the Hitch:
- Raise the hitch into position, aligning it with the frame weldnuts.
-
Install M10 Fasteners:
- Secure the hitch to the frame using the M10 bolts and conical washers as shown.
-
Install U-Bolt:
- Insert the 3/8"-16 U-bolt through the vehicle tie-down hook and the receiver’s tie-down hook attachment.
- Secure with flat washers, lock washers, and hex nuts.
-
Tighten Fasteners:
- Tighten all fasteners to the required torque specifications:
- M10 CL8.8 bolts: 38 lb-ft (52 N·m).
- 3/8"-16 GR5 fasteners: 30 lb-ft (41 N·m).
- Tighten all fasteners to the required torque specifications:
-
Raise Exhaust:
- Reinstall the rubber isolators and return the exhaust to its original position.

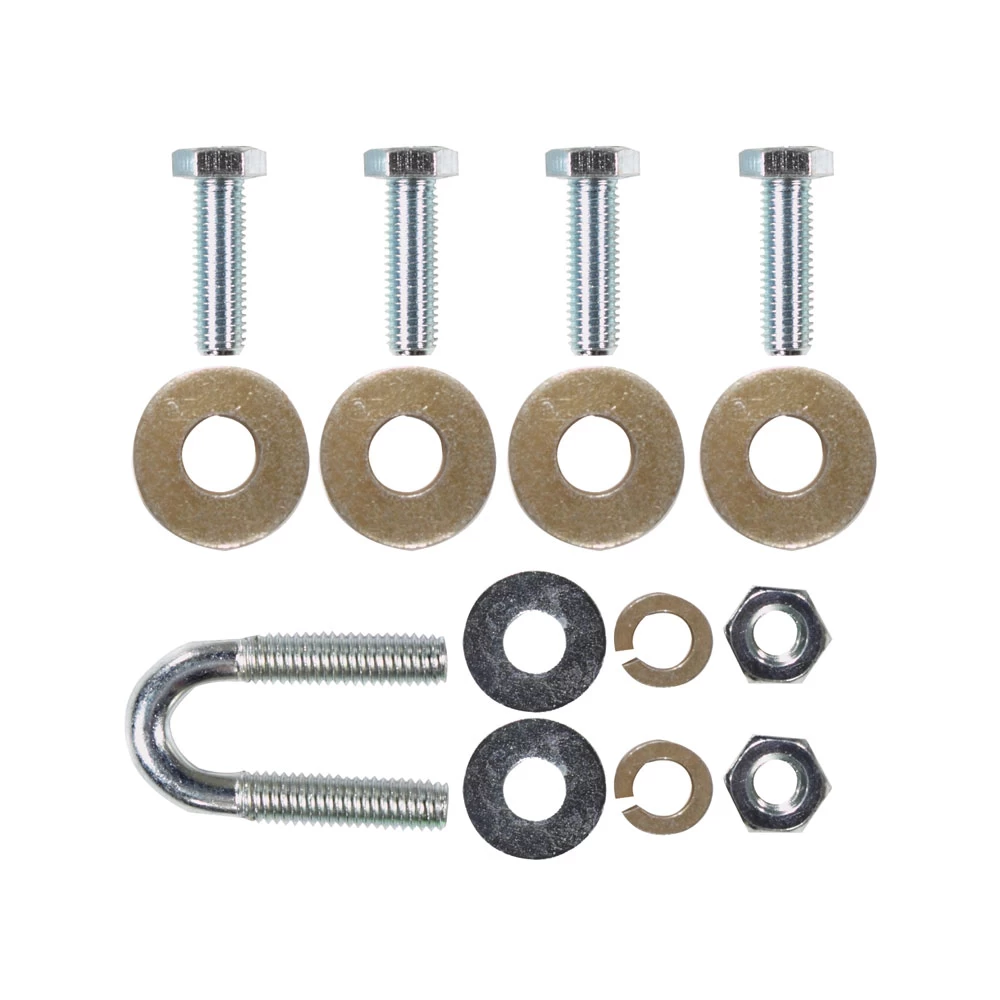

Hardware List:
- (4) M10 x 1.25 x 30mm CL8.8 Hex Bolts
- (4) Conical Washers
- (1) 3/8"-16 U-Bolt
- (2) Flat Washers
- (2) Lock Washers
- (2) 3/8"-16 Hex Nuts
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
- Weight Distributing: Not for use with spring bars.
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Vehicles (Generic)
Part Numbers:
- 75547
- 87440
- 44575
Tools Required:
- Wrenches: 17mm, 11/16"
- Drill Bits: None
Wiring Access Location:
- Not specified in this document.
Step-by-Step Instructions:
-
Lower Exhaust:
- Remove the rubber isolators from the muffler hangers to lower the exhaust.
- Start with the outside isolator, then proceed to the inside isolator.
- Tip: Spray lubricant or soapy water on the metal hanger rod and rubber isolator to facilitate removal.
-
Position the Hitch:
- Raise the hitch into position, aligning it with the frame weldnuts.
-
Install M10 Fasteners:
- Secure the hitch to the frame using the M10 bolts and conical washers as shown.
-
Install U-Bolt:
- Insert the 3/8"-16 U-bolt through the vehicle tie-down hook and the receiver’s tie-down hook attachment.
- Secure with flat washers, lock washers, and hex nuts.
-
Tighten Fasteners:
- Tighten all fasteners to the required torque specifications:
- M10 CL8.8 bolts: 38 lb-ft (52 N·m).
- 3/8"-16 GR5 fasteners: 30 lb-ft (41 N·m).
- Tighten all fasteners to the required torque specifications:
-
Raise Exhaust:
- Reinstall the rubber isolators and return the exhaust to its original position.
Hardware List:
- (4) M10 x 1.25 x 30mm CL8.8 Hex Bolts
- (4) Conical Washers
- (1) 3/8"-16 U-Bolt
- (2) Flat Washers
- (2) Lock Washers
- (2) 3/8"-16 Hex Nuts
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
- Weight Distributing: Not for use with spring bars.
- Complies with safety specifications and requirements for connecting devices and towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
