Trailer Tow Hitch Hardware Fastener Kit For 07‑11 BMW 328i 07‑08 328xi 1‑1/4" Towing Receiver Class 1
Model: HWKIT1(24857F)This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2007 - 2011 BMW, 328i, Sedan
2007 - 2011 BMW, 328i xDrive, Sedan
2007 - 2008 BMW, 328xi, Sedan
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 24857 60273 77231 24863
Installation Instructions:
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 09 10 11 2007 2008 2009 2010 2011
$39 59 $44.64 11% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$44.64 $39 59
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $9.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT1(24857F)
- Includes: Hardware Kit for Class 1 Trailer Tow Hitch
Compatibility Chart
Description
This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2007 - 2011 BMW, 328i, Sedan
2007 - 2011 BMW, 328i xDrive, Sedan
2007 - 2008 BMW, 328xi, Sedan
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 24857 60273 77231 24863
Installation Instructions:
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 09 10 11 2007 2008 2009 2010 2011
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 07-11 BMW 328i 07-08 328xi 1-1/4" Towing Receiver Class 1 Install Notes
Installation Instructions for BMW 328 Sedan
Part Numbers:
- 24857
- 60273
- 77231
- 24863 (U-Haul)
Wiring Access Location:
- P3, P4
Tools Required:
- Wrenches: 8mm, 10mm, 18mm, 3/4”
- Spray Lubricant
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Remove Appearance Panels:
- Detach both appearance panels by removing (10) 8mm and (4) 10mm screws. Retain these for reinstallation.
-
Remove Existing Flange Nuts:
- Remove the (4) M12 flange nuts located on the vehicle end panel. Spraying lubricant will assist with removal.
- Wash the lubricant off the studs if used.
-
Install Flat Washers:
- Place (3) flat washers on each stud.
-
Position Hitch:
- Rotate the hitch behind the fascia and raise it into position as shown in Figure 2.
- Reinstall the flange nuts removed in Step 2. Tighten finger-tight only.
-
Determine Spacer Requirement:
- Evaluate the number of spacers needed between the hitch bar and vehicle frame cross member. A minimum of one spacer is required.
-
Install Carriage Bolt and Spacer:
- Using the provided pull wire, insert a carriage bolt and one spacer into the vehicle frame cross member.
- Thread the pull wire through the spacer(s) and hitch bar as shown in Figure 4.
- Remove the pull wire and install a conical washer and hex nut onto the carriage bolt.
-
Tighten Fasteners:
- Torque all M12 fasteners to 62 Lb.-Ft. (84 N*M).
- Torque all 1/2”-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).
-
Reinstall Appearance Panels:
- Reinstall the appearance panel on the passenger side.
- The driver’s side appearance panel may need to be trimmed (see Figure 3) or returned to the owner. Obtain the owner’s permission before trimming.

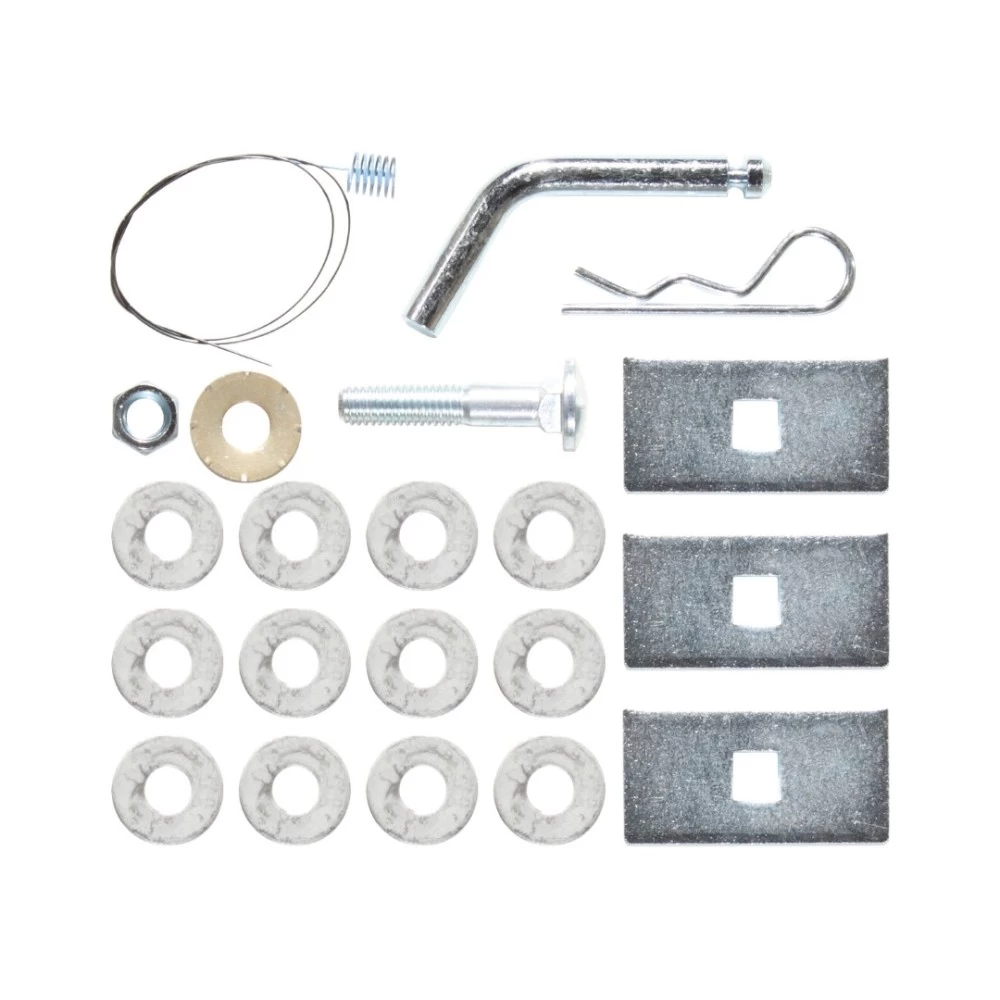

Hardware List:
- (12) Flat Washers: 7/16”
- (3) Spacers
- (1) Carriage Bolt: 1/2”-13 x 2.50” GR5
- (1) Conical Washer: 1/2”
- (1) Hex Nut: 1/2”-13
- (1) Pull Wire: 1/2”
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- Proper orientation of spacers is critical for secure installation. Refer to Figure 4 for details.
Installation Instructions
Part Numbers:
- 24857
- 60273
- 77231
- 24863 (U-Haul)
Wiring Access Location:
- P3, P4
Tools Required:
- Wrenches: 8mm, 10mm, 18mm, 3/4”
- Spray Lubricant
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Remove Appearance Panels:
- Detach both appearance panels by removing (10) 8mm and (4) 10mm screws. Retain these for reinstallation.
-
Remove Existing Flange Nuts:
- Remove the (4) M12 flange nuts located on the vehicle end panel. Spraying lubricant will assist with removal.
- Wash the lubricant off the studs if used.
-
Install Flat Washers:
- Place (3) flat washers on each stud.
-
Position Hitch:
- Rotate the hitch behind the fascia and raise it into position as shown in Figure 2.
- Reinstall the flange nuts removed in Step 2. Tighten finger-tight only.
-
Determine Spacer Requirement:
- Evaluate the number of spacers needed between the hitch bar and vehicle frame cross member. A minimum of one spacer is required.
-
Install Carriage Bolt and Spacer:
- Using the provided pull wire, insert a carriage bolt and one spacer into the vehicle frame cross member.
- Thread the pull wire through the spacer(s) and hitch bar as shown in Figure 4.
- Remove the pull wire and install a conical washer and hex nut onto the carriage bolt.
-
Tighten Fasteners:
- Torque all M12 fasteners to 62 Lb.-Ft. (84 N*M).
- Torque all 1/2”-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).
-
Reinstall Appearance Panels:
- Reinstall the appearance panel on the passenger side.
- The driver’s side appearance panel may need to be trimmed (see Figure 3) or returned to the owner. Obtain the owner’s permission before trimming.
Hardware List:
- (12) Flat Washers: 7/16”
- (3) Spacers
- (1) Carriage Bolt: 1/2”-13 x 2.50” GR5
- (1) Conical Washer: 1/2”
- (1) Hex Nut: 1/2”-13
- (1) Pull Wire: 1/2”
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- Proper orientation of spacers is critical for secure installation. Refer to Figure 4 for details.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
