Reese Trailer Tow Hitch Receiver For 04‑06 Dodge Durango w/Tri‑Ball Triple Ball 1‑7/8" 2" 2‑5/16"
Model: 44175 7031400 63240Custom Fit Trailer Hitch
Tri-Ball Trailer Hitch Ball Mount w/ Pin/Clip
This Hitch Fits The Following Vehicles:
2004 - 2006 Dodge, Durango, All Styles
Trailer Hitch Specs:
| Part Number | 44175 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 9,000 lbs |
| Max Tongue Weight | 600/900 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Tri-Ball Trailer Hitch Ball Mount Specs:
| Part Number | 7031400 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Finish | Black Powdercoat Balls and hook are chromed |
| Length | 8" From Center of Pin Hole to Center of Ball Hole |
| 1 7/8 In. ball | 2,000 Lb. capacity |
| 2 In. ball | 6,000 Lb. capacity |
| 2 5/16 In. ball | 10,000 Lb. capacity |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite, Hidden Hitch and Tekonsha. Our customhitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 04 05 06 2004 2005 2006
$303 86 $486.14 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$486.14 $303 86
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $75.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 44175 7031400 63240

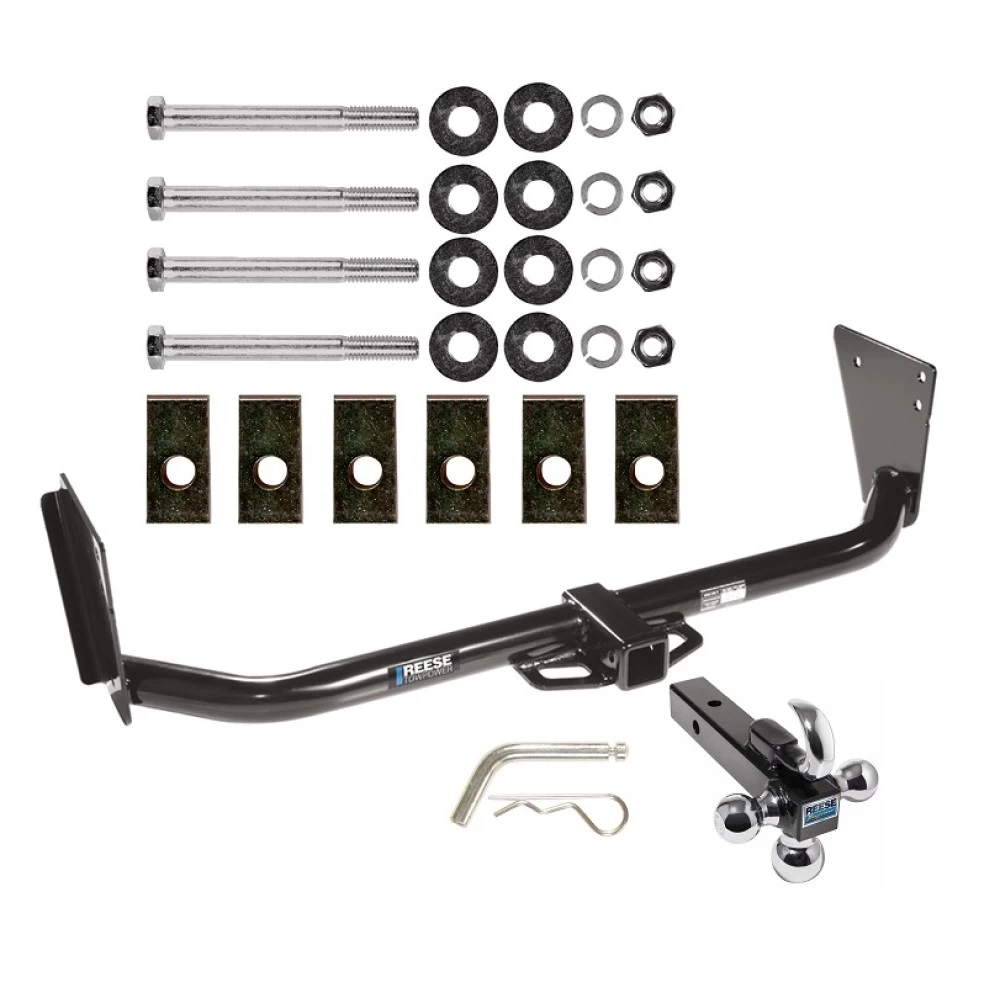

- Includes: Class 4 Trailer Tow Hitch, Tri-Ball Trailer Tow Hitch Ball Mount w/ Chrome Tow Hook, Trailer Tow Hitch Pin & Clip
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
Custom Fit Trailer Hitch
Tri-Ball Trailer Hitch Ball Mount w/ Pin/Clip
This Hitch Fits The Following Vehicles:
2004 - 2006 Dodge, Durango, All Styles
Trailer Hitch Specs:
| Part Number | 44175 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 9,000 lbs |
| Max Tongue Weight | 600/900 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Tri-Ball Trailer Hitch Ball Mount Specs:
| Part Number | 7031400 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Finish | Black Powdercoat Balls and hook are chromed |
| Length | 8" From Center of Pin Hole to Center of Ball Hole |
| 1 7/8 In. ball | 2,000 Lb. capacity |
| 2 In. ball | 6,000 Lb. capacity |
| 2 5/16 In. ball | 10,000 Lb. capacity |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite, Hidden Hitch and Tekonsha. Our customhitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 04 05 06 2004 2005 2006
Get Expert Help
Reese Trailer Tow Hitch Receiver For 04-06 Dodge Durango w/Tri-Ball Triple Ball 1-7/8" 2" 2-5/16" Install Notes
Installation Instructions for Dodge Durango
Part Numbers:
- 75292
- 44175
- 70751
Tools Required:
- Wrenches: 3/4", 7/8", 18mm, 21mm (Deep Well Socket)
- Drill Bits: None
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
-
Loosen and Remove Fasteners:
- Loosen (6) bumper bracket nuts (3 on each side).
- Remove the (4) rearmost bolts (2 on each side).
- Remove the remaining flange nuts.
- Do not remove the forward bolts. Return the (4) bolts and flange nuts to the vehicle owner.
-
Replace Rearmost Bolts:
- Replace the (4) rearmost bolts with the new bolts supplied in the fastener kit.
-
Insert Spacer Blocks:
- Place one (1) spacer block flush on each bolt.
-
Raise Hitch Into Position:
- Lift the hitch into place over the exhaust pipe, being careful not to drop the spacer blocks.
-
Install Fasteners:
- Push the bolts with flat washers through the frame rail, blocks, and brackets.
- Attach flat washers, lock washers, and nuts to the (4) rearmost bolts.
-
Reinstall Forward Flange Nuts:
- Replace the flange nuts on the forward existing bolts.
-
Tighten Fasteners:
- Tighten all M14 CL10.9 fasteners to 148 lb-ft (201 N·m).
- Tighten all 1/2-13 GR5 fasteners to 75 lb-ft (102 N·m).
Hardware List:
- (4) 1/2-13 x 5” GR5 Hex Bolts
- (4) 1/2” Lock Washers
- (8) 1/2” Flat Washers
- (6) 1/2” x 1-1/8” x 2-1/2” Spacer Blocks
- (4) 1/2-13 Hex Nuts
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 9,000 lbs (4,086 kg), Max Tongue Weight 900 lbs (409 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 600 lbs (272 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Dodge Durango
Part Numbers:
- 75292
- 44175
- 70751
Tools Required:
- Wrenches: 3/4", 7/8", 18mm, 21mm (Deep Well Socket)
- Drill Bits: None
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
-
Loosen and Remove Fasteners:
- Loosen (6) bumper bracket nuts (3 on each side).
- Remove the (4) rearmost bolts (2 on each side).
- Remove the remaining flange nuts.
- Do not remove the forward bolts. Return the (4) bolts and flange nuts to the vehicle owner.
-
Replace Rearmost Bolts:
- Replace the (4) rearmost bolts with the new bolts supplied in the fastener kit.
-
Insert Spacer Blocks:
- Place one (1) spacer block flush on each bolt.
-
Raise Hitch Into Position:
- Lift the hitch into place over the exhaust pipe, being careful not to drop the spacer blocks.
-
Install Fasteners:
- Push the bolts with flat washers through the frame rail, blocks, and brackets.
- Attach flat washers, lock washers, and nuts to the (4) rearmost bolts.
-
Reinstall Forward Flange Nuts:
- Replace the flange nuts on the forward existing bolts.
-
Tighten Fasteners:
- Tighten all M14 CL10.9 fasteners to 148 lb-ft (201 N·m).
- Tighten all 1/2-13 GR5 fasteners to 75 lb-ft (102 N·m).
Hardware List:
- (4) 1/2-13 x 5” GR5 Hex Bolts
- (4) 1/2” Lock Washers
- (8) 1/2” Flat Washers
- (6) 1/2” x 1-1/8” x 2-1/2” Spacer Blocks
- (4) 1/2-13 Hex Nuts
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 9,000 lbs (4,086 kg), Max Tongue Weight 900 lbs (409 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 600 lbs (272 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
