Product Details
- Brand: Draw-Tite
- Model: 75601 1393100G 63201 7010

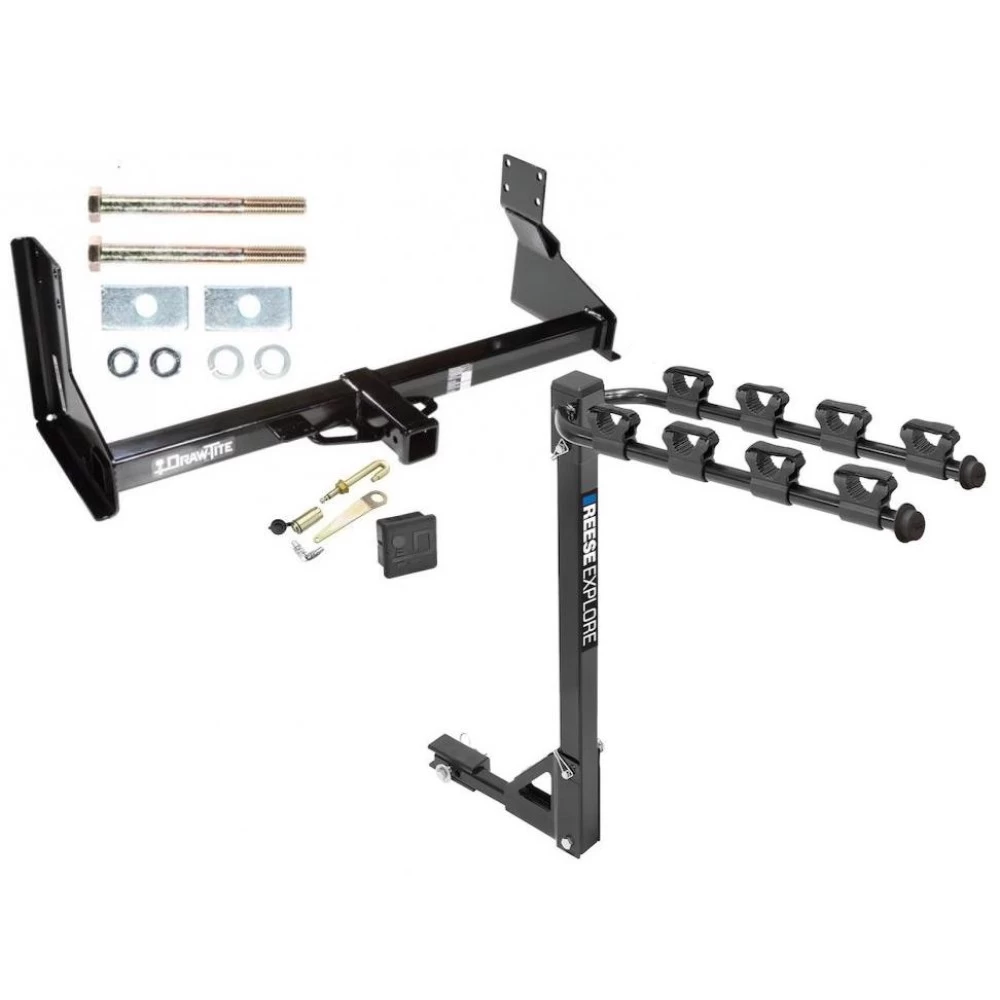

- Includes: Class 3 Trailer Tow Hitch, Trailer Tow Hitch Bike Carrier, J-Pin Anti-Rattle Device, Trailer Tow Hitch Tube Cover
Compatibility Chart
Year Range | Make | Model | Style |
---|
Description
Get Expert Help
Trailer Tow Hitch w/ 4 Bike Rack For 07-24 Dodge Freightliner Mercedes-Benz Sprinter 2500 3500 w/ Security J-Pin and Cover Install Notes
Installation Instructions for Dodge Sprinter, Mercedes Sprinter, and Freightliner Sprinter (with Factory Step Bumper)
Part Numbers:
- 44591
- 75601
- 87456
Tools Required:
- Wrenches: 18mm, 19mm
- Drill Bits: None
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
-
Prepare Bumper Mounting Bolts:
- Remove all nuts from the existing bumper mounting bolts (3 per side). Do not remove the bolts yet.
- If the bumper mounting bolts are pointing inboard, turn each bolt one at a time so they point outboard, ensuring the bolt heads are flush with the outboard side of the frame rails.
- Note: Turning bolts one at a time prevents the bumper from falling.
-
Position the Hitch:
- Raise the hitch into position.
- Push the bumper mounting bolts the rest of the way through the hitch brackets.
-
Secure Hitch with Fasteners:
- Reinstall the flange nuts removed in Step 1.
- Install the additional bolts as shown in the diagram:
- Insert M12 bolts, lock washers, spacers, and nuts on both sides.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 fasteners to 68 lb-ft (92 N·m).
Hardware List:
- (2) M12 x 1.75 x 120mm CL8.8 Hex Bolts
- (2) 1/2" Lock Washers
- (2) 7/16" x 1" x 2" Spacers
- (2) M12 x 1.75 Hex Nuts
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Weight Distributing: Max Trailer Weight 7,500 lbs (3,405 kg), Max Tongue Weight 750 lbs (341 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Note:
- This hitch will not fit vehicles with a 30-3/8" frame width measured outside-to-outside.
Installation Instructions for Vehicles (Generic)
(With Factory Step Bumper)
Part Numbers:
- 44591
- 75601
- 87456
Tools Required:
- Wrenches: 18mm, 19mm
- Drill Bits: None
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
-
Prepare Bumper Mounting Bolts:
- Remove all nuts from the existing bumper mounting bolts (3 per side). Do not remove the bolts yet.
- If the bumper mounting bolts are pointing inboard, turn each bolt one at a time so they point outboard, ensuring the bolt heads are flush with the outboard side of the frame rails.
- Note: Turning bolts one at a time prevents the bumper from falling.
-
Position the Hitch:
- Raise the hitch into position.
- Push the bumper mounting bolts the rest of the way through the hitch brackets.
-
Secure Hitch with Fasteners:
- Reinstall the flange nuts removed in Step 1.
- Install the additional bolts as shown in the diagram:
- Insert M12 bolts, lock washers, spacers, and nuts on both sides.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 fasteners to 68 lb-ft (92 N·m).
Hardware List:
- (2) M12 x 1.75 x 120mm CL8.8 Hex Bolts
- (2) 1/2" Lock Washers
- (2) 7/16" x 1" x 2" Spacers
- (2) M12 x 1.75 Hex Nuts
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Weight Distributing: Max Trailer Weight 7,500 lbs (3,405 kg), Max Tongue Weight 750 lbs (341 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Additional Note:
- This hitch will not fit vehicles with a 30-3/8" frame width measured outside-to-outside.
