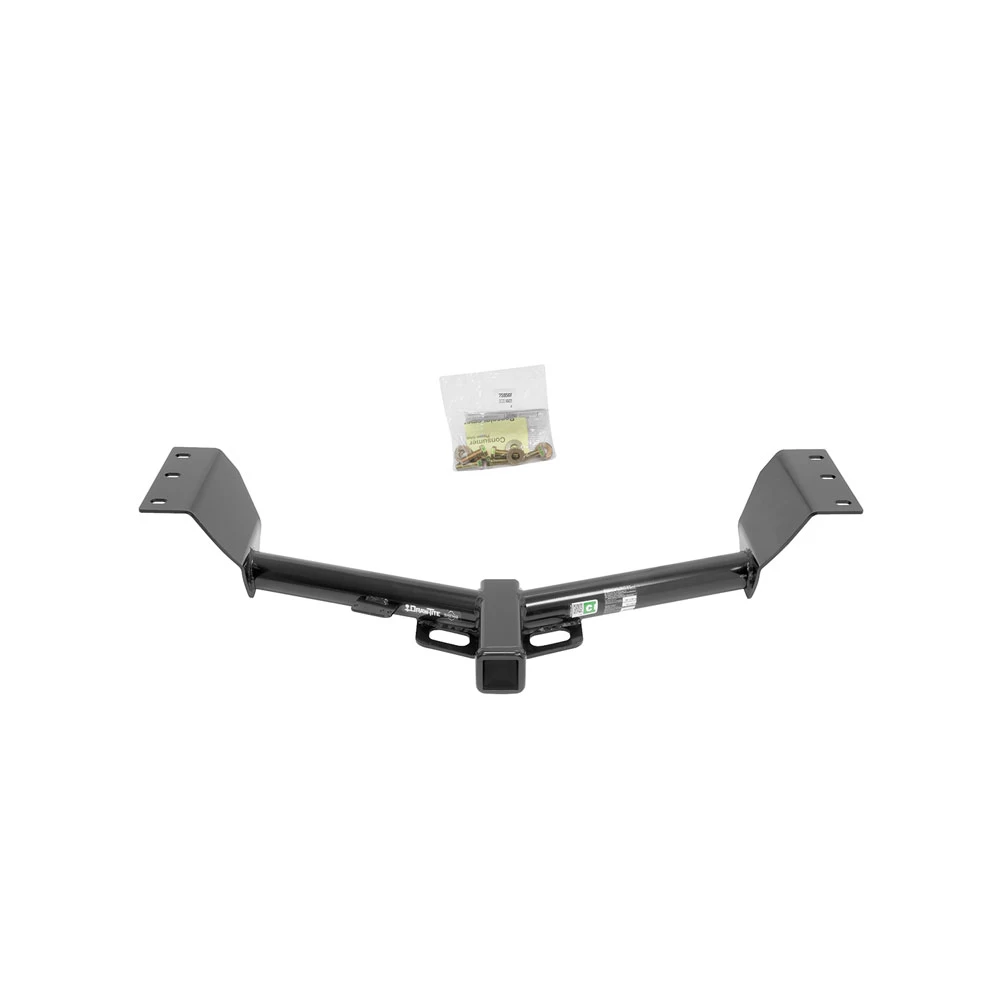

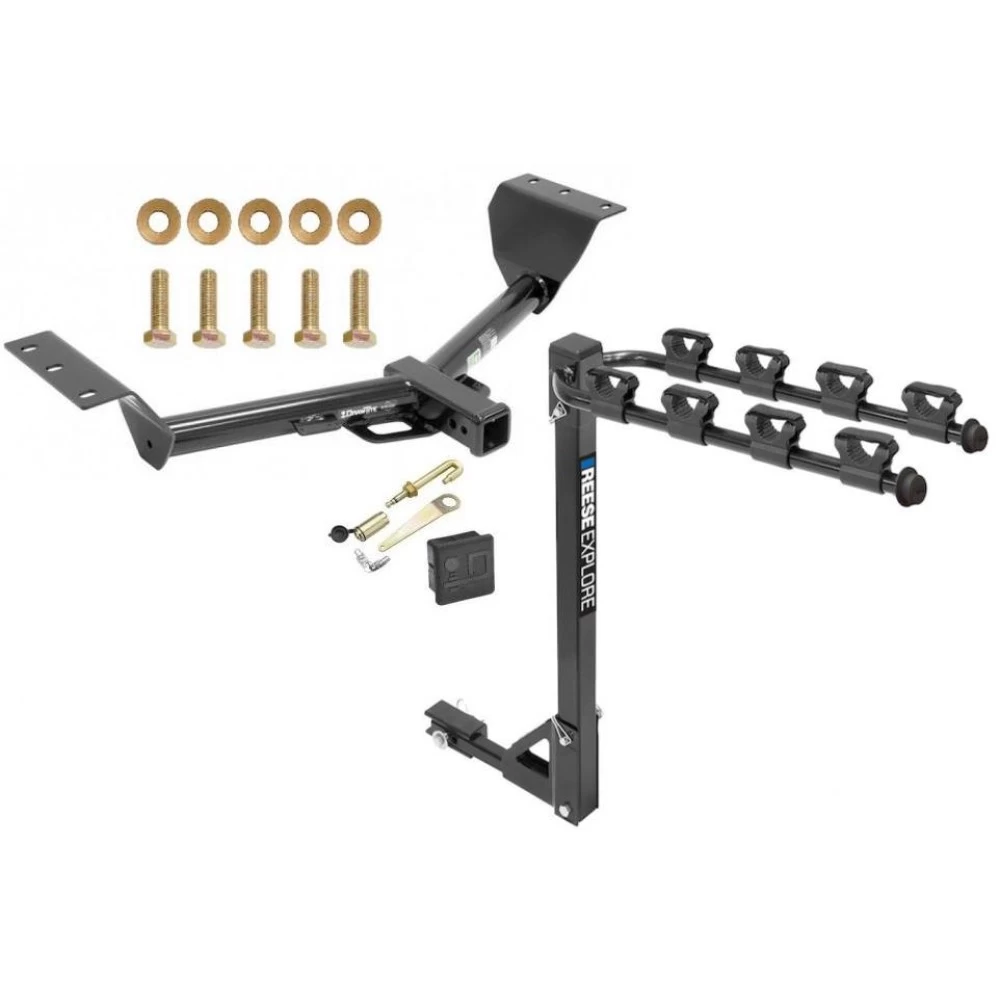

Trailer Tow Hitch w/ 4 Bike Rack For 15-21 Lexus NX200t tilt away adult or child arms fold down carrier w/ Lock and Cover Install Notes
Installation Instructions for Lexus NX200t and NX300
(2015-2017 Lexus NX200t and 2018-Current Lexus NX300)
Part Numbers:
- 75956
- 44762
- CQT75956
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 17mm, 18mm
- 3" Socket Extension
- Phillips Screwdriver
Wiring Access Location:
- SUV3, SUV4
Step-by-Step Instructions:
-
Remove Fascia Components:
- Remove one (1) screw from the bottom fascia center.
- Remove the appearance panel door and return it to the vehicle owner.
-
Lower the Exhaust:
- Remove two (2) M12 bolts from the exhaust hanger bracket on each side.
- Use an exhaust support stand to prevent damage to the muffler.
- Return the four (4) bolts to the vehicle owner.
-
Position the Hitch:
- Raise the hitch into position, starting from the driver’s side.
- Loosely install one (1) M12 bolt and one (1) conical washer at the foremost slot on the driver’s side.
-
Secure the Hitch Bracket:
- Sandwich the hitch bracket between the exhaust hanger and the frame rail on both sides.
- Loosely install the remaining fasteners to the exhaust hanger bracket on both sides.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12-1.25 CL10.9 fasteners to 76 lb-ft (103 Nm).
-
Reinstall Components:
- Reattach the exhaust and ensure all components are securely installed.
Hardware List:

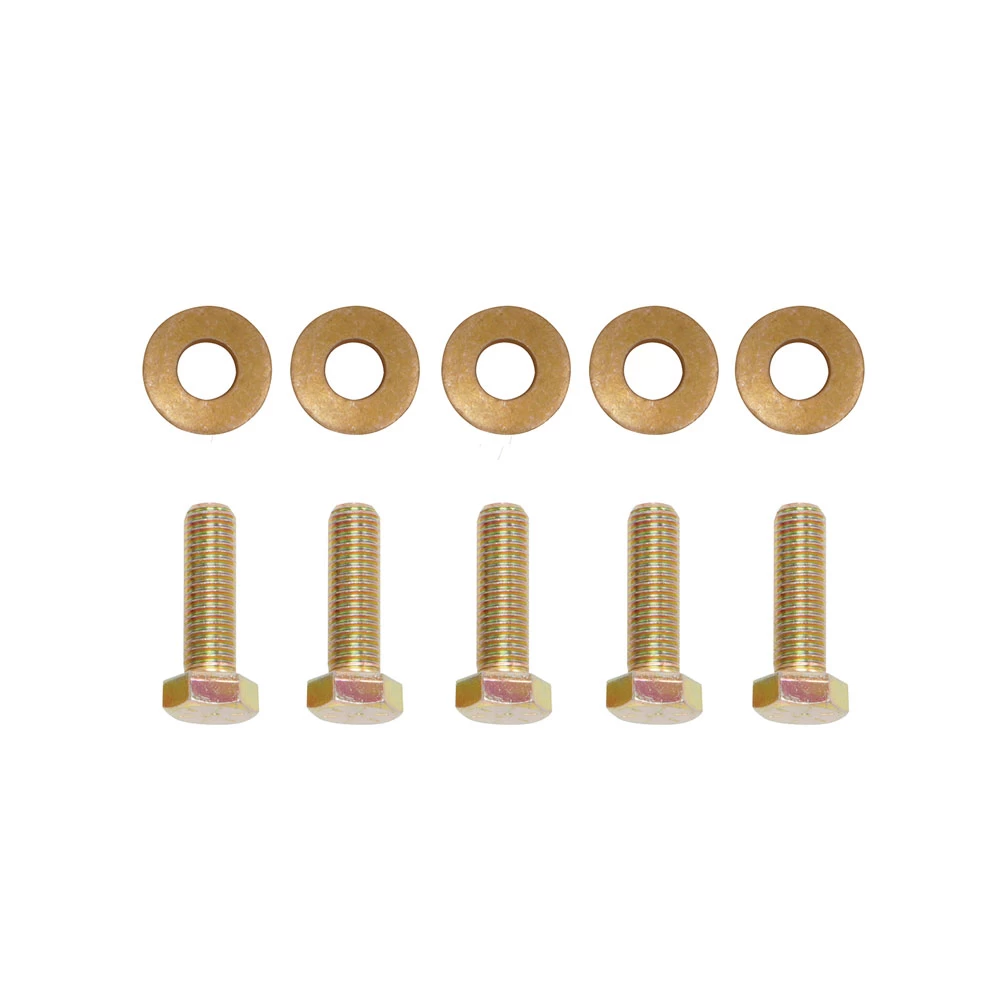

- (5) M12 x 1.25 x 40mm CL10.9 Bolts
- (5) 1/2" Conical Toothed Washers
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation time is approximately 35 minutes for a professional installer.
- Contact a professional installer if you are uncomfortable performing the installation on your own.
Installation Instructions for Vehicle
(2015-2017 Vehicle Model and 2018-Current Vehicle Model)
Part Numbers:
- 75956
- 44762
- CQT75956
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 17mm, 18mm
- 3" Socket Extension
- Phillips Screwdriver
Wiring Access Location:
- SUV3, SUV4
Step-by-Step Instructions:
-
Remove Fascia Components:
- Remove one (1) screw from the bottom fascia center.
- Remove the appearance panel door and return it to the vehicle owner.
-
Lower the Exhaust:
- Remove two (2) M12 bolts from the exhaust hanger bracket on each side.
- Use an exhaust support stand to prevent damage to the muffler.
- Return the four (4) bolts to the vehicle owner.
-
Position the Hitch:
- Raise the hitch into position, starting from the driver’s side.
- Loosely install one (1) M12 bolt and one (1) conical washer at the foremost slot on the driver’s side.
-
Secure the Hitch Bracket:
- Sandwich the hitch bracket between the exhaust hanger and the frame rail on both sides.
- Loosely install the remaining fasteners to the exhaust hanger bracket on both sides.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12-1.25 CL10.9 fasteners to 76 lb-ft (103 Nm).
-
Reinstall Components:
- Reattach the exhaust and ensure all components are securely installed.
Hardware List:
- (5) M12 x 1.25 x 40mm CL10.9 Bolts
- (5) 1/2" Conical Toothed Washers
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation time is approximately 35 minutes for a professional installer.
- Contact a professional installer if you are uncomfortable performing the installation on your own.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
