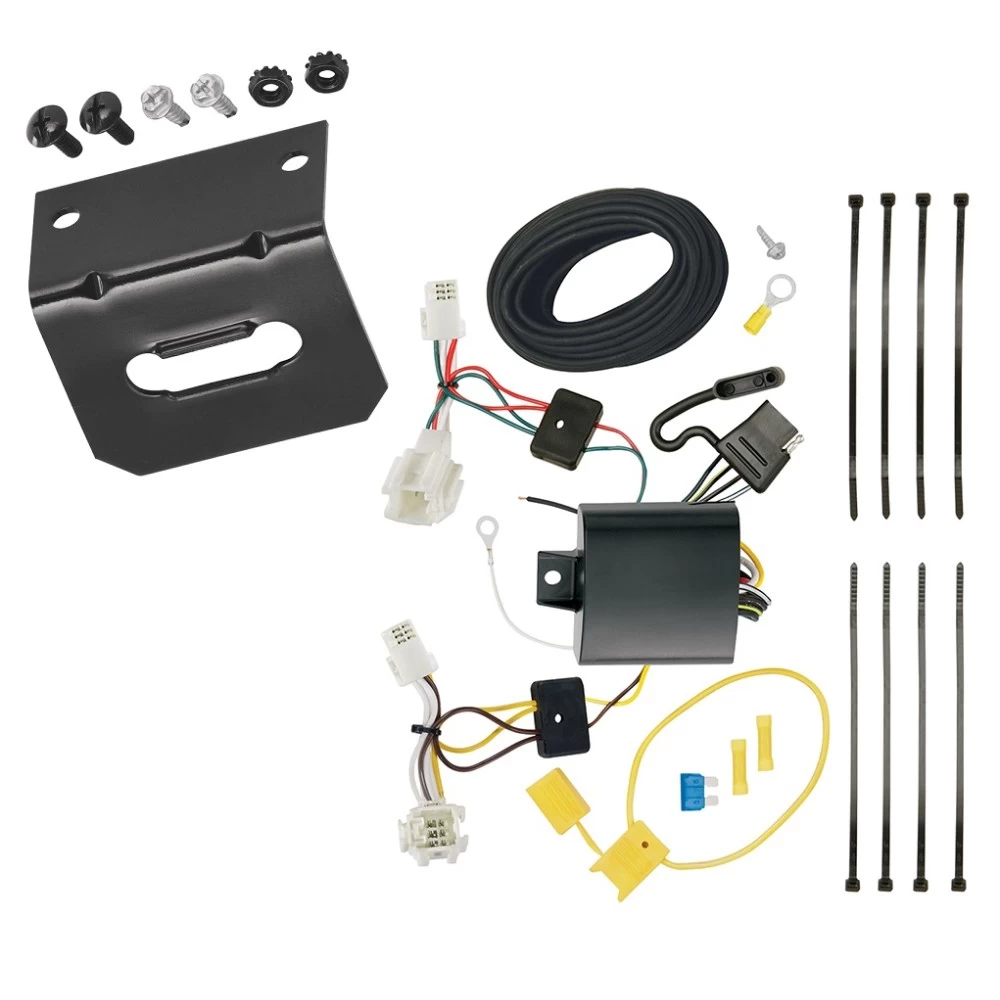

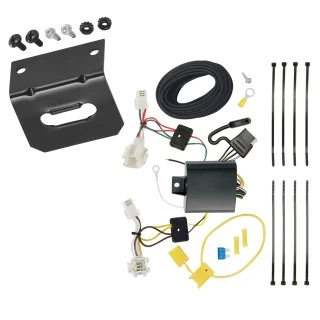

Trailer Wiring and Bracket For 16-21 Mazda CX-3 All Styles 4-Flat Harness Plug Play Install Notes
Installation Instructions for T-One® T-Connector for Mazda CX-3
Part Numbers:
- 118718
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Locate Vehicle Wiring:
- Inside the rear cargo area, partially remove the plastic threshold cover, side panels, and cargo trays to access the wiring.
-
Connect the Driver-Side T-Connector:
- Separate the vehicle’s wiring connectors on the driver’s side, ensuring not to damage the locking tabs.
- Insert the T-Connector end with the yellow and brown wire between the vehicle wiring connectors. Ensure connectors are clean and fully locked into place.
-
Route the Passenger-Side T-Connector:
- Route the T-Connector containing the green and red wire below the threshold cover to the passenger’s side taillight housing.
- Repeat Step 2 for the passenger side using the T-Connector with the green and red wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32” hole.
- Secure the white wire using the provided eyelet and screw. Clean the area of dirt and rustproofing before securing.
Caution: Verify what is behind any surface before drilling to prevent damage or injury. Avoid drilling into exposed surfaces.
-
Mount the Black Box Module:
- Locate a flat, out-of-the-way surface and mount the black box module to prevent damage or rattling.
-
Connect the Power Wire:
- Locate the black 12-gauge power wire from the T-Connector box and attach the provided black wire.
- Route the black wire along the exterior frame or existing wiring to the engine compartment, avoiding areas that may pinch or damage the wire.
Warning: Avoid routing the wire near hot pipes, heat shields, or fuel tanks.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s Negative (-) battery cable.
- Remove the fuse from the yellow fuse holder (provided).
- Attach the ring terminal from the fuse holder to the Positive (+) battery cable.
- Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.
Warning: Follow all warnings and precautions on the tow vehicle’s battery.
-
Reconnect the Battery and Test:
- Reconnect the vehicle’s Negative (-) battery cable.
- Insert the 15-amp fuse into the fuse holder and test the installation with a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure the wiring harness, avoiding areas that may pinch, cut, or melt the wire.
-
Reassemble the Vehicle:
- Reinstall the plastic trim panels, threshold, storage covers, floor covering, and any other removed items.
- Ensure no wires are pinched or damaged.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the rear cargo area when not in use.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Installation Instructions for T-One® T-Connector for Mazda CX-3
Part Numbers:
- 118718
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Locate Vehicle Wiring:
- Inside the rear cargo area, partially remove the plastic threshold cover, side panels, and cargo trays to access the wiring.
-
Connect the Driver-Side T-Connector:
- Separate the vehicle’s wiring connectors on the driver’s side, ensuring not to damage the locking tabs.
- Insert the T-Connector end with the yellow and brown wire between the vehicle wiring connectors. Ensure connectors are clean and fully locked into place.
-
Route the Passenger-Side T-Connector:
- Route the T-Connector containing the green and red wire below the threshold cover to the passenger’s side taillight housing.
- Repeat Step 2 for the passenger side using the T-Connector with the green and red wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32” hole.
- Secure the white wire using the provided eyelet and screw. Clean the area of dirt and rustproofing before securing.
Caution: Verify what is behind any surface before drilling to prevent damage or injury. Avoid drilling into exposed surfaces.
-
Mount the Black Box Module:
- Locate a flat, out-of-the-way surface and mount the black box module to prevent damage or rattling.
-
Connect the Power Wire:
- Locate the black 12-gauge power wire from the T-Connector box and attach the provided black wire.
- Route the black wire along the exterior frame or existing wiring to the engine compartment, avoiding areas that may pinch or damage the wire.
Warning: Avoid routing the wire near hot pipes, heat shields, or fuel tanks.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s Negative (-) battery cable.
- Remove the fuse from the yellow fuse holder (provided).
- Attach the ring terminal from the fuse holder to the Positive (+) battery cable.
- Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.
Warning: Follow all warnings and precautions on the tow vehicle’s battery.
-
Reconnect the Battery and Test:
- Reconnect the vehicle’s Negative (-) battery cable.
- Insert the 15-amp fuse into the fuse holder and test the installation with a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure the wiring harness, avoiding areas that may pinch, cut, or melt the wire.
-
Reassemble the Vehicle:
- Reinstall the plastic trim panels, threshold, storage covers, floor covering, and any other removed items.
- Ensure no wires are pinched or damaged.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the rear cargo area when not in use.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Note: Store the 4-flat connector in the rear cargo area when not in use to prevent damage.
