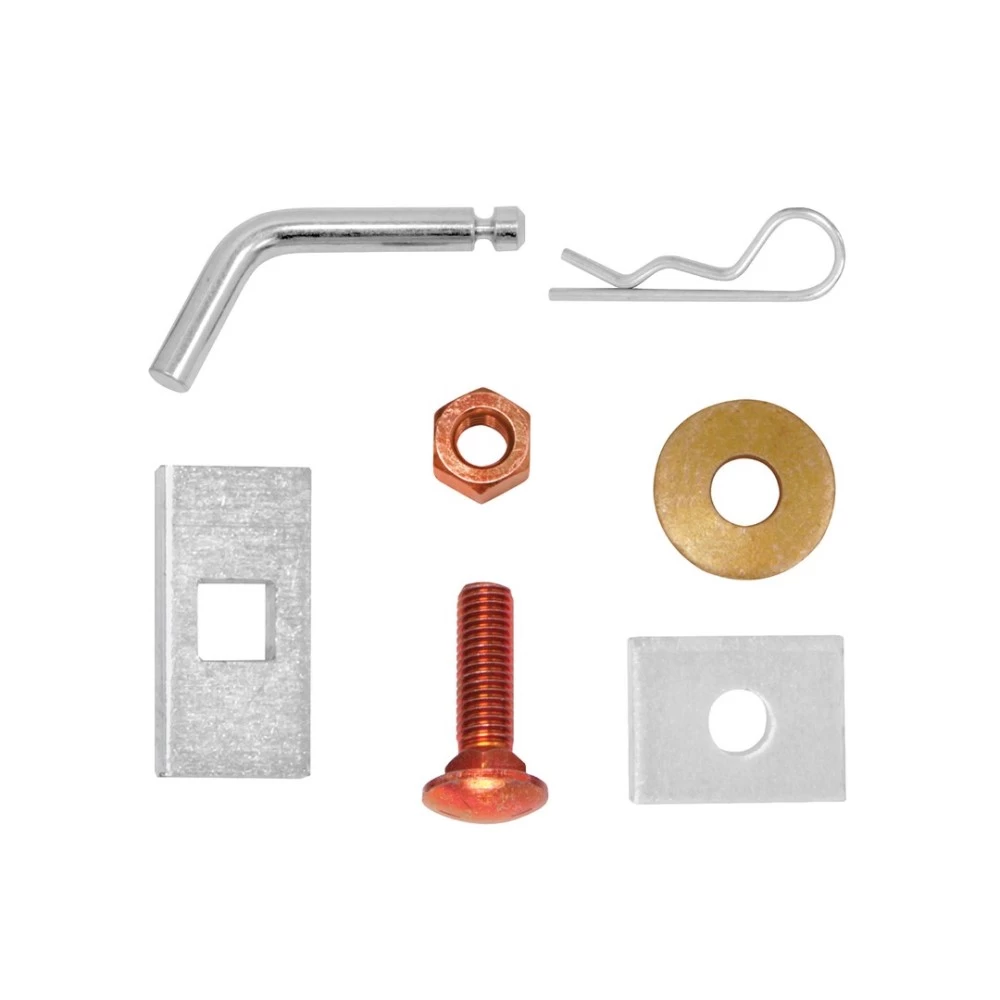

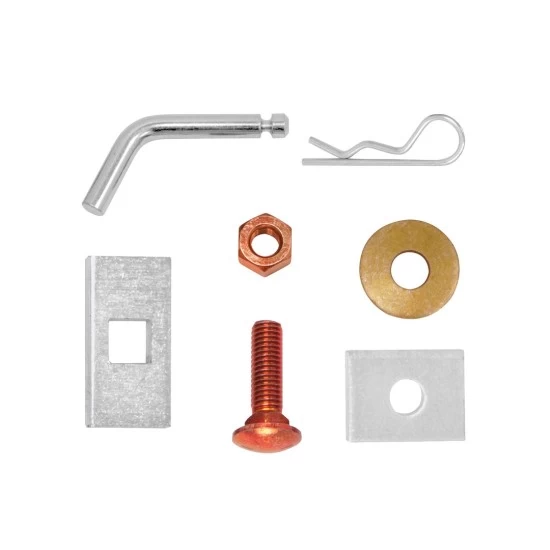

Trailer Tow Hitch Hardware Fastener Kit For 16‑21 Mazda CX‑3 All Styles 1‑1/4" Towing Receiver
Model: HWKIT1(24933F)This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2016 - 2021 Mazda, CX-3, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 24933 60371 77320 24933
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 16 17 18 19 20 21 2016 2017 2018 2019 2020 2021
$39 59 $44.64 11% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$44.64 $39 59
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $9.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT1(24933F)
- Includes: Hardware Kit for Class 1 Trailer Tow Hitch
Compatibility Chart
Description
This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2016 - 2021 Mazda, CX-3, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 24933 60371 77320 24933
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 16 17 18 19 20 21 2016 2017 2018 2019 2020 2021
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 16-21 Mazda CX-3 All Styles 1-1/4" Towing Receiver Install Notes
Installation Instructions for Mazda CX-3 (2015-Current)
Part Numbers:
- 24933
- 60371
- 77320
- CQT24933
Wiring Access Location:
- PC3, PC4
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 17mm, 7/8"
- 6" Socket Extension
- Lubricant or Soapy Water
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Installation Time:
- Approx. 25 minutes
Step-by-Step Instructions:
-
Lower Exhaust:
- Lower the exhaust system at the rubber isolators.
- Spray lubricant on the metal hanger rod and rubber isolators to aid removal.
- Support the exhaust to prevent damage.
-
Remove Flange Nuts:
- Remove four lower M10 bumper nuts: two on the passenger side and two on the driver side.
-
Place Flat Washers:
- Place 3/8" flat washers onto the weld studs on the end panel (4 places).
-
Raise Hitch:
- Raise the hitch into position, aligning it with the weld studs.
- Reinstall the M10 flange nuts finger-tight.
-
Install Tie-Down Fasteners:
- Loosely install the remaining fasteners (Items 1–5) to the tie-down hook as shown in Figures 1 and 2.
-
Torque Fasteners:
- Tighten fasteners to the specified torque values:
- M10 fasteners: 55 Lb.-Ft. (75 N*M)
- 1/2" GR8 fasteners: 110 Lb.-Ft. (149 N*M)
- Access to torque the bumper bracket nuts may require loosening the lower bumper fascia. Replace all fasteners and components after torqueing.
- Tighten fasteners to the specified torque values:
-
Reinstall Exhaust:
- Raise the exhaust back into position on the hangers.
Hardware List:
- (1) Carriage Bolt: 1/2"-13 x 1.75" GR8
- (1) Spacer: 0.250" x 1" x 2"
- (1) Spacer: 0.313" x 1" x 1.5"
- (1) Conical Washer: 1/2"
- (1) Hex Nut: 1/2"-13 GR2
- (4) Flat Washers: 3/8"
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
- Plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering if the hitch is removed.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working under the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
