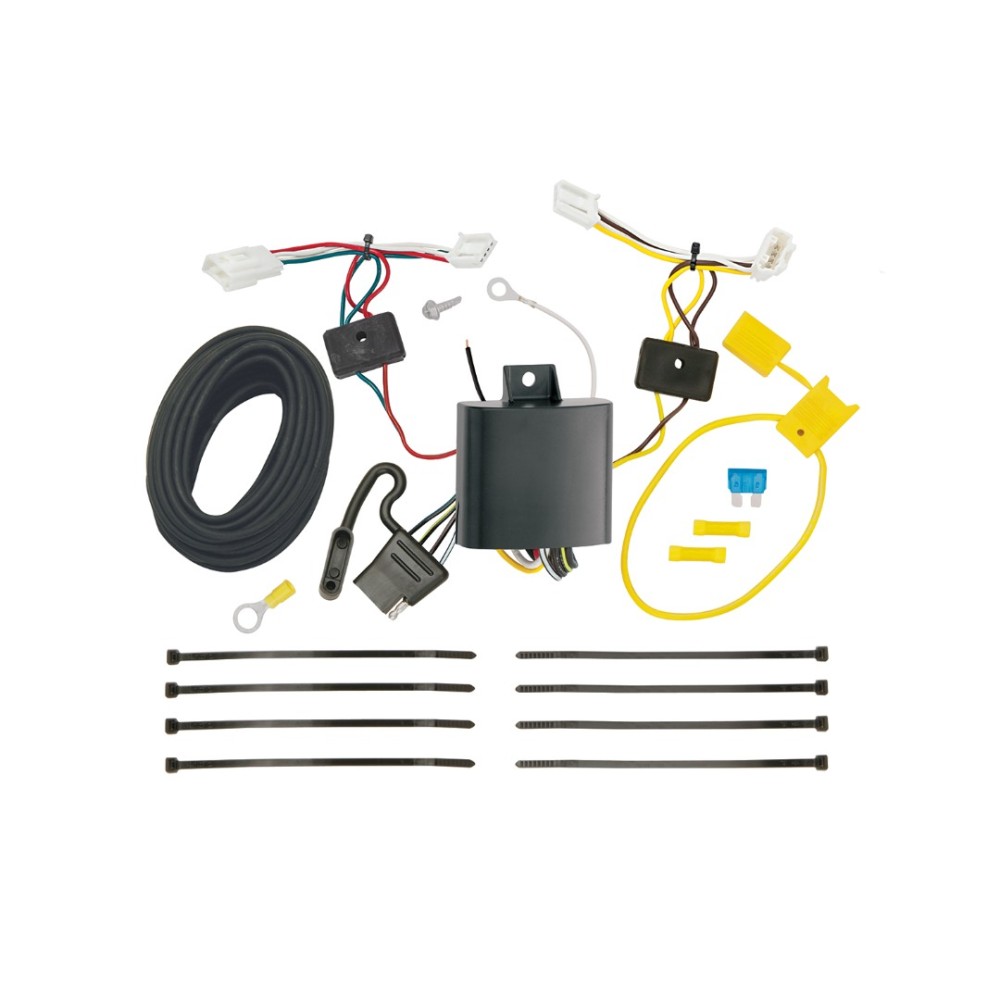

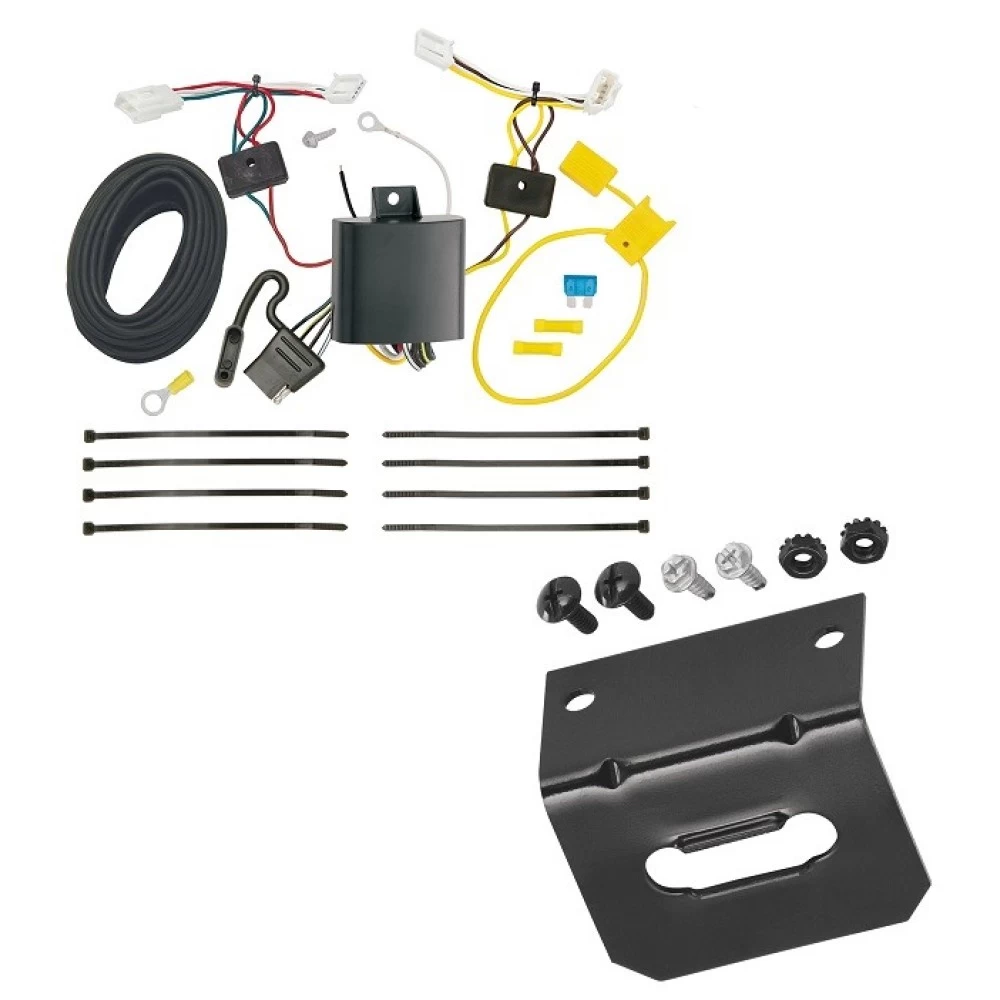

Installation Instructions for T-One® T-Connector for Scion iM

Part Numbers:

• 118729

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Open the Hatch:

   • Locate the vehicle wiring inside the rear cargo area by partially removing all floor coverings, cargo trays, plastic threshold cover, access panels, and trim panels.
   • Be careful not to damage any clips or screws.

2. Connect the Driver-Side T-Connector:

   • Separate the vehicle’s wiring connectors on the driver’s side without breaking the locking tabs.
   • Insert the T-Connector end with the yellow and brown wires between the vehicle wiring connectors and lock into place.
   • Ensure all connector surfaces are clean and free of dirt.

3. Route the Passenger-Side T-Connector:

   • Route the T-Connector containing the green and red wires below the threshold cover to the passenger’s side taillight housing.
   • Repeat Step 2 using the T-Connector with the green and red wires.

4. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
   • Clean dirt and rustproofing from the area.

   Caution: Verify the area behind any surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.

5. Mount the T-Connector’s Black Box Module:

   • Locate a flat, out-of-the-way surface and mount the black box module to prevent damage or rattling.

6. Route the Black Power Wire:

   • On the driver’s side, locate the black 12-gauge power wire from the T-Connector box and attach the provided black wire.
   • Route the black wire along the exterior frame or existing wiring to the engine compartment up to the battery.
   • Avoid areas that may pinch, cut, or break the wire.

   Warning: Avoid routing the wire near hot pipes, heat shields, fuel tanks, or other hazardous points.

7. Connect the Power Wire to the Battery:

   • Disconnect the vehicle’s Negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder.
   • Attach the ring terminal to the Positive (+) battery cable and secure it.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.

   Warning: Follow all warnings and precautions related to the tow vehicle’s battery.

8. Secure the Wiring Harness:

   • Use the provided cable ties to secure the remainder of the T-Connector harness.
   • Avoid areas that may pinch, cut, or melt the wires.

9. Reconnect the Battery and Test:

   • Reconnect the vehicle’s Negative (-) battery cable.
   • Install the 15-amp fuse into the fuse holder.
   • Test the installation with a test light or trailer.

10. Reassemble the Vehicle:

    • Reinstall the plastic trim panels, threshold, storage covers, floor covering, and other removed items.
    • Ensure no wires are pinched or damaged.

11. Store the 4-Flat Connector:

    • Store the 4-flat connector in the rear cargo area when not in use.

Specifications:

• Max. stop/turn light: 2 per side (4.2 amps)
• Max. tail lights: 7.5 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Installation Instructions for T-One® T-Connector for Scion iM

Part Numbers:

• 118729

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Open the Hatch:

   • Locate the vehicle wiring inside the rear cargo area by partially removing all floor coverings, cargo trays, plastic threshold cover, access panels, and trim panels.
   • Be careful not to damage any clips or screws.

2. Connect the Driver-Side T-Connector:

   • Separate the vehicle’s wiring connectors on the driver’s side without breaking the locking tabs.
   • Insert the T-Connector end with the yellow and brown wires between the vehicle wiring connectors and lock into place.
   • Ensure all connector surfaces are clean and free of dirt.

3. Route the Passenger-Side T-Connector:

   • Route the T-Connector containing the green and red wires below the threshold cover to the passenger’s side taillight housing.
   • Repeat Step 2 using the T-Connector with the green and red wires.

4. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
   • Clean dirt and rustproofing from the area.

   Caution: Verify the area behind any surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.

5. Mount the T-Connector’s Black Box Module:

   • Locate a flat, out-of-the-way surface and mount the black box module to prevent damage or rattling.

6. Route the Black Power Wire:

   • On the driver’s side, locate the black 12-gauge power wire from the T-Connector box and attach the provided black wire.
   • Route the black wire along the exterior frame or existing wiring to the engine compartment up to the battery.
   • Avoid areas that may pinch, cut, or break the wire.

   Warning: Avoid routing the wire near hot pipes, heat shields, fuel tanks, or other hazardous points.

7. Connect the Power Wire to the Battery:

   • Disconnect the vehicle’s Negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder.
   • Attach the ring terminal to the Positive (+) battery cable and secure it.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.

   Warning: Follow all warnings and precautions related to the tow vehicle’s battery.

8. Secure the Wiring Harness:

   • Use the provided cable ties to secure the remainder of the T-Connector harness.
   • Avoid areas that may pinch, cut, or melt the wires.

9. Reconnect the Battery and Test:

   • Reconnect the vehicle’s Negative (-) battery cable.
   • Install the 15-amp fuse into the fuse holder.
   • Test the installation with a test light or trailer.

10. Reassemble the Vehicle:

    • Reinstall the plastic trim panels, threshold, storage covers, floor covering, and other removed items.
    • Ensure no wires are pinched or damaged.

11. Store the 4-Flat Connector:

    • Store the 4-flat connector in the rear cargo area when not in use.

Specifications:

• Max. stop/turn light: 2 per side (4.2 amps)
• Max. tail lights: 7.5 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Note: Store the 4-flat connector in the rear cargo area when not in use to prevent damage.
