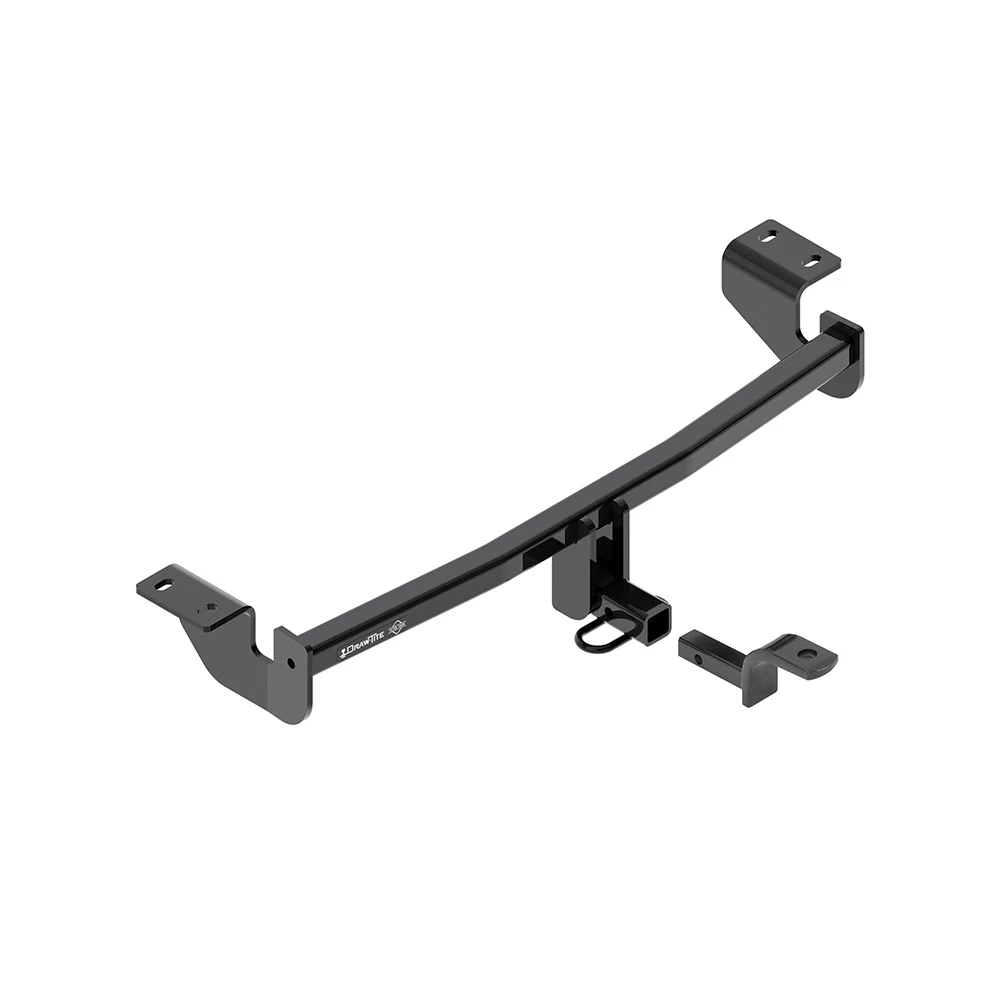

Installation Instructions for Toyota Corolla iM and Scion iM

Part Numbers:

• 24952
• 77952
• CQT24952

Wiring Access Location:

• PC3, PC4

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 12mm, 17mm, 19mm
• 6” Socket Extension
• Exhaust Removal Pliers
• Panel Removal Tool
• Marker
• Utility Knife

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed the towing vehicle manufacturer’s rating.

Installation Time:

• Approx. 40 minutes (Professional Installer)

Step-by-Step Instructions:

1. Remove Bottom Appearance Panel:

   • Use a 12mm socket to loosen three (3) plastic nuts.
   • Use a panel removal tool to remove five (5) rivets from the bottom appearance panel and one (1) rivet from the bottom fascia tab on the passenger side.
   • Remove the bottom appearance panel.

2. Remove Tow Hook:

   • Use a 17mm socket to remove two (2) bolts securing the tow hook on the driver’s side.
   • Return the tow hook to the vehicle owner.

3. Lower Exhaust:

   • Use exhaust removal pliers to detach the exhaust from the rubber isolator on the passenger side.
   • Use a stand to support the muffler and prevent damage.

4. Install Hitch:

   • Raise the hitch into position, sliding it over the passenger-side exhaust first.
   • Loosely install M12 bolts with conical washers to secure the hitch.

5. Tighten Fasteners:

   • Use a torque wrench to tighten all M12 fasteners to 76 Lb.-Ft. (103 N*M).

6. Trim Bottom Appearance Panel:

   • Trim the bottom panel as shown in the provided figure, cutting a 3.0” x 5.0” section.

7. Reinstall Components:

   • Reinstall the exhaust and bottom appearance panel removed in Steps 1 and 3.

Hardware List:

• (4) Bolts: M12 x 1.25 x 30mm CL 8.8
• (4) Conical Washers: 1/2"

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure they remain securely tightened.
• Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always wear eye protection and observe safety precautions when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Drawbar:

• Drawbar Kit: 3593
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Check the hitch frequently to ensure all fasteners remain tight.

Installation Instructions for Toyota Corolla iM and Scion iM

Part Numbers:

• 24952
• 77952
• CQT24952

Wiring Access Location:

• PC3, PC4

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 12mm, 17mm, 19mm
• 6” Socket Extension
• Exhaust Removal Pliers
• Panel Removal Tool
• Marker
• Utility Knife

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed the towing vehicle manufacturer’s rating.

Installation Time:

• Approx. 40 minutes (Professional Installer)

Step-by-Step Instructions:

1. Remove Bottom Appearance Panel:

   • Use a 12mm socket to loosen three (3) plastic nuts.
   • Use a panel removal tool to remove five (5) rivets from the bottom appearance panel and one (1) rivet from the bottom fascia tab on the passenger side.
   • Remove the bottom appearance panel.

2. Remove Tow Hook:

   • Use a 17mm socket to remove two (2) bolts securing the tow hook on the driver’s side.
   • Return the tow hook to the vehicle owner.

3. Lower Exhaust:

   • Use exhaust removal pliers to detach the exhaust from the rubber isolator on the passenger side.
   • Use a stand to support the muffler and prevent damage.

4. Install Hitch:

   • Raise the hitch into position, sliding it over the passenger-side exhaust first.
   • Loosely install M12 bolts with conical washers to secure the hitch.

5. Tighten Fasteners:

   • Use a torque wrench to tighten all M12 fasteners to 76 Lb.-Ft. (103 N*M).

6. Trim Bottom Appearance Panel:

   • Trim the bottom panel as shown in the provided figure, cutting a 3.0” x 5.0” section.

7. Reinstall Components:

   • Reinstall the exhaust and bottom appearance panel removed in Steps 1 and 3.

Hardware List:

• (4) Bolts: M12 x 1.25 x 30mm CL 8.8
• (4) Conical Washers: 1/2"

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure they remain securely tightened.
• Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always wear eye protection and observe safety precautions when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Drawbar:

• Drawbar Kit: 3593
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Check the hitch frequently to ensure all fasteners remain tight.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
