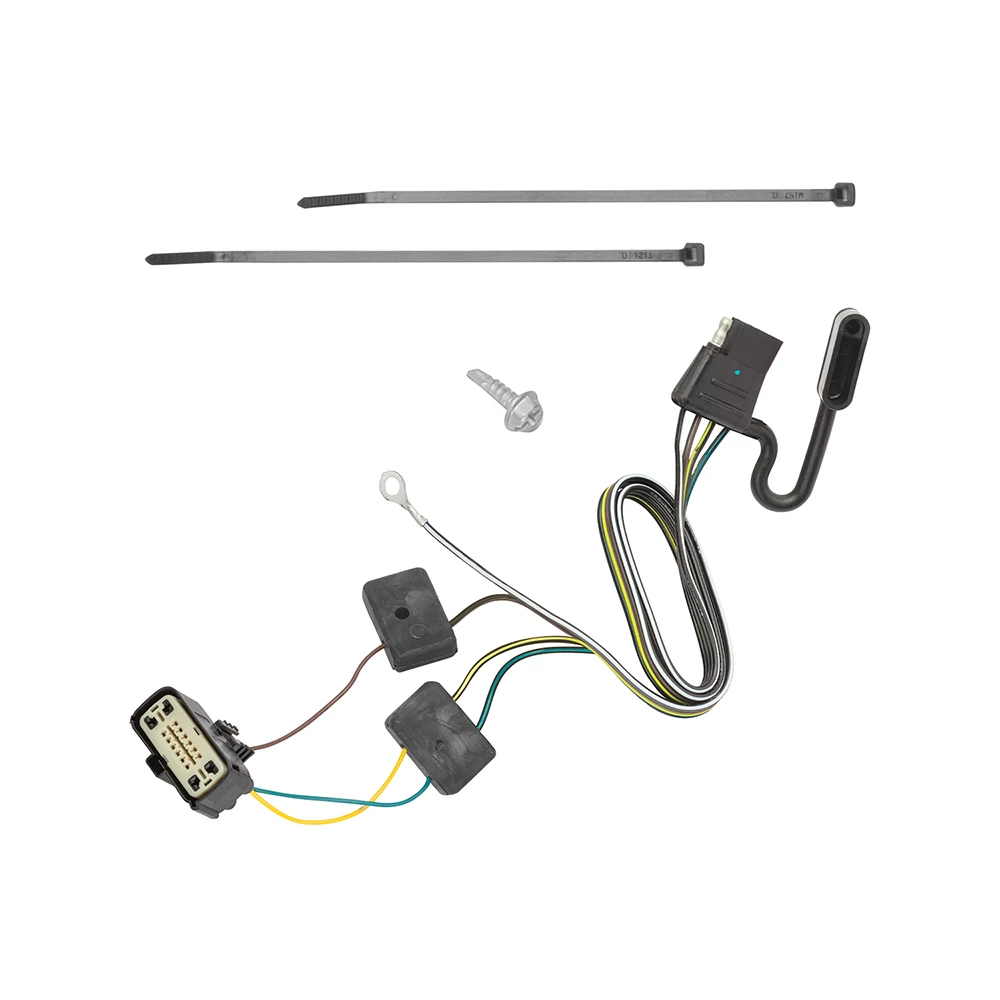

Installation Instructions for T-One® T-Connector for Chevrolet Traverse

Part Numbers:

• 118761

Tools Required:

• Trim Panel Remover
• Test Probe

Step-by-Step Instructions:

1. Locate the Vehicle’s Tow Plug:

   • Underneath the vehicle on the driver’s side, locate the vehicle’s tow plug.
   • Disconnect the mating protective cover and discard it.
   • Connect the tow plug harness into the mating harness.
   • Ensure the mating surfaces of the connectors match, and all connector surfaces are clean and free of dirt.
   • Be careful not to damage the locking tabs and ensure the connectors are fully inserted with locking tabs in place.

2. Route the T-Connector Harness:

   • Route the T-Connector harness rearward to the back of the fascia of the bumper.

   Warning: Be careful to avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.

3. Secure the 4-Flat Tow Harness:

   • Secure the 4-flat tow harness to the hitch. (Bracket not included.)
   • Use the provided cable ties to secure the remainder of the T-One® T-Connector harness under the bumper, ensuring the wires avoid any areas that could cut or pinch them.

4. Test and Verify Installation:

   • Ensure all connections are complete for the T-One® T-Connector to function properly.
   • Test the installation using a test light or trailer.
   • For the initial test, reset the vehicle’s electrical system by temporarily removing the key from the ignition.

5. Safety Checks:

   • Overloading circuits can cause fires. Do not exceed the stated product ratings.
   • Refer to the vehicle owner’s manual and the instruction sheet for additional details.

Safety Notes:

• Always wear safety glasses and use all safety precautions during installation.
• Read and follow all warnings and instructions included with the purchase before beginning installation. Keep for future reference.
• Do not exceed the lower of the towing manufacturer’s rating or specific amperage ratings stated on the product.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Installation Instructions for T-One® T-Connector for Chevrolet Traverse

Part Numbers:

• 118761

Tools Required:

• Trim Panel Remover
• Test Probe

Step-by-Step Instructions:

1. Locate the Vehicle’s Tow Plug:

   • Underneath the vehicle on the driver’s side, locate the vehicle’s tow plug.
   • Disconnect the mating protective cover and discard it.
   • Connect the tow plug harness into the mating harness.
   • Ensure the mating surfaces of the connectors match, and all connector surfaces are clean and free of dirt.
   • Be careful not to damage the locking tabs and ensure the connectors are fully inserted with locking tabs in place.

2. Route the T-Connector Harness:

   • Route the T-Connector harness rearward to the back of the fascia of the bumper.

   Warning: Be careful to avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.

3. Secure the 4-Flat Tow Harness:

   • Secure the 4-flat tow harness to the hitch. (Bracket not included.)
   • Use the provided cable ties to secure the remainder of the T-One® T-Connector harness under the bumper, ensuring the wires avoid any areas that could cut or pinch them.

4. Test and Verify Installation:

   • Ensure all connections are complete for the T-One® T-Connector to function properly.
   • Test the installation using a test light or trailer.
   • For the initial test, reset the vehicle’s electrical system by temporarily removing the key from the ignition.

5. Safety Checks:

   • Overloading circuits can cause fires. Do not exceed the stated product ratings.
   • Refer to the vehicle owner’s manual and the instruction sheet for additional details.

Safety Notes:

• Always wear safety glasses and use all safety precautions during installation.
• Read and follow all warnings and instructions included with the purchase before beginning installation. Keep for future reference.
• Do not exceed the lower of the towing manufacturer’s rating or specific amperage ratings stated on the product.

Manufacturer Notes:

• For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
• Store these instructions for future reference.
