Draw‑Tite Gooseneck Trailer Hitch for 99‑16 Ford F250 F350 Turnover w/ Brackets Rails Under Bed 2‑5/16" Ball
Model: 9486 44491999 - 2016 Ford, F-250 Super Duty, Except Cab & Chassis
1999 - 2016 Ford, F-350 Super Duty, Except Cab & Chassis
2008 - 2016 Ford, F-450 Super Duty, Except Cab & Chassis

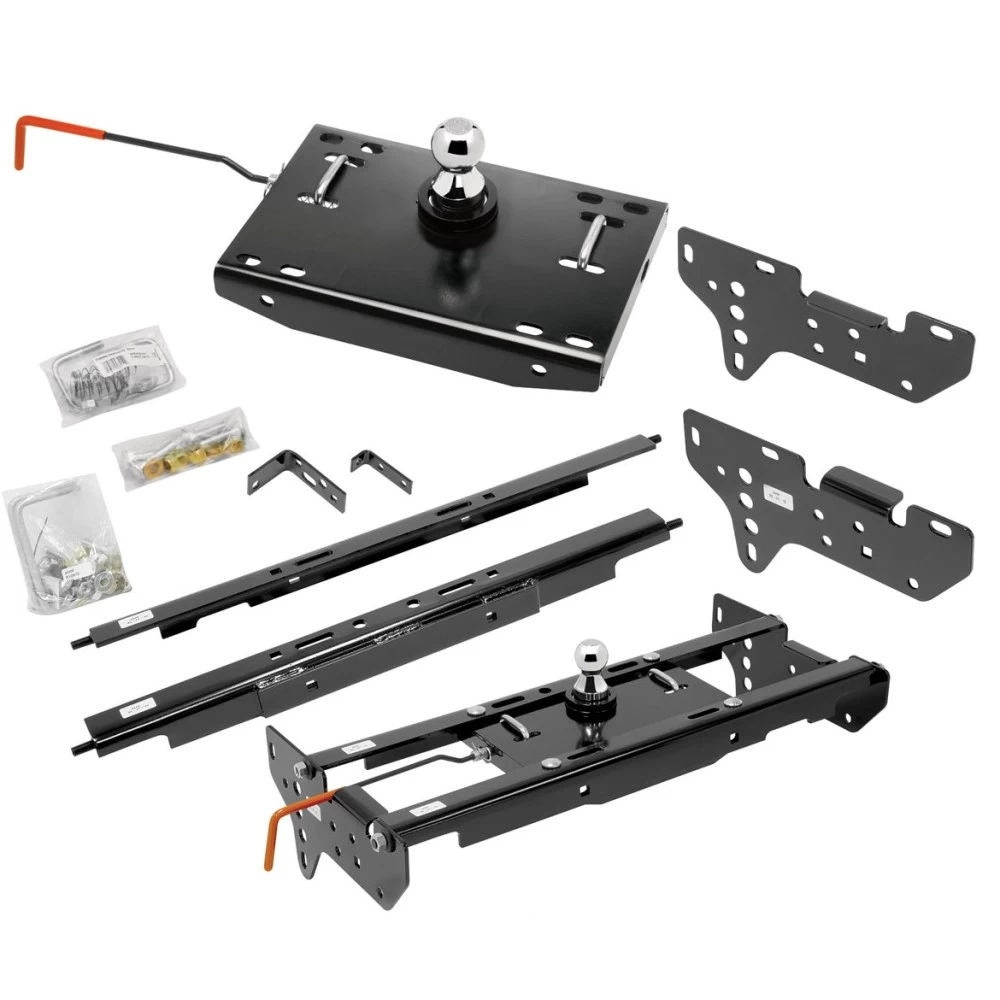

Draw-Tite has designed a Gooseneck Hitch System to meet your gooseneck towing needs. The secret of the system is in the rail kit. We've designed rail kits to fit your specific truck that can attach to the Hide-A-Goose Remov-A-Ball head. Easy install, reliable service.
Each Kit includes:
Hide-A-Goose Head
Custom Fit Under-Bed Rail Kit
Brackets, U-Bolts, Installation Hardware
2-5/16" Removable Gooseneck Ball
Magnetic Cover
Features:
Allows full use of pick-up bed area when hauling cargo
Turn the ball over and store it upside down when not in use
Locking pin handle accessible at drivers side rear wheel well
Round ball shank reduces rattle noise compared to competition
Spring Loaded Safety Chain Hookups
Powedercoated Steel
No alteration of OE exhaust systems required
Accommodates all standard vehicle suspensions
2-5/16" high strength chrome plated ball
Magnetic cover protects ball hole when not in use
Rated for 30,000 lbs. gross trailer weight and 7,500 lbs. vertical load, tested to SAE J2638 Static and Reese Dynamic Specs for 30,000 lbs. gross vehicle weight rating
Rail kits are rated to match manufacturer's vehicle weight ratings
Custom-fit under-bed mounting system
| Part Number | 9460-49 |
| Brand | Draw-Tite |
| Gooseneck Head Rating | 30,000 lbs |
| Under-Bed Rails Rating | 25,000 lbs |
| Vertical Load | Head: 7,500 Rails: 6,250 |
| Ball Size | 2-5/16" |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom gooseneck hitches bolt-on easily on your Truck.
Partial list of fitment years:
99 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016
$500 23 $687.75 27% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$687.75 $500 23
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $125.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 9486 4449
- UPC: 016118077315
- Includes: Hide-A-Goose Gooseneck Complete Kit
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
1999 - 2016 Ford, F-250 Super Duty, Except Cab & Chassis
1999 - 2016 Ford, F-350 Super Duty, Except Cab & Chassis
2008 - 2016 Ford, F-450 Super Duty, Except Cab & Chassis
Draw-Tite has designed a Gooseneck Hitch System to meet your gooseneck towing needs. The secret of the system is in the rail kit. We've designed rail kits to fit your specific truck that can attach to the Hide-A-Goose Remov-A-Ball head. Easy install, reliable service.
Each Kit includes:
Hide-A-Goose Head
Custom Fit Under-Bed Rail Kit
Brackets, U-Bolts, Installation Hardware
2-5/16" Removable Gooseneck Ball
Magnetic Cover
Features:
Allows full use of pick-up bed area when hauling cargo
Turn the ball over and store it upside down when not in use
Locking pin handle accessible at drivers side rear wheel well
Round ball shank reduces rattle noise compared to competition
Spring Loaded Safety Chain Hookups
Powedercoated Steel
No alteration of OE exhaust systems required
Accommodates all standard vehicle suspensions
2-5/16" high strength chrome plated ball
Magnetic cover protects ball hole when not in use
Rated for 30,000 lbs. gross trailer weight and 7,500 lbs. vertical load, tested to SAE J2638 Static and Reese Dynamic Specs for 30,000 lbs. gross vehicle weight rating
Rail kits are rated to match manufacturer's vehicle weight ratings
Custom-fit under-bed mounting system
| Part Number | 9460-49 |
| Brand | Draw-Tite |
| Gooseneck Head Rating | 30,000 lbs |
| Under-Bed Rails Rating | 25,000 lbs |
| Vertical Load | Head: 7,500 Rails: 6,250 |
| Ball Size | 2-5/16" |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom gooseneck hitches bolt-on easily on your Truck.
Partial list of fitment years:
99 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016
Get Expert Help
Draw-Tite Gooseneck Trailer Hitch for 99-16 Ford F250 F350 Turnover w/ Brackets Rails Under Bed 2-5/16" Ball Install Notes
Installation Instructions for Gooseneck Mounting Kit
Part Number:
- 9486-49 (Combines Parts 4449 and 9486/9487)
Tools Required:
- Torque Wrench
- Wrenches: 7/16", 9/16", 5/8", 11/16", 3/4", 15/16", 13 mm
- Drill with 1/4" Bit
- Tape Measure
- Hole Saw (refer to specific hitch instructions for size)
- Cable Ties
- Marking Pencil
Step-by-Step Instructions:
Step 1: Safety and Preliminary Checks
- Ensure that the Gross Trailer Weight (GTW) does not exceed the manufacturer’s towing capacity.
- Check for at least 6 inches of clearance between the gooseneck trailer and the truck’s rear cab and bed walls.
- Before drilling, verify the location of fuel lines, brake lines, and electrical wiring along the truck frame. Protect these components from damage using shields as needed.
- For gas engine vehicles, relocate the vapor tube running along the driver’s side frame rail:
- Remove the flange nut holding the tube and rotate the tubes up and out of the way.
- Attach the provided L-bracket with 1/4" hardware, but leave the tube holder loose for adjustment during installation.
Step 2: Install the Cross Members
-
Rear Cross Member Installation:
- Position the rear cross member by inserting one end above the truck frame and maneuvering the notched section of the opposite end above the frame.
- Temporarily align the cross member with the rear hat channel of the truck bed.
-
Forward Cross Member Installation:
- Insert the notched end of the forward cross member above the driver’s side frame and maneuver the opposite end over the exhaust system and frame.
- Ensure the cross members are aligned and parallel to each other.
Step 3: Install Side Brackets
-
Position Side Brackets:
- Attach the driver’s and passenger’s side brackets loosely using the provided 5/8" hardware.
- Use the supplied U-bolts for the forward attachment to the truck frame:
- On the passenger’s side, the U-bolt should pass through the mounting slots at an angle.
-
Install Carriage Bolts:
- Insert the 5/8" carriage bolts through the side brackets, frame, and cross members. Secure with toothed washers and hex nuts, leaving them finger-tight for adjustments.
Step 4: Drill and Prepare the Truck Bed
-
Mark the Hole Location:
- Measure 46-3/16 inches from the rear of the truck bed, centering the mark between the wheel wells.
- Drill a 1/4" pilot hole at this location.
-
Enlarge the Hole:
- Use a hole saw to cut the final diameter as specified in the Hide-A-Goose or other hitch instructions.
- File the edges of the hole to remove sharp burrs.
-
Align the Hitch:
- Position the Hide-A-Goose hitch or equivalent in the truck bed, ensuring the ball sleeve aligns with the drilled hole.
Step 5: Secure the Hitch Assembly
-
Tighten the Fasteners:
- Torque the fasteners securing the cross members and side brackets to the specified values:
- 5/8" fasteners: 150 lb.-ft.
- 1/2" U-bolt fasteners: 75 lb.-ft.
- Torque the fasteners securing the cross members and side brackets to the specified values:
-
Install Safety Chain U-Bolts:
- Drill holes for the U-bolts as marked by the hitch. Insert the U-bolts through the bed and secure with washers, springs, and jam nuts.
- Tighten until three threads are visible past the bottom of the jam nut.
-
Install Shims:
- Place the provided shims between the hitch, cross members, and truck bed to prevent bed corrugation from collapsing when bolts are tightened.
Step 6: Final Adjustments
-
Reinstall Exhaust System:
- Use the supplied exhaust brackets if the clearance between the exhaust and cross members is less than 1/2 inch.
- Secure the exhaust brackets to the frame with the provided hardware.
-
Reattach Vapor Tube (Gas Vehicles Only):
- Secure the vapor tube holder to the L-bracket using the factory flange nut removed earlier.
Maintenance Schedule:
-
Before Each Use:
- Ensure the gooseneck ball is properly lubricated and fully locked in place.
- Check all fasteners for proper torque.
- Inspect the safety chains, coupler, and ball sleeve for wear or damage.
-
Annually:
- Re-torque all fasteners to the specified values.
- Inspect the hitch assembly, cross members, and side brackets for cracks, rust, or damage.
Hardware List:
- (2x) 5/8" U-Bolts
- (4x) 5/8" Carriage Bolts
- (4x) Flat Washers
- (4x) Lock Washers
- (6x) 5/8" Conical Toothed Washers
- (6x) 5/8" Hex Nuts
- (2x) L-Brackets
- (2x) 1/4" Hex Bolts
- (4x) Shims (1/4" x 2" x 1")
- (1x) Cable Tie
Safety Notes:
- WARNING: Never exceed the towing capacity recommended by the vehicle manufacturer.
- Ensure proper clearance between the trailer and truck cab or bed during installation and use.
- Inspect and maintain all components regularly to ensure safe towing.
Specifications:
- Gross Trailer Weight (GTW): Per vehicle manufacturer specifications
- Fastener Torque Values:
- 5/8" Bolts: 150 lb.-ft.
- 1/2" Bolts: 75 lb.-ft.

Installation Instructions for Gooseneck Mounting Kit
Part Number:
- 9486-49 (Combines Parts 4449 and 9486/9487)
Tools Required:
- Torque Wrench
- Wrenches: 7/16", 9/16", 5/8", 11/16", 3/4", 15/16", 13 mm
- Drill with 1/4" Bit
- Tape Measure
- Hole Saw (refer to specific hitch instructions for size)
- Cable Ties
- Marking Pencil
Step-by-Step Instructions:
Step 1: Safety and Preliminary Checks
- Ensure that the Gross Trailer Weight (GTW) does not exceed the manufacturer’s towing capacity.
- Check for at least 6 inches of clearance between the gooseneck trailer and the truck’s rear cab and bed walls.
- Before drilling, verify the location of fuel lines, brake lines, and electrical wiring along the truck frame. Protect these components from damage using shields as needed.
- For gas engine vehicles, relocate the vapor tube running along the driver’s side frame rail:
- Remove the flange nut holding the tube and rotate the tubes up and out of the way.
- Attach the provided L-bracket with 1/4" hardware, but leave the tube holder loose for adjustment during installation.
Step 2: Install the Cross Members
-
Rear Cross Member Installation:
- Position the rear cross member by inserting one end above the truck frame and maneuvering the notched section of the opposite end above the frame.
- Temporarily align the cross member with the rear hat channel of the truck bed.
-
Forward Cross Member Installation:
- Insert the notched end of the forward cross member above the driver’s side frame and maneuver the opposite end over the exhaust system and frame.
- Ensure the cross members are aligned and parallel to each other.
Step 3: Install Side Brackets
-
Position Side Brackets:
- Attach the driver’s and passenger’s side brackets loosely using the provided 5/8" hardware.
- Use the supplied U-bolts for the forward attachment to the truck frame:
- On the passenger’s side, the U-bolt should pass through the mounting slots at an angle.
-
Install Carriage Bolts:
- Insert the 5/8" carriage bolts through the side brackets, frame, and cross members. Secure with toothed washers and hex nuts, leaving them finger-tight for adjustments.
Step 4: Drill and Prepare the Truck Bed
-
Mark the Hole Location:
- Measure 46-3/16 inches from the rear of the truck bed, centering the mark between the wheel wells.
- Drill a 1/4" pilot hole at this location.
-
Enlarge the Hole:
- Use a hole saw to cut the final diameter as specified in the Hide-A-Goose or other hitch instructions.
- File the edges of the hole to remove sharp burrs.
-
Align the Hitch:
- Position the Hide-A-Goose hitch or equivalent in the truck bed, ensuring the ball sleeve aligns with the drilled hole.
Step 5: Secure the Hitch Assembly
-
Tighten the Fasteners:
- Torque the fasteners securing the cross members and side brackets to the specified values:
- 5/8" fasteners: 150 lb.-ft.
- 1/2" U-bolt fasteners: 75 lb.-ft.
- Torque the fasteners securing the cross members and side brackets to the specified values:
-
Install Safety Chain U-Bolts:
- Drill holes for the U-bolts as marked by the hitch. Insert the U-bolts through the bed and secure with washers, springs, and jam nuts.
- Tighten until three threads are visible past the bottom of the jam nut.
-
Install Shims:
- Place the provided shims between the hitch, cross members, and truck bed to prevent bed corrugation from collapsing when bolts are tightened.
Step 6: Final Adjustments
-
Reinstall Exhaust System:
- Use the supplied exhaust brackets if the clearance between the exhaust and cross members is less than 1/2 inch.
- Secure the exhaust brackets to the frame with the provided hardware.
-
Reattach Vapor Tube (Gas Vehicles Only):
- Secure the vapor tube holder to the L-bracket using the factory flange nut removed earlier.
Maintenance Schedule:
-
Before Each Use:
- Ensure the gooseneck ball is properly lubricated and fully locked in place.
- Check all fasteners for proper torque.
- Inspect the safety chains, coupler, and ball sleeve for wear or damage.
-
Annually:
- Re-torque all fasteners to the specified values.
- Inspect the hitch assembly, cross members, and side brackets for cracks, rust, or damage.
Hardware List:
- (2x) 5/8" U-Bolts
- (4x) 5/8" Carriage Bolts
- (4x) Flat Washers
- (4x) Lock Washers
- (6x) 5/8" Conical Toothed Washers
- (6x) 5/8" Hex Nuts
- (2x) L-Brackets
- (2x) 1/4" Hex Bolts
- (4x) Shims (1/4" x 2" x 1")
- (1x) Cable Tie
Safety Notes:
- WARNING: Never exceed the towing capacity recommended by the vehicle manufacturer.
- Ensure proper clearance between the trailer and truck cab or bed during installation and use.
- Inspect and maintain all components regularly to ensure safe towing.
Specifications:
- Gross Trailer Weight (GTW): Per vehicle manufacturer specifications
- Fastener Torque Values:
- 5/8" Bolts: 150 lb.-ft.
- 1/2" Bolts: 75 lb.-ft.
Additional Information:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
