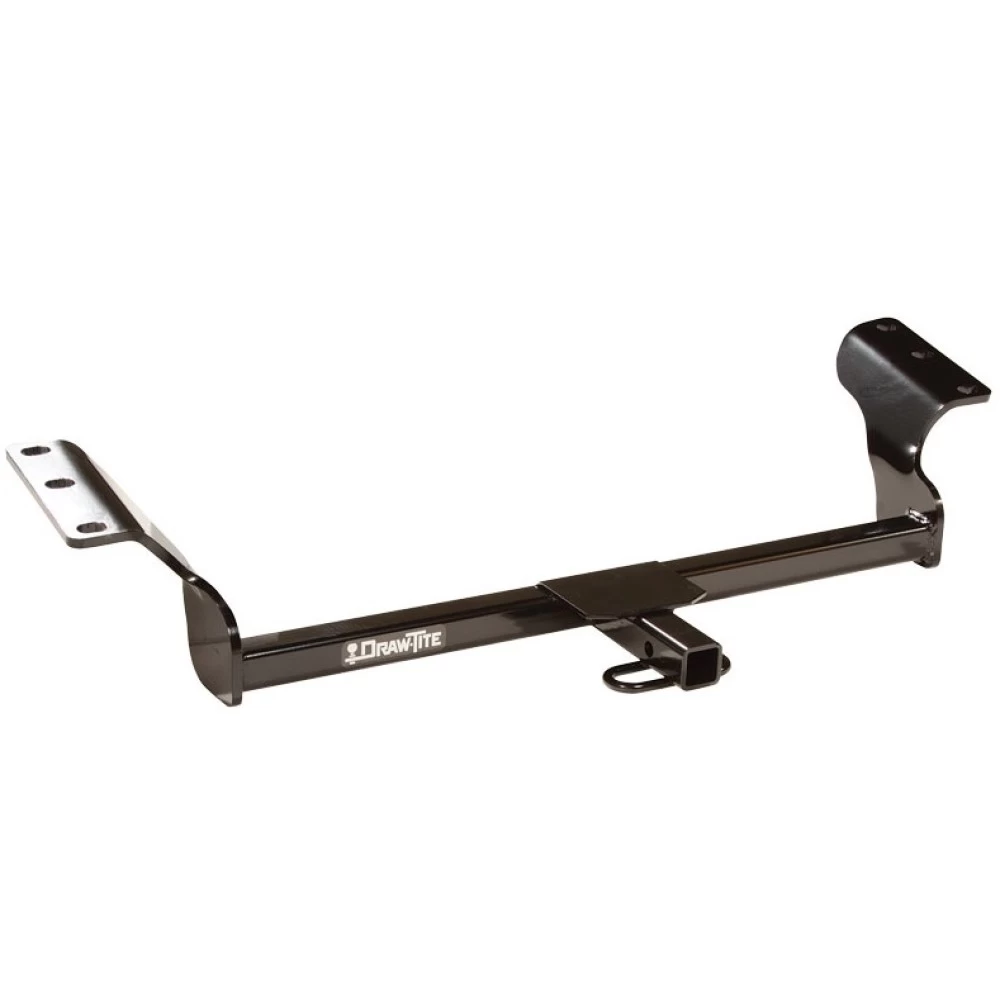

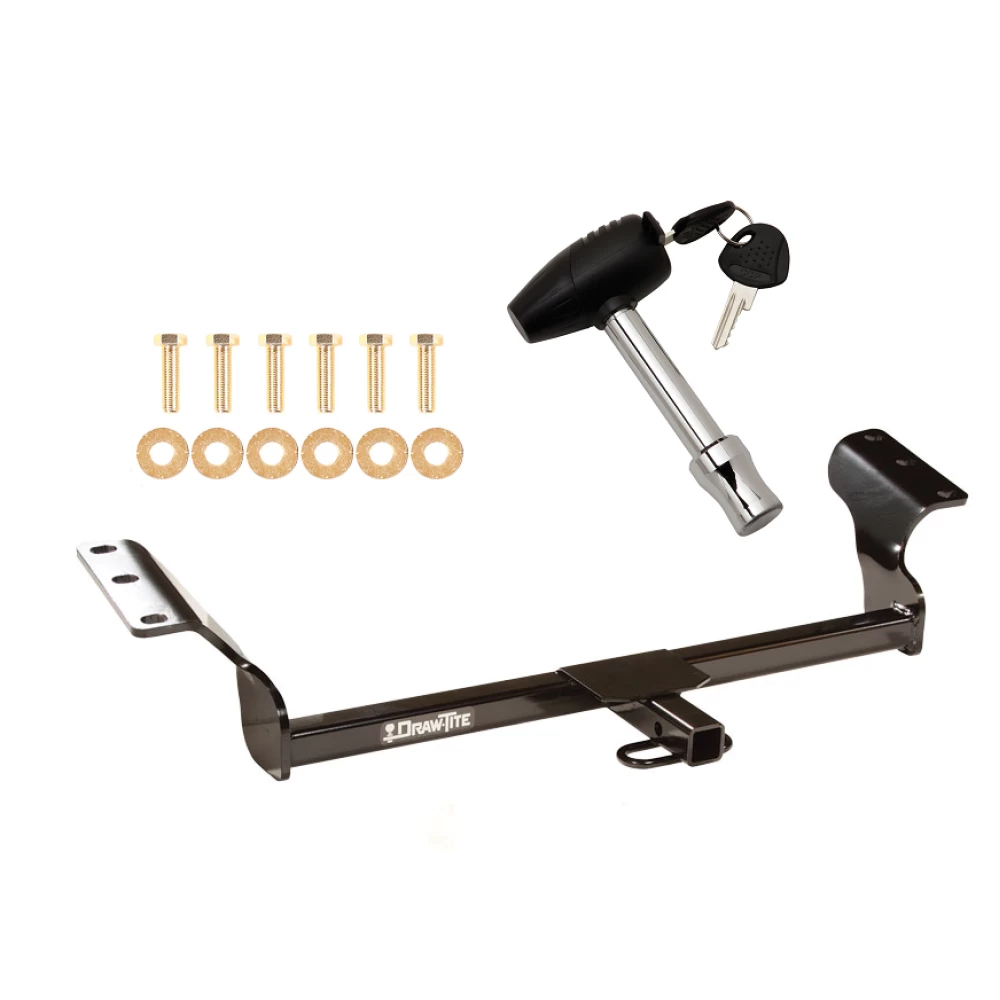

Trailer Tow Hitch For 03‑10 Pontiac Vibe 03‑14 Toyota Matrix w/ Security Lock Pin Key
Model: 24812 580407 *Custom Fit Front Mount Trailer Hitch
Security Lock Pin & Key
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2003 - 2008 Pontiac, Vibe, All Styles
2009 - 2010 Pontiac, Vibe, Except GT
2003 - 2013 Toyota, Matrix, All Styles
2014 Toyota, Matrix, (Canada Only)
Trailer Hitch Specs:
| Part Number | 24812 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Easy Access Lock w/Sleeve
- Includes Dust Cap
- Fits 2" and 1-7/8" Tow Receivers
- Prevents theft
- Use in place of standard pin and clip
- Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees.
- 1 Year Limited Warranty
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
$214 10 $336.96 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$336.96 $214 10
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $53.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 24812 580407 *
- Includes: Class 1 Trailer Tow Hitch, Trailer Tow Hitch Lock
Compatibility Chart
Custom Fit Front Mount Trailer Hitch
Security Lock Pin & Key
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2003 - 2008 Pontiac, Vibe, All Styles
2009 - 2010 Pontiac, Vibe, Except GT
2003 - 2013 Toyota, Matrix, All Styles
2014 Toyota, Matrix, (Canada Only)
Trailer Hitch Specs:
| Part Number | 24812 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Easy Access Lock w/Sleeve
- Includes Dust Cap
- Fits 2" and 1-7/8" Tow Receivers
- Prevents theft
- Use in place of standard pin and clip
- Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees.
- 1 Year Limited Warranty
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Get Expert Help
Trailer Tow Hitch For 03-10 Pontiac Vibe 03-14 Toyota Matrix w/ Security Lock Pin Key Install Notes
Installation Instructions for Toyota Matrix and Pontiac Vibe
Part Numbers:
- 24812
- 60898
- 77183
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Wrenches: 19mm
- Drill Bits: None
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (91 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Raise Hitch:
- Lift the hitch into position on the vehicle.
-
Install Fasteners:
- Attach the hitch to the existing weldnuts in the frame rails using the provided bolts and washers.
-
Tighten Fasteners:
- Torque all M12 CL10.9 fasteners to 92 Lb.-Ft. (125 N*M) using a torque wrench.

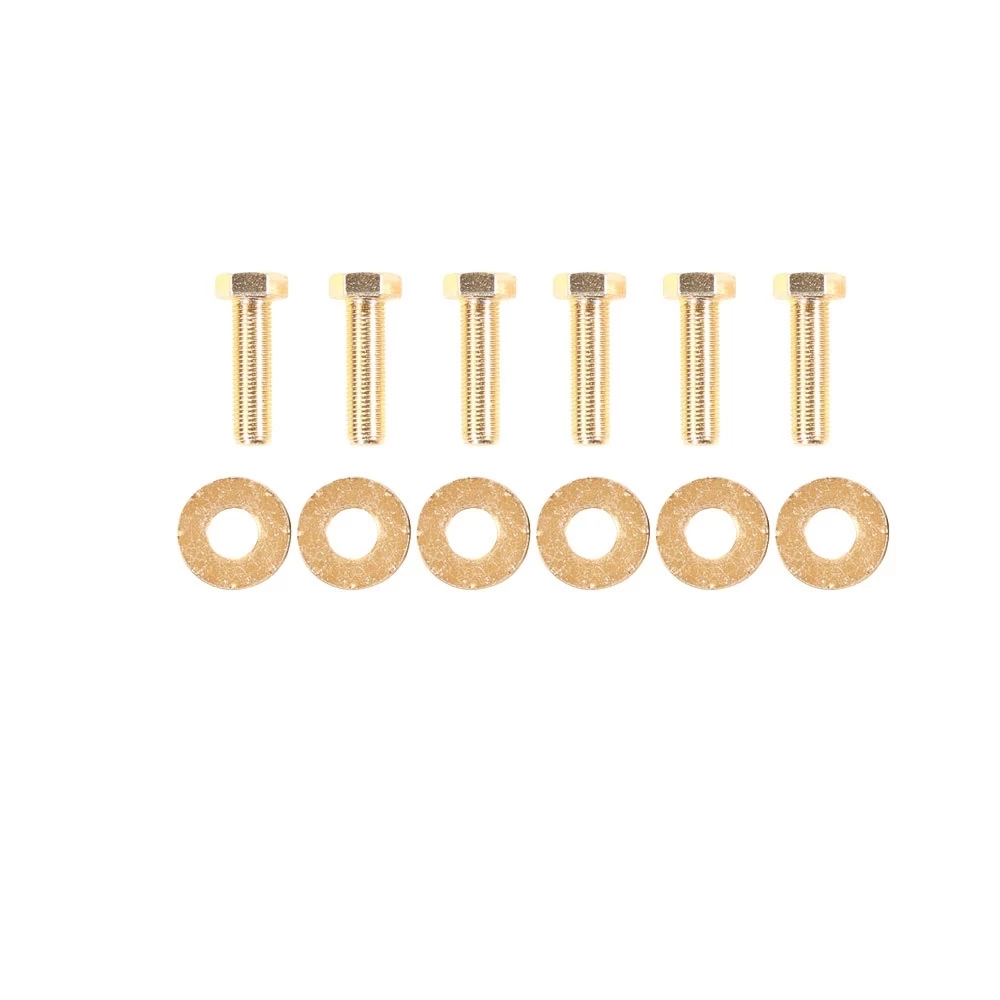

Hardware List:
- (6) M12 x 1.25 x 40mm CL10.9 Bolts
- (6) 1/2” Conical Washers
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug any holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- For Toyota Matrix XRS and XR Sport models: The center fascia must be removed for hitch installation. (Fascia sold separately.)
- Check the hitch frequently to ensure all fasteners remain tight.
Installation Instructions
Part Numbers:
- 24812
- 60898
- 77183
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Wrenches: 19mm
- Drill Bits: None
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (91 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Raise Hitch:
- Lift the hitch into position on the vehicle.
-
Install Fasteners:
- Attach the hitch to the existing weldnuts in the frame rails using the provided bolts and washers.
-
Tighten Fasteners:
- Torque all M12 CL10.9 fasteners to 92 Lb.-Ft. (125 N*M) using a torque wrench.
Hardware List:
- (6) M12 x 1.25 x 40mm CL10.9 Bolts
- (6) 1/2” Conical Washers
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug any holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- For Toyota Matrix XRS and XR Sport models: The center fascia must be removed for hitch installation. (Fascia sold separately.)
- Check the hitch frequently to ensure all fasteners remain tight.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
