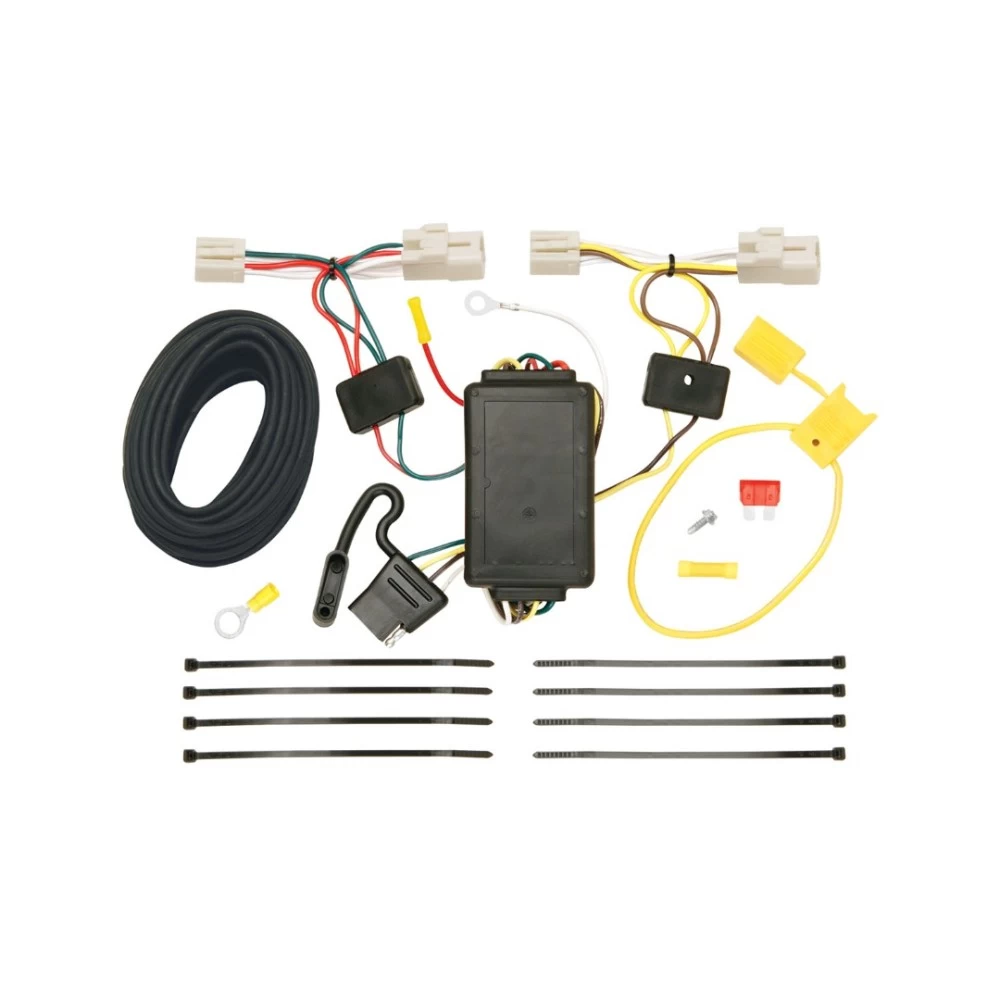

Installation Instructions for T-Connector Adapter for Pontiac Vibe and Toyota Matrix

Part Numbers:

• 118460

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Prepare the Rear Cargo Area:

   • Open the rear door of the vehicle.
   • Temporarily remove the rear threshold, cargo net, and cargo cover.

2. Locate the Vehicle’s Wiring:

   • Remove the side wiring access panels in the rear cargo area.
   • Behind the taillights, locate the vehicle’s wiring harness connection points.

3. Install the Driver-Side T-Connector:

   • Separate the vehicle’s wiring connectors on the driver’s side.
   • Insert the T-Connector with the yellow wire between the vehicle’s wiring connectors.
   • Ensure all connections are clean and secure.

4. Route the Passenger-Side T-Connector:

   • Route the T-Connector with the green wire to the passenger’s side behind the panels and along the threshold.
   • Repeat step 3 for the passenger’s side.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32” hole.
   • Secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify what is behind the surface before drilling to avoid damage or injury. Avoid drilling into the vehicle floor or bed.

6. Connect the Power Wire:

   • Disconnect the negative (-) battery cable.
   • Attach the yellow fuse holder to the positive (+) battery cable using the provided ring terminal.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.

7. Route the Black Power Wire:

   • Route the black power wire from the engine compartment to the rear cargo area, either along the frame or through existing wiring pathways.

   Warning:

   • Avoid routing wires near hot pipes, heat shields, or the fuel tank.

8. Complete the Power Connection:

   • Inside the trunk, connect the black 12-gauge power wire to the red wire from the T-Connector black box using the supplied yellow butt connector.
   • Reconnect the vehicle’s negative (-) battery cable.
   • Install the 10-amp fuse into the fuse holder.

   Warning:

   • All connections must be complete for the T-Connector to function properly.

9. Mount the Black Box:

   • On the driver’s side, locate a flat, out-of-the-way surface and mount the T-Connector black box using the provided double-sided tape.

10. Reassemble the Vehicle:

    • Reinstall the trim panels, threshold, storage covers, and floor covering, ensuring no wires are pinched or cut.

11. Store the 4-Flat Connector:

    • Store the 4-flat connector in the rear cargo area when not in use.

12. Test the Installation:

    • Test the T-Connector installation with a test light or trailer.
    • Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

    Specifications:

    • Max. stop/turn light: 1 per side (2.1 amps)
    • Max. tail lights: (4.2 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
• Always follow the vehicle warnings and instructions carefully.

Manufacturer Notes:

• Refer to the vehicle owner’s manual for additional details.

Installation Instructions for T-Connector Adapter for Pontiac Vibe and Toyota Matrix

Part Numbers:

• 118460

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Prepare the Rear Cargo Area:

   • Open the rear door of the vehicle.
   • Temporarily remove the rear threshold, cargo net, and cargo cover.

2. Locate the Vehicle’s Wiring:

   • Remove the side wiring access panels in the rear cargo area.
   • Behind the taillights, locate the vehicle’s wiring harness connection points.

3. Install the Driver-Side T-Connector:

   • Separate the vehicle’s wiring connectors on the driver’s side.
   • Insert the T-Connector with the yellow wire between the vehicle’s wiring connectors.
   • Ensure all connections are clean and secure.

4. Route the Passenger-Side T-Connector:

   • Route the T-Connector with the green wire to the passenger’s side behind the panels and along the threshold.
   • Repeat step 3 for the passenger’s side.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32” hole.
   • Secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify what is behind the surface before drilling to avoid damage or injury. Avoid drilling into the vehicle floor or bed.

6. Connect the Power Wire:

   • Disconnect the negative (-) battery cable.
   • Attach the yellow fuse holder to the positive (+) battery cable using the provided ring terminal.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.

7. Route the Black Power Wire:

   • Route the black power wire from the engine compartment to the rear cargo area, either along the frame or through existing wiring pathways.

   Warning:

   • Avoid routing wires near hot pipes, heat shields, or the fuel tank.

8. Complete the Power Connection:

   • Inside the trunk, connect the black 12-gauge power wire to the red wire from the T-Connector black box using the supplied yellow butt connector.
   • Reconnect the vehicle’s negative (-) battery cable.
   • Install the 10-amp fuse into the fuse holder.

   Warning:

   • All connections must be complete for the T-Connector to function properly.

9. Mount the Black Box:

   • On the driver’s side, locate a flat, out-of-the-way surface and mount the T-Connector black box using the provided double-sided tape.

10. Reassemble the Vehicle:

    • Reinstall the trim panels, threshold, storage covers, and floor covering, ensuring no wires are pinched or cut.

11. Store the 4-Flat Connector:

    • Store the 4-flat connector in the rear cargo area when not in use.

12. Test the Installation:

    • Test the T-Connector installation with a test light or trailer.
    • Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

    Specifications:

    • Max. stop/turn light: 1 per side (2.1 amps)
    • Max. tail lights: (4.2 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
• Always follow the vehicle warnings and instructions carefully.

Manufacturer Notes:

• Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
• Store these instructions for future reference.

Warranty Information:

• This product is covered by a warranty for X years from the date of purchase. The warranty covers defects in materials and workmanship under normal use.
• For complete warranty instructions, please download the full installation PDF.
