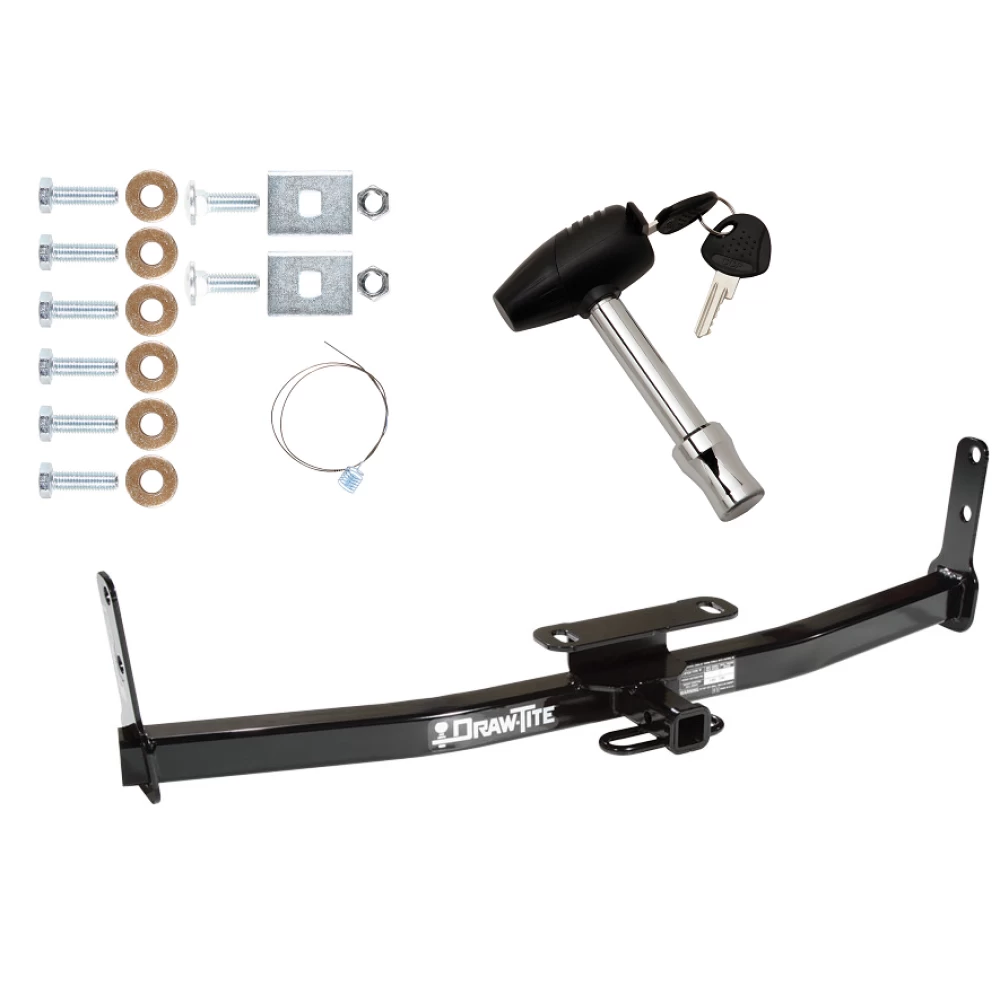

Trailer Tow Hitch For 05‑17 Chevy Equinox GMC Terrain 06‑09 Torrent 02‑07 Vue w/ Security Lock Pin Key
Model: 36408 580407 *Custom Fit Front Mount Trailer Hitch
Security Lock Pin & Key
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2002 - 2007 Saturn, Vue, Except Redline
2005 - 2017 Chevrolet, Equinox, All Styles
2006 - 2009 Pontiac, Torrent, All Styles
2010 - 2017 GMC, Terrain, All Styles

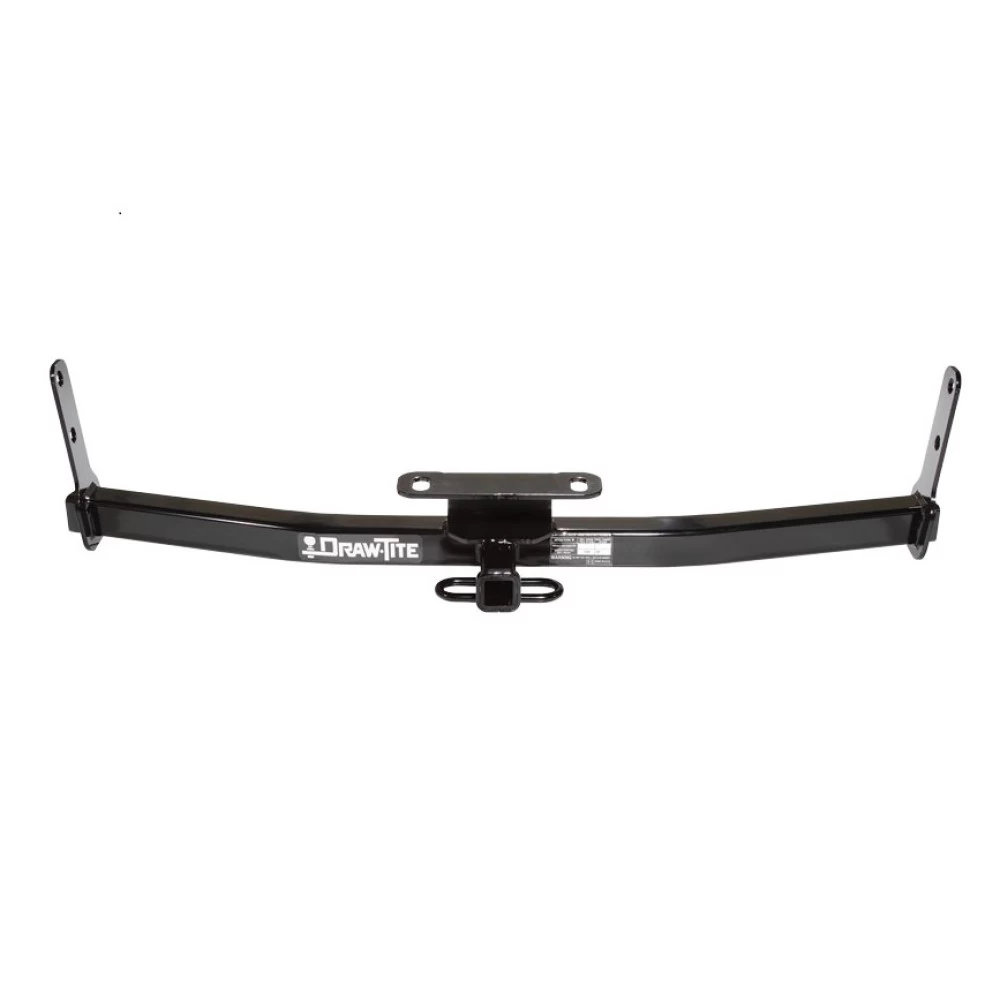

Trailer Hitch Specs:
| Part Number | 36408 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Easy Access Lock w/Sleeve
- Includes Dust Cap
- Fits 2" and 1-7/8" Tow Receivers
- Prevents theft
- Use in place of standard pin and clip
- Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees.
- 1 Year Limited Warranty
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
$173 19 $273.09 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$273.09 $173 19
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $43.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 36408 580407 *
- Includes: Class 2 Trailer Tow Hitch, Trailer Tow Hitch Lock
Compatibility Chart
Custom Fit Front Mount Trailer Hitch
Security Lock Pin & Key
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2002 - 2007 Saturn, Vue, Except Redline
2005 - 2017 Chevrolet, Equinox, All Styles
2006 - 2009 Pontiac, Torrent, All Styles
2010 - 2017 GMC, Terrain, All Styles
Trailer Hitch Specs:
| Part Number | 36408 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Easy Access Lock w/Sleeve
- Includes Dust Cap
- Fits 2" and 1-7/8" Tow Receivers
- Prevents theft
- Use in place of standard pin and clip
- Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees.
- 1 Year Limited Warranty
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Get Expert Help
Trailer Tow Hitch For 05-17 Chevy Equinox GMC Terrain 06-09 Torrent 02-07 Vue w/ Security Lock Pin Key Install Notes
Installation Instructions for Chevrolet Equinox, Pontiac Torrent, Saturn Vue, and GMC Terrain
Part Numbers:
- 06391
- 36408
- 90145
Wiring Access Location:
- Chevrolet: SUV3
- Pontiac: SUV3
- Saturn: SUV1, SUV2
Tools Required:
- Wrenches: 18mm, 19mm, 3/4"
- For Saturn Vue: Open-end 3/4" wrench
- For Equinox: 6" Ratchet Extension
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Tie-Down Brackets:
- If present, remove the tie-down brackets from the vehicle frame rail.
- Return bolts and tie-down brackets to the vehicle owner.
-
Remove Fascia Door (Equinox Only):
- Remove the fascia door.
-
Position the Hitch:
- Raise the hitch into position, lifting the bumper mounting bracket over the fascia where needed.
- Secure the hitch using M12 bolts and conical washers into the existing weld nuts.
-
Saturn Vue Specific Step:
- Pull the 1/2"-13 carriage bolts and small blocks through the end of the bumper using the pull wire.
- Feed the bolts through the bumper mounting bracket and secure with conical washers and hex nuts, as shown in Figure 1.
-
Equinox and Torrent Specific Step:
- Install M12 bolts and conical washers through the bumper mounting bracket into the existing weld nuts in the bumper, as shown in Figure 2.
-
Tighten Fasteners:
- Tighten all 1/2"-13 GR5 fasteners to 75 ft-lb (102 N*m).
- Tighten all M12 CL8.8 fasteners to 68 ft-lb (92 N*m).
-
Reinstall Fascia Door (Equinox Only):
- Replace the fascia door.

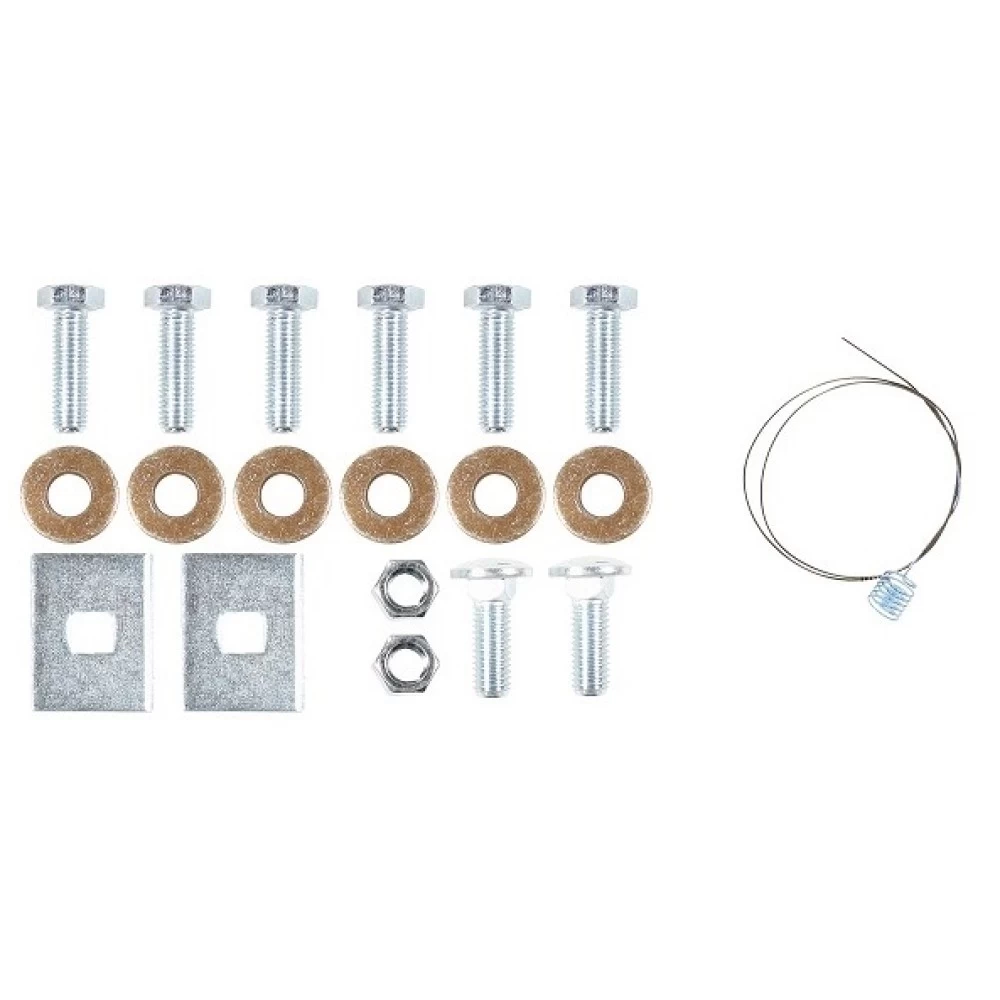

Hardware List:
- (6) Hex Bolt, M12 x 1.75 CL8.8
- (2) Hex Nut, 1/2"-13
- (6) Conical Washer, M12
- (2) Conical Washer, 1/2"
- (2) Block, 1.5" x 2"
- (2) Carriage Bolt, 1/2"-13 x 2"
- (1) Pull Wire
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
- Drawbar must be used in the RISE position only.
Additional Notes:
- Drawbar Kit: 36051 or 90001 (sold separately)
- Fastener Kit: 36408F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
