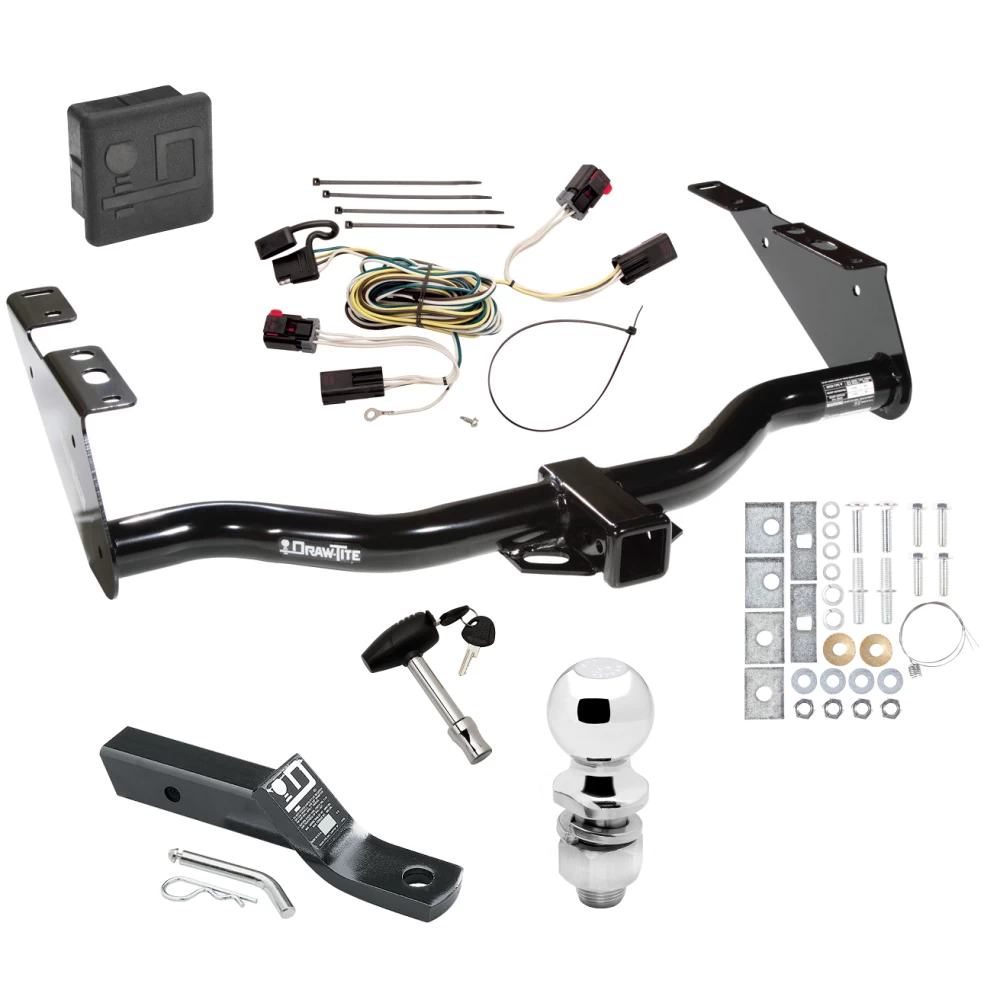

Trailer Tow Hitch For 04-07 Chrysler Town Country Dodge Grand Caravan Exc SGo PKG Wiring 2" Ball and Lock Install Notes
Installation Instructions for Chrysler Town & Country, Dodge Caravan, and Plymouth Voyager
Part Numbers:
- 75119
- 44006
- 78214 UH
Wiring Access Location:
- SUV1 & SUV2
Tools Required:
- Wrenches: 15mm, 17mm, 18mm, 19mm, 7/8"
- Drill Bits: 7/16"
Step-by-Step Instructions:
For Normal Installation (Without Rear Stabilizer Bar):
-
Remove Front Bumper Bolts:
- Remove the front bumper bolts on both sides.
-
Install M12 x 1.75 Stud:
- Insert the stud into position until it seats to the frame where the bumper bolt was removed.
- Final tightening will occur when the nuts are tightened.
-
Remove Rear Bumper Bolts:
- Remove the rear bumper bolts and place the hitch into position as shown.
-
Drill Holes:
- Using the hitch as a template, drill a 7/16" hole in each frame rail for the forward attachment. Refer to Figure 1 for the hole location.
-
Fishwire Bolts:
- Fishwire the 7/16" bolts and blocks through the oval hole on the side brackets.
-
Secure Fasteners:
- Tighten the bolts and nuts to the specified torque values:
- 7/16" GR5 Fasteners: 50 lb-ft (68 N·m)
- M10 Fasteners: 42 lb-ft (57 N·m)
- M12 Fasteners: 75 lb-ft (102 N·m)
- Tighten the bolts and nuts to the specified torque values:
For Short Wheel Base with Rear Stabilizer Bar:
- Follow the same procedure as above, but refer to Figure 2 for adjustments related to the stabilizer bar bracket installation.
Torque Specifications:
- 7/16"-14 GR5: 50 lb-ft (68 N·m)
- M10: 42 lb-ft (57 N·m)
- M12: 75 lb-ft (102 N·m)
Hardware List:
- (2) M12 x 1.75 Studs
- (2) 1/4" x 1-1/2" x 2" Blocks
- (2) M10 x 1.5 x 35mm CL10.9 Bolts
- (2) Conical Toothed Washers (M10)
- (2) Conical Toothed Washers (M12)
- (2) 7/16"-14 x 1-3/4" GR5 Carriage Bolts
- (2) 1/4" x 1" x 3" Blocks
- (2) 3/16" x 1-1/2" x 2" Blocks
- (2) Lock Washers
- (2) Hex Nuts
Safety Notes:
- Inspect the hitch frequently to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes to prevent water or exhaust fumes from entering.
- Wear eye protection and follow safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 3,500 lb (1,588 kg)
- Max Tongue Weight: 350 lb (159 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 5,000 lb (2,268 kg)
- Max Tongue Weight: 500 lb (227 kg)
Compliance:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 standards.
Installation Instructions for Chrysler Town & Country, Dodge Caravan, and Plymouth Voyager
Part Numbers:
- 75119
- 44006
- 78214 UH
Wiring Access Location:
- SUV1 & SUV2
Tools Required:
- Wrenches: 15mm, 17mm, 18mm, 19mm, 7/8"
- Drill Bits: 7/16"
Step-by-Step Instructions:
For Normal Installation (Without Rear Stabilizer Bar):
-
Remove Front Bumper Bolts:
- Remove the front bumper bolts on both sides.
-
Install M12 x 1.75 Stud:
- Insert the stud into position until it seats to the frame where the bumper bolt was removed.
- Final tightening will occur when the nuts are tightened.
-
Remove Rear Bumper Bolts:
- Remove the rear bumper bolts and place the hitch into position as shown.
-
Drill Holes:
- Using the hitch as a template, drill a 7/16" hole in each frame rail for the forward attachment. Refer to Figure 1 for the hole location.
-
Fishwire Bolts:
- Fishwire the 7/16" bolts and blocks through the oval hole on the side brackets.
-
Secure Fasteners:
- Tighten the bolts and nuts to the specified torque values:
- 7/16" GR5 Fasteners: 50 lb-ft (68 N·m)
- M10 Fasteners: 42 lb-ft (57 N·m)
- M12 Fasteners: 75 lb-ft (102 N·m)
- Tighten the bolts and nuts to the specified torque values:
For Short Wheel Base with Rear Stabilizer Bar:
- Follow the same procedure as above, but refer to Figure 2 for adjustments related to the stabilizer bar bracket installation.
Torque Specifications:
- 7/16"-14 GR5: 50 lb-ft (68 N·m)
- M10: 42 lb-ft (57 N·m)
- M12: 75 lb-ft (102 N·m)
Hardware List:
- (2) M12 x 1.75 Studs
- (2) 1/4" x 1-1/2" x 2" Blocks
- (2) M10 x 1.5 x 35mm CL10.9 Bolts
- (2) Conical Toothed Washers (M10)
- (2) Conical Toothed Washers (M12)
- (2) 7/16"-14 x 1-3/4" GR5 Carriage Bolts
- (2) 1/4" x 1" x 3" Blocks
- (2) 3/16" x 1-1/2" x 2" Blocks
- (2) Lock Washers
- (2) Hex Nuts
Safety Notes:
- Inspect the hitch frequently to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes to prevent water or exhaust fumes from entering.
- Wear eye protection and follow safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 3,500 lb (1,588 kg)
- Max Tongue Weight: 350 lb (159 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 5,000 lb (2,268 kg)
- Max Tongue Weight: 500 lb (227 kg)
Compliance:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 standards.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118300
Wiring Access Location:
- Rear taillight wiring harness behind the vehicle’s rear taillamp housings.
Tools Required:
- Utility knife
- Drill with a 3/32" drill bit
- Circuit tester
Step-by-Step Instructions:
-
Remove the Rear Taillamp Housings:
- Remove both of the vehicle’s rear taillamp housings (Fig. 1).
- Slide the red locking tab on the harness connector to the unlocked position and disconnect the wire harness from both taillamp sockets (Fig. 2).
-
Access the Wiring Harness:
- Pull the vehicle’s wiring harness and rubber grommet slightly out on the driver’s side of the vehicle.
- Slit the grommet on the driver’s side using a utility knife from the hole where the wiring passes through to the outside edge (Fig. 3).
- Unwrap the tape around the grommet tabs, or cut the tabs off the grommet that holds it to the wires.
-
Install the T-Connector:
- Open the jack storage compartment on the driver’s side.
- Partially remove the driver’s side rear trim panel.
- Push the T-Connector end into the jack storage compartment and out through the driver’s side taillamp opening.
- Reposition the tape over the hole and wires as needed.
- Plug the T-Connector between the taillamp socket and the vehicle’s wiring harness. Secure the connectors with the red locking tab.
-
Secure the Grommet:
- Place the rubber grommet removed in step 2 over the T-Connector wiring.
- Push all existing wiring back into the grommet hole and reseat the grommet.
-
Passenger Side Installation:
- Route the T-Connector containing the green wire over to the passenger side and repeat the previous steps.
-
Ground Connection:
- Locate a suitable grounding point near the adapter.
- Caution: Do not drill into the vehicle floor or bed.
- Clean dirt and rustproofing from the area. Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
-
Testing the Installation:
- Test the installation with a circuit tester or trailer.
-
Reassembly:
- Replace all trim panels removed during the installation process.
- Reinstall the taillamp housings, ensuring the wire harness is positioned securely between the housing and the vehicle body.
- Store the 4-flat connector in the jack storage compartment when not in use.
Specifications:
- This unit is rated for 7.5 amps per circuit.
Hardware List:
- T-Connector adapter
- Eyelet and screw
Safety Notes:
- Ensure all connections are secure to avoid electrical failures.
- Test thoroughly after installation to verify functionality.
Manufacturer Notes:
- Follow all warnings and installation instructions provided.
- Use a test light or trailer to confirm proper installation.
- Consult the vehicle owner’s manual for additional details.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118300
Wiring Access Location:
- Rear taillight wiring harness behind the vehicle’s rear taillamp housings.
Tools Required:
- Utility knife
- Drill with a 3/32" drill bit
- Circuit tester
Step-by-Step Instructions:
-
Remove the Rear Taillamp Housings:
- Remove both of the vehicle’s rear taillamp housings.
- Slide the red locking tab on the harness connector to the unlocked position and disconnect the wire harness from both taillamp sockets.
-
Access the Wiring Harness:
- Pull the vehicle’s wiring harness and rubber grommet slightly out on the driver’s side of the vehicle.
- Slit the grommet on the driver’s side using a utility knife from the hole where the wiring passes through to the outside edge.
- Unwrap the tape around the grommet tabs, or cut the tabs off the grommet that holds it to the wires.
-
Install the T-Connector:
- Open the jack storage compartment on the driver’s side.
- Partially remove the driver’s side rear trim panel.
- Push the T-Connector end into the jack storage compartment and out through the driver’s side taillamp opening.
- Reposition the tape over the hole and wires as needed.
- Plug the T-Connector between the taillamp socket and the vehicle’s wiring harness. Secure the connectors with the red locking tab.
-
Secure the Grommet:
- Place the rubber grommet removed in step 2 over the T-Connector wiring.
- Push all existing wiring back into the grommet hole and reseat the grommet.
-
Passenger Side Installation:
- Route the T-Connector containing the green wire over to the passenger side and repeat the previous steps.
-
Ground Connection:
- Locate a suitable grounding point near the adapter.
- Caution: Do not drill into the vehicle floor or bed.
- Clean dirt and rustproofing from the area. Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
-
Testing the Installation:
- Test the installation with a circuit tester or trailer.
-
Reassembly:
- Replace all trim panels removed during the installation process.
- Reinstall the taillamp housings, ensuring the wire harness is positioned securely between the housing and the vehicle body.
- Store the 4-flat connector in the jack storage compartment when not in use.
Specifications:
- This unit is rated for 7.5 amps per circuit.
Hardware List:
- T-Connector adapter
- Eyelet and screw
Safety Notes:
- Ensure all connections are secure to avoid electrical failures.
- Test thoroughly after installation to verify functionality.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
