Trailer Wiring and Bracket For 04‑07 Chrysler Town Country Dodge Caravan Grand Caravan Plug & Play 4‑Flat Harness
Model: 118300 118144Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket
Installation Instructions
Fits The Following Vehicles:
2004 - 2007 Dodge, Caravan, All Styles
2004 - 2007 Dodge, Grand Caravan, All Styles
| Part Number | 118300 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions |  |
| Part Number | 118144 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years:
04 05 06 07 2004 2005 2006 2007
$54 24 $59.34 9% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$59.34 $54 24
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $13.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Tekonsha
- Model: 118300 118144

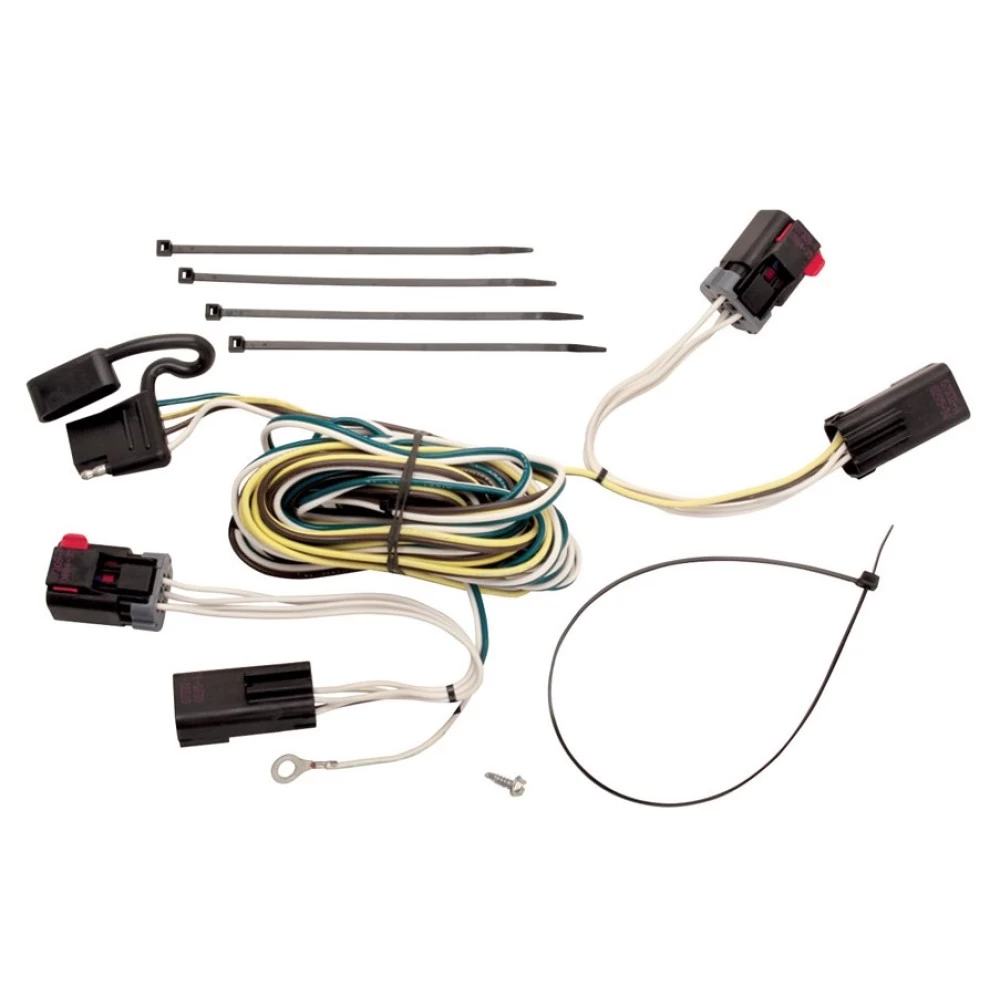

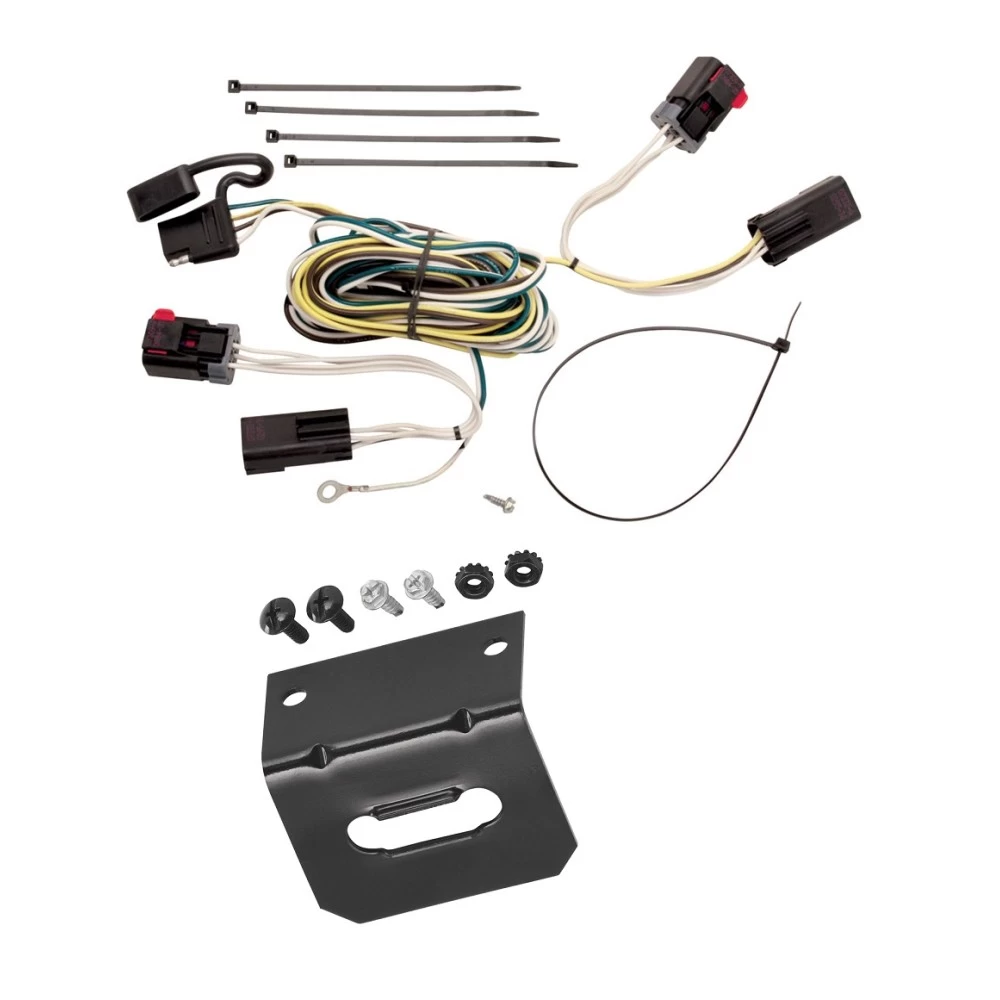

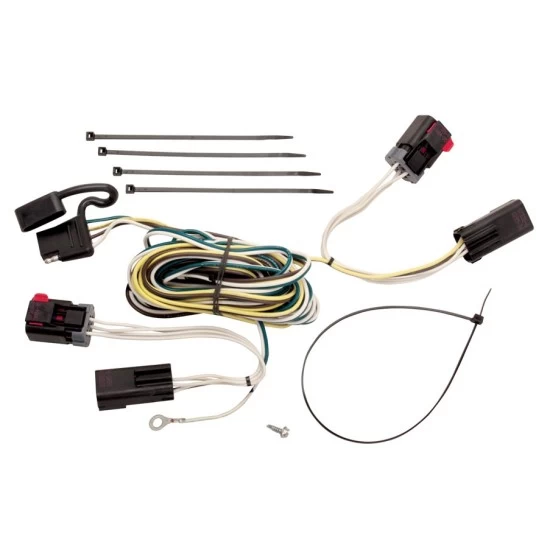

- Includes: T-One T-Connector Custom Harness, Mounting Bracket
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket
Installation Instructions
Fits The Following Vehicles:
2004 - 2007 Dodge, Caravan, All Styles
2004 - 2007 Dodge, Grand Caravan, All Styles
| Part Number | 118300 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
| Part Number | 118144 |
| Fits | 4 Flat Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years:
04 05 06 07 2004 2005 2006 2007
Get Expert Help
Trailer Wiring and Bracket For 04-07 Chrysler Town Country Dodge Caravan Grand Caravan Plug & Play 4-Flat Harness Install Notes
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118300
Wiring Access Location:
- Rear taillight wiring harness behind the vehicle’s rear taillamp housings.
Tools Required:
- Utility knife
- Drill with a 3/32" drill bit
- Circuit tester
Step-by-Step Instructions:
-
Remove the Rear Taillamp Housings:
- Remove both of the vehicle’s rear taillamp housings (Fig. 1).
- Slide the red locking tab on the harness connector to the unlocked position and disconnect the wire harness from both taillamp sockets (Fig. 2).
-
Access the Wiring Harness:
- Pull the vehicle’s wiring harness and rubber grommet slightly out on the driver’s side of the vehicle.
- Slit the grommet on the driver’s side using a utility knife from the hole where the wiring passes through to the outside edge (Fig. 3).
- Unwrap the tape around the grommet tabs, or cut the tabs off the grommet that holds it to the wires.
-
Install the T-Connector:
- Open the jack storage compartment on the driver’s side.
- Partially remove the driver’s side rear trim panel.
- Push the T-Connector end into the jack storage compartment and out through the driver’s side taillamp opening.
- Reposition the tape over the hole and wires as needed.
- Plug the T-Connector between the taillamp socket and the vehicle’s wiring harness. Secure the connectors with the red locking tab.
-
Secure the Grommet:
- Place the rubber grommet removed in step 2 over the T-Connector wiring.
- Push all existing wiring back into the grommet hole and reseat the grommet.
-
Passenger Side Installation:
- Route the T-Connector containing the green wire over to the passenger side and repeat the previous steps.
-
Ground Connection:
- Locate a suitable grounding point near the adapter.
- Caution: Do not drill into the vehicle floor or bed.
- Clean dirt and rustproofing from the area. Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
-
Testing the Installation:
- Test the installation with a circuit tester or trailer.
-
Reassembly:
- Replace all trim panels removed during the installation process.
- Reinstall the taillamp housings, ensuring the wire harness is positioned securely between the housing and the vehicle body.
- Store the 4-flat connector in the jack storage compartment when not in use.
Specifications:
- This unit is rated for 7.5 amps per circuit.
Hardware List:
- T-Connector adapter
- Eyelet and screw
Safety Notes:
- Ensure all connections are secure to avoid electrical failures.
- Test thoroughly after installation to verify functionality.
Manufacturer Notes:
- Follow all warnings and installation instructions provided.
- Use a test light or trailer to confirm proper installation.
- Consult the vehicle owner’s manual for additional details.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118300
Wiring Access Location:
- Rear taillight wiring harness behind the vehicle’s rear taillamp housings.
Tools Required:
- Utility knife
- Drill with a 3/32" drill bit
- Circuit tester
Step-by-Step Instructions:
-
Remove the Rear Taillamp Housings:
- Remove both of the vehicle’s rear taillamp housings.
- Slide the red locking tab on the harness connector to the unlocked position and disconnect the wire harness from both taillamp sockets.
-
Access the Wiring Harness:
- Pull the vehicle’s wiring harness and rubber grommet slightly out on the driver’s side of the vehicle.
- Slit the grommet on the driver’s side using a utility knife from the hole where the wiring passes through to the outside edge.
- Unwrap the tape around the grommet tabs, or cut the tabs off the grommet that holds it to the wires.
-
Install the T-Connector:
- Open the jack storage compartment on the driver’s side.
- Partially remove the driver’s side rear trim panel.
- Push the T-Connector end into the jack storage compartment and out through the driver’s side taillamp opening.
- Reposition the tape over the hole and wires as needed.
- Plug the T-Connector between the taillamp socket and the vehicle’s wiring harness. Secure the connectors with the red locking tab.
-
Secure the Grommet:
- Place the rubber grommet removed in step 2 over the T-Connector wiring.
- Push all existing wiring back into the grommet hole and reseat the grommet.
-
Passenger Side Installation:
- Route the T-Connector containing the green wire over to the passenger side and repeat the previous steps.
-
Ground Connection:
- Locate a suitable grounding point near the adapter.
- Caution: Do not drill into the vehicle floor or bed.
- Clean dirt and rustproofing from the area. Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
-
Testing the Installation:
- Test the installation with a circuit tester or trailer.
-
Reassembly:
- Replace all trim panels removed during the installation process.
- Reinstall the taillamp housings, ensuring the wire harness is positioned securely between the housing and the vehicle body.
- Store the 4-flat connector in the jack storage compartment when not in use.
Specifications:
- This unit is rated for 7.5 amps per circuit.
Hardware List:
- T-Connector adapter
- Eyelet and screw
Safety Notes:
- Ensure all connections are secure to avoid electrical failures.
- Test thoroughly after installation to verify functionality.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For warranty duration and coverage details, please download the full installation PDF.
