Installation Instructions for T-Connector Adapter

Part Numbers:

• 118376

Wiring Access Location:

• Driver’s side rear taillamp and jack storage compartment.

Tools Required:

• Utility knife.
• Drill with a 3/32" drill bit.
• Cable ties (provided).
• Double-sided tape (provided).

Step-by-Step Instructions:

1. Remove the driver’s side rear taillamp housing (Fig. 1).

   • Slide the red locking tab on the harness connector to the unlocked position.
   • Disconnect the wire harness from the taillamp sockets.

2. Pull the vehicle’s wiring harness and rubber grommet slightly out on the driver’s side.

3. With the wiring and grommets exposed, slit the grommet using a utility knife from the hole where the vehicle wiring passes through to the outside edge (Fig. 2).

   • Unwrap the tape around the grommet tabs or cut the tabs off the grommet holding the wires.

4. Open the vehicle’s jack storage cover on the driver’s side.

   • Partially remove the driver’s side rear trim panel.
   • If necessary, peel back the black tape covering a hole on the vehicle body panel.
   • Push the T-Connector’s end through the jack storage compartment and out to the driver’s side rear taillamp opening.
   • Reposition the tape over the hole and wires if necessary.
   • Plug the T-Connector into the mating plug on the taillamp socket and the vehicle’s wiring harness.
   • Secure the connectors with the red locking tab (Fig. 3).

5. Place the rubber grommet over the T-Connector wiring and reseat it into the grommet hole.

6. Locate a suitable grounding point near the taillamp opening.

   • Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
   • Caution: Do not drill into exposed surfaces.

7. Secure the black converter box and trailer wiring with double-sided tape or cable ties.

   • Alternatively, mount the converter using the provided screw and mounting tab to prevent damage or rattling.
   • Note: Place the converter box inside the jack storage compartment.

8. Test the installation with a circuit tester or trailer.

9. Reinstall all trim panels removed during the process.

   • Replace the taillamp housing, positioning the wire harness between the housing and the vehicle body.

   • Store the 4-flat connector in the jack storage compartment when not in use.

   • Specifications:

     • This unit is rated for 7.5 amps per circuit.

Hardware List:

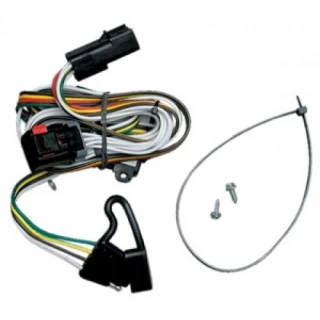

• T-Connector adapter.
• Black converter box.
• Eyelet and screw.
• Double-sided tape.
• Cable ties.

Safety Notes:

• Ensure all connections are clean and securely fastened.
• Test the installation after completing all steps to verify functionality.
• Do not exceed the specified amperage rating to prevent damage or fire.

Manufacturer Notes:

• Follow all warnings and instructions provided with the product.
• Use a circuit tester or trailer to confirm proper installation.

Installation Instructions for T-Connector Adapter

Part Numbers:

• 118376

Wiring Access Location:

• Driver’s side rear taillamp and jack storage compartment.

Tools Required:

• Utility knife
• Drill with a 3/32" drill bit
• Cable ties (provided)
• Double-sided tape (provided)

Step-by-Step Instructions:

1. Remove the Driver’s Side Rear Taillamp Housing:

   • Slide the red locking tab on the harness connector to the unlocked position.
   • Disconnect the wire harness from the taillamp sockets.

2. Expose the Vehicle’s Wiring Harness and Grommet:

   • Pull the vehicle’s wiring harness and rubber grommet slightly out on the driver’s side.

3. Modify the Grommet:

   • Using a utility knife, slit the grommet from the hole where the vehicle wiring passes through to the outside edge (Fig. 2).
   • Unwrap or remove the tape around the grommet tabs or cut off the tabs holding the wires.

4. Access the Jack Storage Compartment:

   • Open the vehicle’s jack storage cover on the driver’s side.
   • Partially remove the driver’s side rear trim panel.
   • Peel back the black tape covering a hole on the vehicle body panel if necessary.

5. Route and Connect the T-Connector:

   • Push the T-Connector’s end through the jack storage compartment and out to the driver’s side rear taillamp opening.
   • Reposition the tape over the hole and wires if necessary.
   • Plug the T-Connector into the mating plug on the taillamp socket and the vehicle’s wiring harness.
   • Secure the connectors with the red locking tab (Fig. 3).

6. Reseat the Grommet:

   • Place the rubber grommet over the T-Connector wiring and reseat it into the grommet hole.

7. Ground the White Wire:

   • Locate a suitable grounding point near the taillamp opening.
   • Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
   • Caution: Do not drill into exposed surfaces.

8. Secure the Converter Box and Wiring:

   • Use double-sided tape or cable ties to secure the black converter box and trailer wiring.
   • Alternatively, mount the converter using the provided screw and mounting tab to prevent damage or rattling.
   • Note: Place the converter box inside the jack storage compartment.

9. Test the Installation:

   • Use a circuit tester or connect a trailer to confirm functionality.

10. Reinstall Components:

    • Reinstall all trim panels removed during the process.
    • Replace the taillamp housing, ensuring the wire harness is positioned properly between the housing and the vehicle body.
    • Store the 4-flat connector in the jack storage compartment when not in use.

Specifications:

• Current Rating: 7.5 amps per circuit

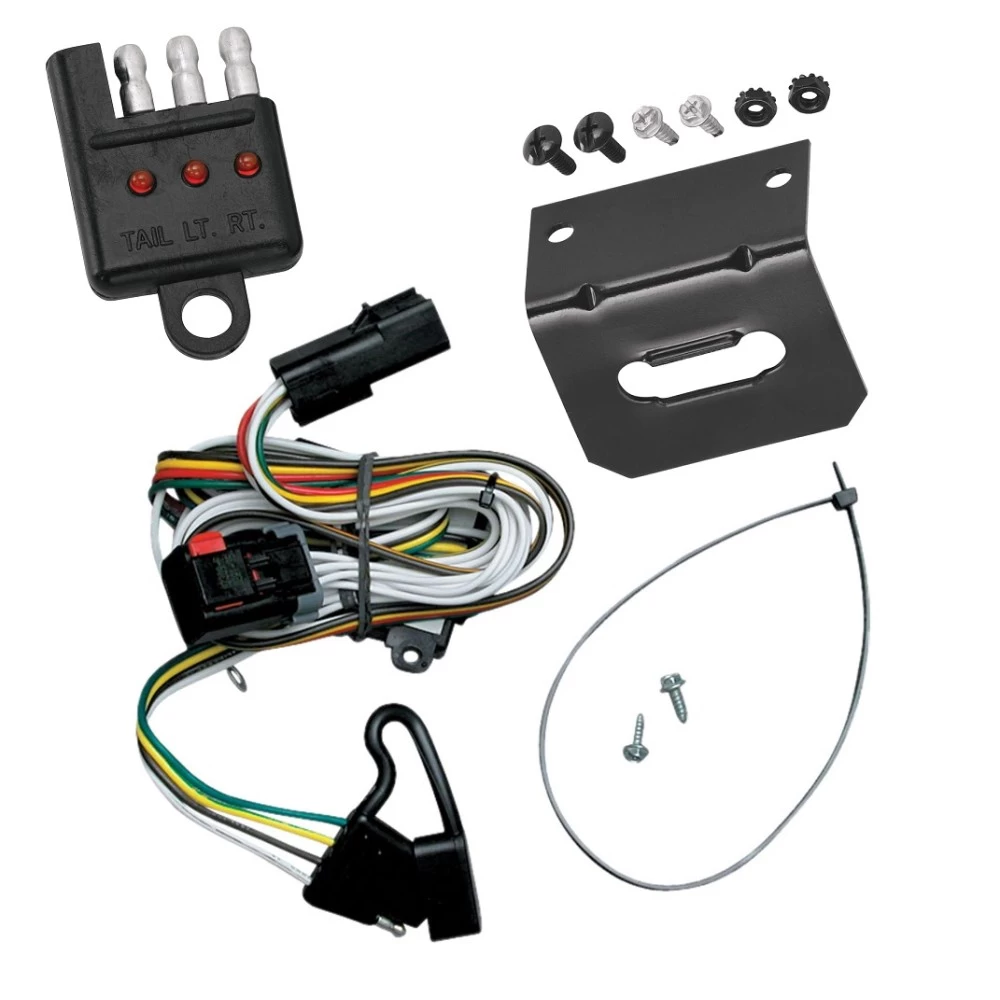

Hardware List:

• T-Connector adapter
• Black converter box
• Eyelet and screw
• Double-sided tape
• Cable ties

Safety Notes:

• Ensure all connections are clean and securely fastened.
• Test the installation after completing all steps to verify functionality.
• Do not exceed the specified amperage rating to prevent damage or fire.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
