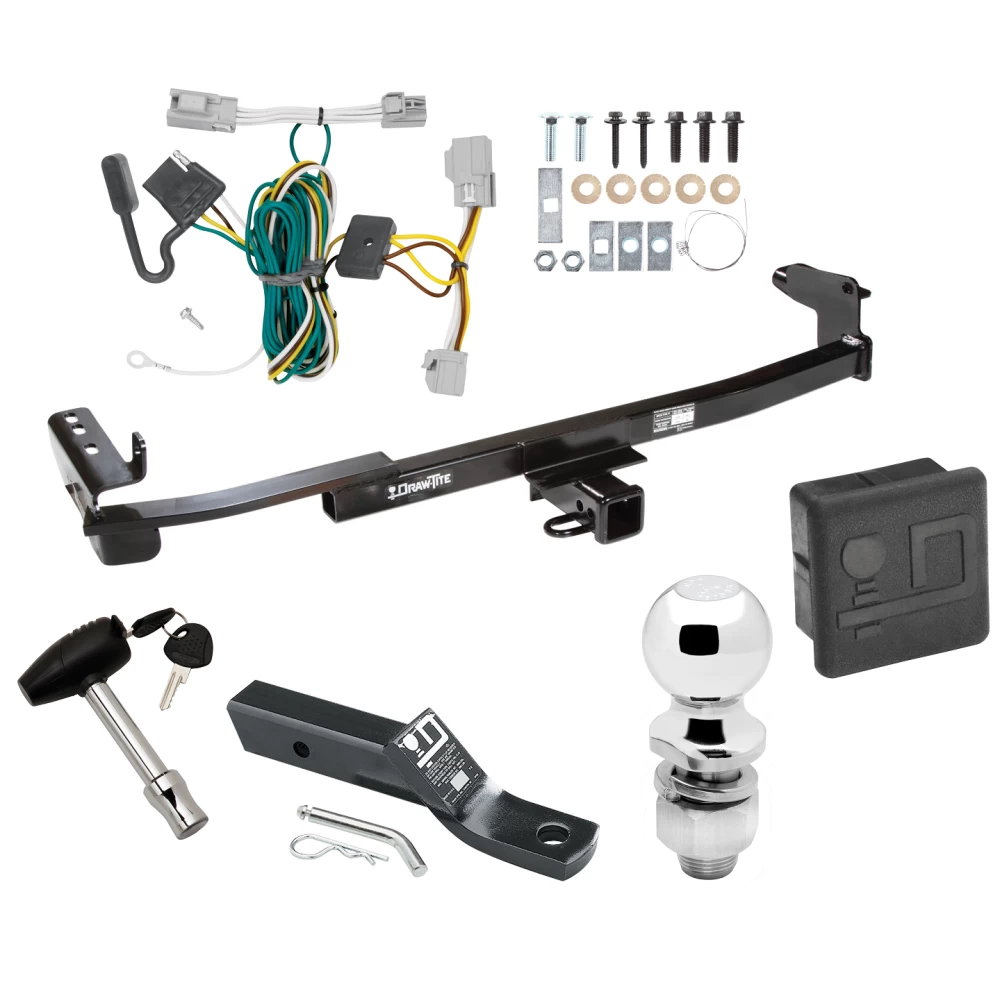

- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 08-09 Ford Taurus Mercury Sable Sedan Deluxe Package Wiring 2" Ball and Lock Install Notes
Installation Instructions for Ford Freestyle, Taurus X, and Mercury Montego/Sable
Part Numbers:
- 75299N
- 44529N
- 87102N
Tools Required:
- Wrenches: 3/4", 13mm, 15mm
- Drill Bits: None
Wiring Access Location:
- SUV1, SUV2, PC3, PC4
Step-by-Step Instructions:
-
Remove Exhaust Hanger:
- Detach the exhaust hanger bracket from the driver’s side frame rail and lower the carbon canister on the passenger side (if present).
-
Install Carriage Bolts and Blocks:
- Insert 7/16" x 1-1/4" GR5 carriage bolts with spacer blocks through access holes at the end of the frame.
- Place additional spacer blocks and secure bolts as shown in the diagram.
-
Position the Hitch:
- Raise the hitch into position, aligning it with the installed carriage bolts and the frame rail.
-
Attach Forward Fasteners:
- Secure the forward holes using M8 x 1.25 x 35mm CL9.8 bolts with conical toothed washers.
-
Tighten Fasteners:
- Tighten all fasteners as follows:
- M8 fasteners: 23 lb-ft (31 N·m)
- 7/16" fasteners: 50 lb-ft (68 N·m)
- Tighten all fasteners as follows:
-
Reattach Exhaust Hanger:
- Reattach the exhaust hanger bracket and the carbon canister.
-
Final Inspection:
- Ensure all bolts are tightened to specification, and inspect the installation for any interference with surrounding components.
Hardware List:
- (4) 7/16"-14 x 1-1/4" GR5 Carriage Bolts
- (4) 0.25" x 1.00" x 2.00" Spacer Blocks
- (4) 7/16" Conical Toothed Washers
- (4) 7/16"-14 Hex Nuts
- (2) M8 x 1.25 x 35mm CL9.8 Hex Bolts
- (2) M8 Conical Toothed Washers
Torque Specifications:
- Tighten all M8 CL9.8 fasteners to 23 lb-ft (31 N·m).
- Tighten all 7/16" GR5 fasteners to 50 lb-ft (68 N·m).
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,814 kg), Max Tongue Weight 400 lbs (181 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,588 kg), Max Tongue Weight 350 lbs (159 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Vehicles (Generic)
Part Numbers:
- 75299N
- 44529N
- 87102N
Tools Required:
- Wrenches: 3/4", 13mm, 15mm
- Drill Bits: None
Wiring Access Location:
- SUV1, SUV2, PC3, PC4
Step-by-Step Instructions:
-
Remove Exhaust Hanger:
- Detach the exhaust hanger bracket from the driver’s side frame rail and lower the carbon canister on the passenger side (if present).
-
Install Carriage Bolts and Blocks:
- Insert 7/16" x 1-1/4" GR5 carriage bolts with spacer blocks through access holes at the end of the frame.
- Place additional spacer blocks and secure bolts as shown in the diagram.
-
Position the Hitch:
- Raise the hitch into position, aligning it with the installed carriage bolts and the frame rail.
-
Attach Forward Fasteners:
- Secure the forward holes using M8 x 1.25 x 35mm CL9.8 bolts with conical toothed washers.
-
Tighten Fasteners:
- Tighten all fasteners as follows:
- M8 fasteners: 23 lb-ft (31 N·m)
- 7/16" fasteners: 50 lb-ft (68 N·m)
- Tighten all fasteners as follows:
-
Reattach Exhaust Hanger:
- Reattach the exhaust hanger bracket and the carbon canister.
-
Final Inspection:
- Ensure all bolts are tightened to specification, and inspect the installation for any interference with surrounding components.
Hardware List:
- (4) 7/16"-14 x 1-1/4" GR5 Carriage Bolts
- (4) 0.25" x 1.00" x 2.00" Spacer Blocks
- (4) 7/16" Conical Toothed Washers
- (4) 7/16"-14 Hex Nuts
- (2) M8 x 1.25 x 35mm CL9.8 Hex Bolts
- (2) M8 Conical Toothed Washers
Torque Specifications:
- Tighten all M8 CL9.8 fasteners to 23 lb-ft (31 N·m).
- Tighten all 7/16" GR5 fasteners to 50 lb-ft (68 N·m).
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,814 kg), Max Tongue Weight 400 lbs (181 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,588 kg), Max Tongue Weight 350 lbs (159 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for T-One® T-Connector for Ford Taurus and Mercury Sable
Part Numbers:
- 118447
Tools Required:
- Trim Panel Remover
- Drill (3/32” Drill Bit)
Step-by-Step Instructions:
-
Prepare the Trunk Area:
- Open the trunk and temporarily remove the rear threshold plate.
- Partially remove the felt trunk liner behind the taillights.
-
Locate the Taillight Wiring Harness:
- On both the driver and passenger sides of the vehicle, locate the taillight wiring harness.
- The harness will have connection points matching the ends of the T-Connector.
- Carefully separate the connectors, ensuring the locking tabs are not broken.
- Clean all connector surfaces to ensure they are free of dirt.
-
Connect the Driver’s Side T-Connector:
- Insert the T-Connector end with the yellow wire between the driver’s side wiring harness connectors.
- Lock the connectors into place, ensuring the locking tabs are secure and the connectors are fully inserted.
-
Route the T-Connector Harness to the Passenger Side:
- Route the T-Connector end with the green wire to the passenger side along the threshold and behind the panels.
- Repeat step 3 to connect the T-Connector with the green wire to the passenger side wiring harness.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
- Caution: Verify what is behind the surface before drilling to avoid vehicle damage or personal injury. Do not drill into exposed surfaces.
-
Store the 4-Flat Connector:
- Route the 4-flat connector from below the threshold plate into the trunk.
- Store it in the trunk when not in use.
-
Reinstall Trunk Components:
- Reinstall the felt trunk liner, threshold, and other components removed during installation.
- Ensure no wires are pinched or cut during reassembly.
-
Test the Installation:
- Test and verify the installation with a test light or trailer to ensure proper functionality.
Warning:
- Overloading circuits can cause fires. Do not exceed the following ratings:
- Max. stop/turn light: 7.5 amps
- Max. tail lights: 7.5 amps
- Refer to the vehicle owner’s manual and instruction sheet for additional information.
Safety Notes:
- Always wear safety glasses and follow all safety precautions during installation.
- Avoid routing wires near sharp edges or hot components that may damage the harness.
- Follow all vehicle warnings and installation instructions carefully.
Manufacturer Notes:
- Store these instructions for future reference.
- Refer to the vehicle owner’s manual for additional details.
Installation Instructions for T-One® T-Connector for Ford Taurus and Mercury Sable
Part Numbers:
- 118447
Tools Required:
- Trim Panel Remover
- Drill (3/32” Drill Bit)
Step-by-Step Instructions:
-
Prepare the Trunk Area:
- Open the trunk and temporarily remove the rear threshold plate.
- Partially remove the felt trunk liner behind the taillights.
-
Locate the Taillight Wiring Harness:
- On both the driver and passenger sides of the vehicle, locate the taillight wiring harness.
- The harness will have connection points matching the ends of the T-Connector.
- Carefully separate the connectors, ensuring the locking tabs are not broken.
- Clean all connector surfaces to ensure they are free of dirt.
-
Connect the Driver’s Side T-Connector:
- Insert the T-Connector end with the yellow wire between the driver’s side wiring harness connectors.
- Lock the connectors into place, ensuring the locking tabs are secure and the connectors are fully inserted.
-
Route the T-Connector Harness to the Passenger Side:
- Route the T-Connector end with the green wire to the passenger side along the threshold and behind the panels.
- Repeat step 3 to connect the T-Connector with the green wire to the passenger side wiring harness.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
- Caution: Verify what is behind the surface before drilling to avoid vehicle damage or personal injury. Do not drill into exposed surfaces.
-
Store the 4-Flat Connector:
- Route the 4-flat connector from below the threshold plate into the trunk.
- Store it in the trunk when not in use.
-
Reinstall Trunk Components:
- Reinstall the felt trunk liner, threshold, and other components removed during installation.
- Ensure no wires are pinched or cut during reassembly.
-
Test the Installation:
- Test and verify the installation with a test light or trailer to ensure proper functionality.
Warning:
- Overloading circuits can cause fires. Do not exceed the following ratings:
- Max. stop/turn light: 7.5 amps
- Max. tail lights: 7.5 amps
- Refer to the vehicle owner’s manual and instruction sheet for additional information.
Safety Notes:
- Always wear safety glasses and follow all safety precautions during installation.
- Avoid routing wires near sharp edges or hot components that may damage the harness.
- Follow all vehicle warnings and installation instructions carefully.
Manufacturer Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- Refer to the vehicle owner’s manual for additional details.
Technical Support:
