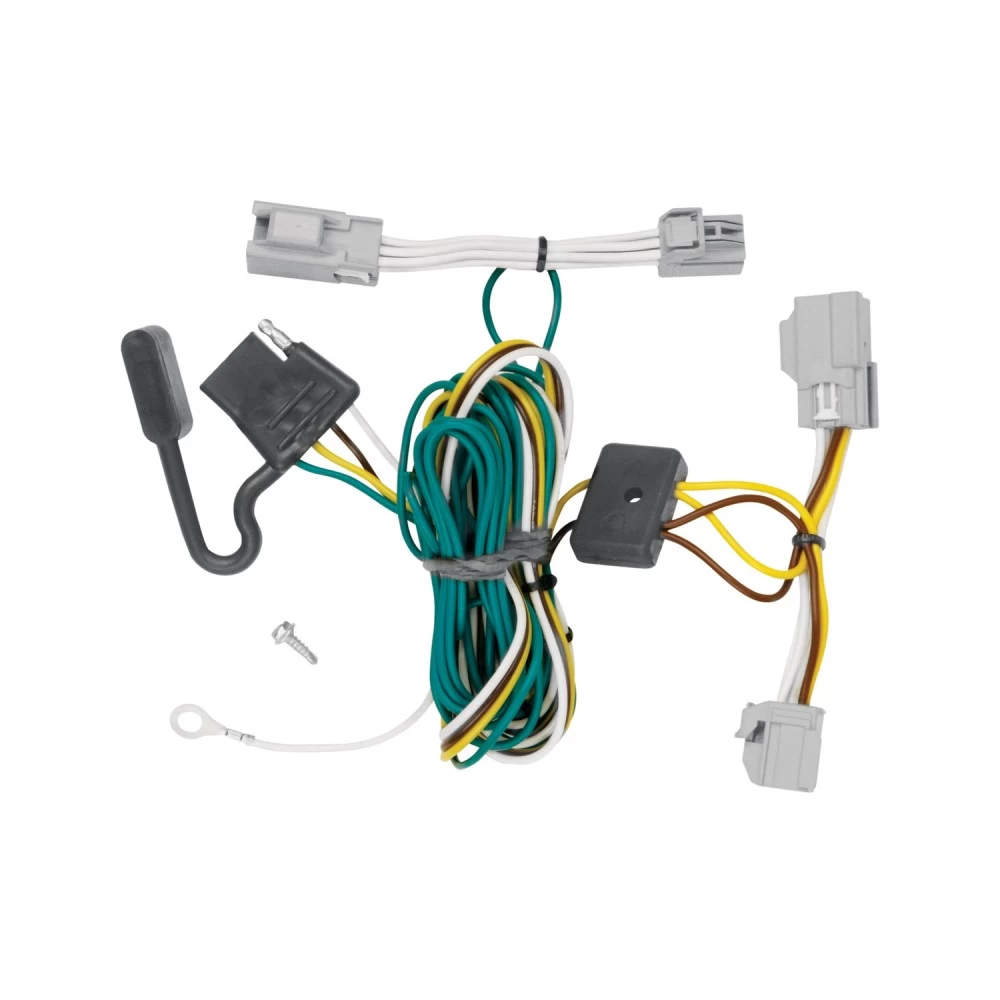

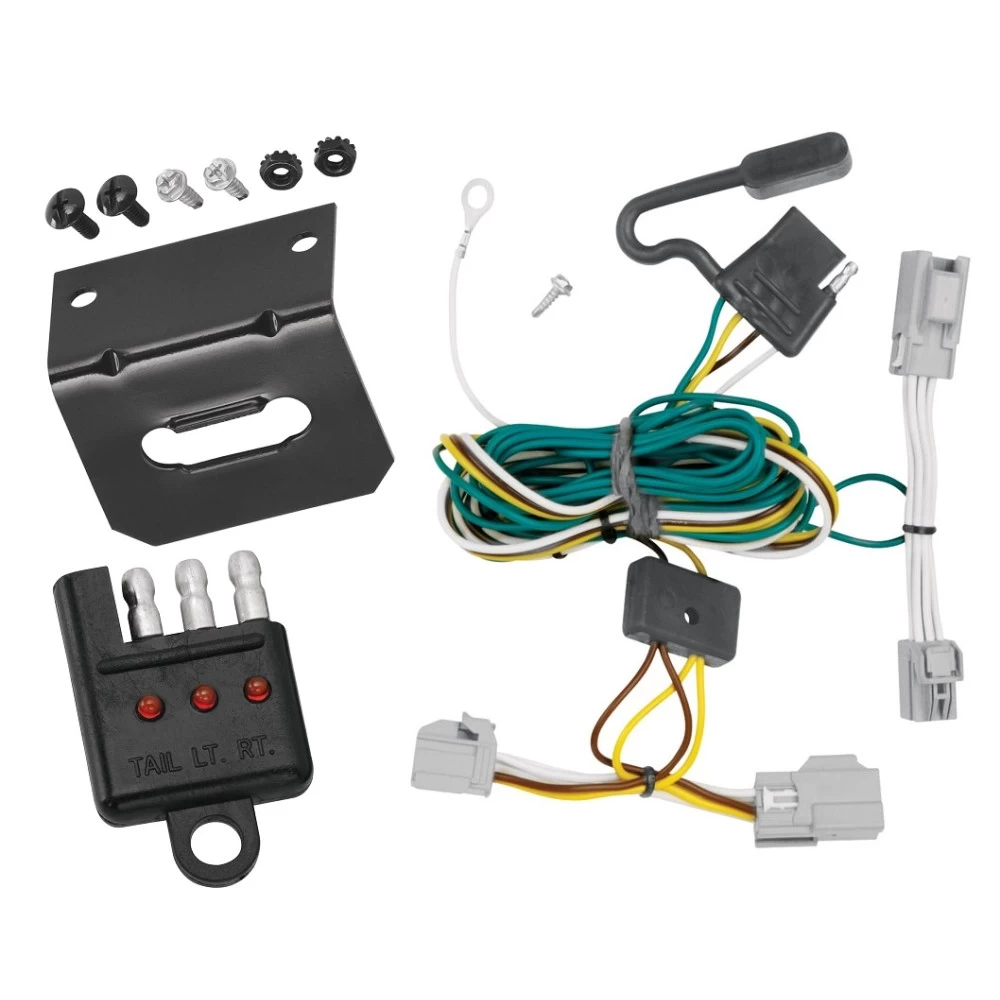

Installation Instructions for T-One® T-Connector for Ford Taurus and Mercury Sable

Part Numbers:

• 118447

Tools Required:

• Trim Panel Remover
• Drill (3/32” Drill Bit)

Step-by-Step Instructions:

1. Prepare the Trunk Area:

   • Open the trunk and temporarily remove the rear threshold plate.
   • Partially remove the felt trunk liner behind the taillights.

2. Locate the Taillight Wiring Harness:

   • On both the driver and passenger sides of the vehicle, locate the taillight wiring harness.
   • The harness will have connection points matching the ends of the T-Connector.
   • Carefully separate the connectors, ensuring the locking tabs are not broken.
   • Clean all connector surfaces to ensure they are free of dirt.

3. Connect the Driver’s Side T-Connector:

   • Insert the T-Connector end with the yellow wire between the driver’s side wiring harness connectors.
   • Lock the connectors into place, ensuring the locking tabs are secure and the connectors are fully inserted.

4. Route the T-Connector Harness to the Passenger Side:

   • Route the T-Connector end with the green wire to the passenger side along the threshold and behind the panels.
   • Repeat step 3 to connect the T-Connector with the green wire to the passenger side wiring harness.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
   • Caution: Verify what is behind the surface before drilling to avoid vehicle damage or personal injury. Do not drill into exposed surfaces.

6. Store the 4-Flat Connector:

   • Route the 4-flat connector from below the threshold plate into the trunk.
   • Store it in the trunk when not in use.

7. Reinstall Trunk Components:

   • Reinstall the felt trunk liner, threshold, and other components removed during installation.
   • Ensure no wires are pinched or cut during reassembly.

8. Test the Installation:

   • Test and verify the installation with a test light or trailer to ensure proper functionality.

   Warning:

   • Overloading circuits can cause fires. Do not exceed the following ratings:
     • Max. stop/turn light: 7.5 amps
     • Max. tail lights: 7.5 amps
   • Refer to the vehicle owner’s manual and instruction sheet for additional information.

Safety Notes:

• Always wear safety glasses and follow all safety precautions during installation.
• Avoid routing wires near sharp edges or hot components that may damage the harness.
• Follow all vehicle warnings and installation instructions carefully.

Manufacturer Notes:

• Store these instructions for future reference.
• Refer to the vehicle owner’s manual for additional details.

Installation Instructions for T-One® T-Connector for Ford Taurus and Mercury Sable

Part Numbers:

• 118447

Tools Required:

• Trim Panel Remover
• Drill (3/32” Drill Bit)

Step-by-Step Instructions:

1. Prepare the Trunk Area:

   • Open the trunk and temporarily remove the rear threshold plate.
   • Partially remove the felt trunk liner behind the taillights.

2. Locate the Taillight Wiring Harness:

   • On both the driver and passenger sides of the vehicle, locate the taillight wiring harness.
   • The harness will have connection points matching the ends of the T-Connector.
   • Carefully separate the connectors, ensuring the locking tabs are not broken.
   • Clean all connector surfaces to ensure they are free of dirt.

3. Connect the Driver’s Side T-Connector:

   • Insert the T-Connector end with the yellow wire between the driver’s side wiring harness connectors.
   • Lock the connectors into place, ensuring the locking tabs are secure and the connectors are fully inserted.

4. Route the T-Connector Harness to the Passenger Side:

   • Route the T-Connector end with the green wire to the passenger side along the threshold and behind the panels.
   • Repeat step 3 to connect the T-Connector with the green wire to the passenger side wiring harness.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
   • Caution: Verify what is behind the surface before drilling to avoid vehicle damage or personal injury. Do not drill into exposed surfaces.

6. Store the 4-Flat Connector:

   • Route the 4-flat connector from below the threshold plate into the trunk.
   • Store it in the trunk when not in use.

7. Reinstall Trunk Components:

   • Reinstall the felt trunk liner, threshold, and other components removed during installation.
   • Ensure no wires are pinched or cut during reassembly.

8. Test the Installation:

   • Test and verify the installation with a test light or trailer to ensure proper functionality.

   Warning:

   • Overloading circuits can cause fires. Do not exceed the following ratings:
     • Max. stop/turn light: 7.5 amps
     • Max. tail lights: 7.5 amps
   • Refer to the vehicle owner’s manual and instruction sheet for additional information.

Safety Notes:

• Always wear safety glasses and follow all safety precautions during installation.
• Avoid routing wires near sharp edges or hot components that may damage the harness.
• Follow all vehicle warnings and installation instructions carefully.

Manufacturer Notes:

• Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
• Refer to the vehicle owner’s manual for additional details.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
