Installation Instructions for T-Connector Adapter for Ford Taurus X

Part Numbers:

• 118448

Tools Required:

• Trim Panel Puller

Step-by-Step Instructions:

1. Prepare the Rear Cargo Area:

   • Open the rear hatch.
   • Temporarily remove the rear threshold plate.
   • Partially remove the rear interior trim panels on both the driver and passenger sides of the vehicle.
   • Several trim panel fasteners will need to be removed to detach the panels.
   • Set aside all items removed, being careful not to damage parts.

2. Locate the Vehicle’s Taillight Wiring Harness:

   • On both the driver’s and passenger’s sides, locate the vehicle’s taillight wiring harness.
   • The taillight wiring harness will have a connection point matching the ends of the T-Connector.
   • Separate the connectors carefully, ensuring not to break the locking tabs.
   • Ensure all connector surfaces are clean and free of dirt.

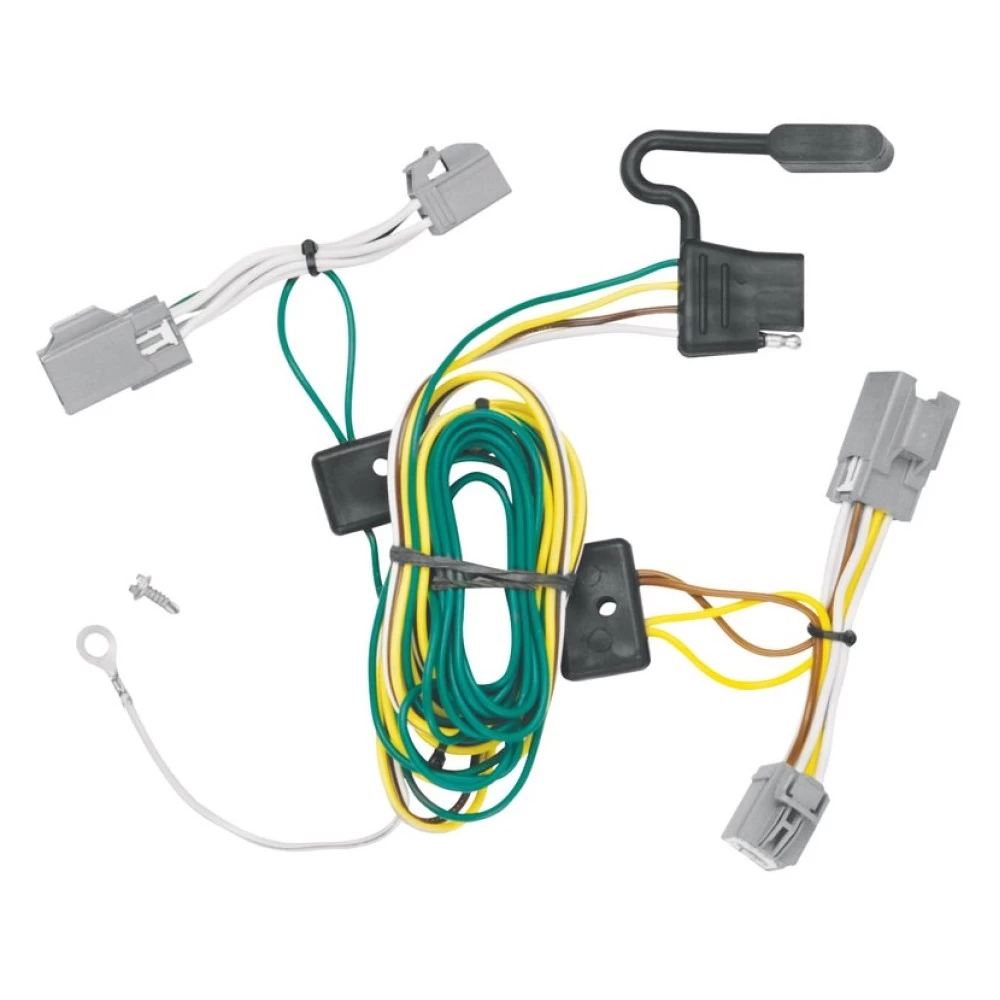

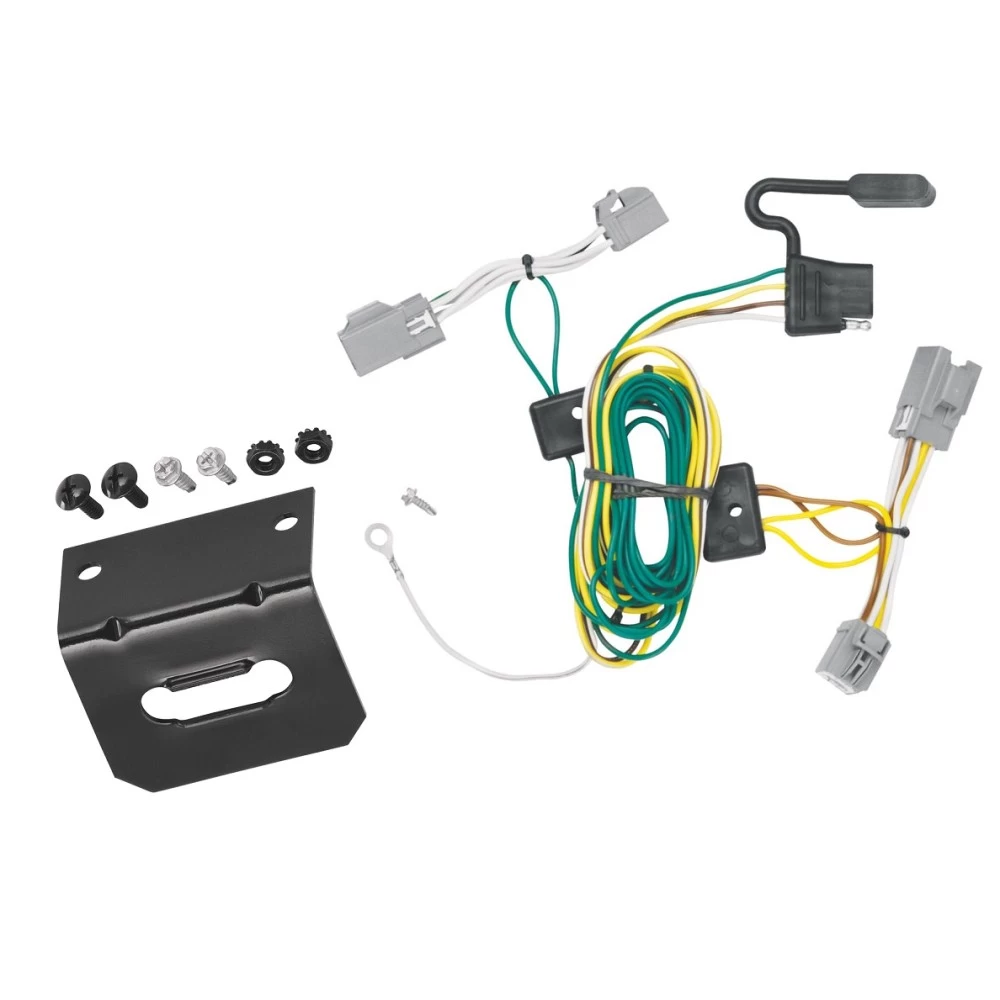

3. Connect the T-Connector:

   • On the driver’s side, insert the T-Connector end with the yellow wire between the vehicle wiring connectors and lock it into place.
   • Be careful not to damage the locking tabs and ensure the connectors are fully inserted and secure.
   • Route the T-Connector end with the green wire to the passenger’s side behind the panels and along the threshold.
   • Repeat Step 3 for the T-Connector with the green wire on the passenger side.

4. Ground the White Wire:

   • Locate a suitable grounding point near the connector.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify what is behind any surface prior to drilling to avoid damage or personal injury. Do not drill into any exposed surfaces.

5. Reassemble the Vehicle:

   • Reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation.
   • Ensure wires are not pinched or cut during reassembly.

6. Store the 4-Flat Connector:

   • Route the 4-flat connector from below the driver’s side trim panel into the rear storage compartment.
   • Store the connector in the storage compartment when not in use.

7. Test the Installation:

   • Test and verify the installation with a test light or trailer.
   • Ensure all connections are complete for the T-Connector to function properly.

   Specifications:

   • Max. stop/turn light: (7.5 amps)
   • Max. tail lights: (7.5 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the lower of the vehicle manufacturer’s rating or the unit specifications.
• Follow all warnings and installation instructions carefully.

Manufacturer Notes:

• Read the vehicle owner’s manual and instruction sheet for additional information.

Installation Instructions for T-Connector Adapter for Ford Taurus X

Part Numbers:

• 118448

Tools Required:

• Trim Panel Puller

Step-by-Step Instructions:

1. Prepare the Rear Cargo Area:

   • Open the rear hatch.
   • Temporarily remove the rear threshold plate.
   • Partially remove the rear interior trim panels on both the driver and passenger sides of the vehicle.
   • Several trim panel fasteners will need to be removed to detach the panels.
   • Set aside all items removed, being careful not to damage parts.

2. Locate the Vehicle’s Taillight Wiring Harness:

   • On both the driver’s and passenger’s sides, locate the vehicle’s taillight wiring harness.
   • The taillight wiring harness will have a connection point matching the ends of the T-Connector.
   • Separate the connectors carefully, ensuring not to break the locking tabs.
   • Ensure all connector surfaces are clean and free of dirt.

3. Connect the T-Connector:

   • On the driver’s side, insert the T-Connector end with the yellow wire between the vehicle wiring connectors and lock it into place.
   • Be careful not to damage the locking tabs and ensure the connectors are fully inserted and secure.
   • Route the T-Connector end with the green wire to the passenger’s side behind the panels and along the threshold.
   • Repeat Step 3 for the T-Connector with the green wire on the passenger side.

4. Ground the White Wire:

   • Locate a suitable grounding point near the connector.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify what is behind any surface prior to drilling to avoid damage or personal injury. Do not drill into any exposed surfaces.

5. Reassemble the Vehicle:

   • Reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation.
   • Ensure wires are not pinched or cut during reassembly.

6. Store the 4-Flat Connector:

   • Route the 4-flat connector from below the driver’s side trim panel into the rear storage compartment.
   • Store the connector in the storage compartment when not in use.

7. Test the Installation:

   • Test and verify the installation with a test light or trailer.
   • Ensure all connections are complete for the T-Connector to function properly.

   Specifications:

   • Max. stop/turn light: (7.5 amps)
   • Max. tail lights: (7.5 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the lower of the vehicle manufacturer’s rating or the unit specifications.
• Follow all warnings and installation instructions carefully.

Manufacturer Notes:

• Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
• Refer to the vehicle owner’s manual and instruction sheet for additional details.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
