Product Details
- Brand: Draw-Tite
- Model: 75299 118448 23 63845 580407 7010
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Get Expert Help

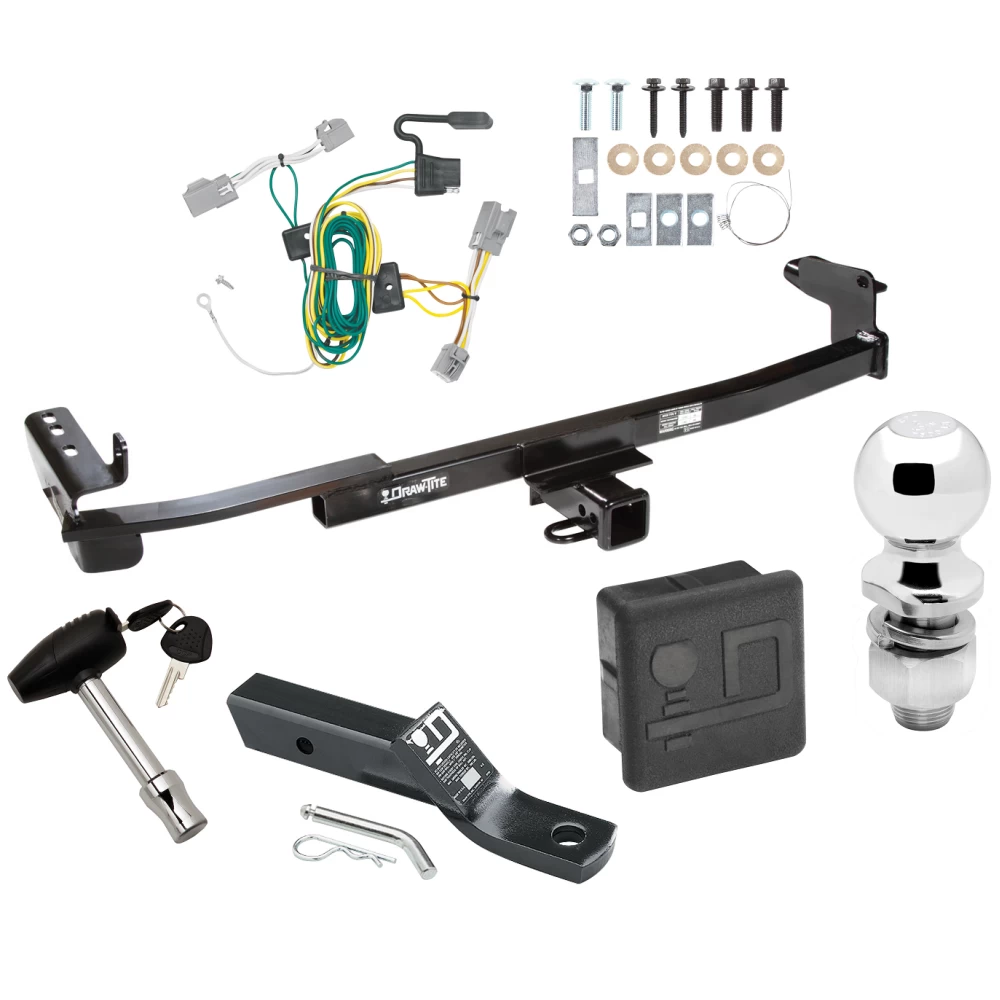

Trailer Tow Hitch For 08-09 Ford Taurus X Deluxe Package Wiring 2" Ball and Lock Install Notes
Installation Instructions for Ford Freestyle, Taurus X, and Mercury Montego/Sable
Part Numbers:
- 75299N
- 44529N
- 87102N
Tools Required:
- Wrenches: 3/4", 13mm, 15mm
- Drill Bits: None
Wiring Access Location:
- SUV1, SUV2, PC3, PC4
Step-by-Step Instructions:
-
Remove Exhaust Hanger:
- Detach the exhaust hanger bracket from the driver’s side frame rail and lower the carbon canister on the passenger side (if present).
-
Install Carriage Bolts and Blocks:
- Insert 7/16" x 1-1/4" GR5 carriage bolts with spacer blocks through access holes at the end of the frame.
- Place additional spacer blocks and secure bolts as shown in the diagram.
-
Position the Hitch:
- Raise the hitch into position, aligning it with the installed carriage bolts and the frame rail.
-
Attach Forward Fasteners:
- Secure the forward holes using M8 x 1.25 x 35mm CL9.8 bolts with conical toothed washers.
-
Tighten Fasteners:
- Tighten all fasteners as follows:
- M8 fasteners: 23 lb-ft (31 N·m)
- 7/16" fasteners: 50 lb-ft (68 N·m)
- Tighten all fasteners as follows:
-
Reattach Exhaust Hanger:
- Reattach the exhaust hanger bracket and the carbon canister.
-
Final Inspection:
- Ensure all bolts are tightened to specification, and inspect the installation for any interference with surrounding components.
Hardware List:
- (4) 7/16"-14 x 1-1/4" GR5 Carriage Bolts
- (4) 0.25" x 1.00" x 2.00" Spacer Blocks
- (4) 7/16" Conical Toothed Washers
- (4) 7/16"-14 Hex Nuts
- (2) M8 x 1.25 x 35mm CL9.8 Hex Bolts
- (2) M8 Conical Toothed Washers
Torque Specifications:
- Tighten all M8 CL9.8 fasteners to 23 lb-ft (31 N·m).
- Tighten all 7/16" GR5 fasteners to 50 lb-ft (68 N·m).
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,814 kg), Max Tongue Weight 400 lbs (181 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,588 kg), Max Tongue Weight 350 lbs (159 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Vehicles (Generic)
Part Numbers:
- 75299N
- 44529N
- 87102N
Tools Required:
- Wrenches: 3/4", 13mm, 15mm
- Drill Bits: None
Wiring Access Location:
- SUV1, SUV2, PC3, PC4
Step-by-Step Instructions:
-
Remove Exhaust Hanger:
- Detach the exhaust hanger bracket from the driver’s side frame rail and lower the carbon canister on the passenger side (if present).
-
Install Carriage Bolts and Blocks:
- Insert 7/16" x 1-1/4" GR5 carriage bolts with spacer blocks through access holes at the end of the frame.
- Place additional spacer blocks and secure bolts as shown in the diagram.
-
Position the Hitch:
- Raise the hitch into position, aligning it with the installed carriage bolts and the frame rail.
-
Attach Forward Fasteners:
- Secure the forward holes using M8 x 1.25 x 35mm CL9.8 bolts with conical toothed washers.
-
Tighten Fasteners:
- Tighten all fasteners as follows:
- M8 fasteners: 23 lb-ft (31 N·m)
- 7/16" fasteners: 50 lb-ft (68 N·m)
- Tighten all fasteners as follows:
-
Reattach Exhaust Hanger:
- Reattach the exhaust hanger bracket and the carbon canister.
-
Final Inspection:
- Ensure all bolts are tightened to specification, and inspect the installation for any interference with surrounding components.
Hardware List:
- (4) 7/16"-14 x 1-1/4" GR5 Carriage Bolts
- (4) 0.25" x 1.00" x 2.00" Spacer Blocks
- (4) 7/16" Conical Toothed Washers
- (4) 7/16"-14 Hex Nuts
- (2) M8 x 1.25 x 35mm CL9.8 Hex Bolts
- (2) M8 Conical Toothed Washers
Torque Specifications:
- Tighten all M8 CL9.8 fasteners to 23 lb-ft (31 N·m).
- Tighten all 7/16" GR5 fasteners to 50 lb-ft (68 N·m).
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,814 kg), Max Tongue Weight 400 lbs (181 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,588 kg), Max Tongue Weight 350 lbs (159 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for T-Connector Adapter for Ford Taurus X
Part Numbers:
- 118448
Tools Required:
- Trim Panel Puller
Step-by-Step Instructions:
-
Prepare the Rear Cargo Area:
- Open the rear hatch.
- Temporarily remove the rear threshold plate.
- Partially remove the rear interior trim panels on both the driver and passenger sides of the vehicle.
- Several trim panel fasteners will need to be removed to detach the panels.
- Set aside all items removed, being careful not to damage parts.
-
Locate the Vehicle’s Taillight Wiring Harness:
- On both the driver’s and passenger’s sides, locate the vehicle’s taillight wiring harness.
- The taillight wiring harness will have a connection point matching the ends of the T-Connector.
- Separate the connectors carefully, ensuring not to break the locking tabs.
- Ensure all connector surfaces are clean and free of dirt.
-
Connect the T-Connector:
- On the driver’s side, insert the T-Connector end with the yellow wire between the vehicle wiring connectors and lock it into place.
- Be careful not to damage the locking tabs and ensure the connectors are fully inserted and secure.
- Route the T-Connector end with the green wire to the passenger’s side behind the panels and along the threshold.
- Repeat Step 3 for the T-Connector with the green wire on the passenger side.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind any surface prior to drilling to avoid damage or personal injury. Do not drill into any exposed surfaces.
-
Reassemble the Vehicle:
- Reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation.
- Ensure wires are not pinched or cut during reassembly.
-
Store the 4-Flat Connector:
- Route the 4-flat connector from below the driver’s side trim panel into the rear storage compartment.
- Store the connector in the storage compartment when not in use.
-
Test the Installation:
- Test and verify the installation with a test light or trailer.
- Ensure all connections are complete for the T-Connector to function properly.
Specifications:
- Max. stop/turn light: (7.5 amps)
- Max. tail lights: (7.5 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the vehicle manufacturer’s rating or the unit specifications.
- Follow all warnings and installation instructions carefully.
Manufacturer Notes:
- Read the vehicle owner’s manual and instruction sheet for additional information.
Installation Instructions for T-Connector Adapter for Ford Taurus X
Part Numbers:
- 118448
Tools Required:
- Trim Panel Puller
Step-by-Step Instructions:
-
Prepare the Rear Cargo Area:
- Open the rear hatch.
- Temporarily remove the rear threshold plate.
- Partially remove the rear interior trim panels on both the driver and passenger sides of the vehicle.
- Several trim panel fasteners will need to be removed to detach the panels.
- Set aside all items removed, being careful not to damage parts.
-
Locate the Vehicle’s Taillight Wiring Harness:
- On both the driver’s and passenger’s sides, locate the vehicle’s taillight wiring harness.
- The taillight wiring harness will have a connection point matching the ends of the T-Connector.
- Separate the connectors carefully, ensuring not to break the locking tabs.
- Ensure all connector surfaces are clean and free of dirt.
-
Connect the T-Connector:
- On the driver’s side, insert the T-Connector end with the yellow wire between the vehicle wiring connectors and lock it into place.
- Be careful not to damage the locking tabs and ensure the connectors are fully inserted and secure.
- Route the T-Connector end with the green wire to the passenger’s side behind the panels and along the threshold.
- Repeat Step 3 for the T-Connector with the green wire on the passenger side.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind any surface prior to drilling to avoid damage or personal injury. Do not drill into any exposed surfaces.
-
Reassemble the Vehicle:
- Reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation.
- Ensure wires are not pinched or cut during reassembly.
-
Store the 4-Flat Connector:
- Route the 4-flat connector from below the driver’s side trim panel into the rear storage compartment.
- Store the connector in the storage compartment when not in use.
-
Test the Installation:
- Test and verify the installation with a test light or trailer.
- Ensure all connections are complete for the T-Connector to function properly.
Specifications:
- Max. stop/turn light: (7.5 amps)
- Max. tail lights: (7.5 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the vehicle manufacturer’s rating or the unit specifications.
- Follow all warnings and installation instructions carefully.
Manufacturer Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- Refer to the vehicle owner’s manual and instruction sheet for additional details.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
