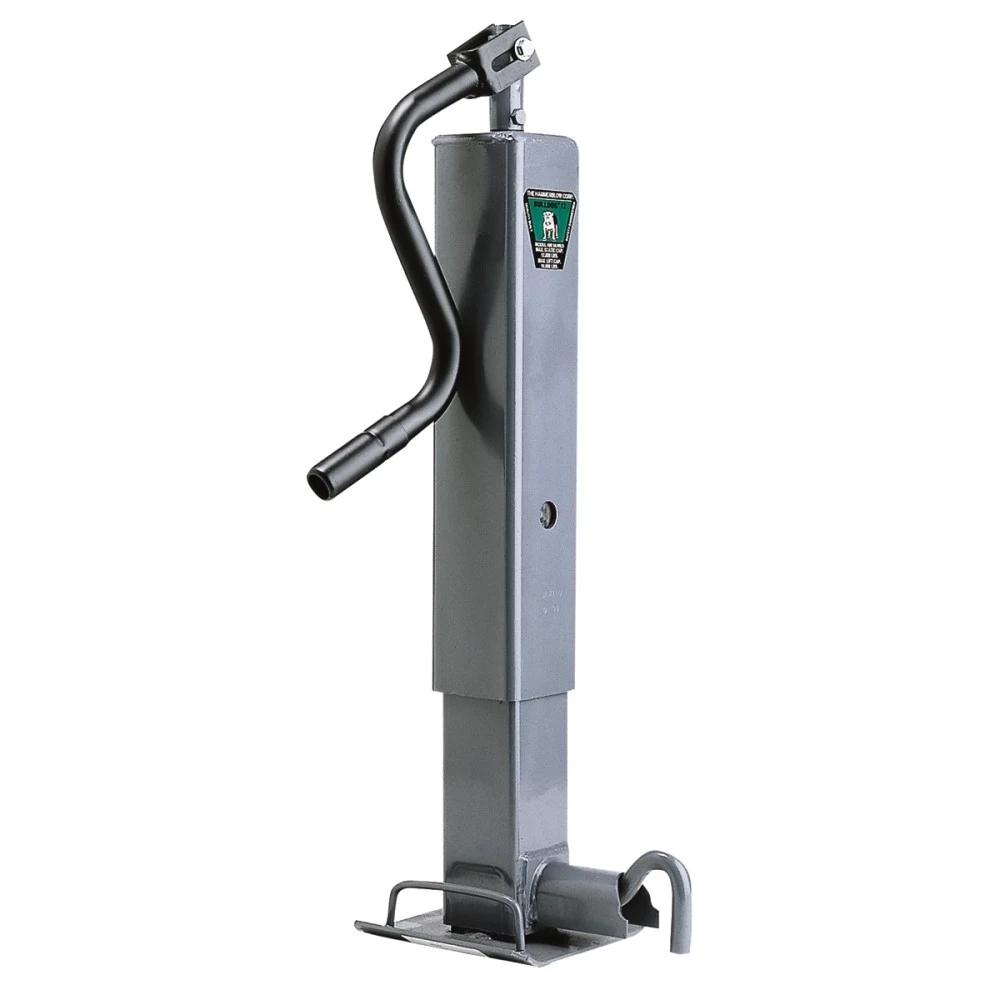

Bulldog 12,000 lbs. Square Trailer Jack Topwind 26" Lift Drop Leg Non Spring Return w/ Crank
Model: 182304Strong, durable, and sturdy, the BULLDOG 12,000 lbs. support capacity square jack is the BIG reason why BULLDOG has carried the load in agricultural, construction, heavy-duty utility, and horse/livestock trailer industries since 1923. All BULLDOG 4" square jacks are rated for 12,000 lbs. support capacity and 10,000 lbs. lift capacity. The strength of the product, plus the wide variety of styles, makes this jack the best choice in its product class.
-
4" square tubing, 7-gauge superior alloy steel
-
Painted outer tube, inner tube, and drop leg
-
Drop leg option with 5 positioning holes
-
Easy-access gear box with grease fitting for routine maintenance
-
12.5" screw travel, 13.5" of additional adjustment with drop leg
-
Painted (with or without labels) or powder paint optional
-
Limited 5-year warranty
-
ASABE Compliant
Specifications:
-
Support Capacity: 12,000 lbs.
-
Lift Capacity: 10,000 lbs.
-
Retracted Bracket Height: 23.4"
-
Extended Bracket Height: 49.4"
-
Travel/Lift: 12.5"
-
This Jack is intended to be welded on directly onto your application
-
Non Spring Return Drop Leg w/ heavy-duty base
-
Drop Leg offers 13.50" of additional adjustment
-
Crank included
-
Topwind model - bushing in top cap, eagle claw grip
-
4" Tubing width
$289 99
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$289 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $72.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Bulldog
- Model: 182304
- UPC: 086693823041
- Includes: 12K Drop Leg Jack
Description
Get Expert Help
Bulldog 12,000 lbs. Square Trailer Jack Topwind 26" Lift Drop Leg Non Spring Return w/ Crank Install Notes
Installation Instructions for 12,000 lb Square Tube Jack
General Installation Notes:
- Follow all instructions provided without modifications.
- Never position any part of the body under the jack or the load being supported.
- Fully retract and/or rotate the jack before towing.
- Ensure the drop leg pin is fully inserted before using the jack.
- Block wheels to prevent rolling during operation or trailer coupling.
- Never exceed the rated capacity of the jack, footplate, or caster wheel. Refer to markings or decals for capacity limits.
- Avoid excessive side forces that may cause jack failure.
- Replace bent, broken, or worn parts before use.
- Use only on flat surfaces. For tandem applications, align jacks to share the load equally.
- All welding must be performed by an AWS-certified welder.
- Save these instructions for future reference.
Tools Required:
- Torque wrench
- Welding equipment (if applicable)
Step-by-Step Instructions:
Direct Mount to Load-Bearing Member:
- Welding must be performed by an AWS-certified welder.
- Apply three 2-inch-long 1/4” fillet welds on both sides of the jack along the contacting surface.
- Space the welds as far apart as possible for maximum load strength.
- For tandem applications, align the jacks carefully to ensure they raise and lower together, sharing the load equally.
Weld-On Pivot Tube Mounting:
- Weld the non-beveled side of the pivot tube to the trailer tongue using a 1/4” fillet weld.
- Align the pivot mount holes vertically.
- Mate the jack to the pivot tube and secure it with the supplied pin.
Drop Leg Operation:
Spring Return Drop Leg:
- Verify the jack is not under load.
- Place your foot on the footplate to control the drop leg's return.
- Rotate the drop leg pin to disengage and carefully move the leg to the desired position.
- Rotate the pin back to engage it into the adjustment hole and ensure it is fully seated.
- If clearance exists between the pin and housing, lubricate and re-seat the pin.
Non-Spring Return Drop Leg:
- Verify the jack is not under load.
- Grasp the handle of the footplate to control the descent of the drop leg.
- Rotate the drop leg pin to disengage and move the leg to the desired position.
- Rotate the pin back to engage it into the adjustment hole and ensure it is fully seated.
- If clearance exists between the pin and housing, lubricate and re-seat the pin.
Maintenance:
- Annually lubricate gears, bushings, and screws with automotive EP2 grease.
- For side-wind models, use a grease gun at lubrication points near the input shaft.
- Apply lightweight oil to input shaft bushings and drop leg pin assemblies.
- Keep all components clean and lubricated regularly.
Safety Notes:
- Fully retract and rotate the jack before towing.
- Keep clear of pinch points during operation.
- Never adjust the drop leg while the jack is under load.
Limited Warranty:
- Coverage: 5 years against material defects under normal use.
- Exclusions: Normal wear and tear, misuse, overloading, improper installation, or unauthorized modifications.
- For complete warranty instructions, please download the full installation PDF.
Additional Information:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
