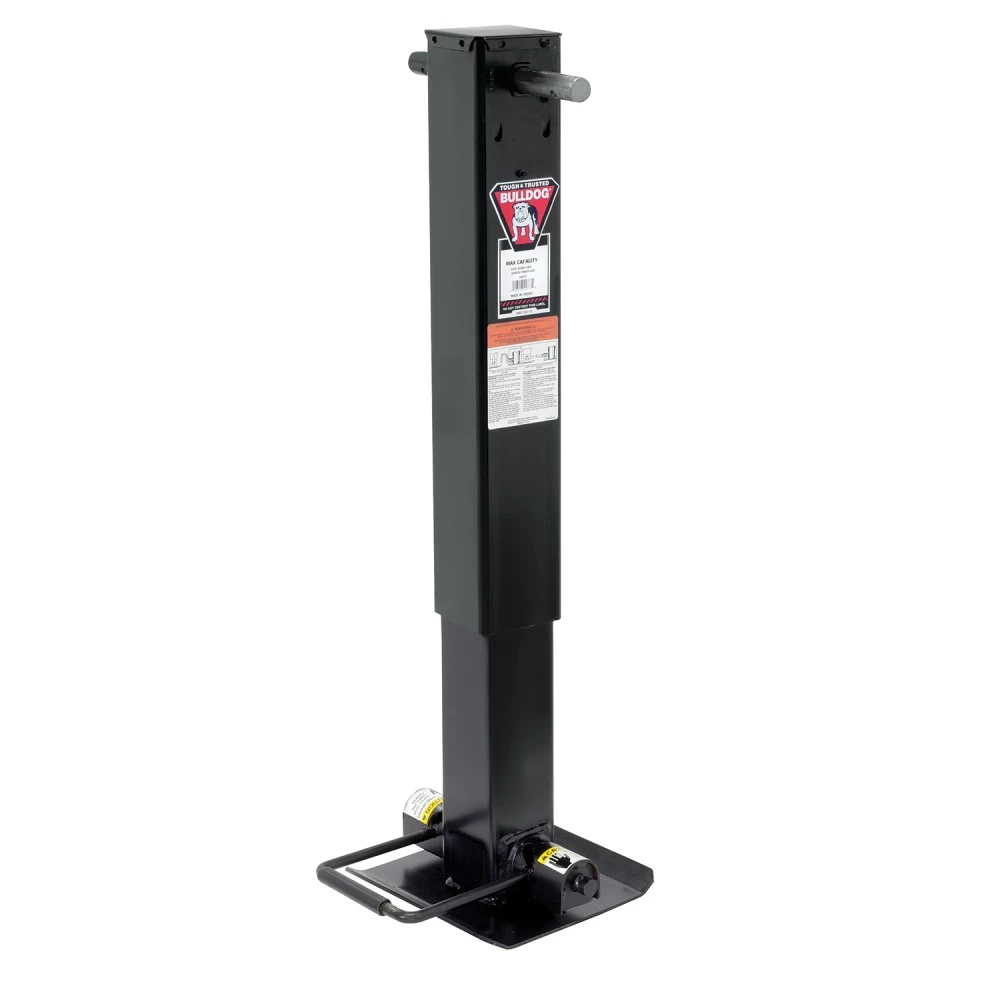

Bulldog 25,000 lbs Square Trailer Jack Drop Leg Sidewind 26" Lift Spring Return
Model: 182701TWIN CAM DROP LEG JACK The Industry’s Strongest Drop Leg Jack. The BULLDOG® Twin Cam™ features a convenient, enclosed pin mechanism with “twin cam” action that will quickly make this heavy duty, drop leg jack the industry standard.
-
The BULLDOG® Twin Cam Drop Leg mechanism allows an increase in the vertical static capacity by using two ¾” pins to transfer forces between the drop leg and inner tube of the jack.
-
The unique Twin Cam drop leg mechanism actuates the drop leg pins in both directions, giving the operator full control over engagement and disengagement of the drop leg pins. The design does not rely on spring pressure alone to keep the pins in the locked position. Patent pending.
-
The enclosed Twin Cam drop leg mechanism keeps dirt and debris from interfering with the engagement of the drop leg pins.
-
The Twin Cam drop leg mechanism maintains tighter alignment between the drop leg tube and inner tube by having engagement on both sides of the drop leg tube.
Features:
-
Easy access grease fittings allow for lubrication of internal jack gears and jack screw/nut.
-
Patented screw stop prevents screw and/or nut damage when the jack is fully extended, keeping the screw in good condition for maximum screw/nut cycle life.
-
Patented assembly design makes the gears, jack screw/nut, and other internal components easily serviceable. 12.5” of screw travel.
-
Drop Leg features 5 positions with 13.5” of adjustment
-
10” X 10” heavy gauge steel foot plate.
-
Heavy duty 1” diameter steel input shaft.
Specifications:
-
Support Capacity: 25,000 lbs.
-
Lift Capacity: 12,500 lbs.
-
Retracted Height: 28.5"
-
Extended Height: 54.5"
-
Travel/Lift: 12.5"
-
Spring Return Drop Leg features 5 positions with 13.5” of adjustment
-
Crank Sold Separately
-
4" Tubing width
-
The shaft on the jack is 1 inch
Two of these Jacks can be used in Tandem. When used in tandem two one speed Jacks will have Static capacity of 50,000 lbs and Lift Capacity of 12,500. Bulldog Electric Powered Drive Motor Kit can be added as well whether getting one Jack or Two, use part number 1824200100.
This Jack can also be combined in Tandem with our Two Speed Jack part number 183750 . When this single speed Jack is used in tandem with our Two Speed Jack Static capacity of 50,000 lbs and Lift Capacity of 45,000. If using in tandem with a two speed jack you can also add the Bulldog Electric Powered Drive Motor Kit, use part number 1824180100. This is a 2-Speed Motor Kit and can be added to any Two Speed Jack, or a 2-Speed/1-Speed tandem application
$329 99
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$329 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $82.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Bulldog
- Model: 182701
- UPC: 016118113730
- Includes: 1-Speed 25K Dual Cam Jack
Description
Get Expert Help
Bulldog 25,000 lbs Square Trailer Jack Drop Leg Sidewind 26" Lift Spring Return Install Notes
Installation Instructions for 25,000 lb Square Tube Jack
General Installation Notes:
- Follow these instructions carefully without modifications or alterations.
- Do not place any part of your body under the jack or the load being supported.
- Fully retract and/or rotate the jack before towing.
- Verify the drop leg pin is fully inserted before using the jack.
- Block wheels to prevent rolling during operation.
- Never exceed the maximum rated capacity as marked on the product.
- Avoid excessive side forces to prevent jack failure.
- Replace any bent, broken, or worn parts before use.
- Use only on flat surfaces. For tandem applications, align jacks to share the load equally.
- All welding must be performed by an AWS-certified welder.
- Before installation, check for interference in all positions, including handle swing (for both gears) and swivel positions.
- Verify there is no interference after installation is complete.
Tools Required:
- Torque wrench
- Welding equipment (if applicable)
Step-by-Step Instructions:
Direct Mount to Load-Bearing Member:
- All welding must be performed by an AWS-certified welder.
- Apply three 2-inch-long 1/4” fillet welds on both sides of the jack along the contacting surface. Space welds as far apart as possible for maximum load strength.
- For tandem applications, align jacks carefully to ensure they raise and lower together, sharing the load equally.
Weld-On Pivot Tube Mounting:
- Weld the non-beveled side of the pivot tube to the trailer tongue using a 1/4” fillet weld.
- Align the pivot mount holes vertically.
- Mate the jack to the pivot tube and secure it with the supplied pin.
Drop Leg Operation:
Spring Return Drop Leg:
- Ensure the jack is not under load.
- Place your foot on the footplate to control the drop leg's return.
- Rotate the drop leg pin handle to disengage, then carefully move the leg to the desired position.
- Rotate the pin handle to engage it into the adjustment holes and ensure it is fully seated.
- Check for no clearance between the pin handle and the cam slot. If not fully engaged, do not use the jack.
Non-Spring Return Drop Leg:
- Ensure the jack is not under load.
- Grasp the handle of the footplate to control the descent of the drop leg.
- Rotate the drop leg pin handle to disengage and move the leg to the desired position.
- Rotate the pin handle to engage it into the adjustment holes and ensure it is fully seated.
- Check for no clearance between the pin handle and the cam slot. If not fully engaged, do not use the jack.
Maintenance:
- Annually lubricate gears, bushings, and screws with automotive EP2 grease.
- For side-wind models, use a grease gun at lubrication points near the input shaft.
- Apply lightweight oil to the input shaft bushings and drop leg pin assembly.
- Keep the drop leg pin and twin cam mechanism clean and lubricated monthly.
Safety Notes:
- Fully retract and rotate the jack before towing.
- Keep clear of pinch points and moving components during operation.
- Do not adjust the drop leg while the jack is under load.
Limited Warranty:
- Coverage: 5 years against material defects under normal use.
- Exclusions: Normal wear and tear, misuse, overloading, improper installation, and unauthorized modifications.
- For complete warranty information, refer to the full installation guide.
Technical Support:
For technical support or assistance:
- Visit www.trailerjacks.com or call 877-869-6690.
WARNING: Failure to follow these instructions may result in property damage, serious injury, or death.
