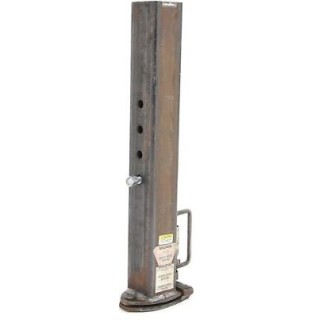

Bulldog Square Gooseneck Trailer Coupler 25,000 lbs 4" Inner Tube Only 2-5/16" Hitch Ball
25K Square Gooseneck Coupler, 4" Inner Tube w/Pin (Without Outer Tube)
You won’t find a coupler that’s faster or easier to use than the BULLDOG square gooseneck from Horizon Global. Its user-friendly design makes hookup and release swift and secure.
• Easy-grip locking handle is accessible from any position
• Self-centering locking plate lets you miss the ball by more than an inch
• Tight ball fit reduces jarring when changing speeds or on rough roads
• Heavy-duty high-strength fabricated steel components are as strong as heavy cast iron but lighter and less brittle
• User-friendly design enables quick, easy hookup and release
• Locking handle cover protects working parts
• Cam locking pin affords easy vertical adjustment
• Pinch bolt design
| Part Number | 0288660300 |
| Brand | Bulldog |
| Capacity | 25,000 lbs. |
| Retracted Height | 30.75" |
| Extended Height | 38.75" (when used w/ outer tube) |
| Range of Adjustment | 8" (when used w/ outer tube) |
| Ball SIze | 2-5/16" |
| Inner Tube Diameter | 4" |
| Outer Tube Diameter | 4.5" (outer tube not included) |
| Warranty | 5 Year |
| Installation Instructions |  |
About Bulldog
This part is a perfect choice for your Cattle horse Livestock and other trailers made by manufacturers like Big Tex Kaufman PJ ATC Gatormade Anderson Load Trail GN WITZCO Wells Cargo Barret Red Rhino Middlebury Elite Lark Snake River Load N Go and many more
